Primary 6 PSLE Mathematics Quiz - Measurement

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: ___________ / 40

Duration: 50 minutes
Total Marks: 40

Instructions:

• This quiz has 20 questions on the topic of Measurement.
• Section A: 10 short questions (1 mark each). Section B: 6 written questions (2 marks each). Section C: 4 problem-solving questions (3 marks each).
• Show your working clearly. Use $\pi = 3.14$ where needed.
• Write all units in your answers.

---

Section A (Questions 1–10, 1 mark each)

1. Convert $3.5$ km to metres.
Answer: __________ m

2. Convert $2500$ cm to metres.
Answer: __________ m

3. Convert $2$ kg $300$ g to grams.
Answer: __________ g

4. Convert $4.2$ L to millilitres.
Answer: __________ mL

5. A cuboid has length $5$ cm, width $3$ cm, height $2$ cm. Find its volume.
Answer: __________ cm$^3$

6. A cube has edge length $4$ cm. Find its volume.
Answer: __________ cm$^3$

7. Find the circumference of a circle with radius $7$ cm. (Use $\pi = \frac{22}{7}$)
Answer: __________ cm

8. Find the area of a circle with radius $5$ cm. (Use $\pi = 3.14$)
Answer: __________ cm$^2$

9. A container has base area $20$ cm$^2$ and height $8$ cm. Find its volume.
Answer: __________ cm$^3$

10. Convert $1.5$ hours to minutes.
Answer: __________ min

---

Section B (Questions 11–16, 2 marks each)

11. A rectangular tank measures $30$ cm by $20$ cm by $15$ cm. Find its volume in litres.
Answer: __________ L

12. A cube has volume $343$ cm$^3$. Find the length of one edge.
Answer: __________ cm

13. A circle has diameter $14$ cm. Find its area. (Use $\pi = \frac{22}{7}$)
Answer: __________ cm$^2$

14. A cuboid has volume $480$ cm$^3$, length $10$ cm and width $6$ cm. Find its height.
Answer: __________ cm

15. A semicircle has radius $6$ cm. Find its perimeter. (Use $\pi = 3.14$)
Answer: __________ cm

16. A rectangular field is $80$ m long and $50$ m wide. Find its area in hectares. ($1$ ha $= 10000$ m$^2$)
Answer: __________ ha

---

Section C (Questions 17–20, 3 marks each)

17. A cuboid has a square base of side $9$ cm. Its volume is $729$ cm$^3$. Find its height and its total surface area.
Answer: height = __________ cm, surface area = __________ cm$^2$

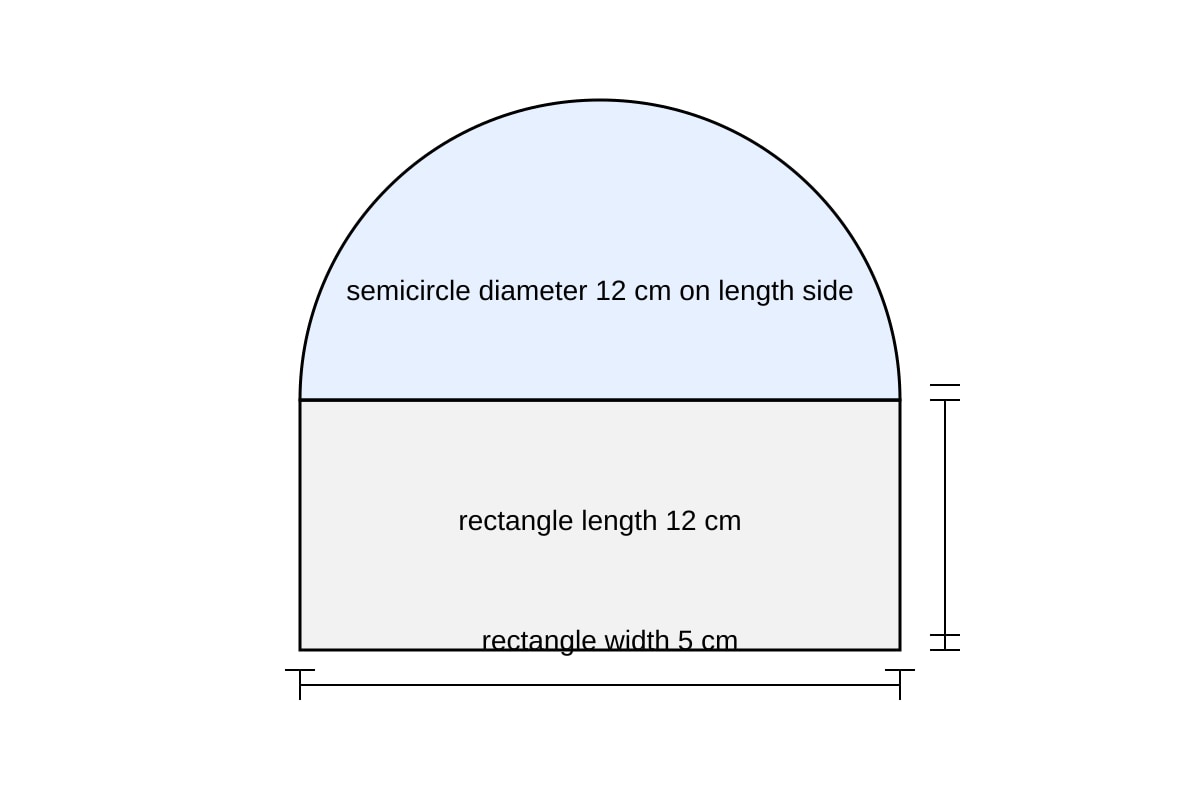

18. A figure is made of a rectangle $12$ cm by $5$ cm joined to a semicircle of diameter $12$ cm on its longer side. Find the total area of the figure. (Use $\pi = 3.14$)
Answer: __________ cm$^2$

Generated diagram for Q18.

19. A tank $40$ cm by $25$ cm by $30$ cm is filled with water to a height of $18$ cm. Find the volume of water in litres. If the water is poured into a cube container of edge $20$ cm, what is the height of water in the cube?
Answer: water volume = __________ L, height in cube = __________ cm

20. A quarter circle has radius $8$ cm. Find its arc length and area. (Use $\pi = 3.14$)
Answer: arc length = __________ cm, area = __________ cm$^2$ </stage3_quiz_answers_md>

<stage3_quiz_answers_md>

Primary 6 PSLE Mathematics Quiz - Measurement (Answer Key)

Total Marks: 40
Topic: Measurement

---

Section A (1 mark each)

1. $3.5 \times 1000 = 3500$ m.
Answer: 3500 m
Teaching note: $1$ km $= 1000$ m, so multiply by $1000$.

2. $2500 \div 100 = 25$ m.
Answer: 25 m
Teaching note: $100$ cm $= 1$ m, so divide by $100$.

3. $2$ kg $= 2000$ g, plus $300$ g $= 2300$ g.
Answer: 2300 g

4. $4.2 \times 1000 = 4200$ mL.
Answer: 4200 mL
Teaching note: $1$ L $= 1000$ mL.

5. $V = 5 \times 3 \times 2 = 30$ cm$^3$.
Answer: 30 cm$^3$

6. $V = 4 \times 4 \times 4 = 64$ cm$^3$.
Answer: 64 cm$^3$

7. $C = 2 \times \frac{22}{7} \times 7 = 44$ cm.
Answer: 44 cm

8. $A = 3.14 \times 5^2 = 3.14 \times 25 = 78.5$ cm$^2$.
Answer: 78.5 cm$^2$

9. $V = 20 \times 8 = 160$ cm$^3$.
Answer: 160 cm$^3$

10. $1.5 \times 60 = 90$ min.
Answer: 90 min

---

Section B (2 marks each)

11. Volume $= 30 \times 20 \times 15 = 9000$ cm$^3$. $9000$ cm$^3 = 9$ L (since $1000$ cm$^3 = 1$ L).
Answer: 9 L
Marks: 1 for volume in cm$^3$, 1 for conversion to L.

12. Edge $= \sqrt[3]{343} = 7$ cm (since $7^3 = 343$).
Answer: 7 cm

13. Radius $= 7$ cm, $A = \frac{22}{7} \times 7^2 = \frac{22}{7} \times 49 = 154$ cm$^2$.
Answer: 154 cm$^2$

14. Height $= 480 \div (10 \times 6) = 480 \div 60 = 8$ cm.
Answer: 8 cm

15. Perimeter $=$ straight side (diameter $12$ cm) $+$ curved arc $(\frac{1}{2} \times 2 \times 3.14 \times 6 = 18.84$ cm) $= 30.84$ cm.
Answer: 30.84 cm
Common mistake: forgetting the diameter in perimeter.

16. Area $= 80 \times 50 = 4000$ m$^2$. In ha: $4000 \div 10000 = 0.4$ ha.
Answer: 0.4 ha

---

Section C (3 marks each)

17. Height $= 729 \div (9 \times 9) = 729 \div 81 = 9$ cm.
Surface area $= 2 \times (9 \times 9) + 4 \times (9 \times 9) = 2 \times 81 + 4 \times 81 = 486$ cm$^2$.
Answer: height = 9 cm, surface area = 486 cm$^2$
Marks: 1 height, 2 surface area.

18. Rectangle area $= 12 \times 5 = 60$ cm$^2$. Semicircle radius $= 6$ cm, area $= \frac{1}{2} \times 3.14 \times 6^2 = 56.52$ cm$^2$. Total $= 116.52$ cm$^2$.
Answer: 116.52 cm$^2$
Image needed: rectangle 12 by 5 with semicircle diameter 12 on length.

19. Water volume $= 40 \times 25 \times 18 = 18000$ cm$^3 = 18$ L.
Cube base $= 20 \times 20 = 400$ cm$^2$, height $= 18000 \div 400 = 45$ cm.
Answer: 18 L, 45 cm
Marks: 1 volume, 1 conversion, 1 height.

20. Arc length $= \frac{1}{4} \times 2 \times 3.14 \times 8 = 12.56$ cm.
Area $= \frac{1}{4} \times 3.14 \times 8^2 = 50.24$ cm$^2$.
Answer: 12.56 cm, 50.24 cm$^2$ </stage3_quiz_answers_md>
