Primary 5 Science Quiz - Materials

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: ___________ / 40

Duration: 50 minutes
Total Marks: 40

Instructions:

This quiz has 20 questions on the topic of Materials.
Section A: 10 multiple-choice questions (1 mark each).
Section B: 6 short-answer questions (2 marks each).
Section C: 4 structured questions with subparts (total 8 marks).
Write your answers clearly in the spaces provided.

Section A: Multiple Choice (1 mark each)

Which of the following is a property of a solid?
A. Has no fixed shape but fixed volume
B. Has a fixed shape and fixed volume
C. Has no fixed shape and no fixed volume
D. Takes the shape of its container completely
Answer: ______
A material allows electricity to flow through it easily. It is most likely a ______.
A. insulator
B. conductor
C. non-metal
D. polymer
Answer: ______
Which of these is an insulator?
A. Copper wire
B. Iron nail
C. Rubber band
D. Aluminium foil
Answer: ______
When a liquid changes into a gas at its surface, the process is called ______.
A. boiling
B. evaporation
C. condensation
D. melting
Answer: ______
Ice melts at ______.
A. 0 °C
B. 10 °C
C. 50 °C
D. 100 °C
Answer: ______
Water vapour in the air cools and becomes liquid water droplets on a cold glass. This shows ______.
A. evaporation
B. condensation
C. freezing
D. melting
Answer: ______
Which material would be best to use as a handle for a hot pot?
A. Steel
B. Plastic
C. Copper
D. Aluminium
Answer: ______
A closed circuit has ______.
A. a broken wire
B. a switch that is open
C. a complete path for current
D. no battery
Answer: ______
Which of the following is a natural material?
A. Nylon
B. Cotton
C. Plastic
D. Glass
Answer: ______
When water boils, it changes from liquid to gas at ______.
A. 0 °C
B. 50 °C
C. 100 °C
D. 200 °C
Answer: ______

Section B: Short Answer (2 marks each)

State one property of a liquid and one property of a gas.
Explain why a wooden spoon is used to stir hot soup instead of a metal spoon.
Name two conductors and two insulators commonly used in electrical items.
Describe what happens to the particles of ice when it is heated and melts.
A bulb does not light up in a circuit. Give two possible reasons why.
State the boiling point of water and the melting point of ice.

Section C: Structured Questions (8 marks total)

(a) Classify each material as conductor or insulator: glass, silver, wood, copper. [2]

(b) Explain why insulators are important in electrical safety. [1]
(a) What is evaporation? [1]

(b) Name two factors that can increase the rate of evaporation. [2]

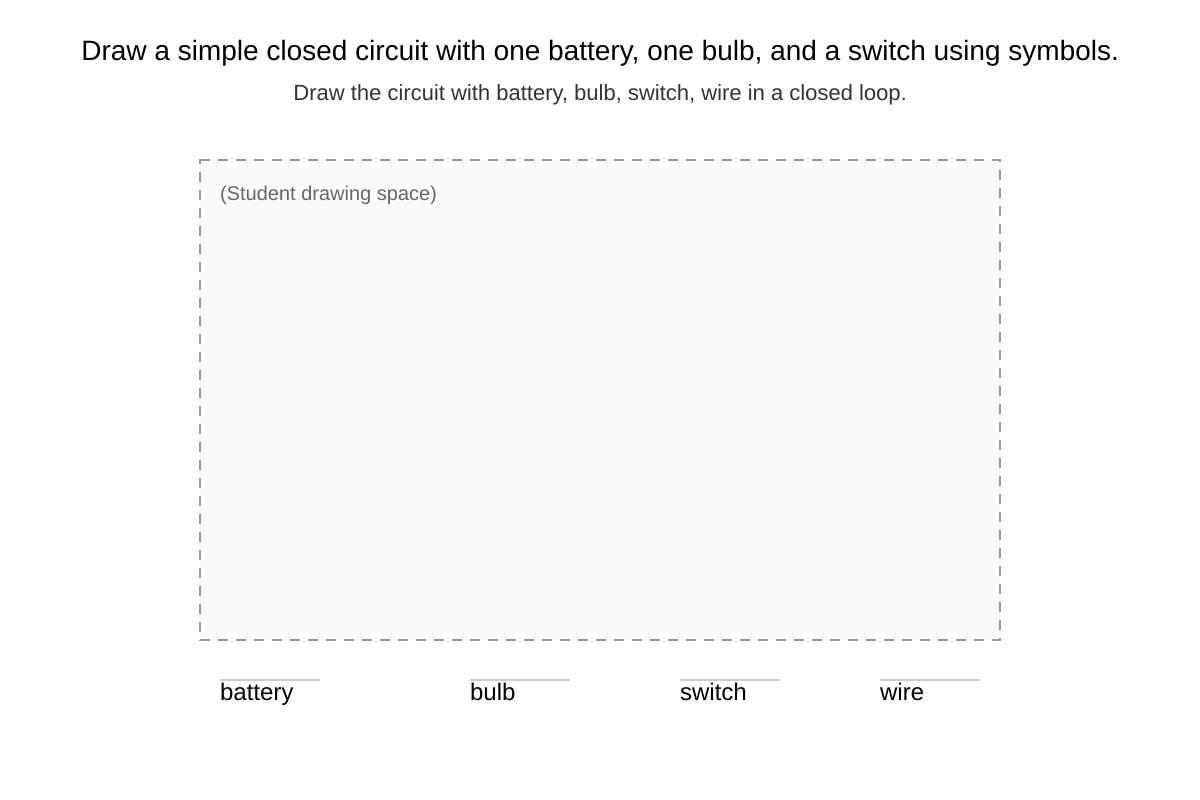

(a) Draw a simple closed circuit with one battery, one bulb, and a switch using symbols. [1]
(Use

Diagram for 19 (P5 Science)

Generated diagram for 19.

(b) What flows in the circuit to light the bulb? [1]
___________________________________________________________

20. (a) State the three states of matter. [1]
___________________________________________________________
(b) A student places a saucer of water in the sun. After an hour, the water amount decreases. Name the process and explain. [2]
___________________________________________________________
___________________________________________________________

Answers

Primary 5 Science Quiz - Materials: Answer Key

Total Marks: 40
Topic: Materials

Section A: Multiple Choice (1 mark each)

B – A solid has a fixed shape and fixed volume because its particles are tightly packed in place.
Teaching note: Liquids have fixed volume but take container shape; gases have neither fixed.
B – Conductor. Materials that allow electricity to flow easily are conductors (e.g., metals).
Common mistake: Choosing non-metal; some non-metals are insulators.
C – Rubber band is an insulator. Copper, iron, aluminium are conductors.
Marking: 1 mark for C.
B – Evaporation is liquid → gas at surface below boiling point.
Note: Boiling happens throughout liquid at 100 °C.
A – Melting point of ice = 0 °C (from syllabus).
Common mistake: 10 °C is a typo seen in drafts; official is 0 °C.
B – Condensation: gas → liquid when cooled.
Teaching: Water vapour loses heat, becomes droplets.
B – Plastic is an insulator, does not conduct heat well; safe handle.
Note: Metal handles conduct heat and burn hands.
C – Closed circuit = complete path for current.
Marking: Open switch or broken wire = no current.
B – Cotton is natural (from plants). Others are human-made.
Teaching: Natural materials come from nature; synthetic from chemicals.
C – Boiling point of water = 100 °C.
Syllabus value confirmed.

Section B: Short Answer (2 marks each)

Liquid: fixed volume, takes shape of container. Gas: no fixed shape, no fixed volume. [1+1]
Accept any correct property pair.
Wood is an insulator / poor conductor of heat, so it does not get too hot; metal conducts heat and burns hand. [1 for insulator property, 1 for safety reason]
Conductors: copper, aluminium (or iron, silver). Insulators: rubber, plastic (or wood, glass). [1+1]
Particles gain heat energy, vibrate more, break fixed positions, become able to move past each other (liquid). [2 for describing particle change]
Two from: open switch, broken wire, no battery, dead bulb, wrong connection. [1 each]
Boiling point of water = 100 °C, melting point of ice = 0 °C. [1+1]

Section C: Structured (8 marks)

(a) Glass – insulator; Silver – conductor; Wood – insulator; Copper – conductor. [0.5 each = 2]
(b) Insulators stop electricity from flowing where not wanted, preventing shock/fire. [1]
(a) Evaporation is the change of liquid to gas at the surface below boiling. [1]
(b) Higher temperature, larger exposed surface area, wind / air movement. [1+1, any two]
(a) Drawing shows battery, bulb, switch, wires in closed loop. [1]
(b) Electric current (or electricity) flows. [1]
(a) Solid, liquid, gas. [1, 0.33 each if split]
(b) Evaporation. Sun heats water, water particles gain energy and escape as vapour, amount decreases. [1 process + 1 explanation]
