Primary 5 Mathematics Quiz - Geometry

Subject: Mathematics | Level: Primary 5 (Standard) Topic: Geometry - Angles, Triangles and Quadrilaterals Practice Paper Version: 1 of 5 Duration: 60 minutes | Total Marks: 60

Name: ________________ Class: ________ Date: ________ Score: ________ / 60

Note: This quiz is AI-generated from syllabus-aligned templates. It is useful practice but is not derived from any past-year examination paper.

Instructions:

Answer ALL 20 questions.
Show your working clearly. Marks are awarded for correct method as well as correct answers.
Give all angle answers in degrees (°).
You are not allowed to use a calculator.
Diagrams are not drawn to scale.

Section A: Fundamentals (Questions 1-5, 2 marks each, 10 marks)

Question 1.

Two angles lie on a straight line. One of the angles is $118^\circ$ . Find the size of the other angle. (2 marks)

Question 2.

Four angles meet at a point. Three of the angles are $90^\circ$ , $85^\circ$ and $100^\circ$ . Find the size of the fourth angle. (2 marks)

Question 3.

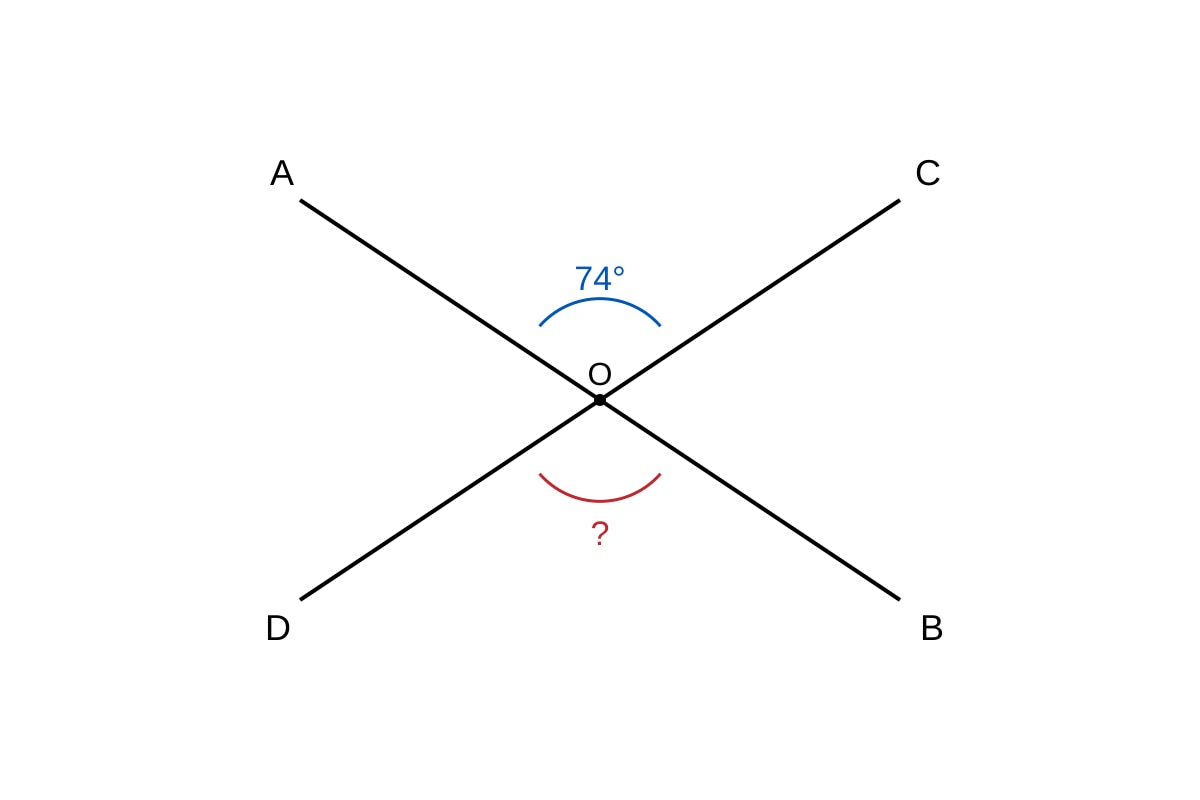

Straight lines AB and CD intersect at point O. Angle AOC $= 74^\circ$ .

Diagram for Q3 (P5 Maths)

Generated diagram for Q3.

(a) Find angle BOD. (1 mark) (b) State the angle property you used. (1 mark)

Question 4.

A triangle has sides of length 8 cm, 8 cm and 5 cm.

(a) What type of triangle is it? (1 mark) (b) Which two of its angles must be equal? (1 mark)

Question 5.

Mei draws a quadrilateral in which all four angles are right angles and the opposite sides are equal in length.

(a) What is the name of this quadrilateral? (1 mark) (b) What is the sum of all four interior angles of any quadrilateral? (1 mark)

Section B: Applying Properties (Questions 6-15, 3 marks each, 30 marks)

Question 6.

Three angles lie on a straight line. Their sizes are $40^\circ$ , $w$ and $55^\circ$ . Find the value of $w$ . (3 marks)

Question 7.

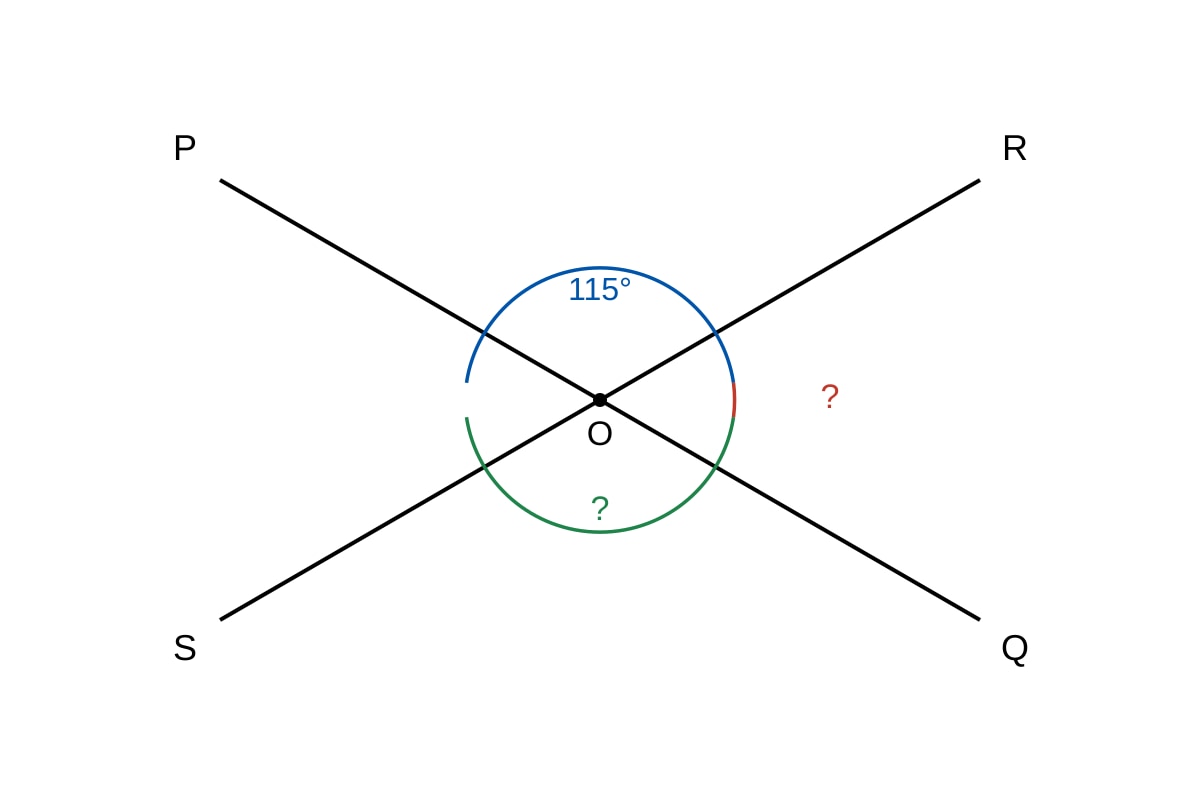

Straight lines PQ and RS intersect at point O. Angle POR $= 115^\circ$ .

Diagram for Q7 (P5 Maths)

Generated diagram for Q7.

(a) Find angle ROQ. (1 mark) (b) Find angle QOS. (1 mark) (c) State the property you used in part (b). (1 mark)

Question 8.

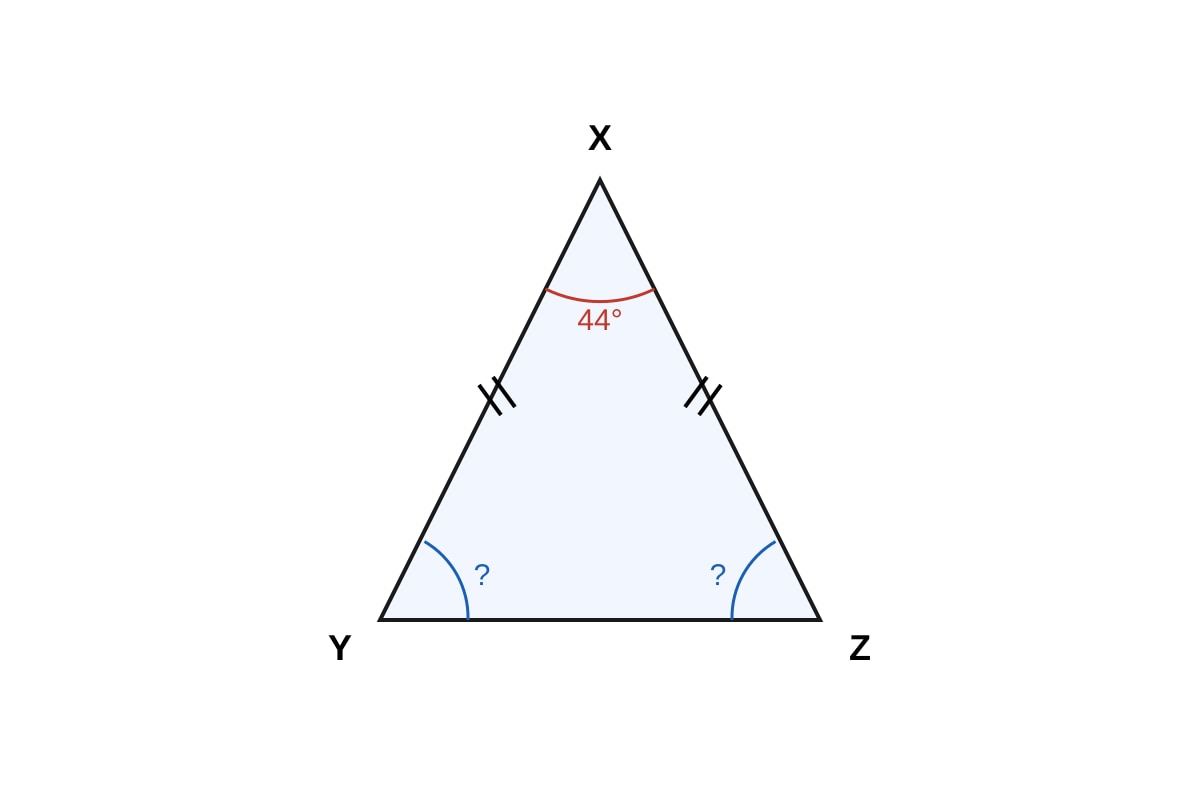

Triangle XYZ is an isosceles triangle with XY $=$ XZ. The apex angle YXZ $= 44^\circ$ .

Diagram for Q8 (P5 Maths)

Generated diagram for Q8.

Find angle XYZ and angle XZY. Show your working. (3 marks)

Question 9.

Triangle PQR is a right-angled triangle with angle PQR $= 90^\circ$ . Angle QPR $= 27^\circ$ . Find angle PRQ. (3 marks)

Question 10.

A triangle has interior angles of $62^\circ$ , $71^\circ$ and $x$ .

(a) Find the value of $x$ . (2 marks) (b) Classify the triangle using its angles and its sides. (1 mark)

Question 11.

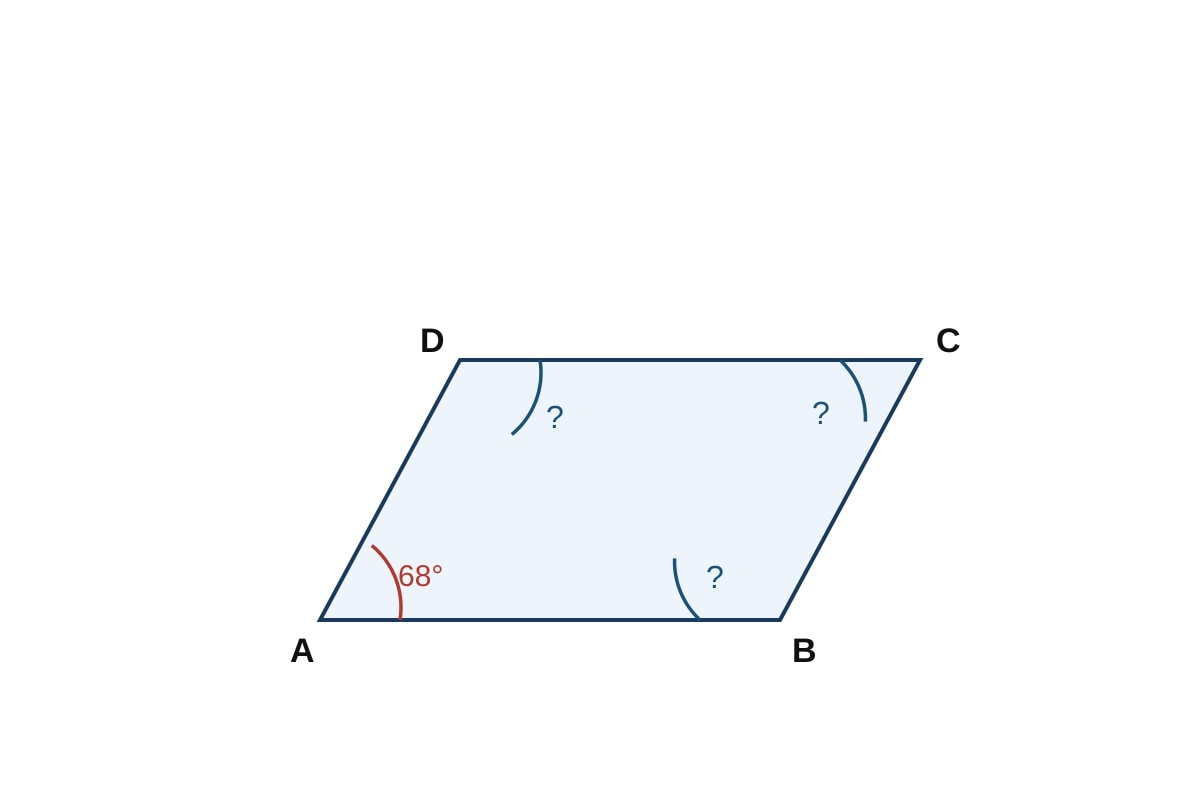

ABCD is a parallelogram with angle DAB $= 68^\circ$ .

Diagram for Q11 (P5 Maths)

Generated diagram for Q11.

Find angle ABC, angle BCD and angle CDA. Explain how you found each one. (3 marks)

Question 12.

A rhombus has sides of length 7 cm. One of its angles is $125^\circ$ .

(a) Find the perimeter of the rhombus. (1 mark) (b) Find the sizes of the other three angles of the rhombus. (2 marks)

Question 13.

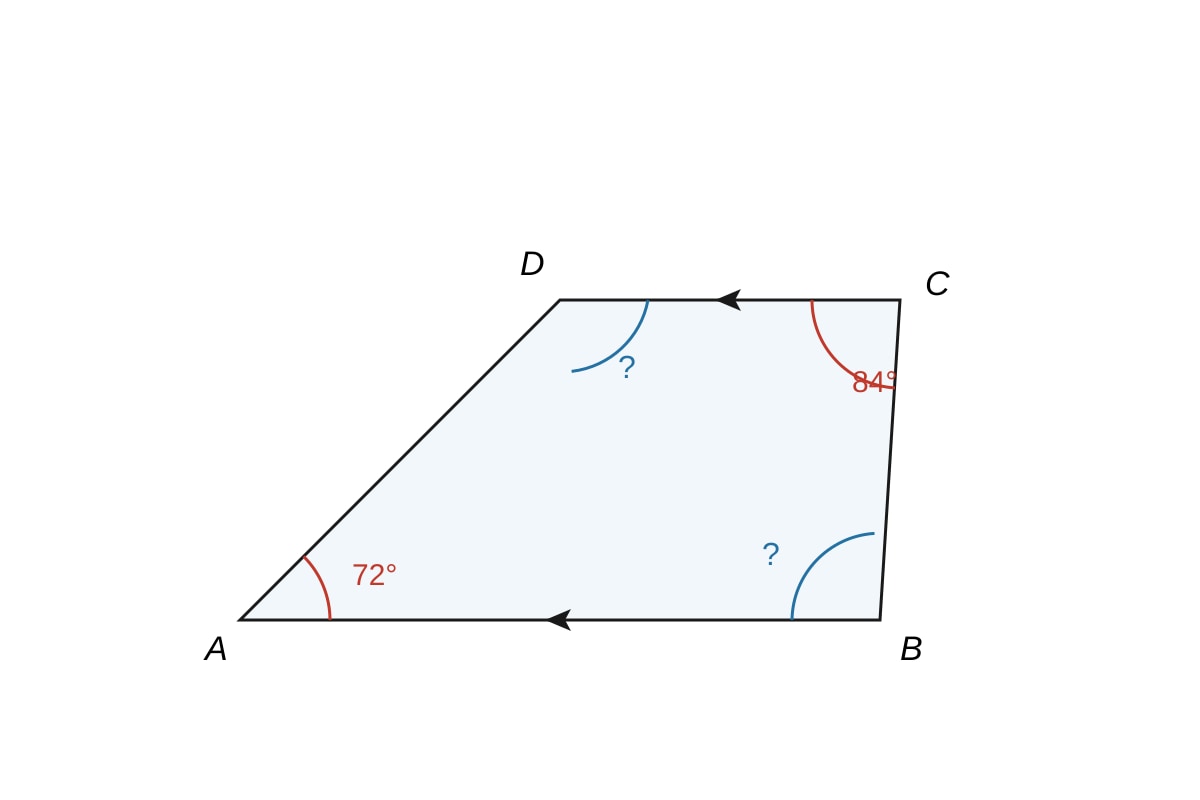

ABCD is a trapezium with AB parallel to DC. Angle DAB $= 72^\circ$ and angle BCD $= 84^\circ$ .

Diagram for Q13 (P5 Maths)

Generated diagram for Q13.

(a) Find angle ADC. (1 mark) (b) Find angle ABC. (1 mark) (c) State the angle property you used. (1 mark)

Question 14.

Four rays OA, OB, OC and OD are drawn from point O in that order, making four angles around O. Angle AOB $= 95^\circ$ , angle BOC $= 140^\circ$ and angle COD $= 55^\circ$ . Find angle DOA. (3 marks)

Question 15.

Three angles of a quadrilateral are $85^\circ$ , $95^\circ$ and $110^\circ$ . Find the fourth angle, stating the property you used. (3 marks)

Section C: Multi-step Reasoning (Questions 16-20, 4 marks each, 20 marks)

Question 16.

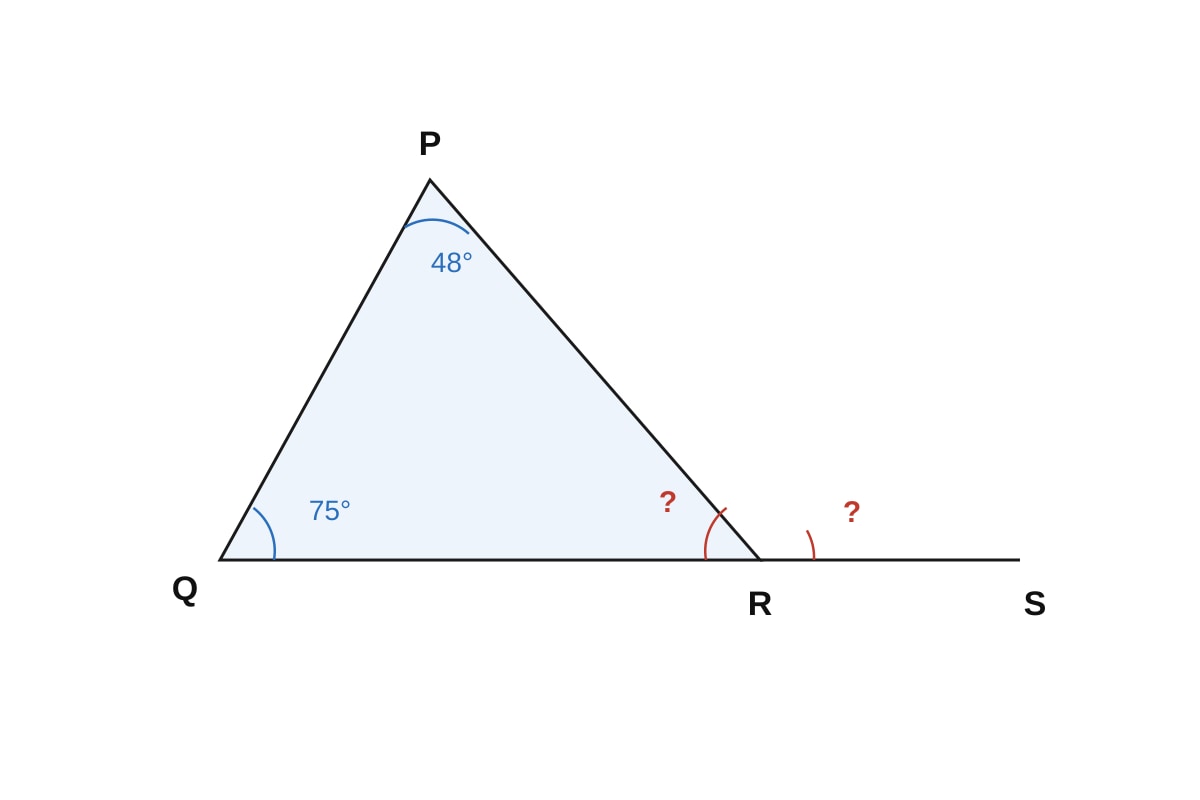

In triangle PQR, angle PQR $= 75^\circ$ and angle QPR $= 48^\circ$ . The side QR is extended beyond R to a point S, so that QRS is a straight line.

Diagram for Q16 (P5 Maths)

Generated diagram for Q16.

(a) Find angle PRQ. (1 mark) (b) Find angle PRS. Show your working. (2 marks) (c) State the property you used in part (b). (1 mark)

Question 17.

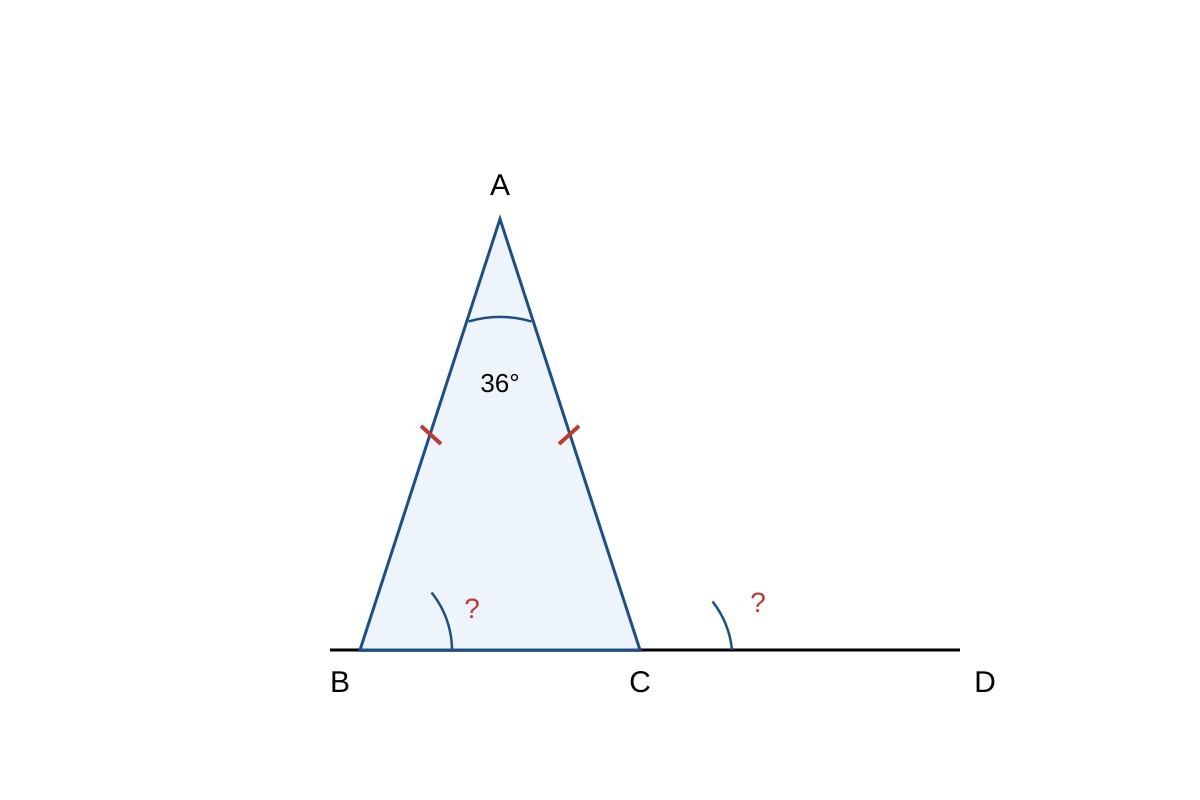

Triangle ABC is an isosceles triangle with AB $=$ AC and angle BAC $= 36^\circ$ . The points B, C and D lie on a straight line, with C between B and D.

Diagram for Q17 (P5 Maths)

Generated diagram for Q17.

(a) Find angle ABC. Show your working. (2 marks) (b) Find angle ACD. (1 mark) (c) State the property you used in part (b). (1 mark)

Question 18.

The four interior angles of a quadrilateral are $x^\circ$ , $(x + 30)^\circ$ , $2x^\circ$ and $90^\circ$ .

(a) Write an equation in $x$ using the angle sum of a quadrilateral. (2 marks) (b) Solve your equation to find $x$ . (1 mark) (c) Hence state the sizes of all four angles. (1 mark)

Question 19.

An isosceles triangle has an apex angle that is three times the size of each of its base angles.

(a) If each base angle is $x^\circ$ , write an equation in $x$ using the angle sum of a triangle. (2 marks) (b) Solve your equation to find the size of the apex angle and of each base angle. (2 marks)

Question 20.

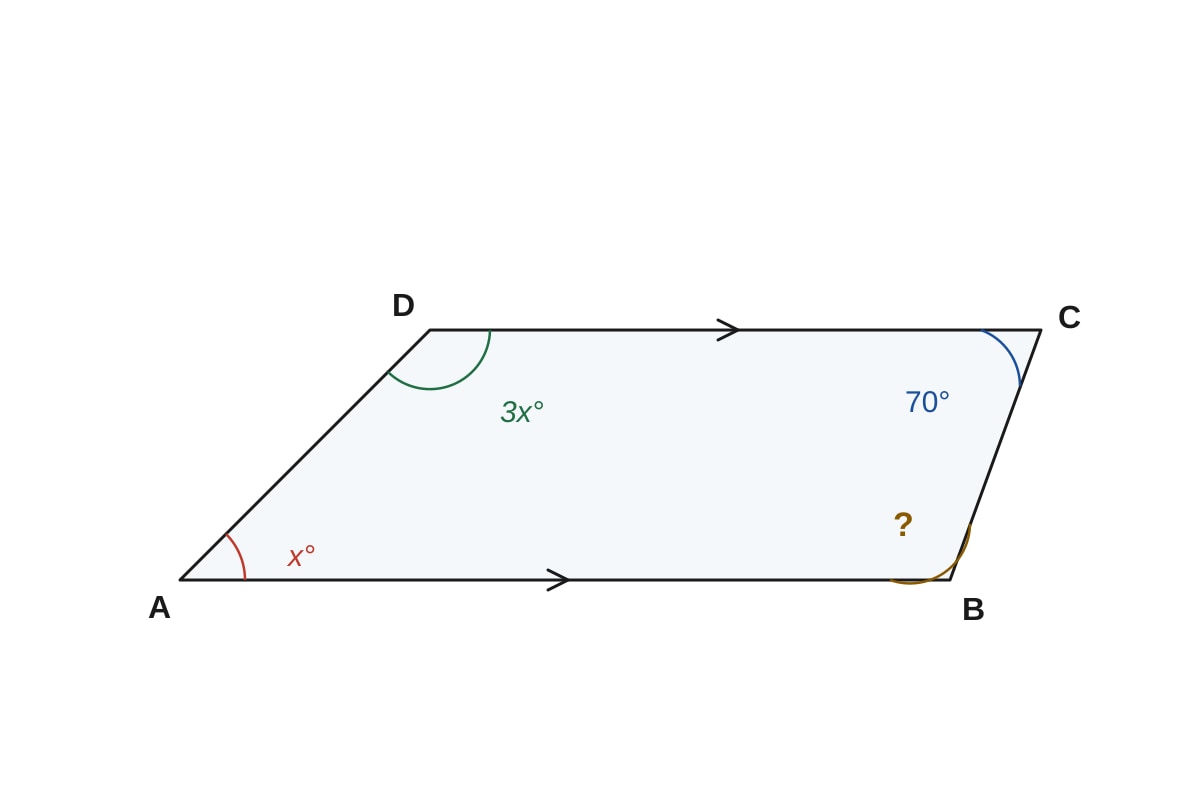

ABCD is a trapezium with AB parallel to DC. Angle DAB $= x^\circ$ , angle ADC $= 3x^\circ$ and angle BCD $= 70^\circ$ .

Diagram for Q20 (P5 Maths)

Generated diagram for Q20.

(a) Find the value of $x$ . Hence state angle DAB and angle ADC. (2 marks) (b) Find angle ABC. (2 marks)

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Primary 5 Mathematics Quiz - Geometry: Answer Key

Topic: Geometry - Angles, Triangles and Quadrilaterals | Total Marks: 60

Answer 1.

$180^\circ - 118^\circ = \mathbf{62^\circ}$ (angles on a straight line sum to $180^\circ$ ). (2 marks)

Answer 2.

$360^\circ - (90^\circ + 85^\circ + 100^\circ) = 360^\circ - 275^\circ = \mathbf{85^\circ}$ (angles at a point sum to $360^\circ$ ). (2 marks)

Answer 3.

(a) Angle BOD $= \mathbf{74^\circ}$ . (b) Vertically opposite angles are equal. (2 marks)

Answer 4.

(a) It is an isosceles triangle (two equal sides of 8 cm). (b) The two angles between each 8 cm side and the 5 cm side (the base angles opposite the equal sides) must be equal. (2 marks)

Answer 5.

(a) A rectangle. (b) $\mathbf{360^\circ}$ . (2 marks)

Answer 6.

Angles on a straight line: $40 + w + 55 = 180$ , so $w = 180 - 95 = \mathbf{85}$ . (3 marks)

Answer 7.

(a) Angle ROQ $= 180^\circ - 115^\circ = \mathbf{65^\circ}$ (angles on a straight line POR). (b) Angle QOS $= \mathbf{115^\circ}$ . (c) Vertically opposite angles are equal (angle QOS is vertically opposite angle POR). (3 marks)

Answer 8.

Base angles of an isosceles triangle are equal: Angle XYZ $=$ Angle XZY $= (180^\circ - 44^\circ) \div 2 = 136^\circ \div 2 = \mathbf{68^\circ}$ each. (3 marks)

Answer 9.

Angle sum of a triangle $= 180^\circ$ : angle PRQ $= 180^\circ - 90^\circ - 27^\circ = \mathbf{63^\circ}$ . (3 marks)

Answer 10.

(a) $x = 180^\circ - 62^\circ - 71^\circ = \mathbf{47}$ . (b) All angles are less than $90^\circ$ , so it is acute-angled; all sides are different lengths, so it is an acute-angled scalene triangle. (3 marks)

Answer 11.

Angle ABC $= 180^\circ - 68^\circ = \mathbf{112^\circ}$ (adjacent angles of a parallelogram are supplementary).
Angle BCD $= \mathbf{68^\circ}$ (opposite angles of a parallelogram are equal).
Angle CDA $= \mathbf{112^\circ}$ (opposite angles are equal). (3 marks)

Answer 12.

(a) Perimeter $= 4 \times 7\text{ cm} = \mathbf{28\text{ cm}}$ . (b) Adjacent angles: $180^\circ - 125^\circ = 55^\circ$ ; opposite angle: $125^\circ$ . The other three angles are $\mathbf{55^\circ, 55^\circ}$ and $\mathbf{125^\circ}$ . (3 marks)

Answer 13.

(a) Angle ADC $= 180^\circ - 72^\circ = \mathbf{108^\circ}$ . (b) Angle ABC $= 180^\circ - 84^\circ = \mathbf{96^\circ}$ . (c) Co-interior angles between parallel lines are supplementary (sum to $180^\circ$ ). (3 marks)

Answer 14.

Angles at a point: angle DOA $= 360^\circ - (95^\circ + 140^\circ + 55^\circ) = 360^\circ - 290^\circ = \mathbf{70^\circ}$ . (3 marks)

Answer 15.

Fourth angle $= 360^\circ - (85^\circ + 95^\circ + 110^\circ) = 360^\circ - 290^\circ = \mathbf{70^\circ}$ . Property: the interior angles of a quadrilateral sum to $360^\circ$ . (3 marks)

Answer 16.

(a) Angle PRQ $= 180^\circ - 75^\circ - 48^\circ = \mathbf{57^\circ}$ . (b) Angle PRS $= 180^\circ - 57^\circ = \mathbf{123^\circ}$ (also correct: exterior angle $= 75^\circ + 48^\circ = 123^\circ$ ). (c) Angles on a straight line sum to $180^\circ$ ; equivalently, an exterior angle of a triangle equals the sum of the two interior opposite angles. (4 marks)

Answer 17.

(a) Angle ABC $=$ Angle ACB $= (180^\circ - 36^\circ) \div 2 = 144^\circ \div 2 = \mathbf{72^\circ}$ (base angles of an isosceles triangle). (b) Angle ACD $= 180^\circ - 72^\circ = \mathbf{108^\circ}$ . (c) Angles on a straight line BCD sum to $180^\circ$ . (4 marks)

Answer 18.

(a) $x + (x + 30) + 2x + 90 = 360$ (b) $4x + 120 = 360 \Rightarrow 4x = 240 \Rightarrow x = \mathbf{60}$ (c) The angles are $\mathbf{60^\circ, 90^\circ, 120^\circ}$ and $\mathbf{90^\circ}$ . (4 marks)

Answer 19.

(a) $3x + x + x = 180$ (b) $5x = 180 \Rightarrow x = 36$ . Apex angle $= 3 \times 36^\circ = \mathbf{108^\circ}$ ; each base angle $= \mathbf{36^\circ}$ . (4 marks)

Answer 20.

(a) Since AB $\parallel$ DC, angles DAB and ADC are co-interior: $x + 3x = 180 \Rightarrow 4x = 180 \Rightarrow x = \mathbf{45}$ . So angle DAB $= 45^\circ$ and angle ADC $= 135^\circ$ . (b) Angle ABC $= 180^\circ - 70^\circ = \mathbf{110^\circ}$ (co-interior angles ABC and BCD). (4 marks)
