O Level Physics Mechanics Quiz

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

O-Level Physics Quiz - Mechanics

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 50 minutes
Total Marks: 40

Instructions:

• Answer all 20 questions.
• Show your working clearly where calculation is required.
• Use $g = 10 \text{ m/s}^2$ unless stated otherwise.
• Section A: 10 short questions (2 marks each). Section B: 6 structured questions (3 marks each). Section C: 4 extended questions (5 marks each).

---

Section A (Questions 1–10, 2 marks each)

1. A bus travels 240 m in 20 s at constant speed. Calculate its average speed.

---

2. State the difference between a scalar and a vector quantity. Give one example of each.

---

3. A car accelerates from $5 \text{ m/s}$ to $15 \text{ m/s}$ in 5 s. Calculate its acceleration.

---

4. Define the weight of an object. Write the formula linking weight, mass, and gravitational field strength.

---

5. A force of 12 N acts at a perpendicular distance of 0.5 m from a pivot. Calculate the moment of the force about the pivot.

---

6. A block of mass 2 kg is placed on a table. Calculate the normal force acting on it due to gravity ($g = 10 \text{ m/s}^2$).

---

7. Pressure is defined as force per unit area. A 20 N force acts over an area of $0.004 \text{ m}^2$. Calculate the pressure.

---

8. State the principle of moments for a body in equilibrium.

---

9. A object of mass 0.5 kg moves at $4 \text{ m/s}$. Calculate its kinetic energy.

---

10. Liquid pressure increases with depth. Write the formula for pressure due to a liquid column and state what each symbol means.

---

---

Section B (Questions 11–16, 3 marks each)

11. A hydraulic jack has an input piston of area $4.0 \text{ cm}^2$ and output piston of area $160 \text{ cm}^2$. A force of 40 N is applied to the input piston. (a) Calculate the pressure at the input piston. (b) Calculate the output force.

---

12. A boy pushes a 10 kg box with a force of 30 N across a rough floor. The frictional force is 10 N. (a) Calculate the resultant force. (b) Calculate the acceleration of the box.

---

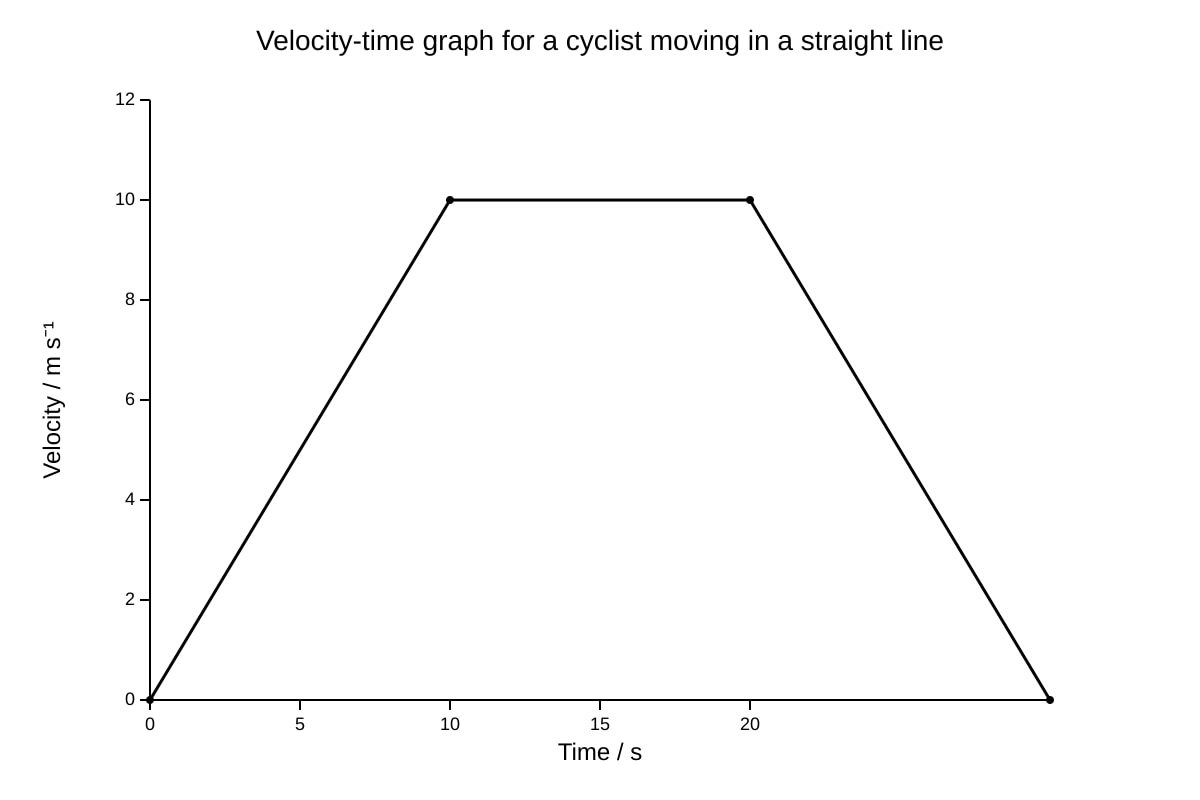

13.

Image pending generation: graph for Q13.

Using the graph, calculate the total distance travelled by the cyclist.

---

14. A uniform metre rule is pivoted at the 50 cm mark. A 2 N weight is hung at the 20 cm mark. (a) Calculate the moment due to the 2 N weight about the pivot. (b) State where a 4 N weight should be placed to balance the rule.

---

15. A ball of mass 0.2 kg is dropped from a height of 5 m. Calculate its gravitational potential energy before release and its kinetic energy just before hitting the ground (ignore air resistance).

---

16. A person does 600 J of work in lifting a load in 3 s. Calculate the power used. If the load weighs 150 N, calculate the height lifted.

---

---

Section C (Questions 17–20, 5 marks each)

17. A car accelerates uniformly from rest at $2.0 \text{ m/s}^2$ for 5.0 s, then travels at constant velocity for 10.0 s, then brakes uniformly to rest in 4.0 s. (a) Calculate the velocity after the first stage. (b) Calculate the distance travelled in each stage. (c) Calculate the total distance travelled.

---

18. A rectangular block of mass 4 kg has dimensions 0.2 m × 0.1 m × 0.05 m. It rests on a horizontal surface. (a) Calculate its weight. (b) Calculate the maximum and minimum pressure it can exert on the surface depending on orientation. (c) Explain why pressure changes with contact area.

---

19. A ladder of length 4 m leans against a wall with its base 1 m from the wall. The centre of gravity of the ladder is at its midpoint and the ladder weighs 80 N. (a) Calculate the perpendicular distance from the base to the line of action of the weight. (b) Calculate the moment of the weight about the base. (c) State what additional force is needed at the top to keep it in equilibrium and its direction.

---

20. A crane lifts a 500 kg load at constant speed through 20 m in 10 s. (a) Calculate the work done by the crane. (b) Calculate the power output. (c) If the crane motor is 50% efficient, calculate the total electrical energy input.

---

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

O-Level Physics Quiz - Mechanics: Answer Key

Total Marks: 40
Level: O-Level
Topic: Mechanics

---

Section A Answers (Q1–10, 2 marks each)

Q1. Average speed = distance / time = $240 / 20 = 12 \text{ m/s}$.
Teaching note: Speed is a scalar; use total distance over total time. [2]

Q2. A scalar has magnitude only (e.g., mass, speed); a vector has magnitude and direction (e.g., force, velocity).
Teaching note: Direction is the key difference. [2]

Q3. $a = (v - u)/t = (15 - 5)/5 = 2 \text{ m/s}^2$.
Working: substitution shown. [2]

Q4. Weight is the gravitational force acting on an object. $W = mg$ where $m$ = mass, $g$ = gravitational field strength.
Teaching note: Weight is a vector measured in N. [2]

Q5. Moment = $F \times d = 12 \times 0.5 = 6 \text{ N m}$.
Teaching note: Perpendicular distance must be used. [2]

Q6. Normal force = weight = $mg = 2 \times 10 = 20 \text{ N}$.
Teaching note: On horizontal table, normal equals weight if no vertical acceleration. [2]

Q7. $P = F/A = 20 / 0.004 = 5000 \text{ Pa}$.
Teaching note: 1 Pa = 1 N/m². [2]

Q8. For equilibrium, sum of clockwise moments = sum of anticlockwise moments about any pivot.
Teaching note: Principle of moments. [2]

Q9. $E_k = \frac{1}{2}mv^2 = 0.5 \times 0.5 \times 4^2 = 4 \text{ J}$.
Working: $0.5 \times 0.5 = 0.25$; $0.25 \times 16 = 4$. [2]

Q10. $P = h \rho g$; $h$ = height of column, $\rho$ = density of liquid, $g$ = gravitational field strength.
Teaching note: Pressure increases linearly with depth. [2]

---

Section B Answers (Q11–16, 3 marks each)

Q11.
(a) Input pressure = $F/A = 40 / (4.0 \times 10^{-4}) = 1.0 \times 10^5 \text{ Pa}$. [1]
(b) Output force = $P \times A_{out} = 1.0 \times 10^5 \times (160 \times 10^{-4}) = 1600 \text{ N}$. [2]
Note: Convert cm² to m² ($1 \text{ cm}^2 = 10^{-4} \text{ m}^2$).

Q12.
(a) Resultant = $30 - 10 = 20 \text{ N}$ forward. [1]
(b) $a = F/m = 20 / 10 = 2.0 \text{ m/s}^2$. [2]

Q13. Area under graph = distance.
Stage1 triangle: $\frac{1}{2} \times 5 \times 10 = 25 \text{ m}$. [1]
Stage2 rectangle: $10 \times 10 = 100 \text{ m}$. [1]
Stage3 triangle: $\frac{1}{2} \times 5 \times 10 = 25 \text{ m}$. [1]
Total = 150 m.

Q14.
(a) Moment = $2 \times (0.50 - 0.20) = 2 \times 0.30 = 0.6 \text{ N m}$. [1]
(b) 4 N at distance $d$: $4d = 0.6 \Rightarrow d = 0.15 \text{ m}$ from pivot on opposite side → at 65 cm mark. [2]

Q15. $E_p = mgh = 0.2 \times 10 \times 5 = 10 \text{ J}$. [1.5]
Just before ground, $E_k = E_p = 10 \text{ J}$ (energy conservation). [1.5]

Q16. Power = $W/t = 600 / 3 = 200 \text{ W}$. [1.5]
Height: $W = Fd \Rightarrow d = 600 / 150 = 4 \text{ m}$. [1.5]

---

Section C Answers (Q17–20, 5 marks each)

Q17.
(a) $v = 0 + 2.0 \times 5.0 = 10.0 \text{ m/s}$. [1]
(b) Stage1: $s_1 = \frac{1}{2} \times 2.0 \times 5.0^2 = 25.0 \text{ m}$. [1]
Stage2: $s_2 = 10.0 \times 10.0 = 100.0 \text{ m}$. [1]
Stage3: $s_3 = \frac{1}{2} \times 10.0 \times 4.0 = 20.0 \text{ m}$. [1]
(c) Total = $25 + 100 + 20 = 145.0 \text{ m}$. [1]

Q18.
(a) Weight = $mg = 4 \times 10 = 40 \text{ N}$. [1]
(b) Max pressure = smallest area = $0.1 \times 0.05 = 0.005 \text{ m}^2$: $40/0.005 = 8000 \text{ Pa}$. [1]
Min pressure = largest area = $0.2 \times 0.1 = 0.02 \text{ m}^2$: $40/0.02 = 2000 \text{ Pa}$. [1]
(c) Pressure = F/A, so smaller area gives higher pressure for same force. [2]

Q19.
(a) Perp distance = $(4/2) \times \cos\theta$, where $\cos\theta = 1/4 = 0.25$; $2 \times 0.25 = 0.5 \text{ m}$. [2]
(b) Moment = $80 \times 0.5 = 40 \text{ N m}$. [1]
(c) Horizontal force at top, away from wall, equal moment (friction/normal) to balance. [2]

Q20.
(a) Work = $mgh = 500 \times 10 \times 20 = 100\,000 \text{ J}$. [1.5]
(b) Power = $100\,000 / 10 = 10\,000 \text{ W}$. [1.5]
(c) Input = useful / efficiency = $100\,000 / 0.5 = 200\,000 \text{ J}$. [2]
