O-Level Physics Quiz - Electricity Magnetism

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: ___________ / 40

Duration: 60 minutes
Total Marks: 40

Instructions:

Answer all 20 questions.
Show your working clearly for calculation questions.
Use the spaces provided.
Section A: Multiple-choice style short items (1–5)
Section B: Structured short answers (6–15)
Section C: Extended worked problems (16–20)

Section A (1–5)

1. [2 marks] A circuit contains a $12\ \text{V}$ battery and a resistor of $4\ \Omega$ . What is the current flowing through the resistor?

Current = ____________ A

2. [2 marks] Two resistors of $6\ \Omega$ and $3\ \Omega$ are connected in parallel. What is their combined resistance?

$R_{eq}$ = ____________ $\Omega$

3. [2 marks] Which of the following is a non-contact force?

A. Friction
B. Tension
C. Magnetic force
D. Air resistance

Answer: ____________

4. [2 marks] A voltmeter is always connected in ____________ with a component to measure the potential difference across it.

Answer: ____________

5. [2 marks] The direction of the induced current in electromagnetic induction opposes the change producing it. This is known as ____________ law.

Answer: ____________

Section B (6–15)

6. [2 marks] Calculate the resistance of a lamp if a voltage of $6\ \text{V}$ across it produces a current of $0.5\ \text{A}$ .

Resistance = ____________ $\Omega$

7. [2 marks] A $10\ \Omega$ resistor and a $20\ \Omega$ resistor are connected in series to a $9\ \text{V}$ battery. Calculate the total resistance of the circuit.

$R_{total}$ = ____________ $\Omega$

8. [2 marks] In the circuit of Q7, calculate the current flowing through the $10\ \Omega$ resistor.

Current = ____________ A

9. [2 marks] A voltmeter connected across a resistance wire shows the same reading as a voltmeter connected across a $15\ \Omega$ resistor in the same parallel branch. Explain what this implies about the two components.

10. [2 marks] State Lenz's law in your own words.

11. [2 marks] A thermistor is used in a circuit to switch on a fan at night when temperature drops to $10^\circ\text{C}$ . At this temperature its resistance is $8\ \Omega$ . It is in parallel with a fixed $8\ \Omega$ resistor. Calculate the combined resistance of the thermistor and resistor at night.

$R_{combined}$ = ____________ $\Omega$

12. [2 marks] A simple DC motor rotates because a current-carrying coil is placed in a magnetic field. Name the force that causes the coil to turn.

Answer: ____________

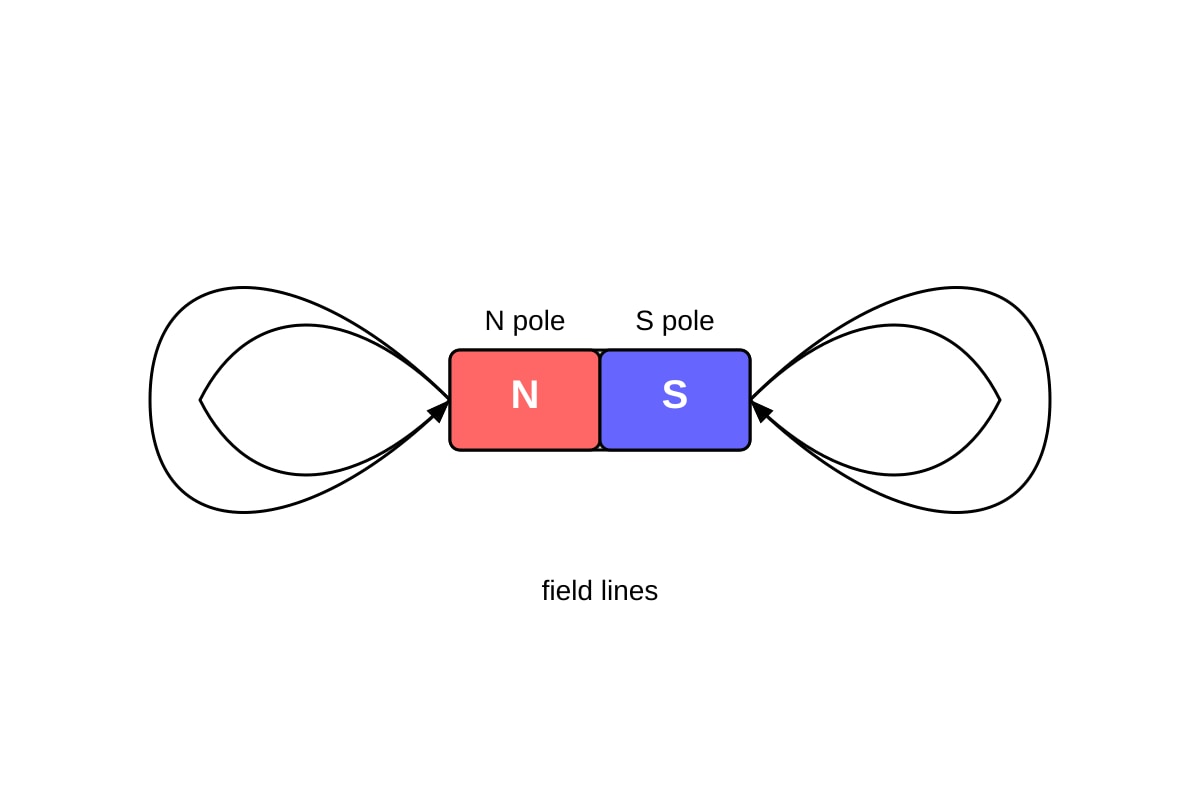

13. [2 marks] The diagram below shows a magnetic field pattern.

Diagram for Q13 (OLEVEL Physics)

Generated diagram for Q13.

State the direction of the magnetic field lines outside the magnet.

14. [2 marks] A transformer has 100 turns on the primary coil and 200 turns on the secondary coil. If the primary voltage is $12\ \text{V}$ , calculate the secondary voltage assuming 100% efficiency.

$V_s$ = ____________ V

15. [2 marks] Give one practical application of electromagnetic induction.

Section C (16–20)

16. [4 marks] A resistance wire of $12\ \Omega$ is connected in parallel with a fixed resistor of $4\ \Omega$ . This combination is then connected in series with a $2\ \Omega$ resistor to a $18\ \text{V}$ supply. (a) Calculate the equivalent resistance of the parallel section. [2] (b) Calculate the total circuit resistance. [1] (c) Calculate the current from the battery. [1]

(a) ____________ $\Omega$
(b) ____________ $\Omega$
(c) ____________ A

17. [4 marks] A lamp is marked $240\ \text{V}, 60\ \text{W}$ . (a) Calculate the resistance of the lamp when operating normally. [2] (b) Calculate the current through the lamp. [2]

(a) ____________ $\Omega$
(b) ____________ A

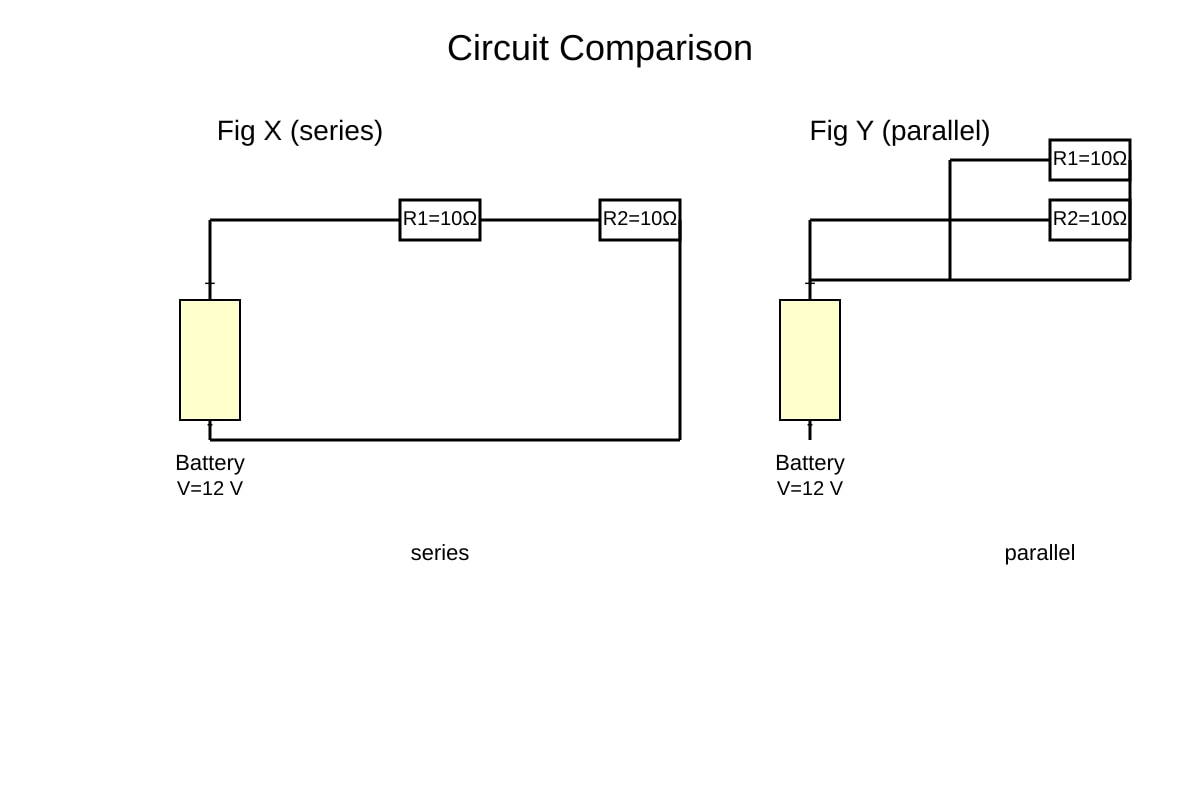

18. [4 marks] Compare the current in Fig. X (series circuit with $R_1=10\ \Omega$ , $R_2=10\ \Omega$ , $V=12\ \text{V}$ ) with Fig. Y (same resistors in parallel, same supply). Explain your answer using circuit principles.

Diagram for Q18 (OLEVEL Physics)

Generated diagram for Q18.

19. [4 marks] A student builds a circuit with a thermistor and a fixed $10\ \Omega$ resistor in parallel. During the day at $30^\circ\text{C}$ the thermistor resistance is $5\ \Omega$ ; at night at $10^\circ\text{C}$ it is $20\ \Omega$ . (a) Calculate the combined resistance during the day. [2] (b) Calculate the combined resistance at night. [2]

(a) ____________ $\Omega$
(b) ____________ $\Omega$

20. [4 marks] Explain how a simple generator produces electricity using electromagnetic induction. Include the role of the coil, magnetic field, and rotation in your answer.

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

O-Level Physics Quiz - Electricity Magnetism (Answer Key)

Total Marks: 40
Topic: Electricity & Magnetism

Section A Answers

1. [2 marks]
Given: $V = 12\ \text{V}$ , $R = 4\ \Omega$
Using Ohm's law: $I = \frac{V}{R} = \frac{12}{4} = 3\ \text{A}$
Answer: 3 A
Teaching note: Ohm's law states current is voltage divided by resistance. Units must be V and Ω to get A.

2. [2 marks]
Parallel formula: $\frac{1}{R_{eq}} = \frac{1}{6} + \frac{1}{3} = \frac{1}{6} + \frac{2}{6} = \frac{3}{6} = \frac{1}{2}$
So $R_{eq} = 2\ \Omega$
Answer: 2 Ω
Common mistake: Adding as series ( $6+3=9$ ) is wrong.

3. [2 marks]
Magnetic force acts without contact.
Answer: C
Teaching note: Friction, tension, air resistance need contact.

4. [2 marks]
Answer: parallel
Teaching note: Voltmeter must not break circuit; connected across component.

5. [2 marks]
Answer: Lenz's
Teaching note: Lenz's law conserves energy by opposing change.

Section B Answers

6. [2 marks]
$R = \frac{V}{I} = \frac{6}{0.5} = 12\ \Omega$
Answer: 12 Ω

7. [2 marks]
Series: $R_{total} = 10 + 20 = 30\ \Omega$
Answer: 30 Ω

8. [2 marks]
$I = \frac{V}{R} = \frac{9}{30} = 0.3\ \text{A}$
Answer: 0.3 A
Same current in series.

9. [2 marks]
Equal voltmeter readings mean equal potential difference across each. In parallel, equal voltage is normal; it implies the branches have same voltage, not necessarily same resistance.
Answer: They are at same potential difference (parallel branches).
Marking: 1 mark voltage equal, 1 mark correct inference.

10. [2 marks]
The induced current direction opposes the change in magnetic flux that caused it.
Answer: see teaching note.

11. [2 marks]
$\frac{1}{R} = \frac{1}{8} + \frac{1}{8} = \frac{2}{8} = \frac{1}{4}$ , so $R = 4\ \Omega$
Answer: 4 Ω

12. [2 marks]
Answer: motor effect / magnetic force on current-carrying conductor

13. [2 marks]
From North pole to South pole outside magnet.
Answer: N → S outside

14. [2 marks]
$\frac{V_s}{V_p} = \frac{N_s}{N_p} \Rightarrow V_s = 12 \times \frac{200}{100} = 24\ \text{V}$
Answer: 24 V

15. [2 marks]
Any one: bicycle dynamo, power station generator, transformer, induction cooker.
Answer: e.g. generator

Section C Answers

16. [4 marks]
(a) Parallel: $\frac{1}{R_p} = \frac{1}{12} + \frac{1}{4} = \frac{1}{12} + \frac{3}{12} = \frac{4}{12} = \frac{1}{3} \Rightarrow R_p = 3\ \Omega$ [2]
(b) Total = $3 + 2 = 5\ \Omega$ [1]
(c) $I = \frac{18}{5} = 3.6\ \text{A}$ [1]
Answers: (a) 3 Ω (b) 5 Ω (c) 3.6 A

17. [4 marks]
(a) $R = \frac{V^2}{P} = \frac{240^2}{60} = \frac{57600}{60} = 960\ \Omega$ [2]
(b) $I = \frac{P}{V} = \frac{60}{240} = 0.25\ \text{A}$ [2]
Answers: (a) 960 Ω (b) 0.25 A

18. [4 marks]
Fig X series: $R = 20\ \Omega$ , $I_X = 12/20 = 0.6\ \text{A}$
Fig Y parallel: $R = 5\ \Omega$ , $I_Y = 12/5 = 2.4\ \text{A}$
Current in Y is 4 times larger. Explanation: parallel lowers total resistance so current rises (Ohm's law). [4: 2 for calc, 2 for explanation]

19. [4 marks]
(a) Day: $\frac{1}{R} = \frac{1}{5} + \frac{1}{10} = \frac{3}{10} \Rightarrow R = 3.33\ \Omega$ [2]
(b) Night: $\frac{1}{R} = \frac{1}{20} + \frac{1}{10} = \frac{3}{20} \Rightarrow R = 6.67\ \Omega$ [2]
Answers: (a) 3.33 Ω (b) 6.67 Ω

20. [4 marks]
Coil rotates in magnetic field → flux changes → emf induced (Faraday). Brushes/commutator collect AC/DC. [4: coil 1, field 1, rotation 1, induction explained 1]
