O Level Physics Practice Paper 1

TuitionGoWhere Practice Paper - Physics O-Level

TuitionGoWhere Practice Paper (AI)

Subject: Physics
Level: O-Level
Paper: Paper 2 (Structured Questions)
Duration: 1 hour 45 minutes
Total Marks: 80

Name: _________________ Class: _________ Date: _________

---

Instructions to Candidates

• Answer ALL questions in the spaces provided
• Show all necessary working clearly
• The number of marks is given in brackets [ ] at the end of each question or part question
• You may use a calculator
• Take g = 10 m/s²

---

Section A [40 marks]

Question 1 [8 marks]

A student sets up the circuit shown in Fig. 1.1 to investigate how the resistance of a thermistor varies with temperature.

[Circuit diagram showing: 12V battery connected to 200Ω fixed resistor in series with thermistor, with voltmeter across thermistor]

The thermistor is placed in water at different temperatures and the voltmeter reading is recorded.

(a) At 25°C, the voltmeter reads 8.0V. Calculate the resistance of the thermistor at this temperature. [3]

---

---

---

Resistance = _________________ Ω

(b) At 75°C, the thermistor resistance decreases to 50Ω. Calculate the new voltmeter reading. [3]

---

---

---

Voltmeter reading = _________________ V

(c) Explain why the voltmeter reading changes when the temperature increases. [2]

---

---

---

---

Question 2 [10 marks]

Fig. 2.1 shows a simple AC generator.

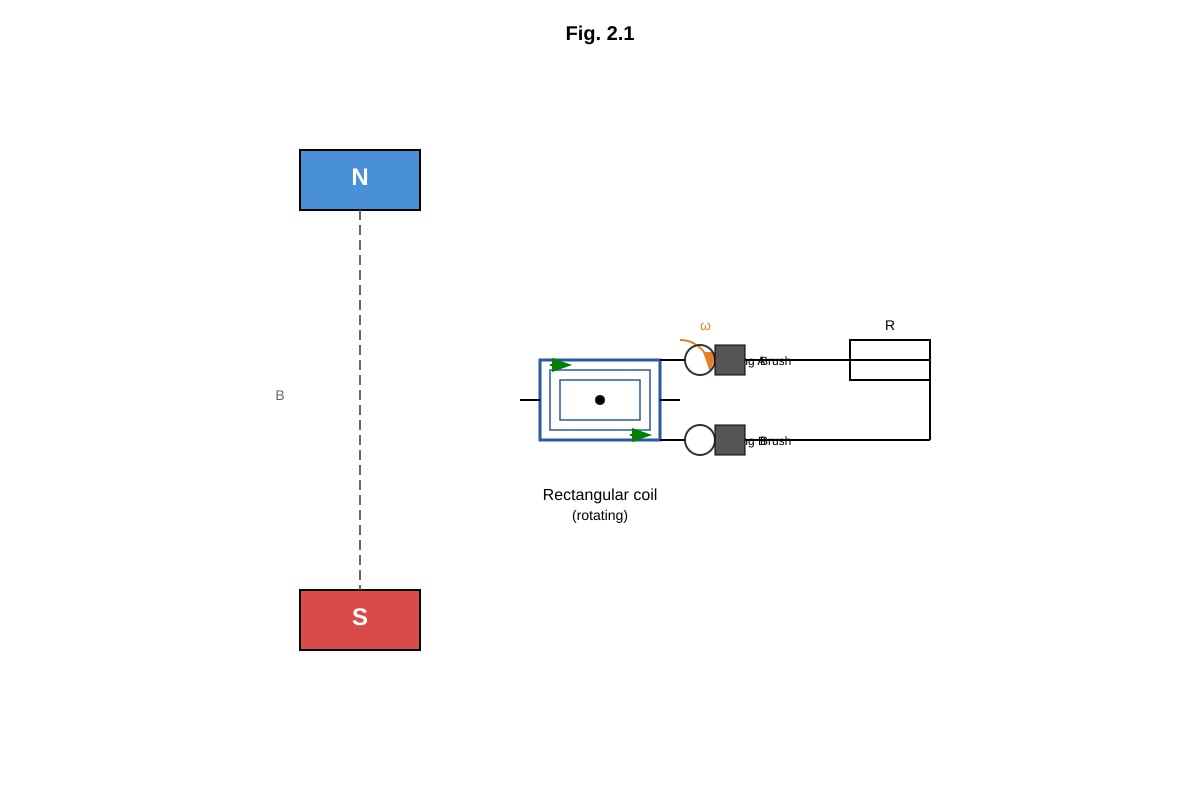

[Diagram showing rectangular coil rotating in magnetic field between N and S poles, connected to external circuit]

(a) Explain how this generator produces an alternating EMF. [4]

---

---

---

---

(b) State two ways to increase the maximum EMF produced by this generator. [2]

1. ---

2. ---

(c) The generator produces a maximum EMF of 24V at a frequency of 50Hz. On the axes below, sketch the EMF-time graph for one complete cycle. [2]

[Grid provided for graph with time axis marked 0 to 0.04s and EMF axis marked -30V to +30V]

(d) Calculate the time period of the AC output. [2]

---

Time period = _________________ s

---

Question 3 [12 marks]

A hydraulic car jack is used to lift a car. The input piston has a diameter of 2.0 cm and the output piston has a diameter of 20 cm.

(a) Calculate the area of each piston in m². [2]

Input piston area: _________________________________

Output piston area: _______________________________

(b) A force of 150 N is applied to the input piston. Calculate the maximum force that can be exerted by the output piston. [3]

---

---

---

Maximum output force = _________________ N

(c) The input piston is pushed down by 10 cm. Calculate how far the output piston moves up. [2]

---

---

Distance moved = _________________ cm

(d) Calculate the work done by the input force and the work done by the output force. Comment on your answers. [3]

Work done by input force: __________________________

Work done by output force: _________________________

Comment: _____________________________________

(e) State the principle on which the hydraulic jack operates. [2]

---

---

---

Question 4 [10 marks]

A student investigates the motion of a trolley on a horizontal track. The trolley starts from rest and is pulled by a constant horizontal force of 2.4 N for 5.0 s. The mass of the trolley is 0.60 kg.

(a) Calculate the acceleration of the trolley, assuming friction is negligible. [2]

---

Acceleration = _________________ m/s²

(b) Calculate the velocity of the trolley after 5.0 s. [2]

---

Velocity = _________________ m/s

(c) Calculate the distance traveled by the trolley in the first 5.0 s. [2]

---

Distance = _________________ m

(d) After 5.0 s, the pulling force is removed and the trolley experiences a friction force of 1.2 N. Calculate how long it takes for the trolley to come to rest. [4]

---

---

---

---

Time = _________________ s

---

Section B [40 marks]

Question 5 [12 marks]

A transformer is used to step down the mains voltage from 240V to 12V for a model railway system.

(a) State the principle of operation of a transformer. [2]

---

---

(b) The primary coil has 2000 turns. Calculate the number of turns required in the secondary coil. [3]

---

---

---

Number of turns = _________________

(c) The model railway draws a current of 3.0 A from the secondary coil. Assuming the transformer is 100% efficient, calculate the current in the primary coil. [3]

---

---

---

Primary current = _________________ A

(d) In practice, transformers are not 100% efficient. State two reasons for energy losses in a real transformer and explain how these losses can be minimized. [4]

Reason 1: _____________________________________ How to minimize: _______________________________

Reason 2: _____________________________________ How to minimize: _______________________________

---

Question 6 [14 marks]

A car of mass 1200 kg accelerates uniformly from rest to 30 m/s in 12 s, then travels at constant velocity for 20 s, and finally brakes uniformly to rest in 8.0 s.

(a) Calculate the acceleration during the first 12 s. [2]

---

Acceleration = _________________ m/s²

(b) Calculate the distance traveled during each of the three stages of motion. [6]

Stage 1 (0-12s): ________________________________

Stage 2 (12-32s): _______________________________

Stage 3 (32-40s): _______________________________

(c) On the axes below, sketch the velocity-time graph for the entire motion. Include numerical values on both axes. [3]

[Grid provided for v-t graph with time axis 0-40s and velocity axis 0-35 m/s]

(d) Calculate the total distance traveled and the average speed for the entire journey. [3]

Total distance: _________________________________

Average speed: _________________________________

---

Question 7 [14 marks]

A student uses an electric kettle to heat 1.5 kg of water from 20°C to 100°C. The kettle is rated at 2.0 kW and has an efficiency of 85%.

(a) Calculate the energy required to heat the water. [Specific heat capacity of water = 4200 J/(kg·°C)] [3]

---

---

---

Energy required = _________________ J

(b) Calculate the electrical energy supplied to the kettle. [2]

---

Electrical energy = _________________ J

(c) Calculate the time taken to heat the water. [2]

---

Time = _________________ s

(d) The kettle operates from the 240V mains supply. Calculate the current drawn by the kettle. [2]

---

Current = _________________ A

(e) Explain what happens to the energy that is not used to heat the water. [2]

---

---

(f) Suggest two ways to improve the efficiency of the kettle. [3]

1. ---

2. ---

---

END OF PAPER

TuitionGoWhere Practice Paper - Physics O-Level (Answer Key)

---

Section A [40 marks]

Question 1 [8 marks]

(a) [3 marks] Voltage across 200Ω resistor = 12 - 8.0 = 4.0V Current in circuit = 4.0/200 = 0.02A Resistance of thermistor = 8.0/0.02 = 400Ω

(b) [3 marks] Total resistance = 200 + 50 = 250Ω Current = 12/250 = 0.048A Voltmeter reading = 0.048 × 50 = 2.4V

(c) [2 marks] As temperature increases, the thermistor resistance decreases (negative temperature coefficient). This reduces the total circuit resistance, increasing the current. However, the voltage across the thermistor decreases because its resistance has decreased more than the current has increased.

---

Question 2 [10 marks]

(a) [4 marks] As the coil rotates in the magnetic field, the magnetic flux through the coil changes continuously. When the coil moves parallel to the field lines, flux is maximum. When perpendicular, flux is minimum. This changing flux induces an EMF according to Faraday's law. The direction of the induced EMF reverses every half turn, producing alternating current.

(b) [2 marks]

1. Increase the speed of rotation
2. Increase the number of turns in the coil (Accept: increase magnetic field strength, increase coil area)

(c) [2 marks] Sinusoidal wave starting at 0V, reaching +24V at 0.005s, 0V at 0.01s, -24V at 0.015s, returning to 0V at 0.02s

(d) [2 marks] T = 1/f = 1/50 = 0.02s

---

Question 3 [12 marks]

(a) [2 marks] Input area = π × (0.01)² = 3.14 × 10⁻⁴ m² Output area = π × (0.10)² = 3.14 × 10⁻² m²

(b) [3 marks] Pressure at input = 150/(3.14 × 10⁻⁴) = 477,707 Pa Force at output = 477,707 × (3.14 × 10⁻²) = 15,000N

(c) [2 marks] Volume displaced = 3.14 × 10⁻⁴ × 0.10 = 3.14 × 10⁻⁵ m³ Distance = (3.14 × 10⁻⁵)/(3.14 × 10⁻²) = 0.001m = 0.1cm

(d) [3 marks] Work by input = 150 × 0.10 = 15J Work by output = 15,000 × 0.001 = 15J Comment: Work done is conserved (equal input and output work)

(e) [2 marks] Pressure applied to an enclosed fluid is transmitted equally in all directions (Pascal's principle)

---

Question 4 [10 marks]

(a) [2 marks] a = F/m = 2.4/0.60 = 4.0 m/s²

(b) [2 marks] v = u + at = 0 + 4.0 × 5.0 = 20 m/s

(c) [2 marks] s = ut + ½at² = 0 + ½ × 4.0 × 5.0² = 50m

(d) [4 marks] Deceleration = 1.2/0.60 = 2.0 m/s² Using v = u + at: 0 = 20 + (-2.0)t t = 20/2.0 = 10s

---

Section B [40 marks]

Question 5 [12 marks]

(a) [2 marks] A changing current in the primary coil creates a changing magnetic field in the core, which induces an EMF in the secondary coil.

(b) [3 marks] Vs/Vp = Ns/Np 12/240 = Ns/2000 Ns = (12 × 2000)/240 = 100 turns

(c) [3 marks] VpIp = VsIs 240 × Ip = 12 × 3.0 Ip = 36/240 = 0.15A

(d) [4 marks] Reason 1: Resistance heating in coils (I²R losses) Minimize: Use thick copper wire with low resistance

Reason 2: Eddy currents in iron core Minimize: Use laminated iron core to reduce eddy currents

---

Question 6 [14 marks]

(a) [2 marks] a = (v-u)/t = (30-0)/12 = 2.5 m/s²

(b) [6 marks] Stage 1: s = ½at² = ½ × 2.5 × 12² = 180m Stage 2: s = vt = 30 × 20 = 600m Stage 3: s = (u+v)t/2 = (30+0) × 8.0/2 = 120m

(c) [3 marks] Linear increase from 0 to 30 m/s over 0-12s Horizontal line at 30 m/s from 12-32s
Linear decrease from 30 to 0 m/s over 32-40s

(d) [3 marks] Total distance = 180 + 600 + 120 = 900m Average speed = 900/40 = 22.5 m/s

---

Question 7 [14 marks]

(a) [3 marks] E = mcΔT = 1.5 × 4200 × (100-20) = 1.5 × 4200 × 80 = 504,000J

(b) [2 marks] Electrical energy = 504,000/0.85 = 592,941J

(c) [2 marks] t = E/P = 592,941/2000 = 296s

(d) [2 marks] I = P/V = 2000/240 = 8.33A

(e) [2 marks] The remaining 15% of energy is converted to heat energy that is lost to the surroundings (heating the kettle body, air, etc.)

(f) [3 marks]

1. Better insulation to reduce heat loss to surroundings
2. More efficient heating element design (Accept: lid to reduce evaporation losses, better thermal contact)

---

Marking Scheme Notes:

• Award method marks even if final answer is incorrect
• Accept answers within ±2% for calculated values
• Require appropriate units in final answers
• Award partial credit for correct physics principles even if application is incomplete
• Accept alternative correct explanations for conceptual questions
