Questions

TuitionGoWhere Practice Paper - Physics O-Level (Version 2)

School: TuitionGoWhere Exam Practice (AI)
Subject: Physics
Level: O-Level
Paper: Practice Paper 2 of 5
Duration: 1 hour 15 minutes
Total Marks: 60
Name: ________________________
Class: ________________________
Date: ________________________

Instructions:

Answer all questions in the spaces provided.
Show all working clearly where calculation is required.
Use SI units unless otherwise stated.
Marks allocated are shown at the end of each question or part.

Section A: Static Electricity and Current of Electricity (Questions 1–5) [12 marks]

1. A student rubs a plastic comb on dry hair. The comb attracts small pieces of paper. Explain, in terms of charges, why the comb attracts neutral paper pieces. [2]

2. State the difference between conventional current and electron flow. [1]

3. A current of $0.40\text{ A}$ flows through a resistor for $5.0\text{ minutes}$ . Calculate the total charge that passes through the resistor. [2]

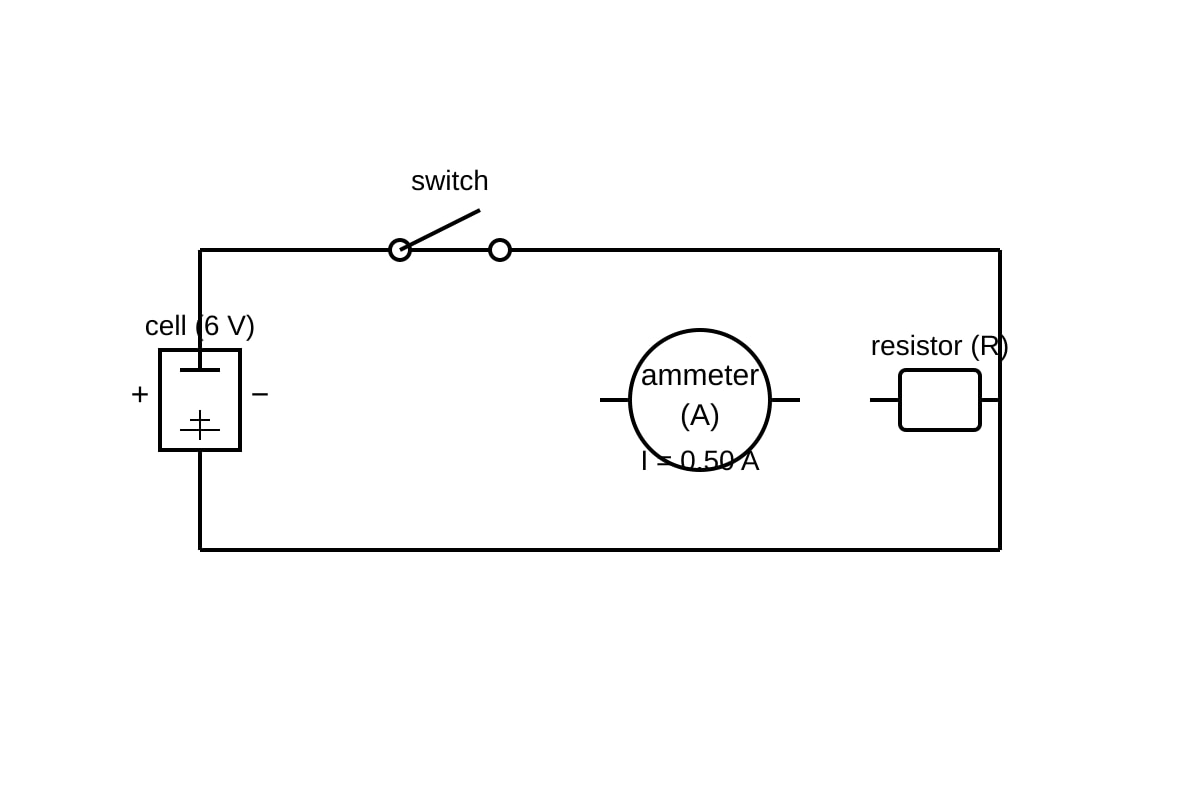

4. The diagram below shows a circuit with a cell, a switch, and an ammeter.

Diagram for 4 (OLEVEL Physics)

Generated diagram for 4.

Calculate the resistance $R$ of the resistor. [2]

5. Give one reason why a thin wire has a higher resistance than a thick wire of the same material and length. [1]

Section B: D.C. Circuits and Practical Electricity (Questions 6–12) [24 marks]

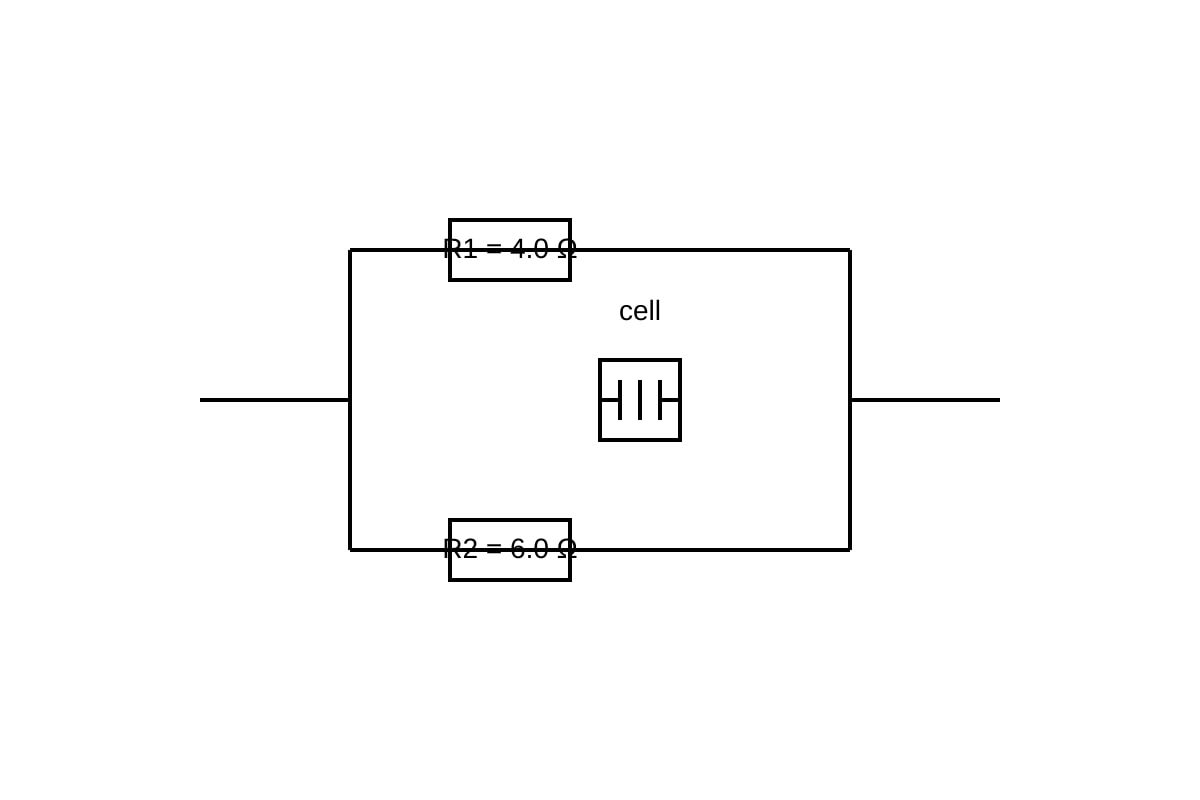

6. In the circuit below, two resistors of $4.0\ \Omega$ and $6.0\ \Omega$ are connected in parallel. Calculate the equivalent resistance of this combination. [2]

Diagram for 6 (OLEVEL Physics)

Generated diagram for 6.

7. A $12\ \Omega$ resistor and a $4\ \Omega$ resistor are connected in series to a $8.0\text{ V}$ supply. Calculate the current in the circuit. [2]

8. A voltmeter connected across a resistance wire shows the same reading as a voltmeter connected across a $10\ \Omega$ resistor in the same series circuit. The total resistance of the series circuit is $30\ \Omega$ . Calculate the resistance of the wire. [3]

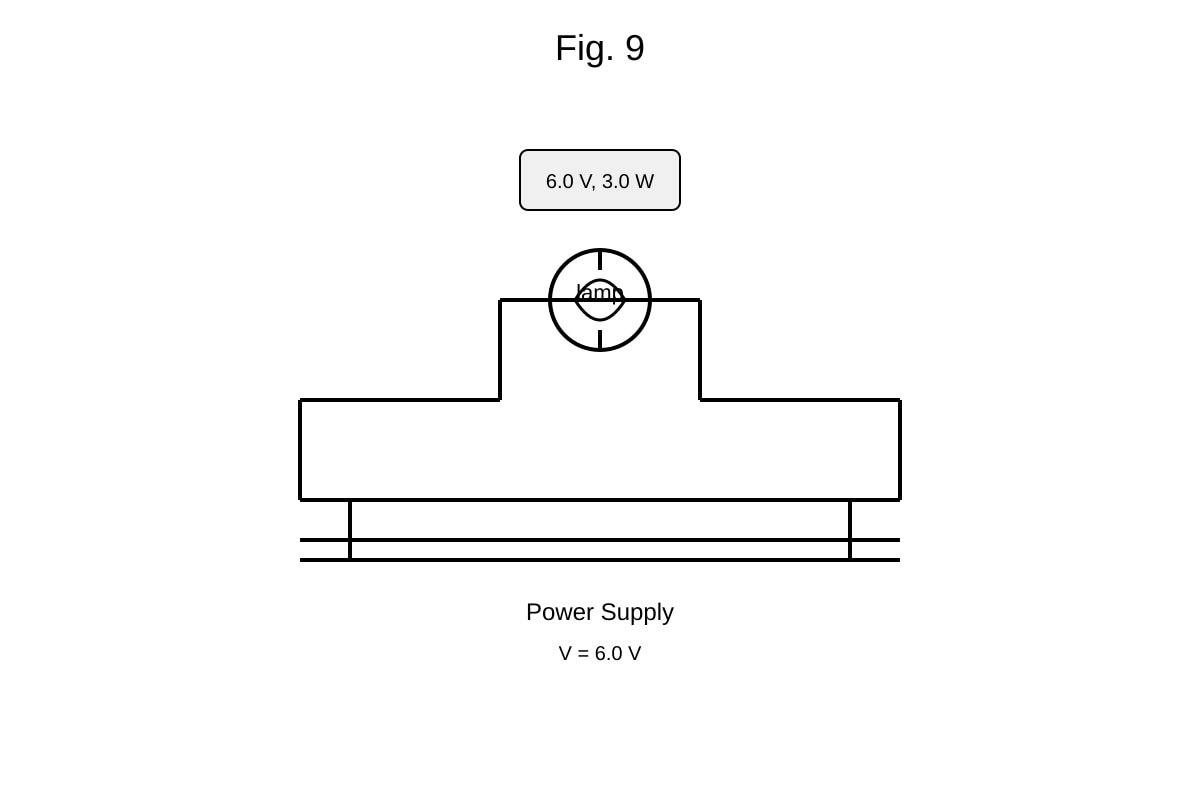

9. The circuit in Fig. 9 shows a lamp rated $6.0\text{ V}, 3.0\text{ W}$ . Calculate the resistance of the lamp when operating normally. [2]

Diagram for 9 (OLEVEL Physics)

Generated diagram for 9.

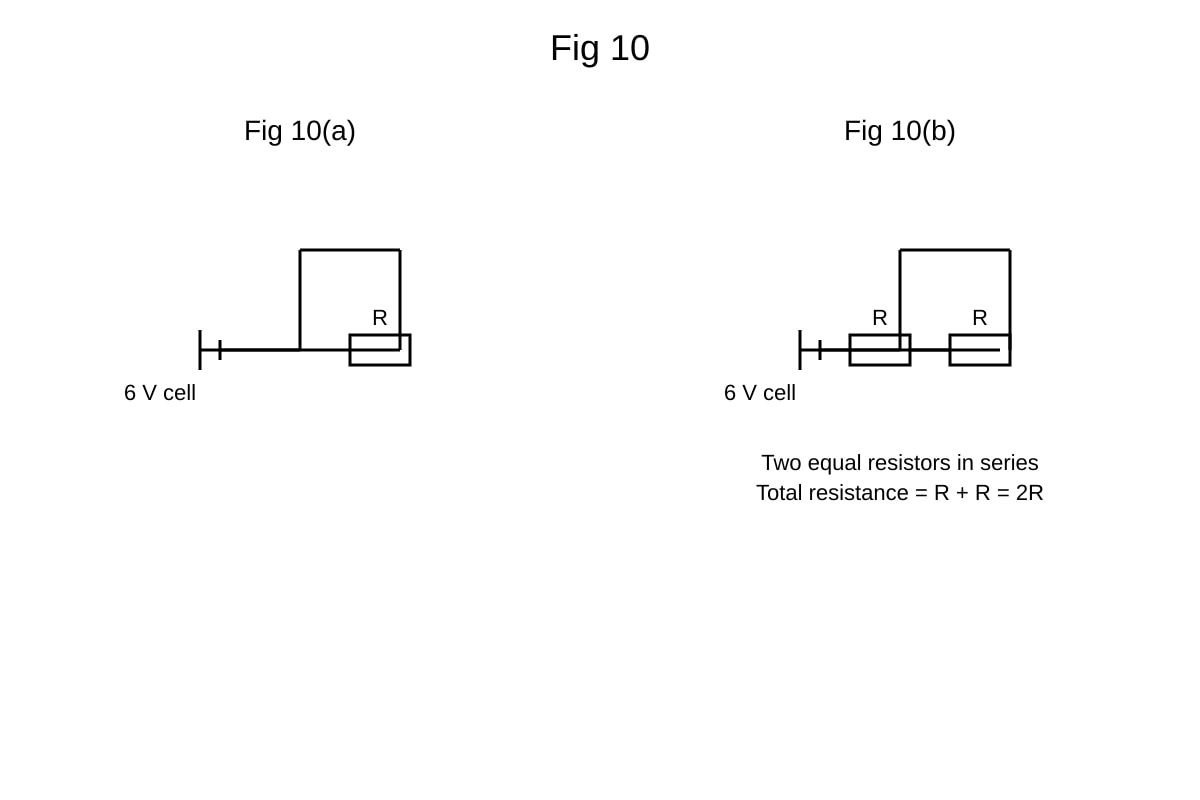

10. Compare the current in Fig. 10(a) (single resistor $R$ to 6 V cell) with Fig. 10(b) (same resistor $R$ in series with another equal resistor to same cell). Explain your answer. [3]

Diagram for 10 (OLEVEL Physics)

Generated diagram for 10.

11. State one danger of overloading a household circuit and one precaution. [2]

12. A kettle is marked $240\text{ V}, 2.0\text{ kW}$ . Calculate the current it draws from the mains. [2]

Section C: Magnetism, Electromagnetism and Electromagnetic Induction (Questions 13–20) [24 marks]

13. State the material property needed for a permanent magnet. [1]

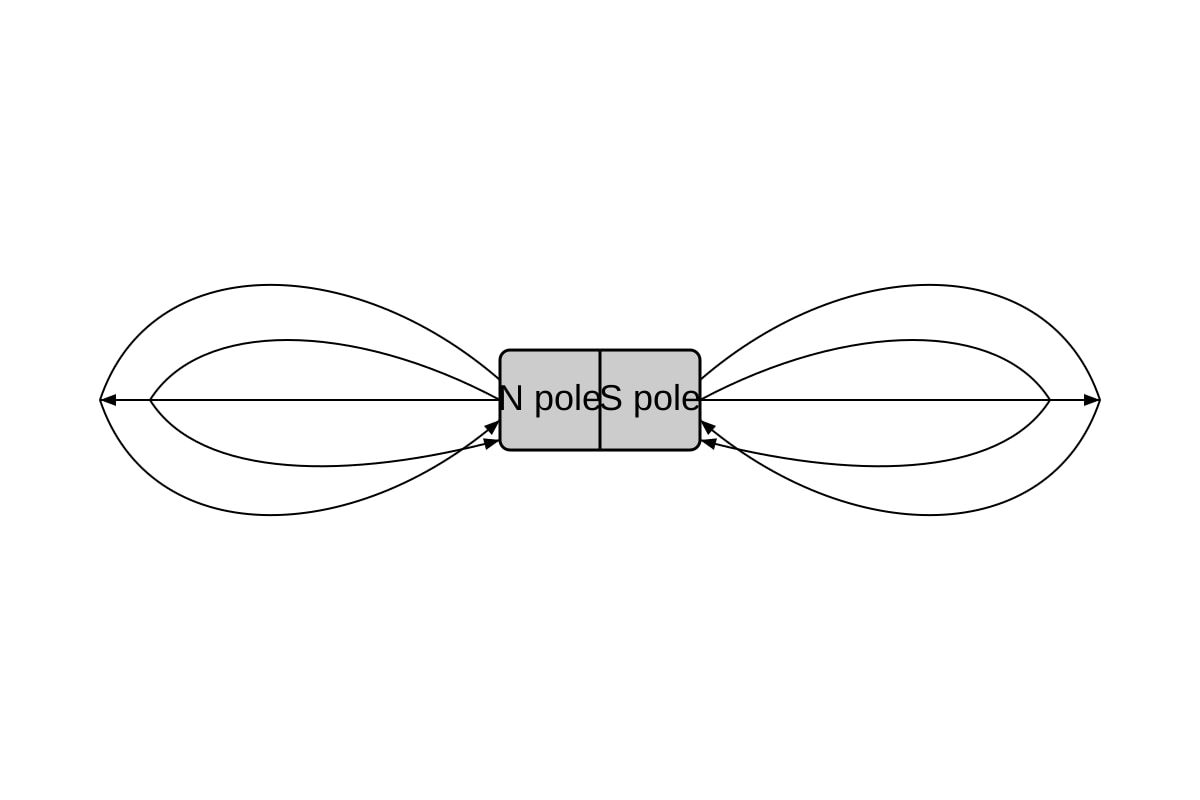

14. Draw the magnetic field pattern around a bar magnet, showing the direction of the field lines. [2]

Diagram for 14 (OLEVEL Physics)

Generated diagram for 14.

15. A wire carrying current is placed between the poles of a U-shaped magnet. State the direction of the force using Fleming’s left-hand rule when current is into the page and field is left to right. [2]

16. Explain how a simple DC motor rotates continuously. [3]

17. A coil is moved into a magnetic field. State the law that tells the direction of the induced current. [1]

18. A transformer has 200 turns on the primary and 50 turns on the secondary. The primary is connected to $240\text{ V}$ AC. Calculate the secondary voltage. [2]

19. Compare the operation of a generator and a motor in terms of energy conversion. [3]

20. A bicycle dynamo uses electromagnetic induction. Explain how turning the wheel produces a current. [3]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Physics O-Level (Version 2) Answer Key

Total Marks: 60

Section A: Static Electricity and Current of Electricity (Q1–5) [12 marks]

1. [2 marks]
Teaching note: Rubbing transfers electrons, making the comb negatively charged (or positively, depending on material). Neutral paper pieces are polarised: near side gets opposite charge.
Answer: The comb becomes charged (1 mark). It induces opposite charge on near side of neutral paper, attracting it (1 mark).
Common mistake: saying paper becomes charged overall.

2. [1 mark]
Answer: Conventional current is flow of positive charge from + to – (1 mark). Electron flow is actual movement of electrons from – to +.

3. [2 marks]
Formula: $Q = I \times t$
$t = 5.0 \times 60 = 300\text{ s}$
$Q = 0.40 \times 300 = 120\text{ C}$
Marking: 1 for time conversion, 1 for correct charge.

4. [2 marks]
$V = IR \Rightarrow R = \frac{V}{I} = \frac{6.0}{0.50} = 12\ \Omega$
Marking: 1 for formula, 1 for answer with unit.

5. [1 mark]
Answer: Thin wire has smaller cross-sectional area, so fewer paths for electrons (1 mark).

Section B: D.C. Circuits and Practical Electricity (Q6–12) [24 marks]

6. [2 marks]
$\frac{1}{R_{eq}} = \frac{1}{4.0} + \frac{1}{6.0} = \frac{3+2}{12} = \frac{5}{12}$
$R_{eq} = \frac{12}{5} = 2.4\ \Omega$
Marking: 1 for parallel formula, 1 for answer.

7. [2 marks]
$R_{total} = 12 + 4 = 16\ \Omega$
$I = \frac{V}{R} = \frac{8.0}{16} = 0.50\text{ A}$
Marking: 1 for total R, 1 for current.

8. [3 marks]
Same voltmeter reading → equal voltage across wire and 10 Ω.
Series: $V_{wire} = V_{10\Omega} \Rightarrow \frac{R_{wire}}{30} \times V_{s} = \frac{10}{30} \times V_{s}$
So $R_{wire} = 10\ \Omega$ (since equal share, resistances equal in series).
Marking: 1 equal V implies equal R in series, 2 for value 10 Ω.

9. [2 marks]
$P = \frac{V^2}{R} \Rightarrow R = \frac{V^2}{P} = \frac{6.0^2}{3.0} = 12\ \Omega$
Marking: 1 formula, 1 answer.

10. [3 marks]
Fig (a): $I_a = \frac{6}{R}$
Fig (b): $I_b = \frac{6}{2R} = \frac{1}{2} I_a$
Current in (b) is half of (a) because total resistance doubled (1 mark reason, 2 for comparison + explanation).

11. [2 marks]
Danger: overheating / fire (1). Precaution: use fuse / circuit breaker (1).

12. [2 marks]
$P = VI \Rightarrow I = \frac{P}{V} = \frac{2000}{240} = 8.33\text{ A}$
Marking: 1 conversion kW to W, 1 answer.

Section C: Magnetism, Electromagnetism and EMI (Q13–20) [24 marks]

13. [1 mark]
Answer: Retains magnetism (hard magnetic material / high coercivity) (1).

14. [2 marks]
Field lines from N to S outside magnet, arrows correct, at least 4 lines.
Marking: 1 pattern, 1 direction.

15. [2 marks]
Fleming left-hand: Field left→right (index), current into page (middle), thumb = force upward (1 mark direction, 1 rule stated).

16. [3 marks]
Commutator reverses current every half-turn (1), so force direction maintained (1), coil keeps rotating (1).

17. [1 mark]
Lenz’s law (1).

18. [2 marks]
$\frac{V_s}{V_p} = \frac{N_s}{N_p} \Rightarrow V_s = 240 \times \frac{50}{200} = 60\text{ V}$
Marking: 1 formula, 1 answer.

19. [3 marks]
Motor: electrical → kinetic (1.5). Generator: kinetic → electrical (1.5).

20. [3 marks]
Wheel turns coil in field (1), flux changes (1), emf induced → current (1).
