O-Level Elementary Mathematics Quiz - Geometry Trigonometry

Name: __________________________
Class: __________________________
Date: __________________________
Score: ________ / 50

Duration: 60 minutes
Total Marks: 50

Instructions:

1. Answer all questions.
2. Write your answers in the spaces provided.
3. Give non-exact numerical answers correct to 3 significant figures, or 1 decimal place for angles in degrees, unless a different level of accuracy is specified in the question.
4. The use of an approved scientific calculator is expected.

---

Section A: Basic Concepts and Calculations (15 Marks)

1. In the right-angled triangle $ABC$, $\angle ABC = 90^\circ$, $AB = 5$ cm, and $BC = 12$ cm.
Calculate the length of $AC$.
[2]

<br> <br> <br>

2. Given that $\sin \theta = 0.6$ and $\theta$ is an acute angle, find the value of $\cos \theta$ without using a calculator.
[2]

<br> <br> <br>

3. Solve the equation $2 \tan x - 1 = 0$ for $0^\circ \le x \le 90^\circ$. Give your answer correct to 1 decimal place.
[2]

<br> <br> <br>

4. A ladder of length 6 m leans against a vertical wall. The foot of the ladder is 2.5 m from the base of the wall.
Calculate the angle the ladder makes with the horizontal ground.
[2]

<br> <br> <br>

5. In $\triangle PQR$, $PQ = 8$ cm, $QR = 10$ cm, and $\angle PQR = 60^\circ$.
Calculate the area of $\triangle PQR$.
[2]

<br> <br> <br>

6. The bearing of point $B$ from point $A$ is $135^\circ$.
What is the bearing of point $A$ from point $B$?
[1]

<br> <br> <br>

7. Find the exact value of $\sin 30^\circ + \cos 60^\circ$.
[2]

<br> <br> <br>

8. A circle has centre $O$ and radius 7 cm. A sector $AOB$ has an angle of $40^\circ$ at the centre.
Calculate the length of the arc $AB$.
[2]

<br> <br> <br>

---

Section B: Application and Problem Solving (20 Marks)

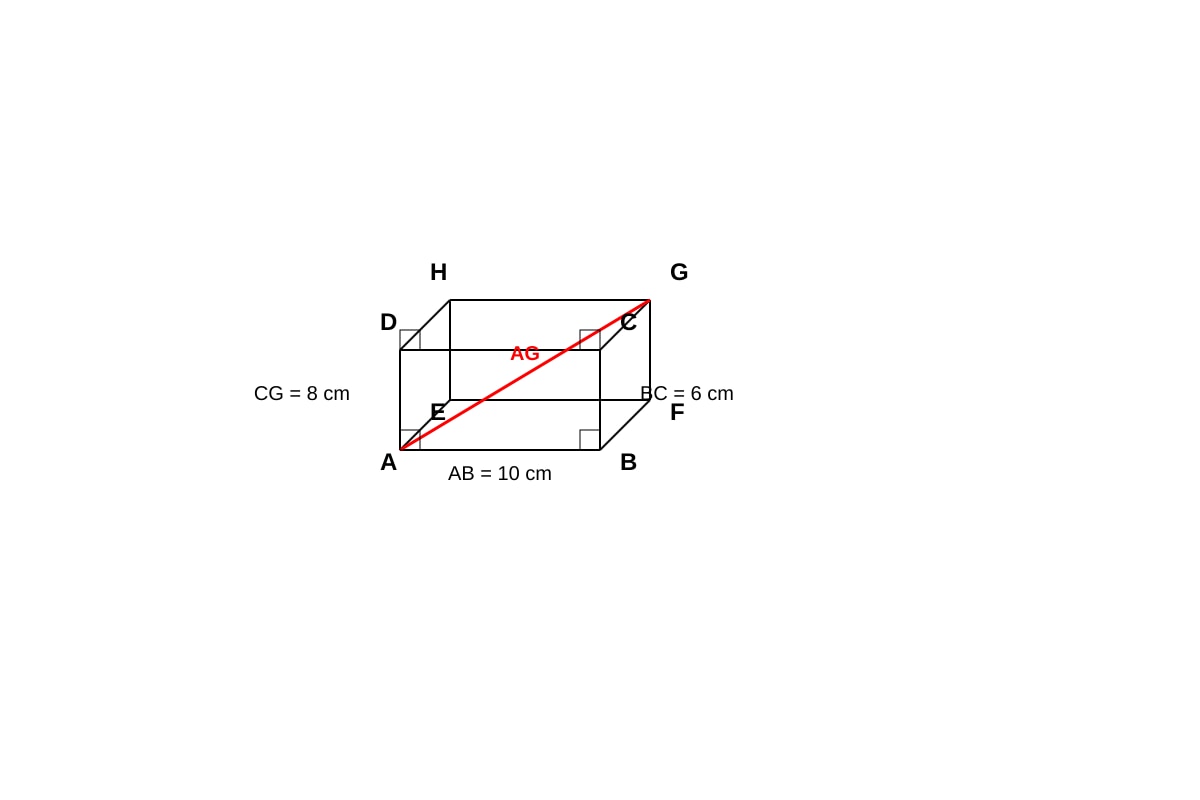

9. The diagram shows a cuboid $ABCDEFGH$.
$AB = 10$ cm, $BC = 6$ cm, and $CG = 8$ cm.
Calculate the length of the diagonal $AG$.

Generated diagram for Q9.

[3]

<br> <br> <br> <br>

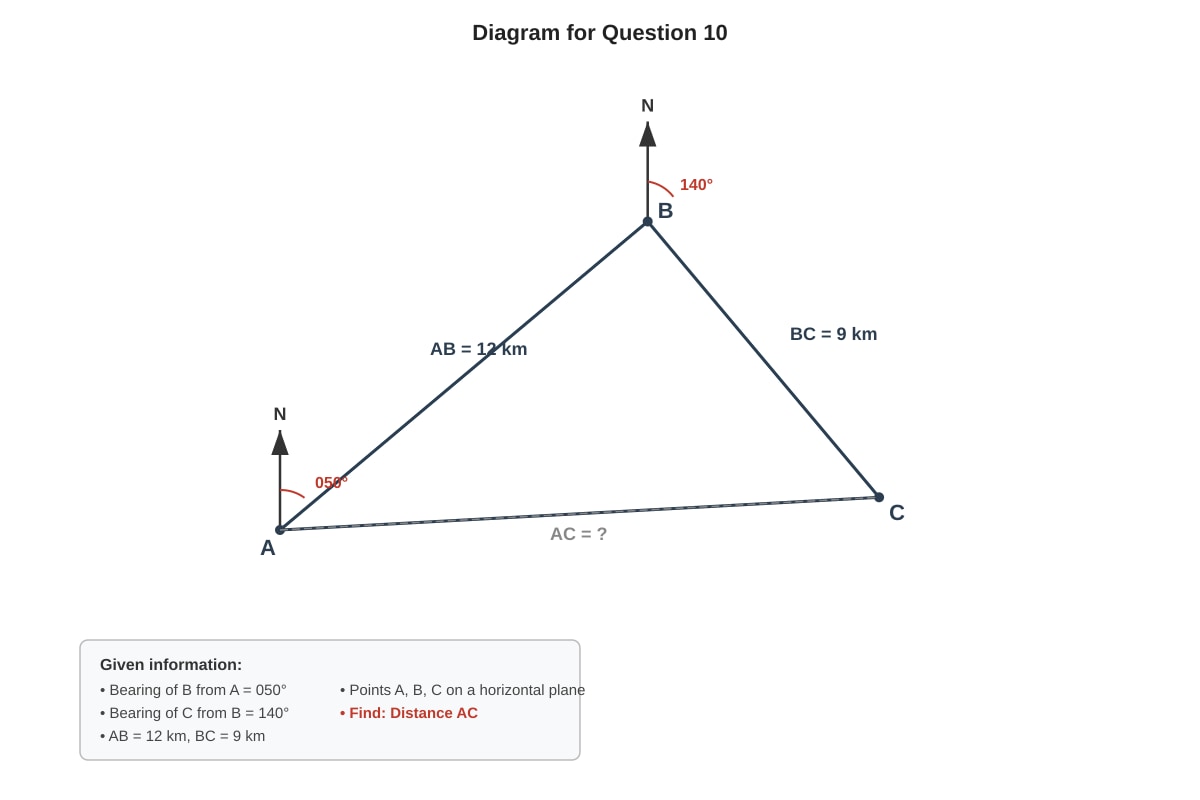

10. Points $A$, $B$, and $C$ lie on a horizontal plane. The bearing of $B$ from $A$ is $050^\circ$ and the bearing of $C$ from $B$ is $140^\circ$.
$AB = 12$ km and $BC = 9$ km.
Calculate the distance $AC$.

Generated diagram for Q10.

[4]

<br> <br> <br> <br> <br>

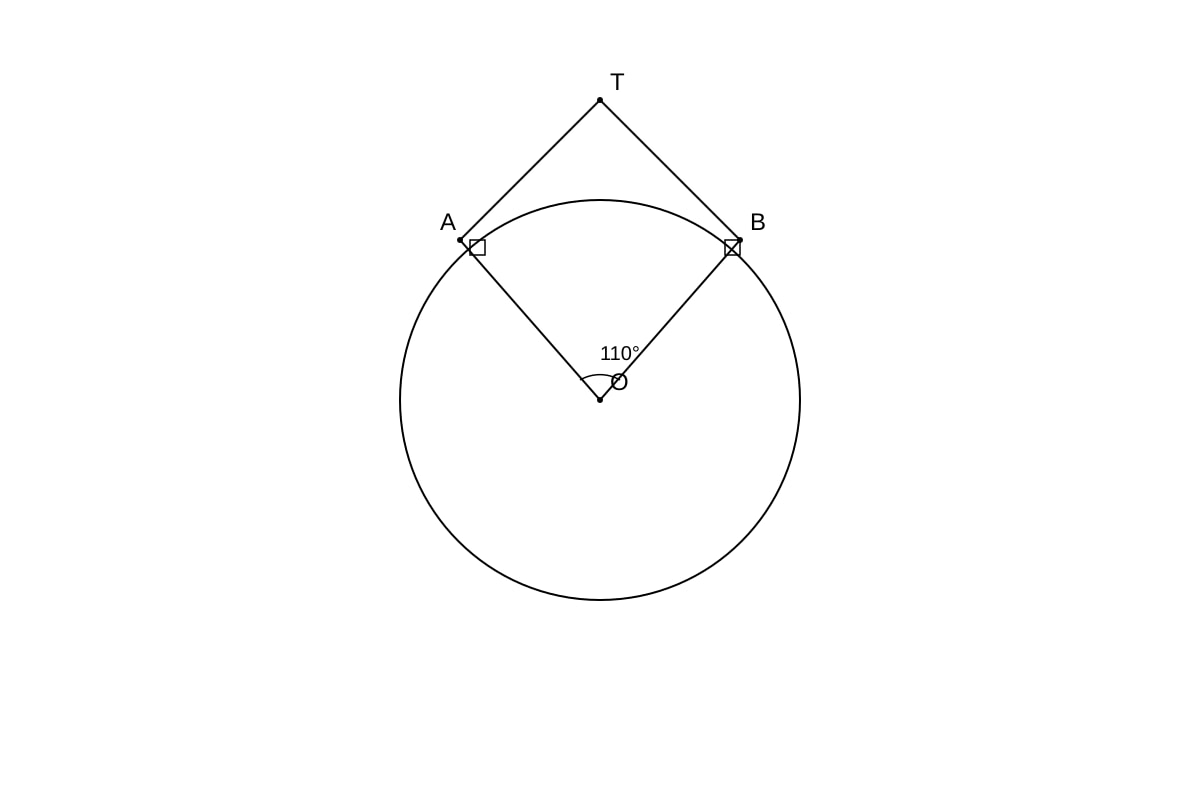

11. In the diagram, $O$ is the centre of the circle. $TA$ and $TB$ are tangents to the circle at $A$ and $B$ respectively. $\angle AOB = 110^\circ$.
(a) Find $\angle OAT$.
(b) Find $\angle ATB$.

Generated diagram for Q11.

[3]

<br> <br> <br> <br>

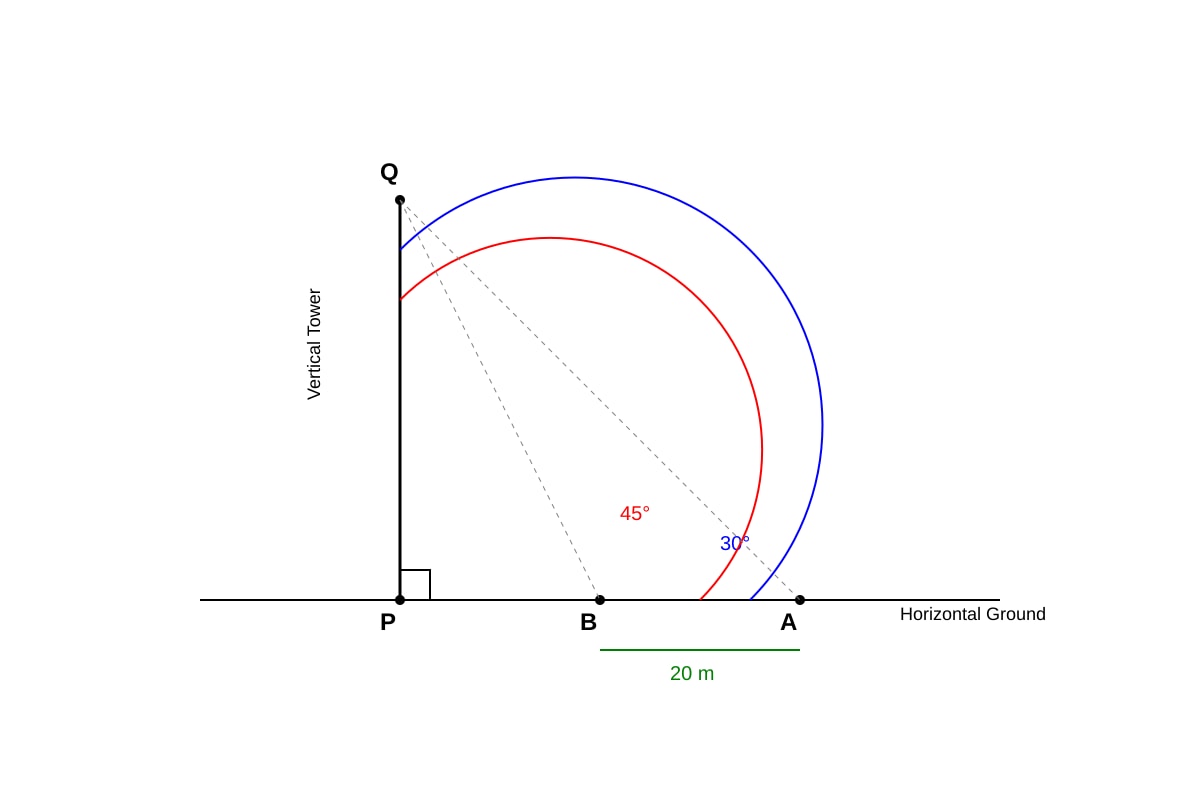

12. A vertical tower $PQ$ stands on horizontal ground. From a point $A$ on the ground, the angle of elevation of the top of the tower $Q$ is $30^\circ$. From a point $B$, which is 20 m closer to the tower along the line $AP$, the angle of elevation of $Q$ is $45^\circ$.
Calculate the height of the tower $PQ$.

Generated diagram for Q12.

[5]

<br> <br> <br> <br> <br> <br>

13. The diagram shows a triangular prism $ABCDEF$. The cross-section $ABC$ is an isosceles triangle with $AB = AC = 13$ cm and $BC = 10$ cm. The length of the prism is 20 cm.
Calculate the total surface area of the prism.

Image pending generation: diagram for Q13.

[5]

<br> <br> <br> <br> <br> <br>

---

Section C: Advanced Reasoning and Proofs (15 Marks)

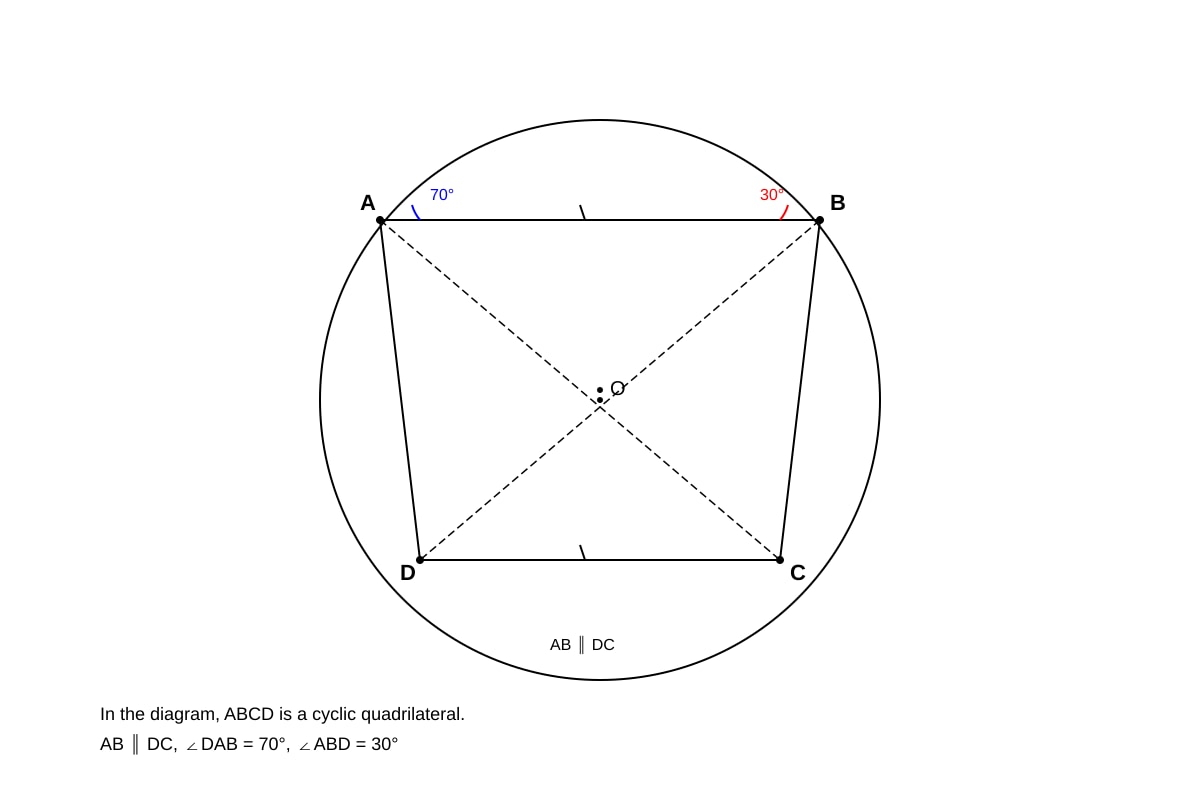

14. In the diagram, $ABCD$ is a cyclic quadrilateral. $AB$ is parallel to $DC$. $\angle DAB = 70^\circ$ and $\angle ABD = 30^\circ$.
(a) Find $\angle BDC$.
(b) Find $\angle ACB$.
(c) Explain why $\triangle ABD$ is similar to $\triangle BAC$ is false (or determine if they are similar and justify). Note: Just find angles first.
Actually, let's refine:
(a) Find $\angle BDC$.
(b) Find $\angle DAC$.
(c) Hence, or otherwise, find $\angle ACD$.

Generated diagram for Q14.

[5]

<br> <br> <br> <br> <br> <br>

15. Prove the identity:
$\frac{\sin \theta}{1 - \cos \theta} = \frac{1 + \cos \theta}{\sin \theta}$
[3]

<br> <br> <br> <br> <br> <br>

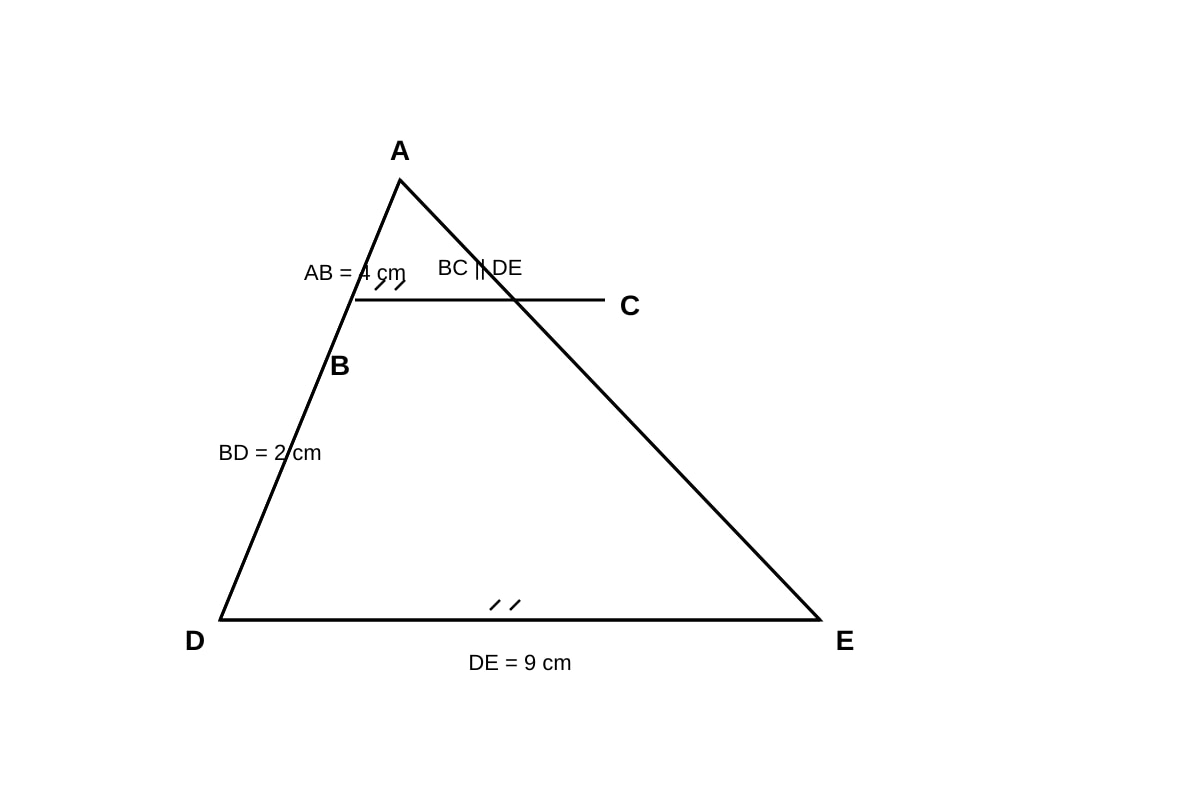

16. The diagram shows two triangles, $\triangle ABC$ and $\triangle ADE$. $B$ lies on $AD$ and $C$ lies on $AE$. $BC$ is parallel to $DE$.
$AB = 4$ cm, $BD = 2$ cm, and $DE = 9$ cm.
(a) Show that $\triangle ABC$ is similar to $\triangle ADE$.
(b) Calculate the length of $BC$.

Generated diagram for Q16.

[4]

<br> <br> <br> <br> <br> <br>

17. A cone has a base radius of 5 cm and a slant height of 13 cm.
(a) Calculate the vertical height of the cone.
(b) Calculate the volume of the cone.
[3]

<br> <br> <br> <br> <br> <br>

18. In $\triangle XYZ$, $XY = 7$ cm, $YZ = 9$ cm, and $\angle XYZ = 120^\circ$.
Calculate the length of $XZ$.
[3]

<br> <br> <br> <br> <br> <br>

19. The angle of depression of a boat from the top of a cliff 50 m high is $25^\circ$.
Calculate the horizontal distance of the boat from the base of the cliff.
[2]

<br> <br> <br> <br> <br> <br>

20. Given that $\tan A = \frac{3}{4}$ and $\tan B = \frac{1}{2}$, where $A$ and $B$ are acute angles, find the exact value of $\tan(A+B)$.
Note: Use the formula $\tan(A+B) = \frac{\tan A + \tan B}{1 - \tan A \tan B}$ if known, or derive using sine/cosine.
[3]

<br> <br> <br> <br> <br> <br>

<!-- TuitionGoWhere generation metadata: stage=5-1; model=qwen/qwen3.7-plus; model_label=Qwen3.7 Plus; generated=2026-06-04; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

O-Level Elementary Mathematics Quiz - Geometry Trigonometry (Answer Key)

1.
Using Pythagoras' theorem:
$AC^2 = AB^2 + BC^2$
$AC^2 = 5^2 + 12^2 = 25 + 144 = 169$
$AC = \sqrt{169} = 13$ cm
Answer: 13 cm
[2 marks: 1 for substitution, 1 for correct answer]

2.
We know $\sin^2 \theta + \cos^2 \theta = 1$.
$(0.6)^2 + \cos^2 \theta = 1$
$0.36 + \cos^2 \theta = 1$
$\cos^2 \theta = 0.64$
$\cos \theta = \sqrt{0.64} = 0.8$ (since $\theta$ is acute, $\cos \theta > 0$)
Answer: 0.8
[2 marks: 1 for identity/substitution, 1 for correct answer]

3.
$2 \tan x = 1 \implies \tan x = 0.5$
$x = \tan^{-1}(0.5)$
$x \approx 26.565^\circ$
Answer: $26.6^\circ$
[2 marks: 1 for isolating tan x, 1 for correct value]

4.
Let $\theta$ be the angle with the ground.
$\cos \theta = \frac{\text{Adjacent}}{\text{Hypotenuse}} = \frac{2.5}{6}$
$\theta = \cos^{-1}\left(\frac{2.5}{6}\right)$
$\theta \approx 65.37^\circ$
Answer: $65.4^\circ$
[2 marks: 1 for correct ratio, 1 for answer]

5.
Area $= \frac{1}{2} ab \sin C$
Area $= \frac{1}{2} (8)(10) \sin 60^\circ$
Area $= 40 \times \frac{\sqrt{3}}{2} = 20\sqrt{3}$
$20\sqrt{3} \approx 34.64$
Answer: $34.6$ cm$^2$
[2 marks: 1 for formula/substitution, 1 for answer]

6.
Back bearing = Forward bearing $\pm 180^\circ$.
$135^\circ + 180^\circ = 315^\circ$.
Answer: $315^\circ$
[1 mark]

7.
$\sin 30^\circ = 0.5$
$\cos 60^\circ = 0.5$
Sum $= 0.5 + 0.5 = 1$
Answer: 1
[2 marks: 1 for each value or final sum]

8.
Arc Length $= \frac{\theta}{360} \times 2\pi r$
Length $= \frac{40}{360} \times 2 \times \pi \times 7$
Length $= \frac{1}{9} \times 14\pi = \frac{14\pi}{9}$
$\frac{14\pi}{9} \approx 4.886$
Answer: $4.89$ cm
[2 marks: 1 for formula/substitution, 1 for answer]

9.
First, find the diagonal of the base $AC$ (or $EG$ etc, but we need space diagonal).
Let's find $AC$ on the base $ABCD$:
$AC^2 = AB^2 + BC^2 = 10^2 + 6^2 = 100 + 36 = 136$.
Now, consider $\triangle ACG$ (right-angled at $C$ because $CG$ is vertical):
$AG^2 = AC^2 + CG^2$
$AG^2 = 136 + 8^2 = 136 + 64 = 200$
$AG = \sqrt{200} = 10\sqrt{2} \approx 14.14$
Answer: $14.1$ cm
[3 marks: 1 for base diagonal, 1 for space diagonal setup, 1 for answer]

10.
Find $\angle ABC$.
Bearing of $B$ from $A$ is $050^\circ$. So, back-bearing of $A$ from $B$ is $050^\circ + 180^\circ = 230^\circ$.
The bearing of $C$ from $B$ is $140^\circ$.
$\angle ABC = 230^\circ - 140^\circ = 90^\circ$.
Since $\triangle ABC$ is right-angled at $B$:
$AC^2 = AB^2 + BC^2$
$AC^2 = 12^2 + 9^2 = 144 + 81 = 225$
$AC = \sqrt{225} = 15$ km
Answer: 15 km
[4 marks: 1 for finding angle ABC is 90, 1 for Pythagoras setup, 1 for calculation, 1 for answer]

11.
(a) The radius is perpendicular to the tangent at the point of contact.
Therefore, $\angle OAT = 90^\circ$.
Answer: $90^\circ$
(b) In quadrilateral $OATB$, the sum of angles is $360^\circ$.
$\angle OAT = 90^\circ$, $\angle OBT = 90^\circ$, $\angle AOB = 110^\circ$.
$\angle ATB = 360^\circ - 90^\circ - 90^\circ - 110^\circ = 70^\circ$.
Answer: $70^\circ$
[3 marks: 1 for part a, 2 for part b]

12.
Let $PQ = h$ and $PB = x$.
In $\triangle PQB$ (right-angled at $P$):
$\tan 45^\circ = \frac{h}{x} \implies 1 = \frac{h}{x} \implies x = h$.
In $\triangle PQA$ (right-angled at $P$):
$PA = PB + AB = x + 20 = h + 20$.
$\tan 30^\circ = \frac{h}{h + 20}$
$\frac{1}{\sqrt{3}} = \frac{h}{h + 20}$
$h + 20 = h\sqrt{3}$
$20 = h\sqrt{3} - h = h(\sqrt{3} - 1)$
$h = \frac{20}{\sqrt{3} - 1}$
Rationalizing or calculating:
$h = \frac{20(\sqrt{3} + 1)}{3 - 1} = 10(\sqrt{3} + 1)$
$h \approx 10(1.732 + 1) = 27.32$
Answer: $27.3$ m
[5 marks: 1 for each trig ratio setup, 1 for linking equations, 1 for algebraic solution, 1 for final answer]

13.
First, find the height of $\triangle ABC$. Let $M$ be midpoint of $BC$.
$BM = 5$ cm.
Height $AM = \sqrt{13^2 - 5^2} = \sqrt{169 - 25} = \sqrt{144} = 12$ cm.
Area of $\triangle ABC = \frac{1}{2} \times 10 \times 12 = 60$ cm$^2$.
There are two such triangular faces: $2 \times 60 = 120$ cm$^2$.
Rectangular faces:
Two side faces ($ABED$ and $ACFD$): Area $= 13 \times 20 = 260$ cm$^2$ each. Total $= 520$ cm$^2$.
Base face ($BCFE$): Area $= 10 \times 20 = 200$ cm$^2$.
Total Surface Area $= 120 + 520 + 200 = 840$ cm$^2$.
Answer: $840$ cm$^2$
[5 marks: 1 for triangle height, 1 for triangle area, 1 for rectangular areas, 1 for sum, 1 for final answer]

14.
(a) Since $AB \parallel DC$, alternate angles are equal.
$\angle BDC = \angle ABD = 30^\circ$.
Answer: $30^\circ$
(b) Angles in the same segment subtended by arc $BC$ are equal.
$\angle DAC = \angle DBC$.
We need $\angle DBC$.
In $\triangle ABD$, $\angle ADB = 180 - 70 - 30 = 80^\circ$.
Since $ABCD$ is cyclic, $\angle ADC + \angle ABC = 180^\circ$? No, easier:
$\angle ACD = \angle ABD = 30^\circ$ (angles in same segment subtended by arc $AD$? No, subtended by arc $AD$ are $\angle ABD$ and $\angle ACD$). Yes.
So $\angle ACD = 30^\circ$.
Wait, question asks for $\angle DAC$.
$\angle DAC$ subtends arc $DC$. $\angle DBC$ also subtends arc $DC$.
Find $\angle DBC$:
In $\triangle BCD$, we know $\angle BDC = 30^\circ$.
We need more info.
Let's use parallel lines again. $\angle BAC = \angle ACD$ (alternate).
Also $\angle ABD = \angle ACD = 30^\circ$ (angles in same segment).
So $\angle BAC = 30^\circ$.
In $\triangle ABC$, $\angle ABC = \angle ABD + \angle DBC$.
$\angle DAB = 70^\circ$. $\angle DAC = \angle DAB - \angle BAC = 70 - 30 = 40^\circ$.
Answer: $40^\circ$
(c) Find $\angle ACD$.
As established in (b), $\angle ACD = \angle ABD = 30^\circ$ (angles in same segment).
Answer: $30^\circ$
[5 marks: 1 for (a), 2 for (b), 2 for (c)]

15.
LHS $= \frac{\sin \theta}{1 - \cos \theta}$
Multiply numerator and denominator by $(1 + \cos \theta)$:
$= \frac{\sin \theta (1 + \cos \theta)}{(1 - \cos \theta)(1 + \cos \theta)}$
$= \frac{\sin \theta (1 + \cos \theta)}{1 - \cos^2 \theta}$
Since $\sin^2 \theta + \cos^2 \theta = 1$, then $1 - \cos^2 \theta = \sin^2 \theta$.
$= \frac{\sin \theta (1 + \cos \theta)}{\sin^2 \theta}$
Cancel one $\sin \theta$:
$= \frac{1 + \cos \theta}{\sin \theta}$
$= \text{RHS}$
[3 marks: 1 for multiplication step, 1 for identity substitution, 1 for simplification]

16.
(a) $\angle ABC = \angle ADE$ (corresponding angles, $BC \parallel DE$).
$\angle ACB = \angle AED$ (corresponding angles).
$\angle A$ is common.
Therefore, $\triangle ABC \sim \triangle ADE$ (AAA similarity).
(b) Ratio of similarity $k = \frac{AB}{AD}$.
$AD = AB + BD = 4 + 2 = 6$ cm.
$k = \frac{4}{6} = \frac{2}{3}$.
$\frac{BC}{DE} = \frac{2}{3} \implies BC = \frac{2}{3} \times 9 = 6$ cm.
Answer: 6 cm
[4 marks: 2 for proof, 2 for calculation]

17.
(a) Vertical height $h$, radius $r=5$, slant $l=13$.
$h^2 + r^2 = l^2 \implies h^2 + 5^2 = 13^2$
$h^2 = 169 - 25 = 144$
$h = 12$ cm.
(b) Volume $= \frac{1}{3} \pi r^2 h$
$V = \frac{1}{3} \pi (5^2)(12) = \frac{1}{3} \pi (25)(12) = 100\pi$
$100\pi \approx 314.16$
Answer: $314$ cm$^3$
[3 marks: 1 for height, 1 for volume formula/sub, 1 for answer]

18.
Using Cosine Rule:
$XZ^2 = XY^2 + YZ^2 - 2(XY)(YZ) \cos(\angle XYZ)$
$XZ^2 = 7^2 + 9^2 - 2(7)(9) \cos 120^\circ$
$\cos 120^\circ = -0.5$
$XZ^2 = 49 + 81 - 126(-0.5)$
$XZ^2 = 130 + 63 = 193$
$XZ = \sqrt{193} \approx 13.89$
Answer: $13.9$ cm
[3 marks: 1 for formula, 1 for substitution, 1 for answer]

19.
Angle of depression $25^\circ$ means angle of elevation from boat to top is $25^\circ$ (alternate angles).
$\tan 25^\circ = \frac{50}{d}$
$d = \frac{50}{\tan 25^\circ}$
$d \approx \frac{50}{0.4663} \approx 107.22$
Answer: $107$ m
[2 marks: 1 for trig setup, 1 for answer]

20.
$\tan(A+B) = \frac{\tan A + \tan B}{1 - \tan A \tan B}$
$\tan A = 0.75, \tan B = 0.5$
Numerator: $0.75 + 0.5 = 1.25 = \frac{5}{4}$
Denominator: $1 - (0.75)(0.5) = 1 - 0.375 = 0.625 = \frac{5}{8}$
$\tan(A+B) = \frac{5/4}{5/8} = \frac{5}{4} \times \frac{8}{5} = 2$
Answer: 2
[3 marks: 1 for formula, 1 for substitution, 1 for answer]
