O-Level Elementary Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40
Instructions: Answer all 20 questions. Show your working clearly where required. Diagrams are not drawn to scale unless stated.

Section A (Questions 1–5) — Short Answer [10 marks]

1. In the right-angled triangle $PQR$, $\angle PRQ = 90^\circ$, $PQ = 13$ cm and $PR = 5$ cm. Write down the exact value of $\sin \angle PQR$. [2]

---

2. A point is chosen at random inside a circle of radius $10$ cm. A smaller concentric circle of radius $6$ cm is shaded. Find the probability that the point lies in the shaded region. [2]

---

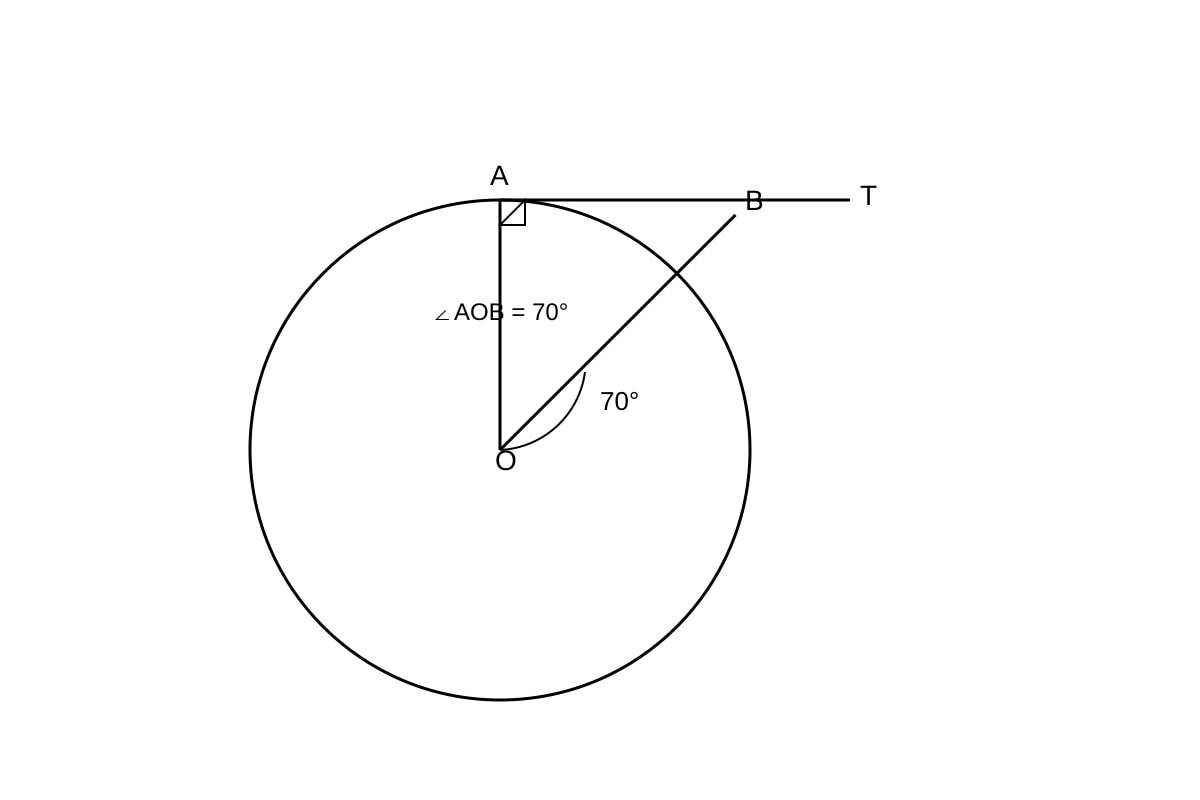

3. In the diagram below, $O$ is the centre of the circle and $AT$ is a tangent at $A$. Given $\angle AOB = 70^\circ$, write down the value of $\angle OAT$. [2]

Image pending generation: diagram for Q3.

---

4. Triangle $ABC$ is similar to triangle $DEF$. Given $AB = 4$ cm, $DE = 10$ cm, and area of $\triangle DEF = 75$ cm², find the area of $\triangle ABC$. [2]

---

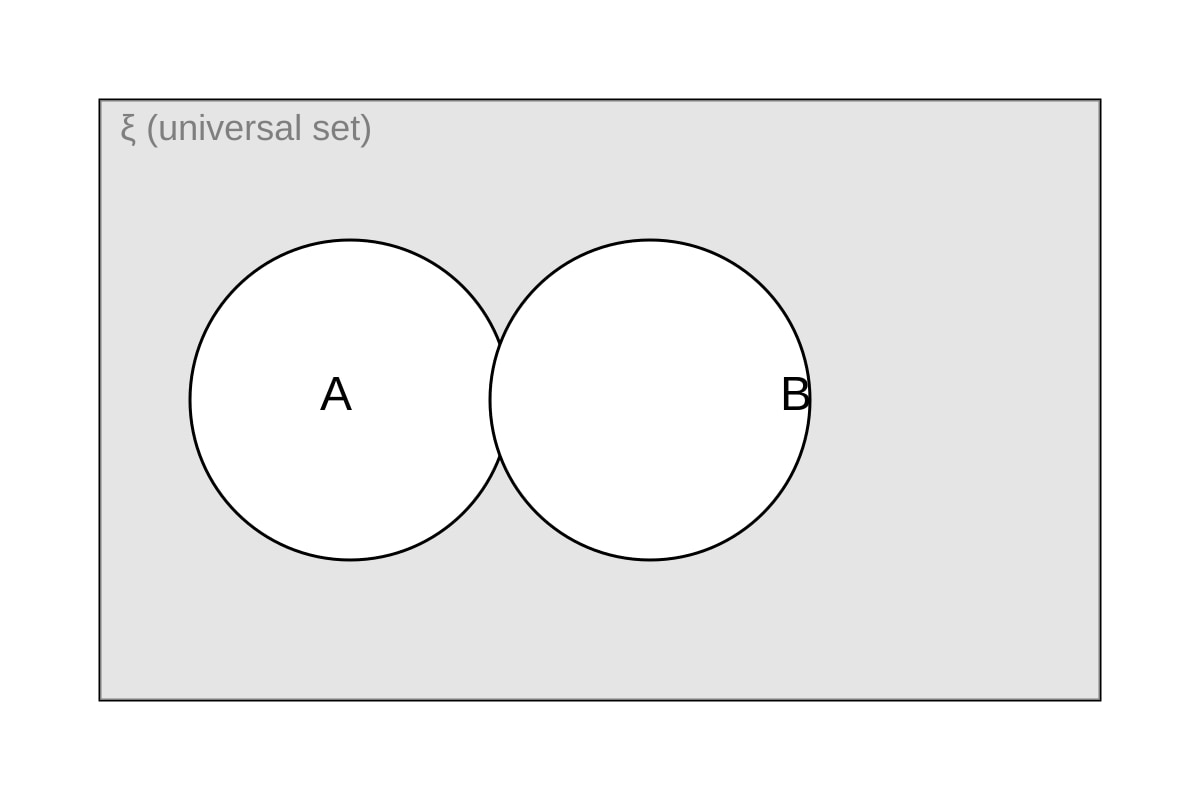

5. Write down the set notation describing the shaded region in the Venn diagram below. [2]

Image pending generation: diagram for Q5.

---

Section B (Questions 6–10) — Structured [10 marks]

6. A ladder of length $5$ m leans against a wall. The foot of the ladder is $3$ m from the wall.
(a) Find the height the ladder reaches up the wall. [2]
(b) Find the angle the ladder makes with the ground. [2]

---

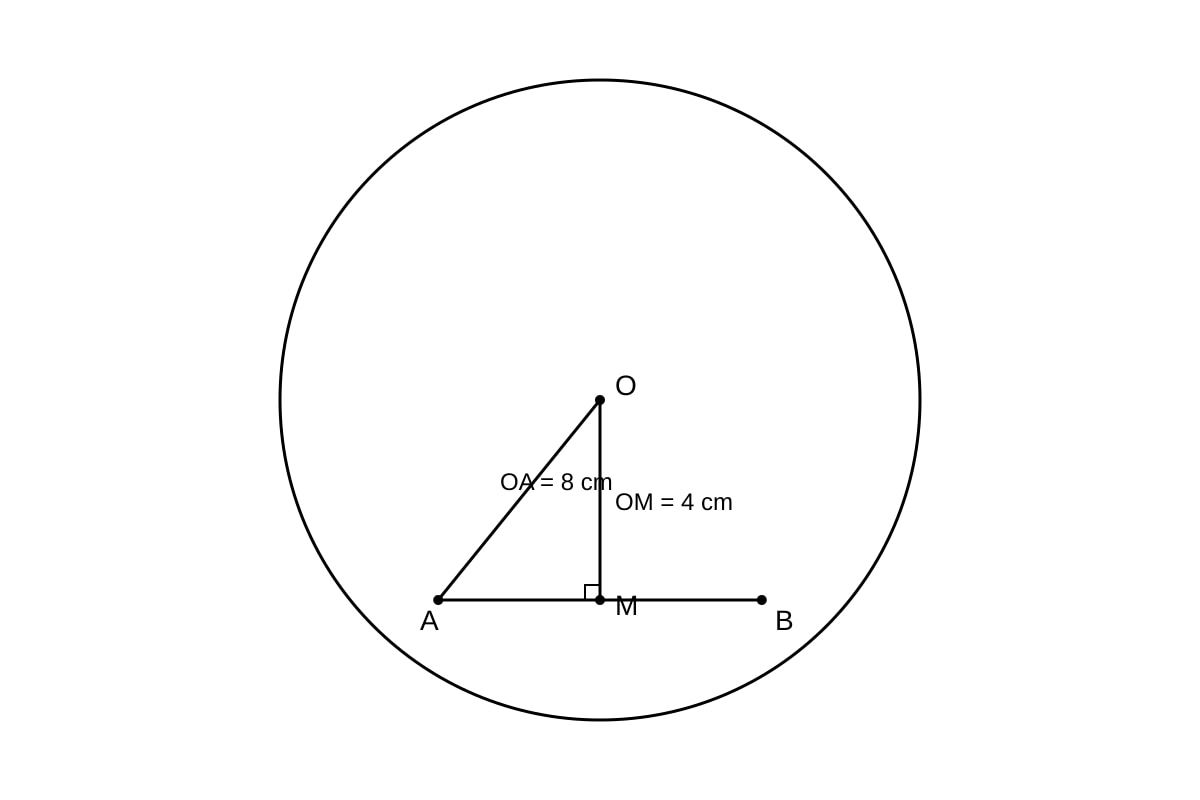

7. The diagram shows a circle, centre $O$, radius $8$ cm. $AB$ is a chord and $M$ is the midpoint of $AB$. Given $OM = 4$ cm, find the length of $AB$. [3]

Image pending generation: diagram for Q7.

---

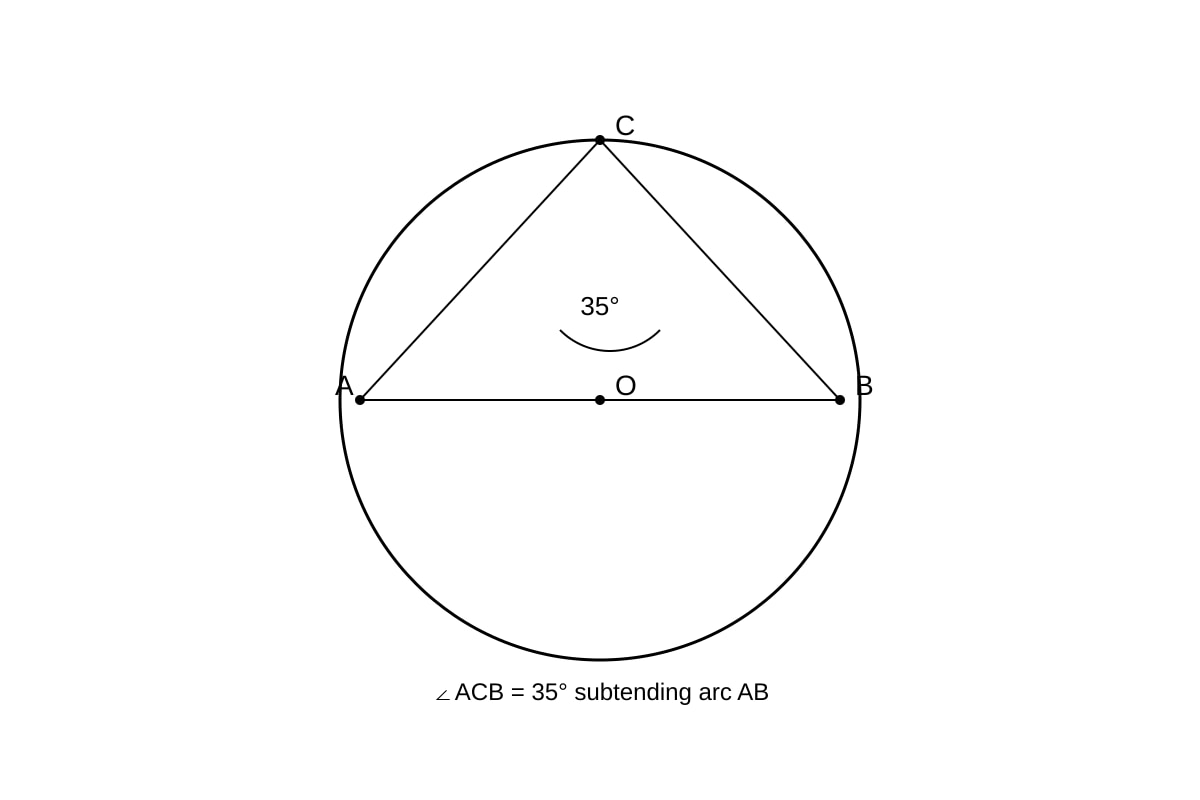

8. In the diagram, $O$ is the centre of the circle. $\angle ACB = 35^\circ$ and $C$ is on the circumference. Find $\angle AOB$. [2]

Image pending generation: diagram for Q8.

---

9. A tower of height $20$ m casts a shadow of $12$ m. At the same time, a tree casts a shadow of $9$ m. Find the height of the tree. [3]

---

10. The table below shows the number of students in a class who like different sports.

Sport	Number
Football	12
Badminton	8
Tennis	4
Others	6

Represent this data in a pie chart. Calculate the angle for Football. [3]

---

Section C (Questions 11–20) — Extended [20 marks]

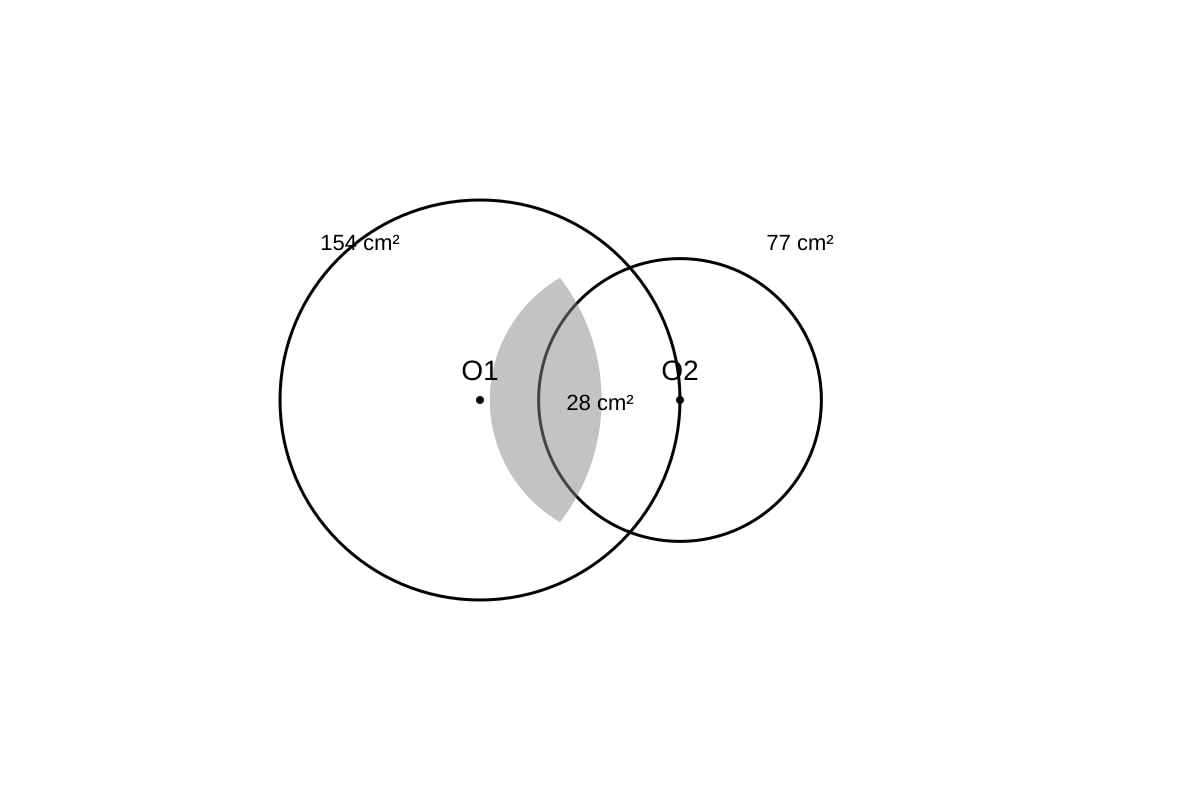

11. The diagram shows two overlapping circles with centres $O_1$ and $O_2$. The shaded region is the lens-shaped overlap. Given the area of the large circle is $154$ cm² and the small circle is $77$ cm², and the overlap area is $28$ cm², a point is chosen at random from the union of both circles. Find the probability it is in the overlap. [3]

Image pending generation: diagram for Q11.

---

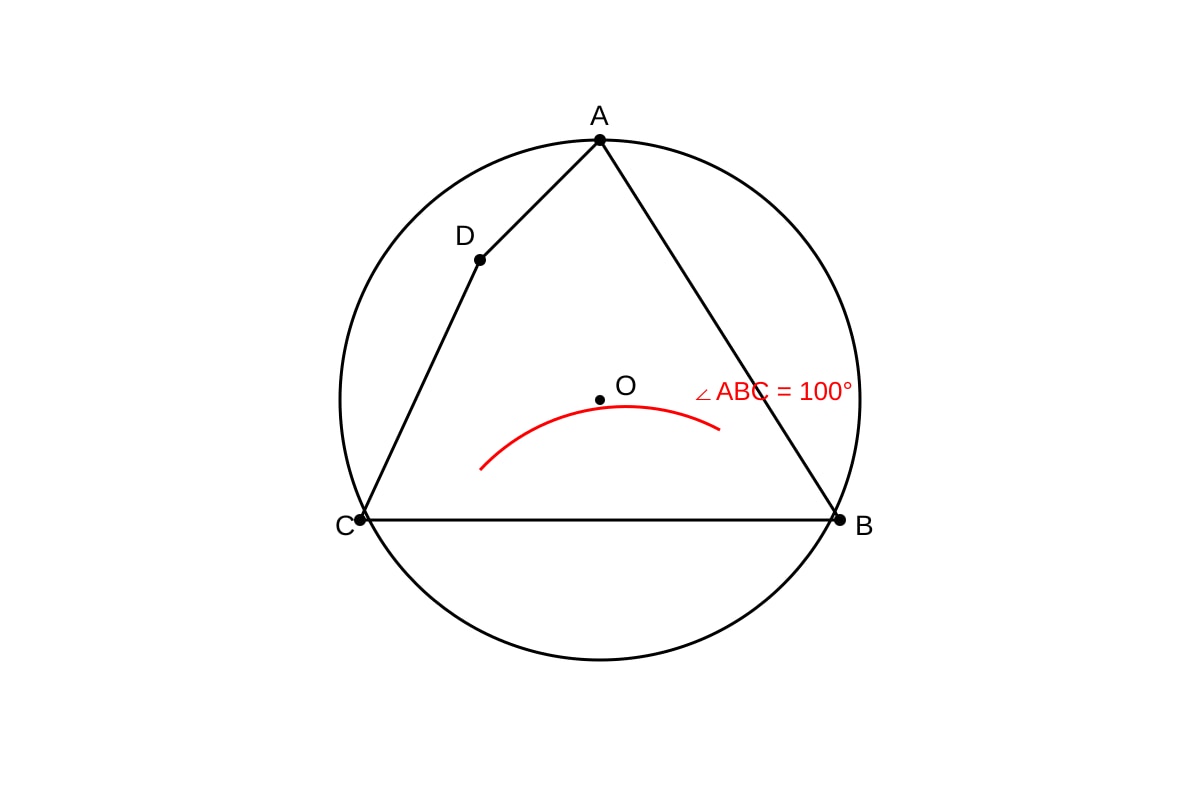

12. In the diagram, $O$ is the centre of the circle. $ABCD$ is a cyclic quadrilateral. Given $\angle ABC = 100^\circ$, find $\angle ADC$. [2]

Image pending generation: diagram for Q12.

---

13. A right-angled triangle has sides $7$ cm, $24$ cm, and $25$ cm.
(a) Verify it is right-angled using Pythagoras' theorem. [2]
(b) Write down $\cos$ of the angle opposite the $24$ cm side. [1]

---

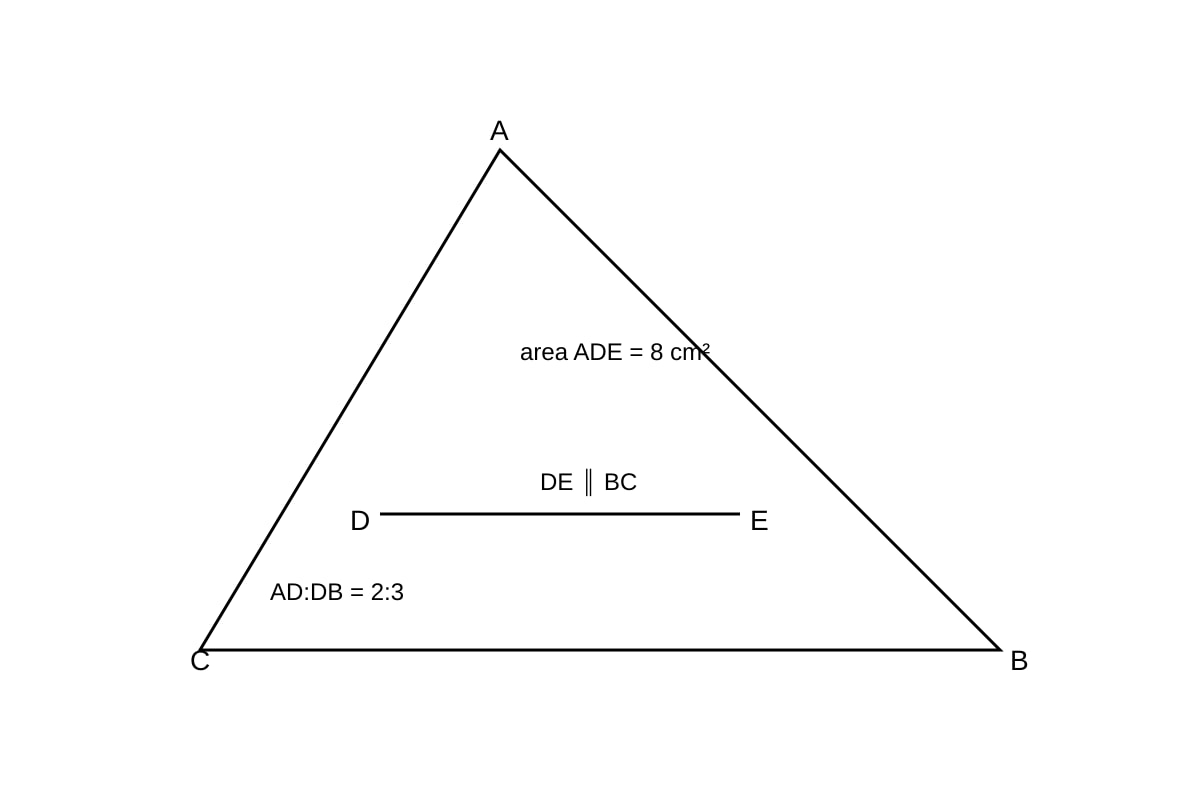

14. The diagram shows a triangle $ABC$ with $DE$ parallel to $BC$. $AD:DB = 2:3$ and area of $\triangle ADE = 8$ cm². Find the area of $\triangle ABC$. [3]

Image pending generation: diagram for Q14.

---

15. A ship sails $8$ km north, then $6$ km east. Find the bearing of its final position from the starting point. [3]

---

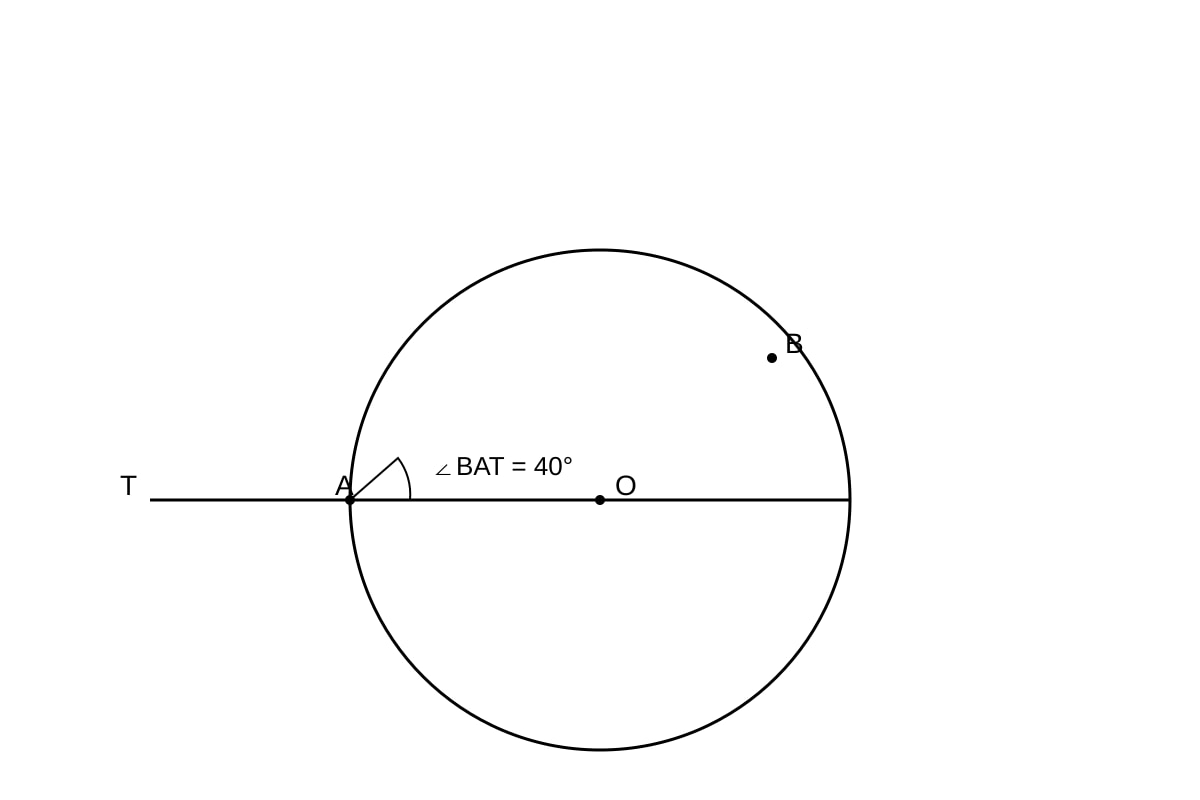

16. In the diagram, $O$ is the centre and $AT$ is tangent at $A$. $\angle BAT = 40^\circ$. Find $\angle AOB$. [3]

Image pending generation: diagram for Q16.

---

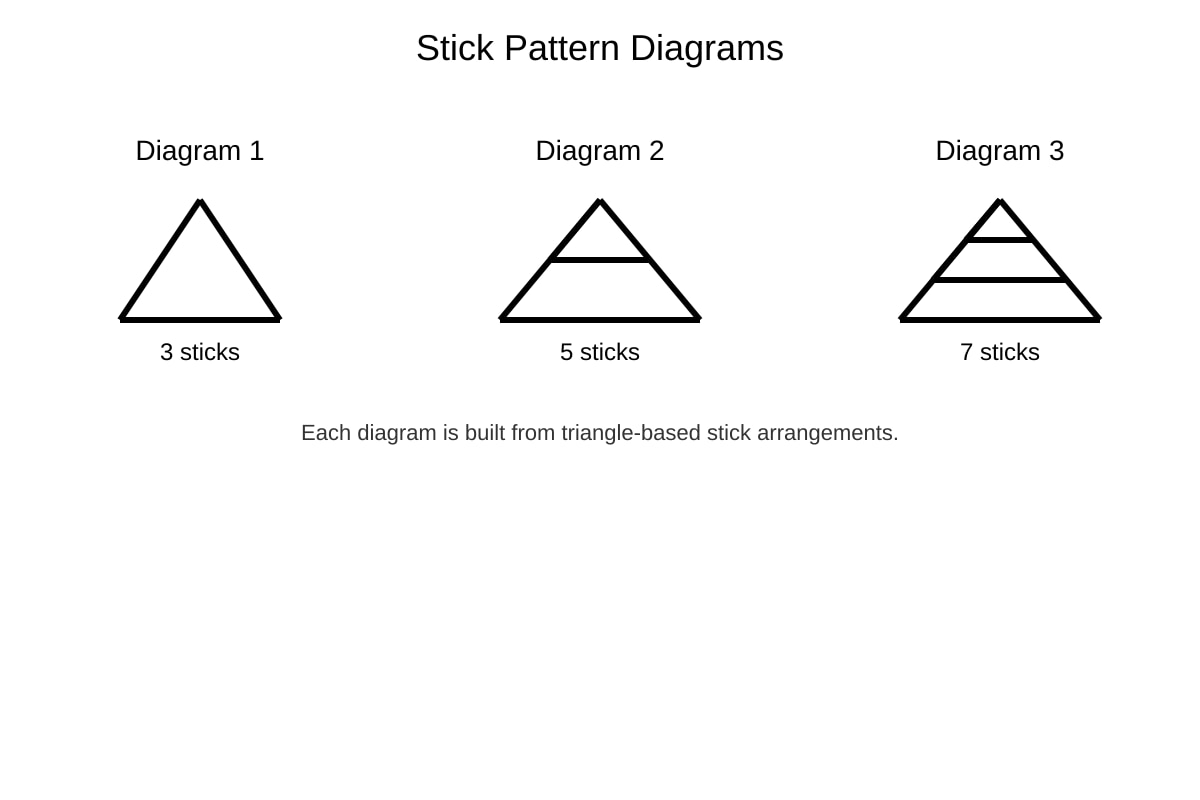

17. The stick pattern below shows Diagram 1 (3 sticks), Diagram 2 (5 sticks), Diagram 3 (7 sticks). Find an expression for the number of sticks in Diagram $n$. [3]

Image pending generation: diagram for Q17.

---

18. A building of height $30$ m casts a shadow. The angle of elevation of the sun is $45^\circ$. Find the length of the shadow. [2]

---

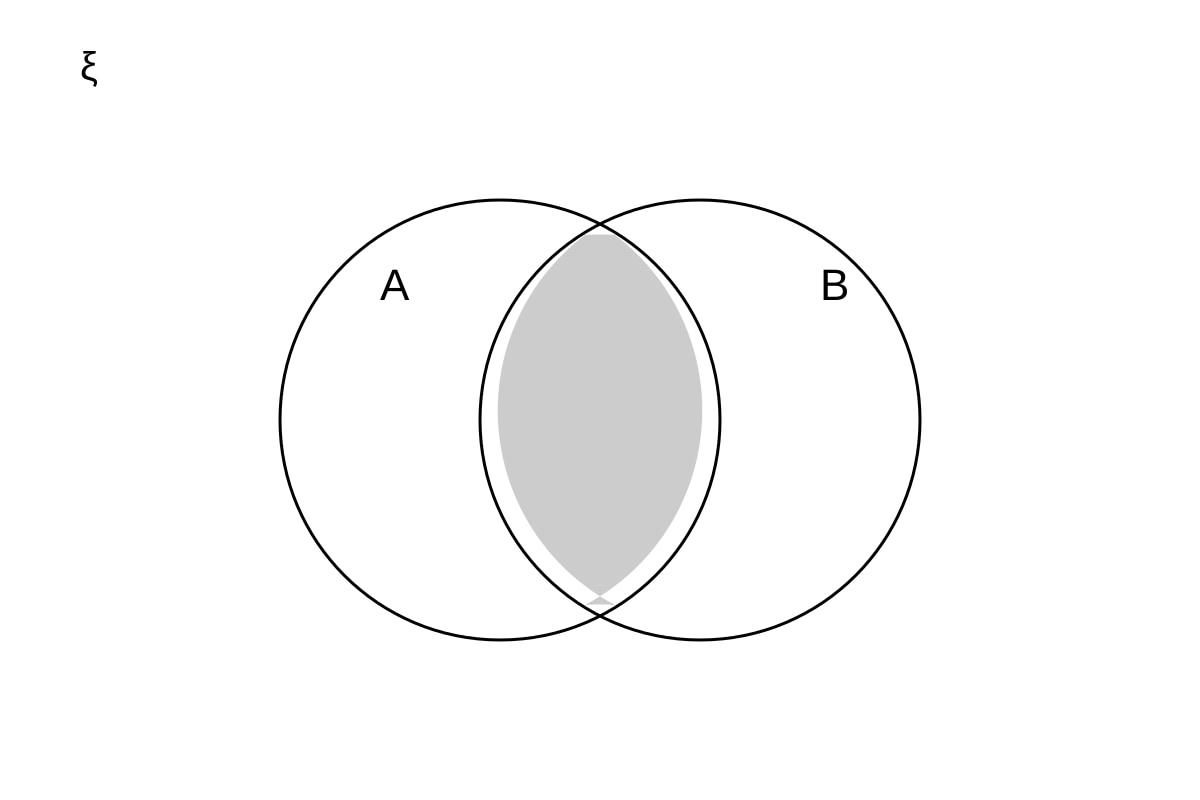

19. Describe the shaded region in the Venn diagram using set notation. [2]

Image pending generation: diagram for Q19.

---

20. A cone has base radius $3$ cm and slant height $5$ cm.
(a) Find the perpendicular height. [2]
(b) Find the curved surface area. (Use $\pi = 3.14$) [2]

---

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

O-Level Elementary Mathematics Quiz - Geometry Trigonometry (Answer Key)

Total Marks: 40
Topic: Geometry Trigonometry (syllabus-first, AI-generated from Stage 4 templates; not claimed as past-year derived)

---

Q1. [2 marks]
$\sin \angle PQR = \frac{PR}{PQ} = \frac{5}{13}$
Teaching note: In right triangle $PQR$ with right angle at $R$, side opposite $\angle PQR$ is $PR = 5$, hypotenuse is $PQ = 13$. $\sin = \text{opposite}/\text{hypotenuse}$.
Common mistake: Using $QR$ instead of $PR$; first find $QR = 12$ via Pythagoras but not needed.

Q2. [2 marks]
Area total = $\pi \times 10^2 = 100\pi$
Area shaded = $\pi \times 6^2 = 36\pi$
$P = \frac{36\pi}{100\pi} = \frac{9}{25}$
Teaching note: Probability = area shaded / total area. Concentric circles, random point uniform.
Marking: 1 mark area calc, 1 mark final fraction.

Q3. [2 marks]
$\angle OAT = 90^\circ$
Teaching note: Radius $OA$ is perpendicular to tangent $AT$ at point of contact $A$. The $70^\circ$ is extra info.
Common mistake: Subtracting from $70^\circ$ wrongly.

Q4. [2 marks]
Linear scale factor $k = \frac{AB}{DE} = \frac{4}{10} = \frac{2}{5}$
Area scale factor = $k^2 = \frac{4}{25}$
Area $\triangle ABC = 75 \times \frac{4}{25} = 12$ cm²
Teaching note: Similar triangles: area ratio = (side ratio)².

Q5. [2 marks]
$(A \cup B)'$ or $A' \cap B'$
Teaching note: Outside both circles = complement of union = intersection of complements.

Q6. [4 marks total]
(a) [2] Height $h$: $h^2 + 3^2 = 5^2 \Rightarrow h = 4$ m.
(b) [2] $\cos \theta = 3/5 \Rightarrow \theta \approx 53.1^\circ$.
Teaching note: Pythagoras for (a); trig ratio for (b).
Marking: 2 each part.

Q7. [3 marks]
$AM = \sqrt{8^2 - 4^2} = \sqrt{48} = 4\sqrt{3}$
$AB = 2 \times AM = 8\sqrt{3}$ cm
Teaching note: Perpendicular from centre bisects chord. Right triangle OMA.
Marking: 1 for OM⊥AB property, 2 for calc.

Q8. [2 marks]
$\angle AOB = 2 \times 35^\circ = 70^\circ$
Teaching note: Angle at centre = twice angle at circumference subtending same arc.

Q9. [3 marks]
$\tan \theta = 20/12 = 5/3$
Tree height = $9 \times (5/3) = 15$ m
Teaching note: Same sun angle → same tan. Proportion.
Marking: 1 ratio, 2 height.

Q10. [3 marks]
Total = $12+8+4+6 = 30$
Football angle = $\frac{12}{30} \times 360^\circ = 144^\circ$
Teaching note: Pie angle = (freq/total)×360.
Marking: 1 total, 2 angle.

Q11. [3 marks]
Union area = $154 + 77 - 28 = 203$ cm²
$P = \frac{28}{203} = \frac{4}{29}$
Teaching note: Union = sum minus overlap to avoid double count.
Marking: 1 union, 2 prob.

Q12. [2 marks]
$\angle ADC = 180^\circ - 100^\circ = 80^\circ$
Teaching note: Opposite angles in cyclic quadrilateral supplementary.

Q13. [3 marks]
(a) [2] $7^2+24^2 = 49+576 = 625 = 25^2$ ✓
(b) [1] $\cos = \frac{7}{25}$ (adj/hyp for angle opp 24)
Teaching note: Pythagoras converse; cos = adj/hyp.

Q14. [3 marks]
$AD:AB = 2:5$
Area ratio = $(2/5)^2 = 4/25$
Area ABC = $8 \div (4/25) = 50$ cm²
Teaching note: DE∥BC → similar; area ratio square of length ratio.

Q15. [3 marks]
Displacement: north 8, east 6 → tan $\theta = 6/8 = 3/4$, $\theta = 36.9^\circ$ east of north
Bearing = $036.9^\circ$ or $037^\circ$
Teaching note: Bearing measured clockwise from north.
Marking: 1 diagram, 2 bearing.

Q16. [3 marks]
$\angle OAB = 40^\circ$ (tan-chord theorem: angle between tangent and chord = angle in alt segment, but here use triangle)
Actually: $OA \perp AT$ so $\angle OAT = 90^\circ$, thus $\angle OAB = 90^\circ - 40^\circ = 50^\circ$
$\triangle OAB$ isosceles ($OA=OB$) → $\angle OBA = 50^\circ$
$\angle AOB = 180^\circ - 100^\circ = 80^\circ$
Teaching note: Radius-tangent perpendicular; isosceles triangle.
Marking: 1 each step.

Q17. [3 marks]
Sequence: 3,5,7 → first diff 2 → linear $2n + b$
$n=1$: $2+b=3 \Rightarrow b=1$ → $2n+1$
Teaching note: Constant first difference → $an+b$.
Marking: 1 pattern, 2 formula.

Q18. [2 marks]
$\tan 45^\circ = h/\text{shadow} = 1 \Rightarrow$ shadow = $30$ m
Teaching note: tan45=1, height = shadow length.

Q19. [2 marks]
$A \cap B$
Teaching note: Only intersection shaded.

Q20. [4 marks total]
(a) [2] $h = \sqrt{5^2 - 3^2} = 4$ cm
(b) [2] CSA = $\pi r l = 3.14 \times 3 \times 5 = 47.1$ cm²
Teaching note: Perpendicular height via Pythagoras; curved surface = $\pi r l$.
