O Level Elementary Mathematics Geometry Trigonometry Quiz

O-Level Elementary Mathematics Quiz - Geometry Trigonometry

Name: _________________ Class: _______ Date: _________

Score: _____ / 25 Duration: 30 minutes

Instructions:

• Answer all questions in the spaces provided
• Show all working clearly
• Calculators may be used
• Give answers to 3 significant figures unless otherwise stated

---

Section A: Short Answer Questions [8 marks]

1. Write down the exact value of sin 60°. [1]

Answer: _________________

2. Use set notation to describe the shaded region in the Venn diagram below. [2]

[Diagram shows universal set ξ with two overlapping circles A and B. The region outside both circles is shaded]

Answer: _________________

3. A point is chosen at random within a circle of radius 8 cm. Find the probability that this point lies within a concentric circle of radius 4 cm. [2]

Answer: _________________

4. The pie chart shows examination grades. If the angle for grade A is 72°, and 20 students achieved grade A, find the total number of students. [3]

Working:

Answer: _________________ students

---

Section B: Structured Questions [17 marks]

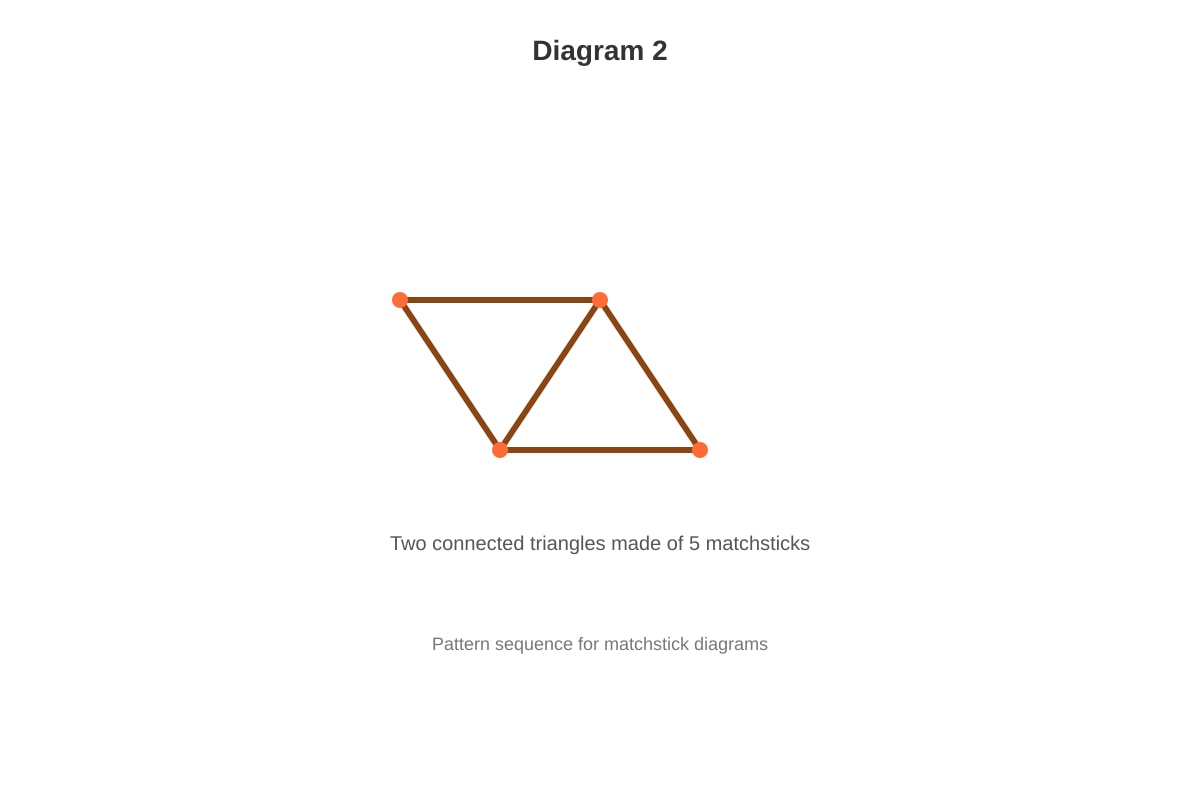

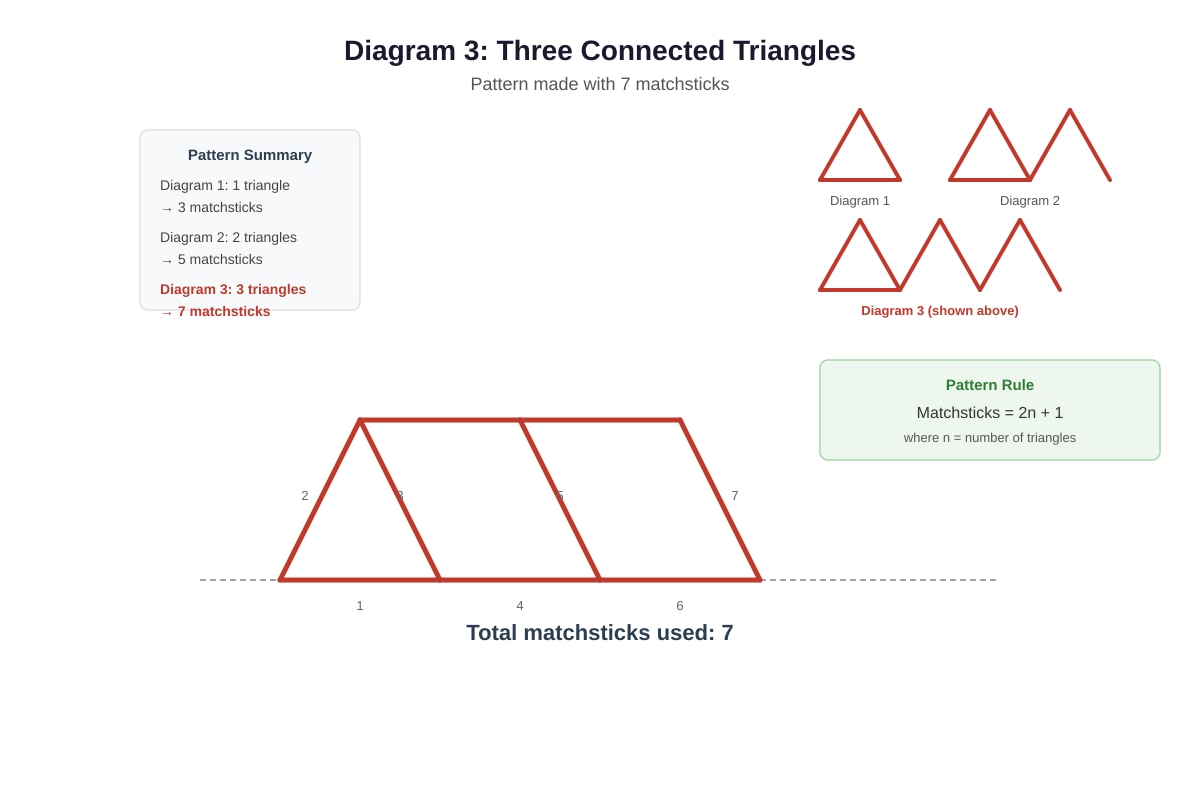

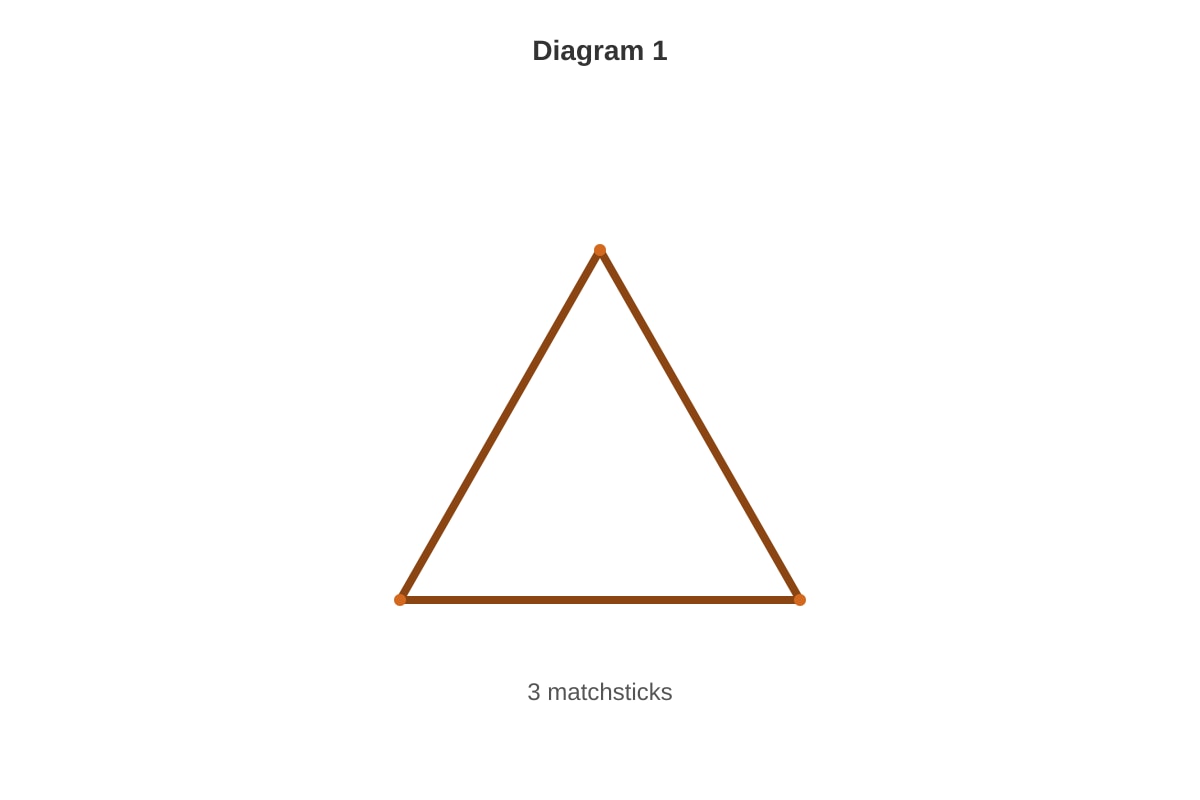

5. The diagram shows a sequence of patterns made with matchsticks.

[Diagram 1: Triangle made of 3 matchsticks] [Diagram 2: Two connected triangles made of 5 matchsticks] [Diagram 3: Three connected triangles made of 7 matchsticks]

(a) Find an expression, in terms of n, for the number of matchsticks used to form Diagram n. [2]

Working:

Answer: _________________

(b) How many matchsticks are needed for Diagram 15? [1]

Answer: _________________ matchsticks

6. In the diagram, O is the centre of the circle with radius 6 cm. AB is a chord of length 8 cm.

(a) Calculate the perpendicular distance from O to chord AB. [3]

Working:

Answer: _________________ cm

(b) Find the area of triangle OAB. [2]

Working:

Answer: _________________ cm²

7. Triangle PQR has vertices P(2, 1), Q(6, 3), and R(4, k).

(a) If the area of triangle PQR is 8 square units, find the possible values of k. [4]

Working:

Answer: k = _______ or k = _______

(b) For each value of k found in part (a), determine whether triangle PQR is a right-angled triangle. [3]

Working:

Answer: _________________

8. A container has the shape of a cone with base radius 9 cm and height 12 cm. A similar smaller cone is removed from the top, leaving a frustum. If the smaller cone has height 4 cm, find the volume of the frustum. [2]

Working:

Answer: _________________ cm³

O-Level Elementary Mathematics Quiz - Geometry Trigonometry (Answers)

Section A: Short Answer Questions [8 marks]

1. Write down the exact value of sin 60°. [1] Answer: √3/2 or 0.866 Mark: 1 mark for correct exact value

2. Use set notation to describe the shaded region. [2] Answer: (A ∪ B)' or A' ∩ B' Marking: 1 mark for correct complement notation, 1 mark for correct set operations

3. Probability point lies within smaller circle. [2] Working:

• Area of large circle = π × 8² = 64π
• Area of small circle = π × 4² = 16π
• Probability = 16π/64π = 1/4 Answer: 1/4 or 0.25 Marking: 1 mark for method, 1 mark for correct answer

4. Total number of students. [3] Working:

• Angle for grade A = 72°
• 20 students achieved grade A
• Total angle = 360°
• Students per degree = 20/72 = 5/18
• Total students = (5/18) × 360 = 100 Answer: 100 students Marking: 1 mark for setting up proportion, 1 mark for calculation, 1 mark for correct answer

---

Section B: Structured Questions [17 marks]

5. Matchstick patterns (a) Expression for Diagram n [2] Working:

• Diagram 1: 3 matchsticks
• Diagram 2: 5 matchsticks
• Diagram 3: 7 matchsticks
• Pattern: increases by 2 each time
• Formula: 2n + 1 Answer: 2n + 1 Marking: 1 mark for identifying pattern, 1 mark for correct expression

(b) Matchsticks for Diagram 15 [1] Working: 2(15) + 1 = 31 Answer: 31 matchsticks Marking: 1 mark for correct substitution and answer

6. Circle with chord (a) Perpendicular distance from O to AB [3] Working:

• Let M be midpoint of AB, so AM = 4 cm
• In right triangle OMA: OA = 6 cm, AM = 4 cm
• Using Pythagoras: OM² + AM² = OA²
• OM² + 16 = 36
• OM² = 20
• OM = 2√5 cm Answer: 2√5 cm ≈ 4.47 cm Marking: 1 mark for setup, 1 mark for Pythagoras application, 1 mark for correct answer

(b) Area of triangle OAB [2] Working:

• Area = ½ × base × height = ½ × 8 × 2√5 = 8√5 Answer: 8√5 cm² ≈ 17.9 cm² Marking: 1 mark for method, 1 mark for correct answer

7. Triangle with coordinates (a) Possible values of k [4] Working:

• Using area formula: Area = ½|x₁(y₂-y₃) + x₂(y₃-y₁) + x₃(y₁-y₂)|
• Area = ½|2(3-k) + 6(k-1) + 4(1-3)|
• 8 = ½|6-2k + 6k-6 + 4(-2)|
• 8 = ½|4k-8|
• 16 = |4k-8|
• 4k-8 = ±16
• k = 6 or k = -2 Answer: k = 6 or k = -2 Marking: 2 marks for correct area formula setup, 1 mark for solving equation, 1 mark for both values

(b) Right-angled triangle check [3] Working: For k = 6: P(2,1), Q(6,3), R(4,6)

• PQ² = 16+4 = 20, PR² = 4+25 = 29, QR² = 4+9 = 13
• No combination satisfies Pythagoras theorem For k = -2: P(2,1), Q(6,3), R(4,-2)
• PQ² = 20, PR² = 4+9 = 13, QR² = 4+25 = 29
• No combination satisfies Pythagoras theorem Answer: Neither triangle is right-angled Marking: 1 mark for method, 1 mark for checking both cases, 1 mark for conclusion

8. Volume of frustum [2] Working:

• Large cone volume = ⅓π(9²)(12) = 324π
• Small cone radius = 9 × (4/12) = 3 cm
• Small cone volume = ⅓π(3²)(4) = 12π
• Frustum volume = 324π - 12π = 312π Answer: 312π cm³ ≈ 980 cm³ Marking: 1 mark for method using similar triangles, 1 mark for correct calculation
