O Level Elementary Mathematics Practice Paper 5

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper - Elementary Mathematics O-Level

TuitionGoWhere Practice Paper (AI) — Version 5

Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper (AI Generated, Version 5)
Duration: 1 hour 15 minutes
Total Marks: 50
Name: ___________________________
Class: ___________________________
Date: ___________________________

Instructions:

• Answer all questions.
• Show all working clearly.
• Calculators may be used.
• Write answers in the spaces provided.

---

Section A (Questions 1–8) — Short Answer [16 marks]

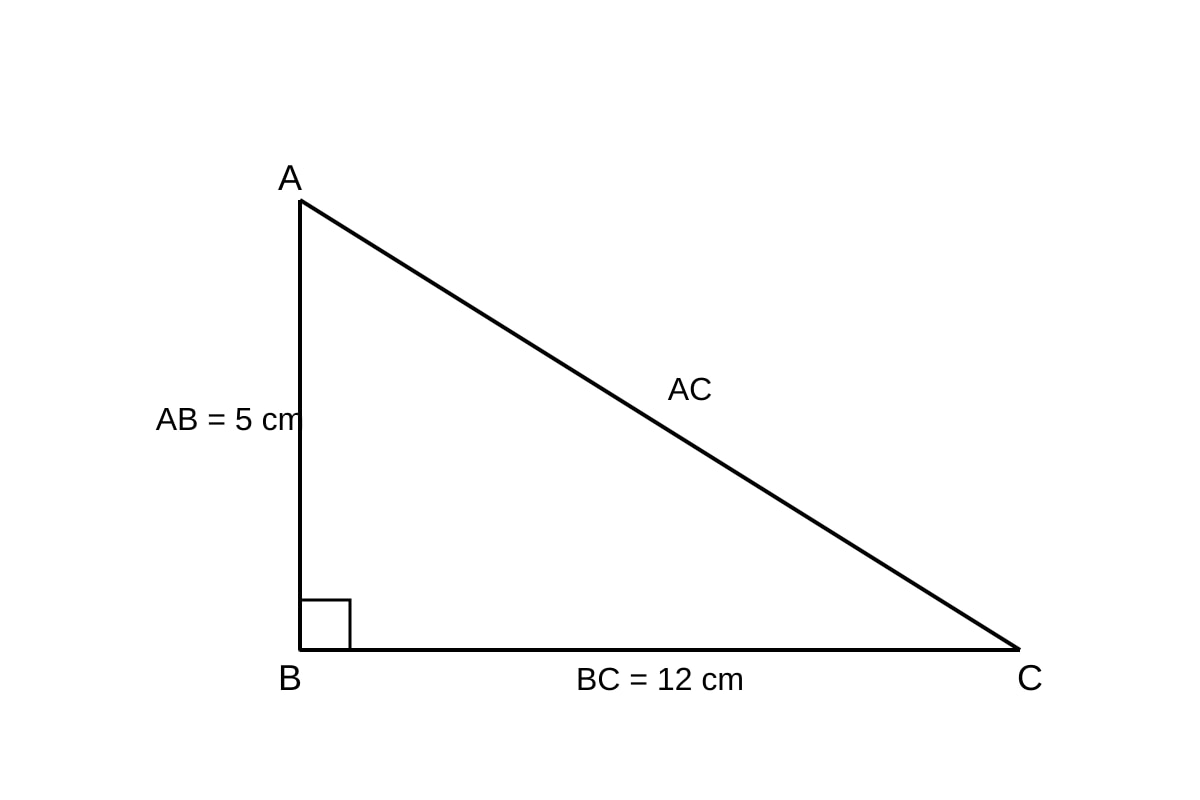

1. In the diagram below, triangle $ABC$ is right-angled at $B$. $AB = 5$ cm, $BC = 12$ cm. Write down the exact value of $\sin \angle ACB$. [1]

Image pending generation: diagram for Q1.

2. A point is chosen at random inside a circle of radius 10 cm. A smaller concentric circle of radius 6 cm is shaded. Find the probability that the point lies in the shaded region. [2]

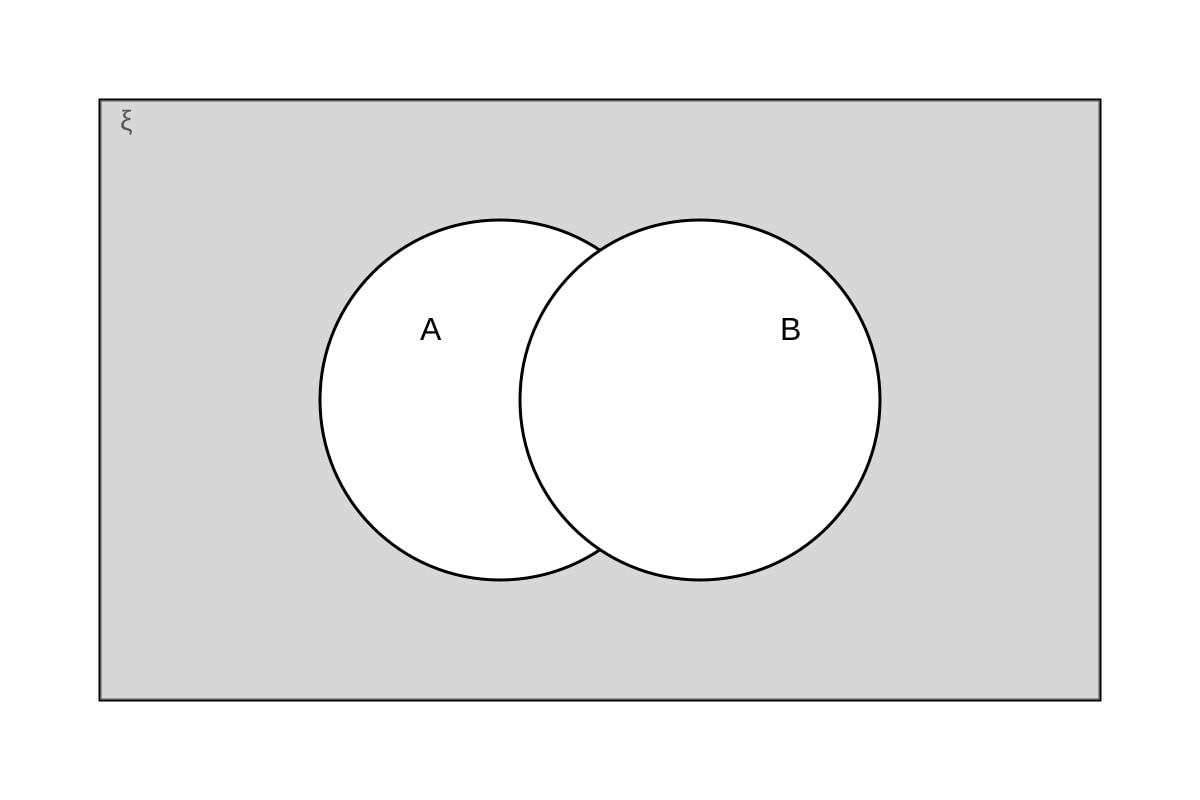

3. Use set notation to describe the shaded region in the Venn diagram below. [2]

Image pending generation: diagram for Q3.

4. The angles in a pie chart for three categories are $90^\circ$, $120^\circ$, and $x^\circ$. Find $x$. [1]

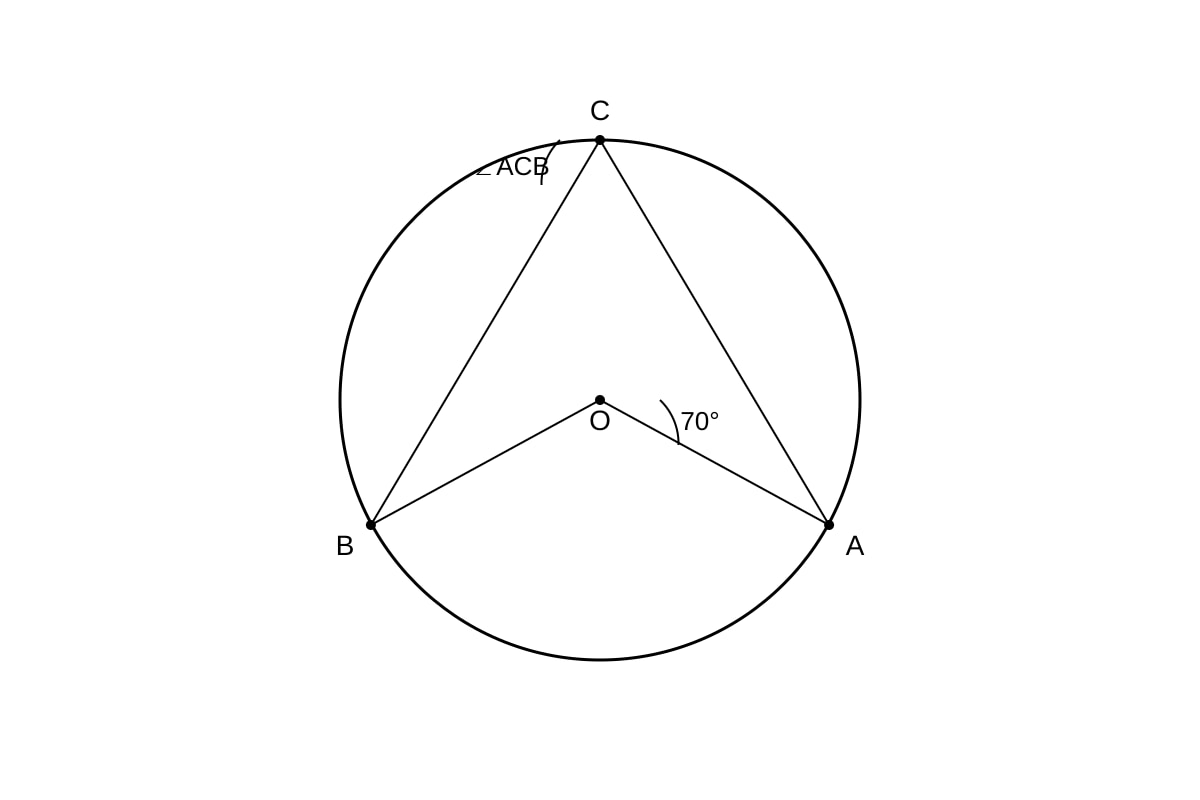

5. In the diagram, $O$ is the centre of the circle and $\angle AOB = 70^\circ$. Find $\angle ACB$ where $C$ is on the circumference. [2]

Image pending generation: diagram for Q5.

6. Diagram 1 has 4 sticks, Diagram 2 has 7 sticks, Diagram 3 has 10 sticks. Find an expression for the number of sticks in Diagram $n$. [2]

7. A tower of height 20 m casts a shadow of 12 m. At the same time, a tree casts a shadow of 9 m. Find the height of the tree. [2]

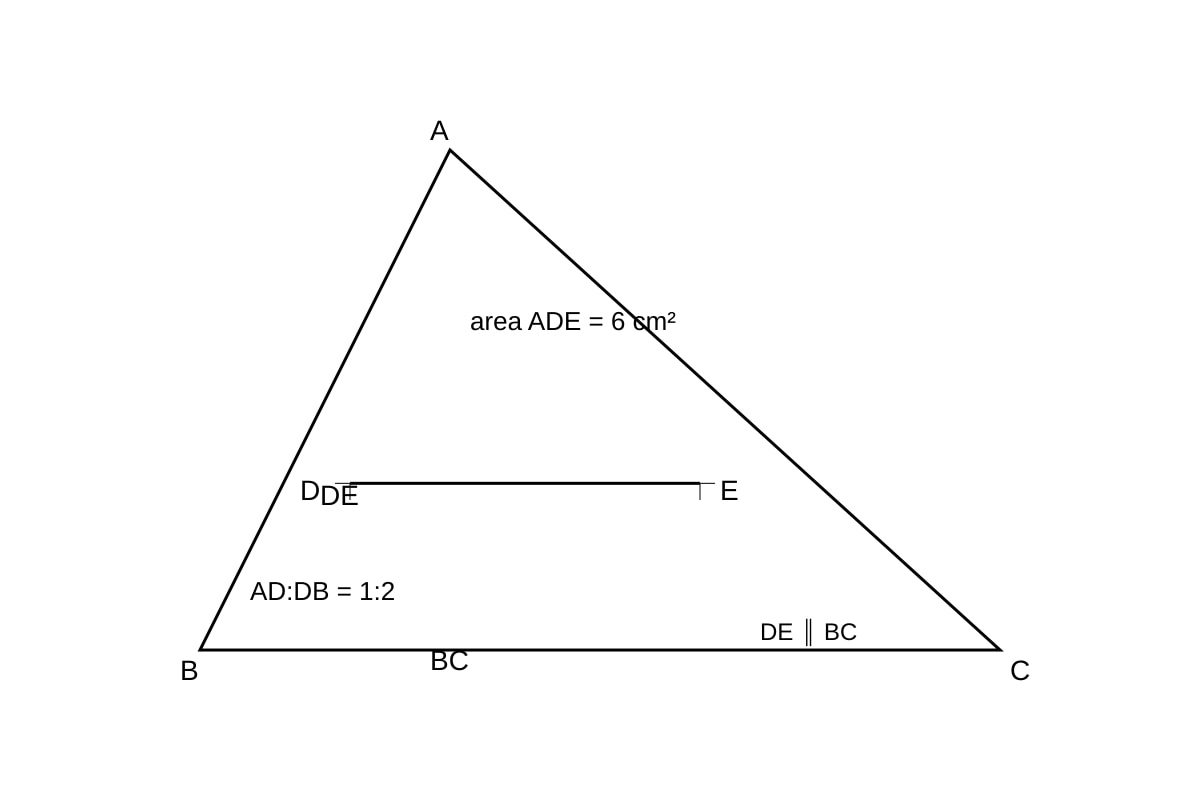

8. In the diagram, $DE$ is parallel to $BC$ in triangle $ABC$. $AD:DB = 1:2$ and area of $\triangle ADE = 6$ cm$^2$. Find area of $\triangle ABC$. [2]

Image pending generation: diagram for Q8.

---

Section B (Questions 9–14) — Structured [18 marks]

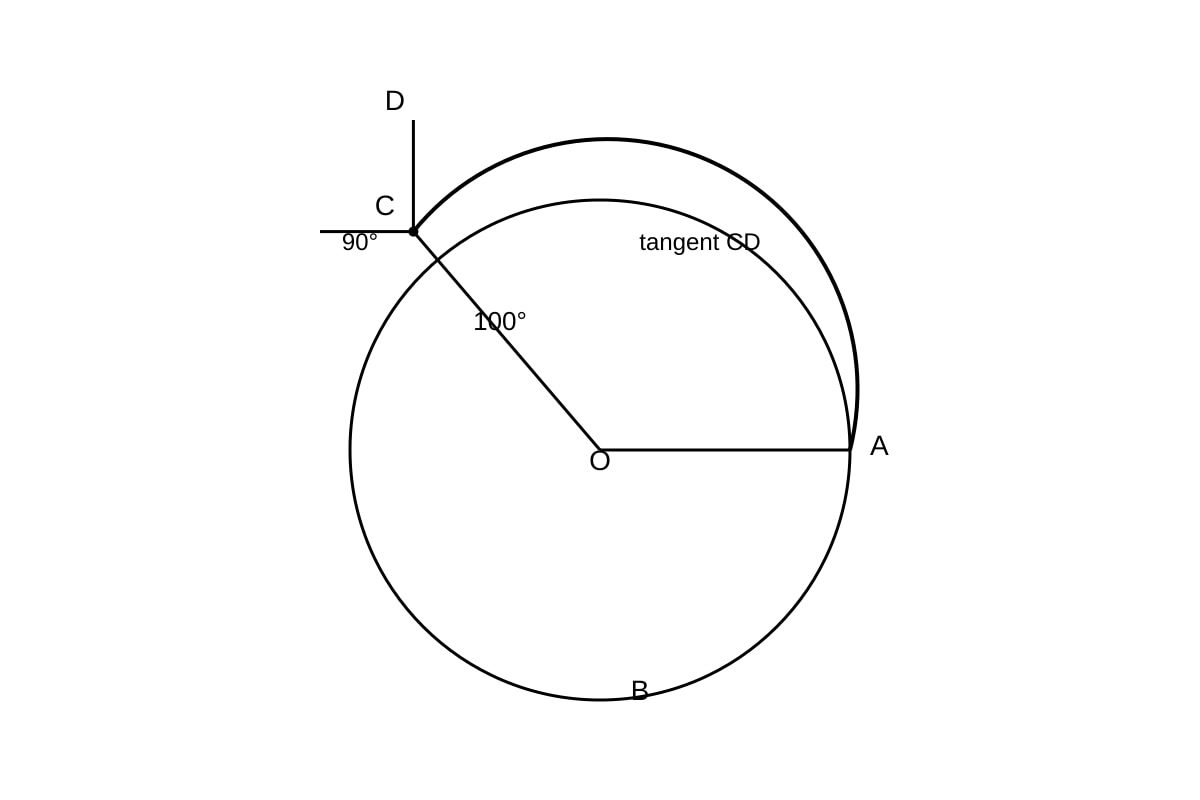

9. In the diagram, $O$ is the centre of the circle. $CD$ is a tangent at $C$. $\angle OCD = 90^\circ$ and $\angle AOC = 100^\circ$. Find $\angle ABC$. [3]

Image pending generation: diagram for Q9.

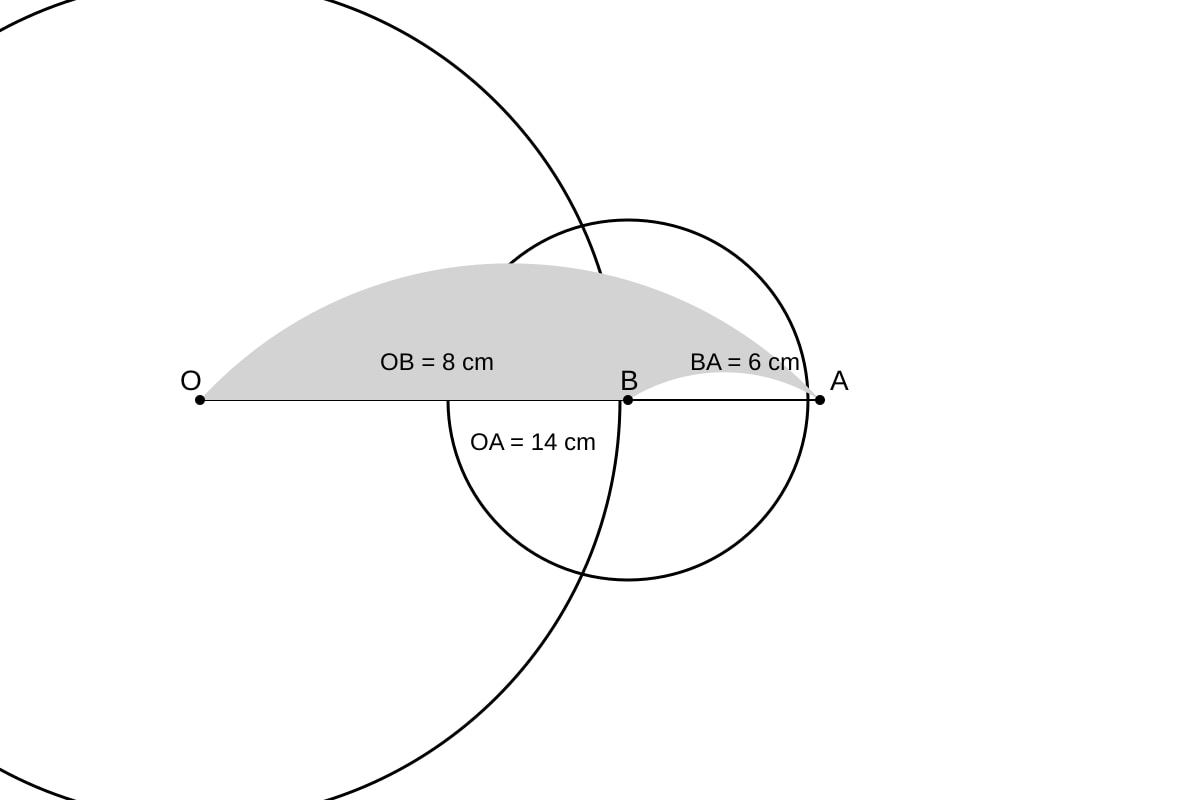

10. A big circle centre $O$ has radius 14 cm. A smaller circle centre $B$ lies on $OA$ such that $AB = 6$ cm and is tangent internally. $O$, $B$, $A$ are collinear. Find the perimeter of the shaded region bounded by the two circles on one side. [3]

Image pending generation: diagram for Q10.

11. The table shows favourite sports of 200 students.

Sport	Frequency
Football	80
Badminton	50
Swimming	40
Others	30

Represent this by a pie chart and calculate the angle for Swimming. [3]

12. A building of height 30 m casts a shadow of 20 m. The angle of elevation of the sun is $\theta$. A flagpole casts a shadow of 8 m. Find the height of the flagpole. [3]

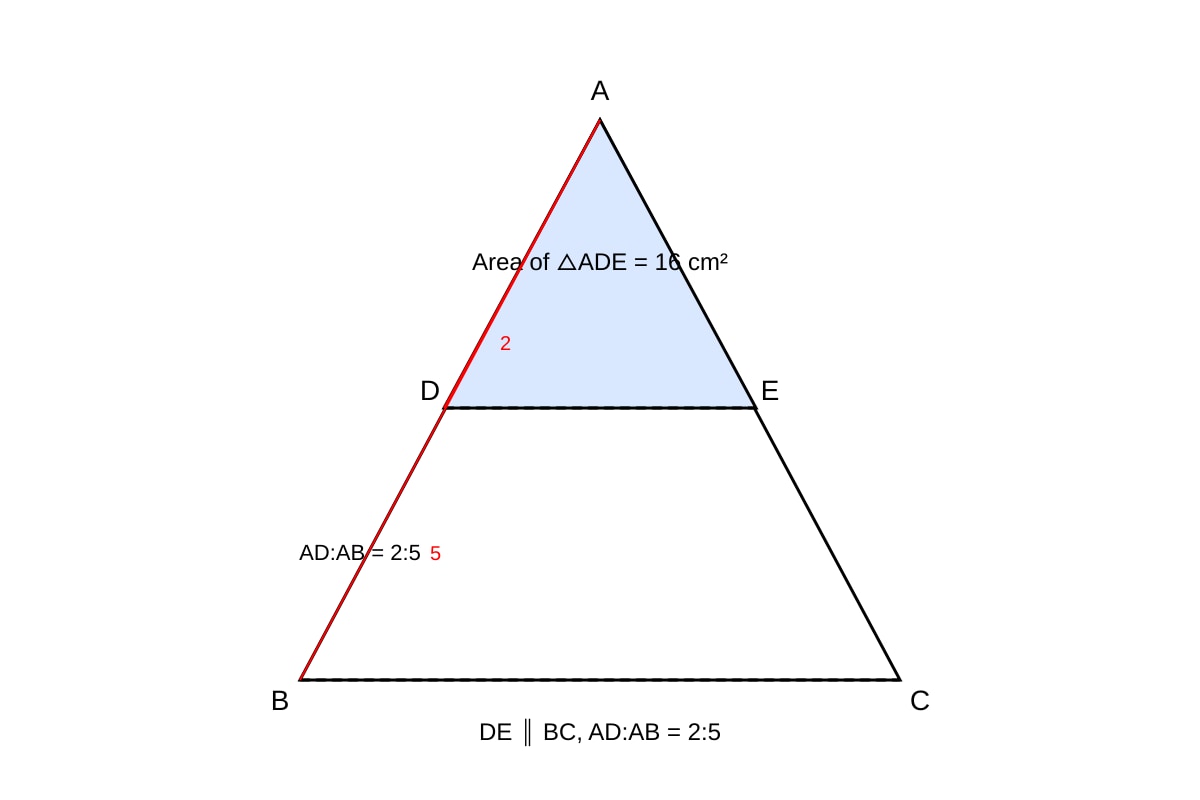

13. In triangle $ABC$, $DE \parallel BC$, $AD:AB = 2:5$. Area of $\triangle ADE = 16$ cm$^2$. Find area of trapezoid $DECB$. [3]

Image pending generation: diagram for Q13.

14. Points $P$ and $Q$ are on a circle centre $O$. $\angle POQ = 120^\circ$. Find the area of the sector $POQ$ if radius is 7 cm. (Use $\pi = \frac{22}{7}$) [3]

---

Section C (Questions 15–20) — Problem Solving [16 marks]

15. A point is chosen randomly in a rectangle 12 cm by 8 cm. A circle of radius 3 cm is inscribed touching one corner. Find probability it lies inside the circle. [2]

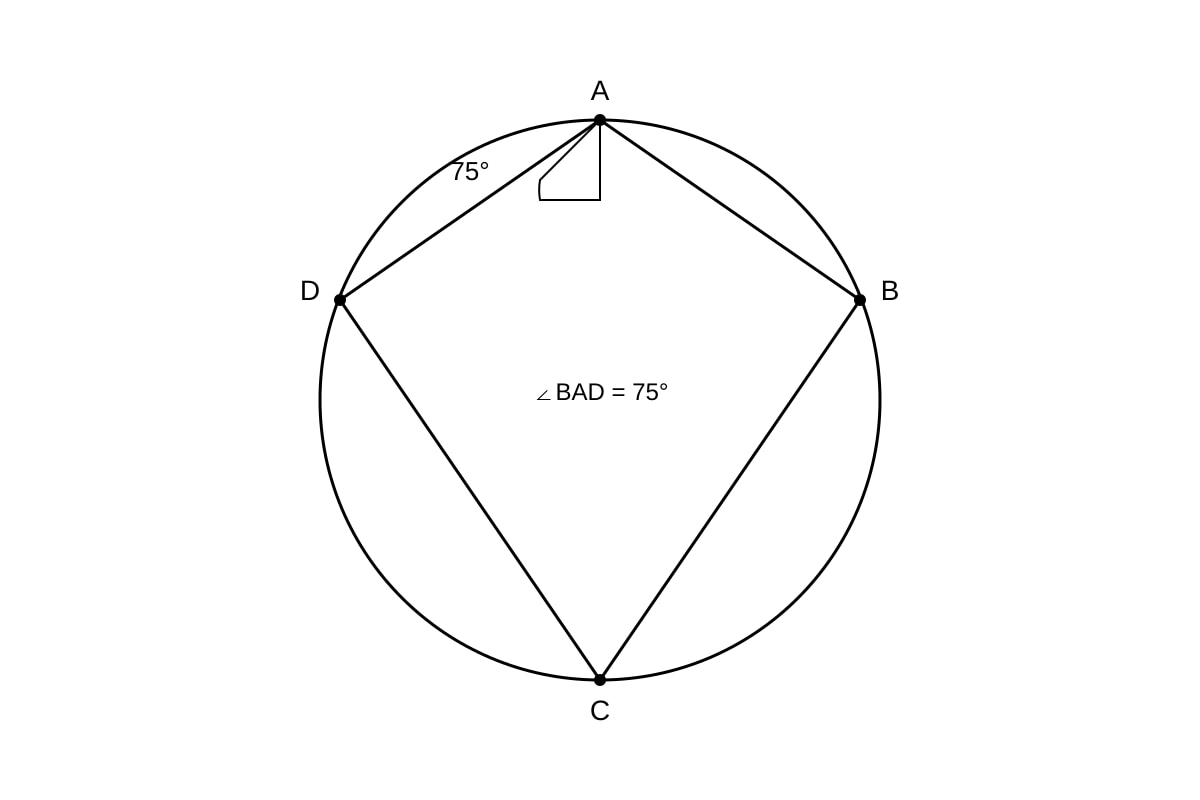

16. The diagram shows a cyclic quadrilateral $ABCD$. $\angle BAD = 75^\circ$. Find $\angle BCD$. [2]

Image pending generation: diagram for Q16.

17. From a point 50 m from the base of a cliff, the angle of elevation to the top is $30^\circ$. Find the height of the cliff. [3]

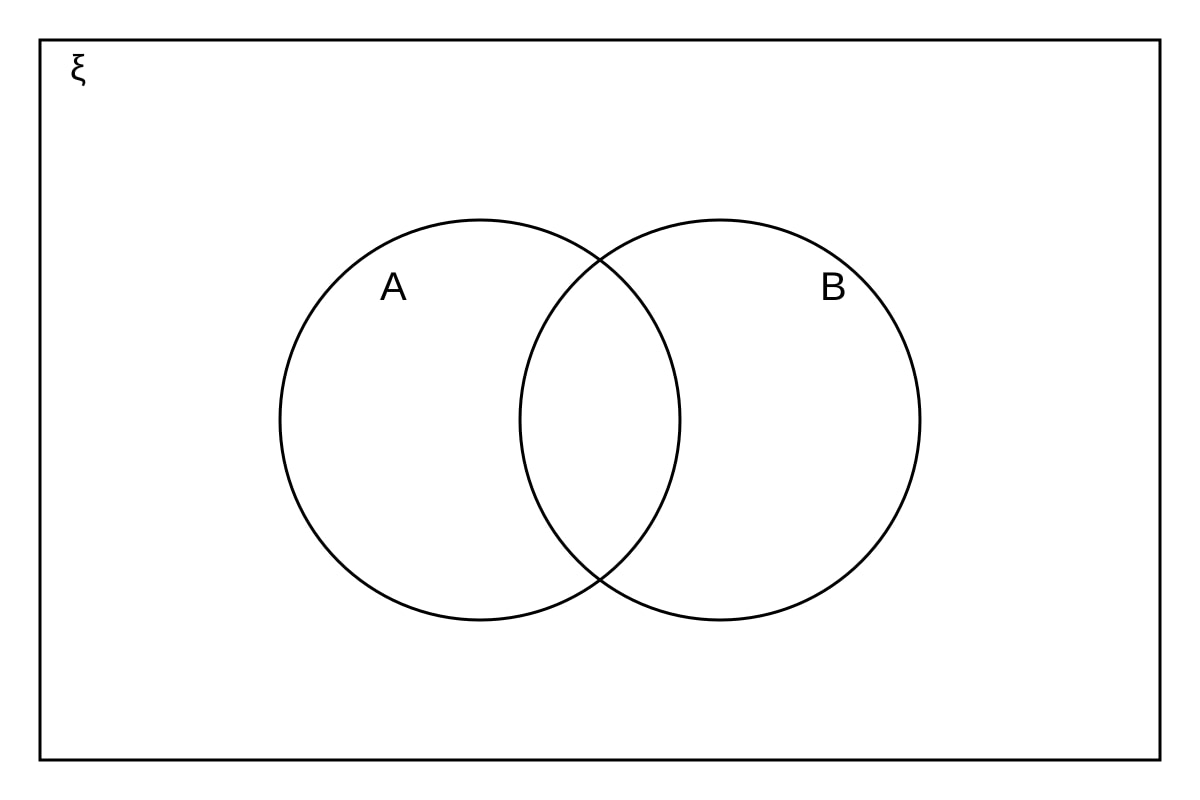

18. In the Venn diagram, shade the region $A \cap B'$ and write its meaning. [2]

Image pending generation: diagram for Q18.

19. A triangle pattern: Diagram 1 = 3 sticks, Diagram 2 = 6, Diagram 3 = 9. Find sticks in Diagram $n$ and Diagram 10. [3]

20. A ship sails 8 km north then 6 km east. Find its bearing from start and distance. [4]

---

End of Paper

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper — Answer Key (Version 5)

Subject: Elementary Mathematics
Level: O-Level
Total Marks: 50

---

Section A Answers

1. [1 mark]
$AC = \sqrt{5^2 + 12^2} = 13$ cm.
$\sin \angle ACB = \frac{AB}{AC} = \frac{5}{13}$.
Teaching note: Sine of angle = opposite/hypotenuse. Opposite to ∠ACB is AB.

2. [2 marks]
Area total = $\pi \times 10^2 = 100\pi$.
Area shaded = $\pi \times 6^2 = 36\pi$.
$P = \frac{36\pi}{100\pi} = \frac{9}{25}$.
Marks: 1 for areas, 1 for probability.

3. [2 marks]
Shaded is outside both A and B: $(A \cup B)'$ or $A' \cap B'$.
Marks: 1 notation, 1 correctness.

4. [1 mark]
$x = 360 - 90 - 120 = 150^\circ$.

5. [2 marks]
Angle at centre = $2 \times$ angle at circumference.
$\angle ACB = 70^\circ \div 2 = 35^\circ$.
Marks: 1 theorem, 1 answer.

6. [2 marks]
Differences: 7-4=3, 10-7=3 → linear $3n + c$.
$n=1$: $3(1)+c=4 \Rightarrow c=1$.
Expression: $3n + 1$.
Marks: 1 pattern, 1 expression.

7. [2 marks]
$\tan\theta = 20/12 = 5/3$.
Tree height = $9 \times (5/3) = 15$ m.
Marks: 1 ratio, 1 answer.

8. [2 marks]
$AD:AB = 1:3$. Area ratio = $(1/3)^2 = 1/9$.
Area ABC = $6 \div (1/9) = 54$ cm$^2$.
Marks: 1 ratio, 1 answer.

---

Section B Answers

9. [3 marks]
Reflex ∠AOC = $360 - 100 = 260^\circ$.
∠ABC = $260^\circ \div 2 = 130^\circ$ (angle at circumference = half centre angle on same arc).
Marks: 1 reflex, 1 divide, 1 answer.

10. [3 marks]
Big radius 14, small radius 6. Perimeter one side = arc big + arc small.
Arc big (semicircle) = $\pi \times 14 = 14\pi$.
Arc small = $\pi \times 6 = 6\pi$.
Total = $20\pi$ cm.
Marks: 1 each arc, 1 total.

11. [3 marks]
Total = 200. Swimming angle = $\frac{40}{200} \times 360 = 72^\circ$.
Marks: 1 total, 1 calc, 1 answer.

12. [3 marks]
$\tan\theta = 30/20 = 3/2$.
Flagpole = $8 \times 1.5 = 12$ m.
Marks: 1 tan, 1 calc, 1 answer.

13. [3 marks]
Area ABC = $16 \div (2/5)^2 = 16 \div 4/25 = 100$.
Trapezoid = $100 - 16 = 84$ cm$^2$.
Marks: 1 ratio, 1 ABC, 1 trap.

14. [3 marks]
Area sector = $\frac{120}{360} \times \frac{22}{7} \times 7^2 = \frac{1}{3} \times 154 = 51.33$ cm$^2$.
Marks: 1 fraction, 1 sub, 1 ans.

---

Section C Answers

15. [2 marks]
Rect area = $96$. Circle area = $\pi \times 3^2 = 9\pi \approx 28.27$.
$P = 9\pi / 96 = 3\pi/32$.
Marks: 1 areas, 1 prob.

16. [2 marks]
Opposite angles cyclic quad supplementary.
∠BCD = $180 - 75 = 105^\circ$.

17. [3 marks]
$\tan 30^\circ = h/50 \Rightarrow h = 50 \times 1/\sqrt{3} \approx 28.9$ m.
Marks: 1 trig, 1 calc, 1 ans.

18. [2 marks]
Shaded A ∩ B': elements in A but not in B.

19. [3 marks]
Pattern $3n$. Diagram 10 = 30 sticks.
Marks: 1 pattern, 1 expr, 1 D10.

20. [4 marks]
Distance = $\sqrt{8^2+6^2} = 10$ km.
Bearing: $\tan^{-1}(6/8)=36.9^\circ$ → $037^\circ$.
Marks: 2 dist, 2 bearing.
