TuitionGoWhere Practice Paper - Elementary Mathematics O-Level

TuitionGoWhere Practice Paper (AI) — Version 4

Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper (AI-Generated, Version 4 of 5)
Duration: 1 hour 15 minutes
Total Marks: 60
Name: ________________________
Class: ____________
Date: ____________

Instructions:

Answer all questions in the spaces provided.
Show all working clearly. Marks are awarded for correct methods and reasoning.
Calculators may be used where appropriate.
This is a syllabus-first practice paper generated from LLM-inferred templates. It is not derived from any official past-year paper.
Section marks and question marks add up exactly to 60.

Section A: Basic Geometry and Trigonometry (Questions 1–8) [16 marks]

1. [2 marks] Write down the exact value of $\sin 30^\circ$ .

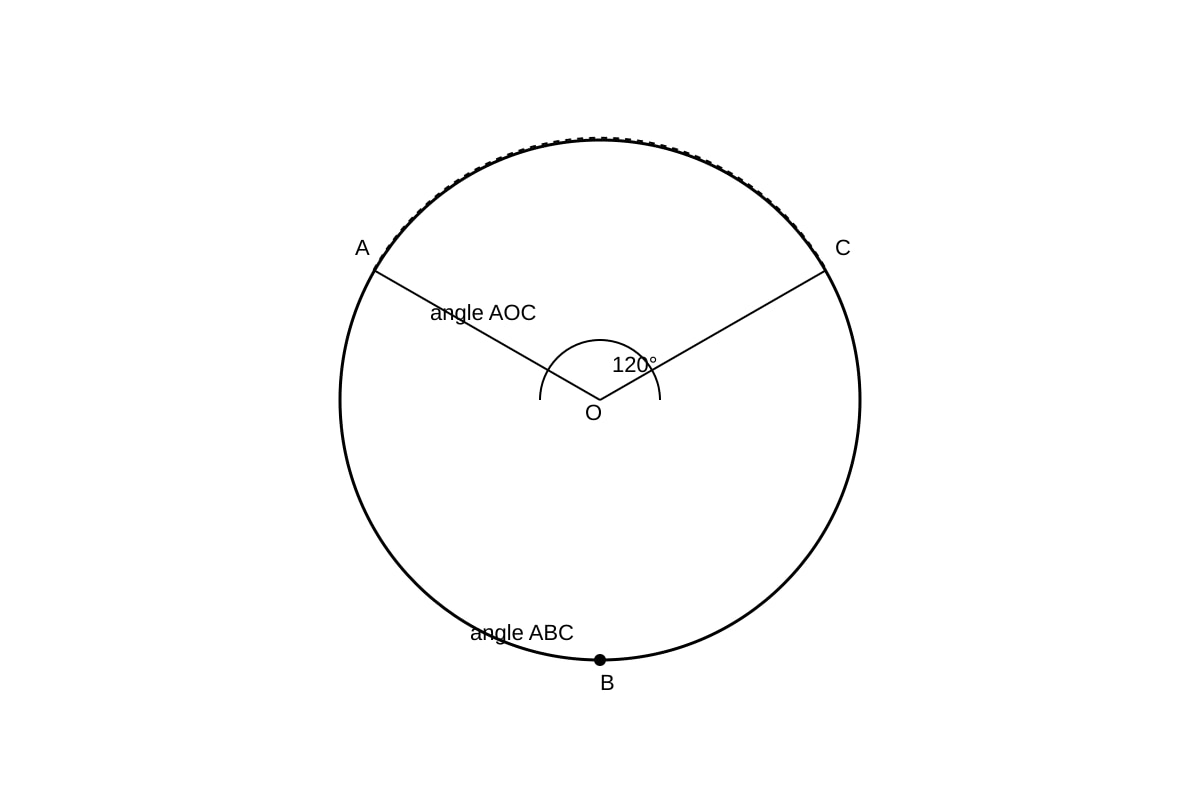

2. [2 marks] In the diagram below, $O$ is the centre of the circle and $A$ , $B$ , $C$ lie on the circle. $\angle AOC = 120^\circ$ . Find $\angle ABC$ .

Diagram for Q2 (OLEVEL Emaths)

Generated diagram for Q2.

3. [2 marks] A right-angled triangle has sides 3 cm, 4 cm, and 5 cm. Write down the value of $\cos \theta$ where $\theta$ is the angle opposite the 3 cm side.

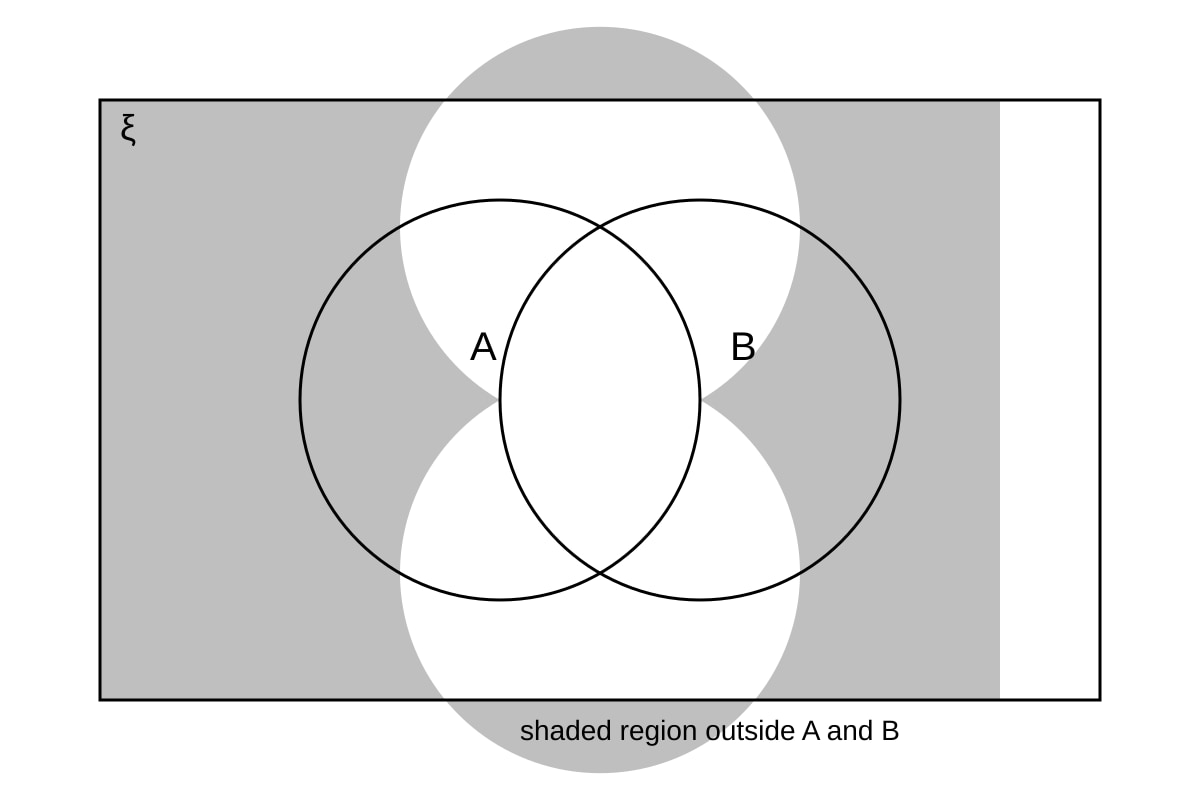

4. [2 marks] Use set notation to describe the shaded region in the Venn diagram below.

Diagram for Q4 (OLEVEL Emaths)

Generated diagram for Q4.

5. [2 marks] A point is chosen at random inside a circle of radius 10 cm. A smaller concentric circle of radius 5 cm is shaded. Find the probability the point lies in the shaded region.

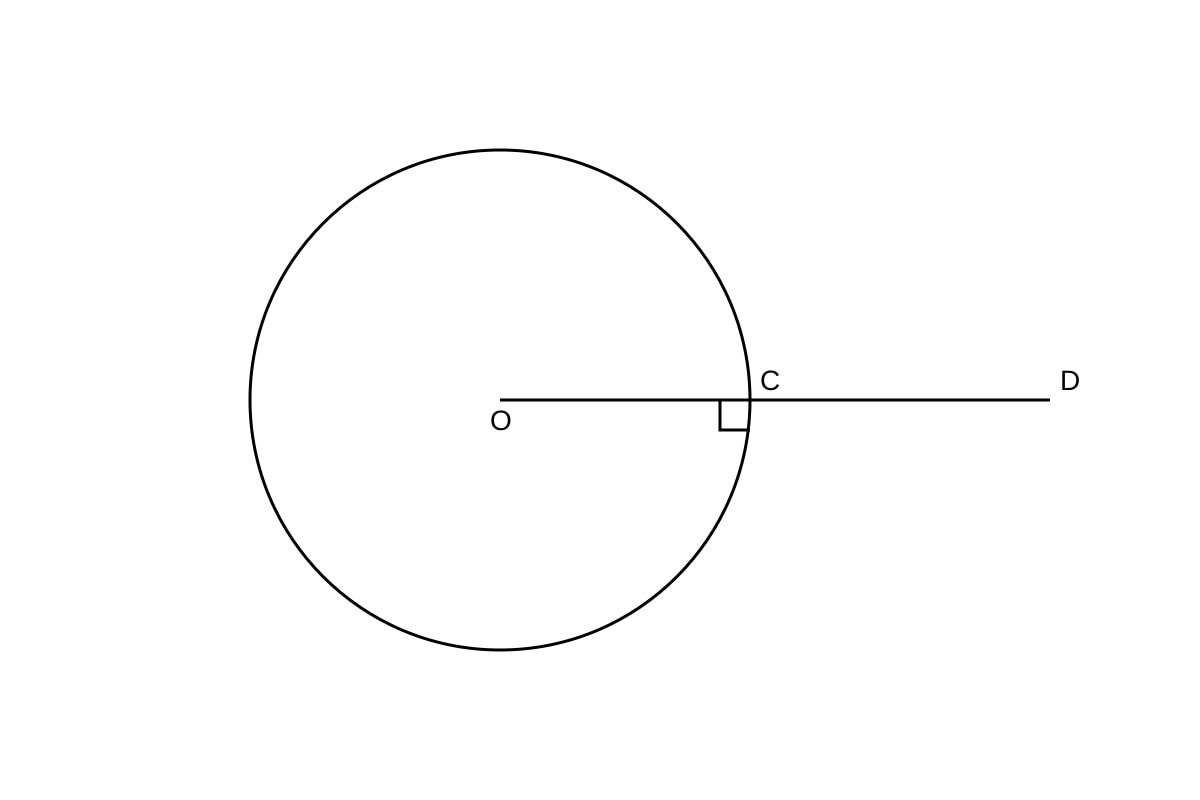

6. [2 marks] In the diagram, $CD$ is a tangent to the circle at $C$ , and $OC$ is a radius. State the size of $\angle OCD$ .

Diagram for Q6 (OLEVEL Emaths)

Generated diagram for Q6.

7. [2 marks] Find the length of the missing side $x$ in the right-angled triangle where the opposite side is 8 cm and the angle is $45^\circ$ .

8. [2 marks] The angle of elevation of the top of a flagpole from a point 12 m away is $30^\circ$ . Find the height of the flagpole.

Section B: Applied Trigonometry and Circle Properties (Questions 9–14) [24 marks]

9. [4 marks] A tower of height 20 m casts a shadow of 15 m. At the same time, a tree casts a shadow of 9 m. Find the height of the tree.

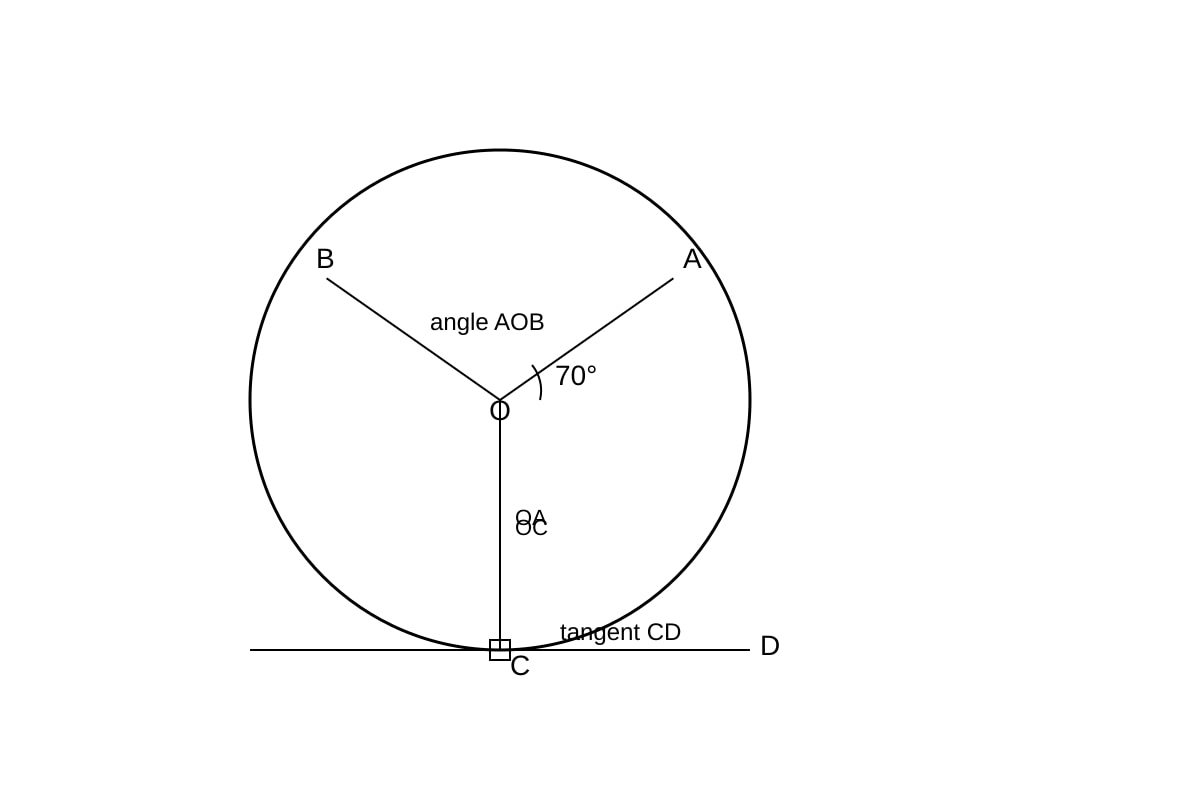

10. [4 marks] In the diagram, $O$ is the centre of the circle. $\angle AOB = 70^\circ$ and $CD$ is a tangent at $C$ . Find $\angle OCD$ and $\angle OCA$ if $OA = OC$ .

Diagram for Q10 (OLEVEL Emaths)

Generated diagram for Q10.

11. [4 marks] Triangle $ABC$ has $DE$ parallel to $BC$ , with $AD:DB = 1:2$ . If area of $\triangle ADE = 6\text{ cm}^2$ , find the area of $\triangle ABC$ .

12. [4 marks] A ship sails 8 km on a bearing of $060^\circ$ , then 6 km on a bearing of $150^\circ$ . Find the distance of the ship from its starting point.

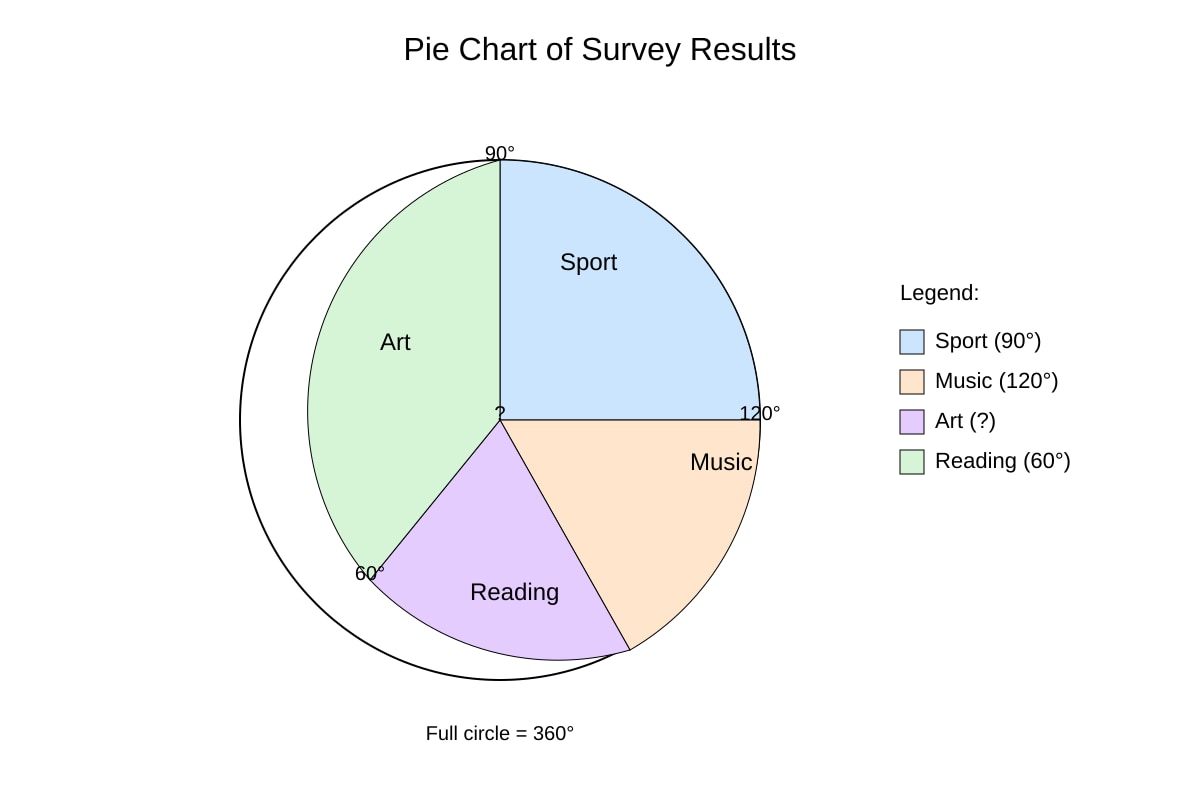

13. [4 marks] The pie chart shows the results of a survey. Given angles: Sport $90^\circ$ , Music $120^\circ$ , Art is missing, Reading $60^\circ$ . Find the angle for Art.

Chart for Q13 (OLEVEL Emaths)

Generated chart for Q13.

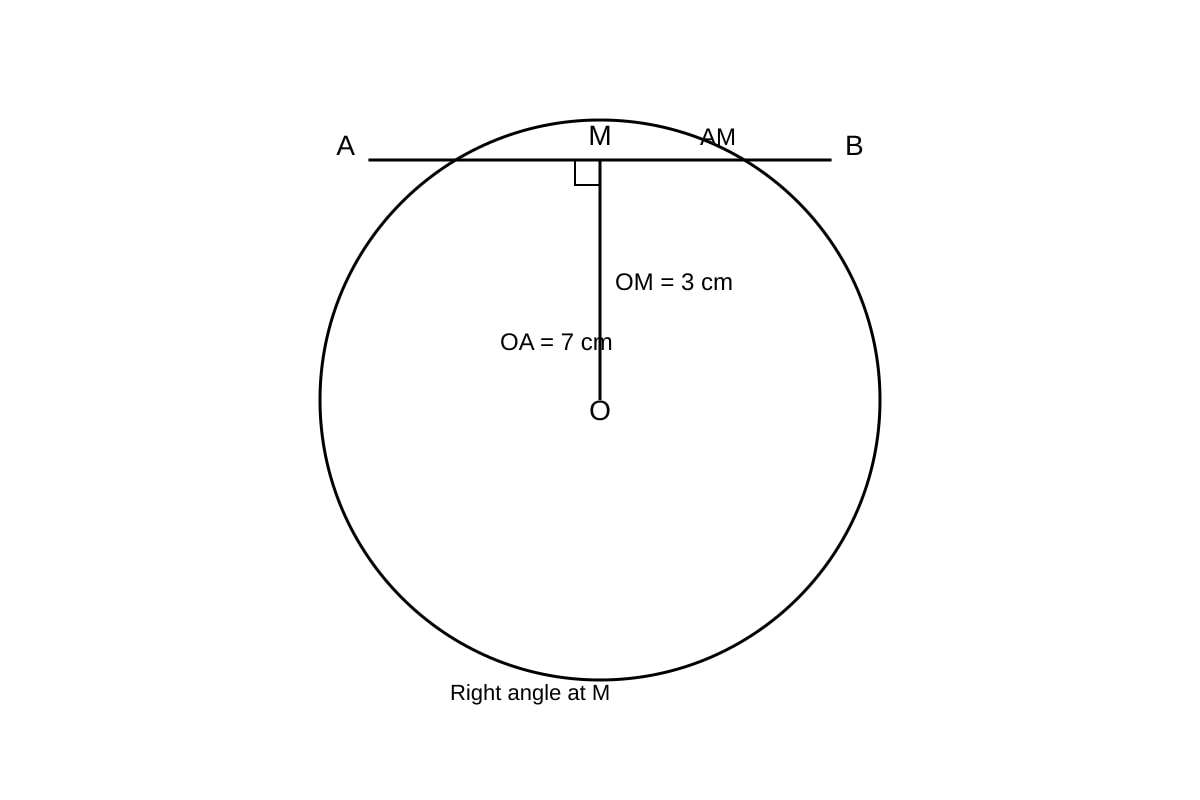

14. [4 marks] In the diagram, $O$ is the centre of a circle radius 7 cm. $AB$ is a chord and $M$ is midpoint of $AB$ . $OM = 3$ cm. Find the length of $AB$ .

Diagram for Q14 (OLEVEL Emaths)

Generated diagram for Q14.

Section C: Extended Reasoning (Questions 15–20) [20 marks]

15. [3 marks] A stick pattern is formed: Diagram 1 uses 4 sticks, Diagram 2 uses 7, Diagram 3 uses 10. Find an expression for the number of sticks in Diagram $n$ .

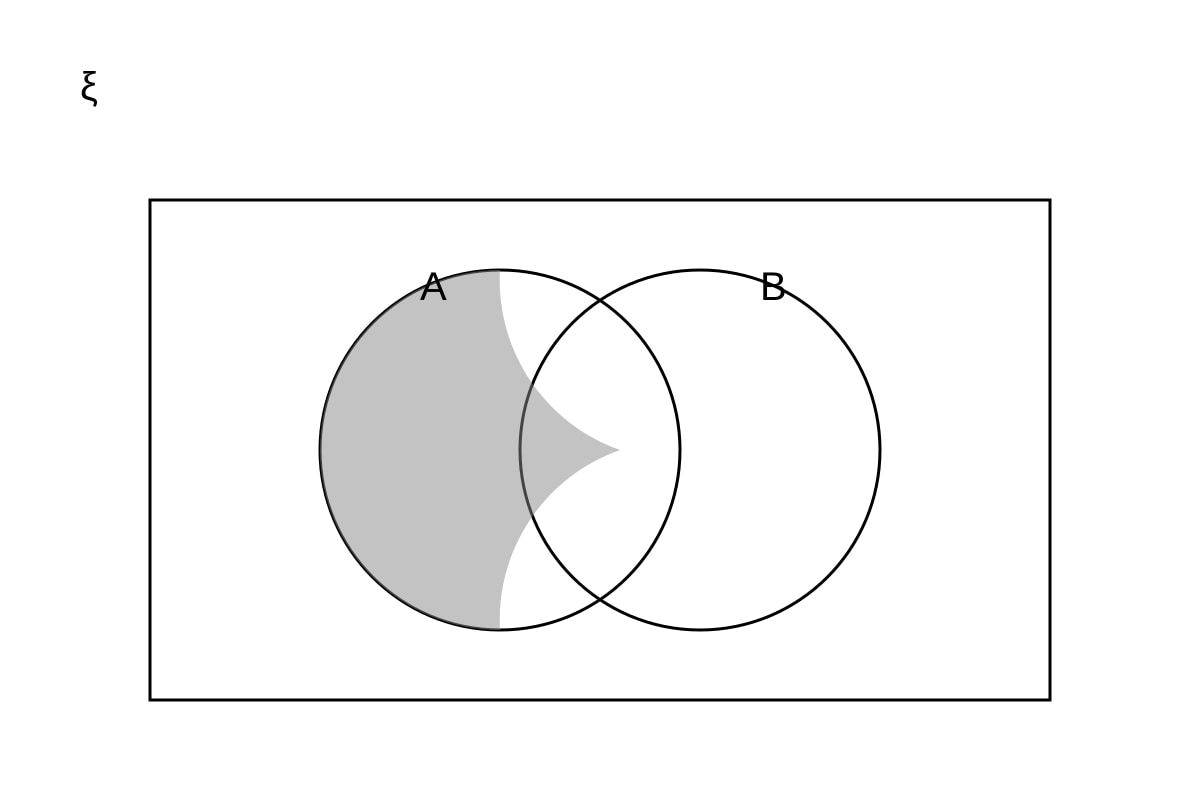

16. [3 marks] In the Venn diagram, ξ = {students}, A = {like maths}, B = {like science}. Shade and describe $A \cap B'$ .

Diagram for Q16 (OLEVEL Emaths)

Generated diagram for Q16.

17. [4 marks] From a point 50 m from the base of a building, the angle of elevation to the top is $40^\circ$ . Find the height of the building.

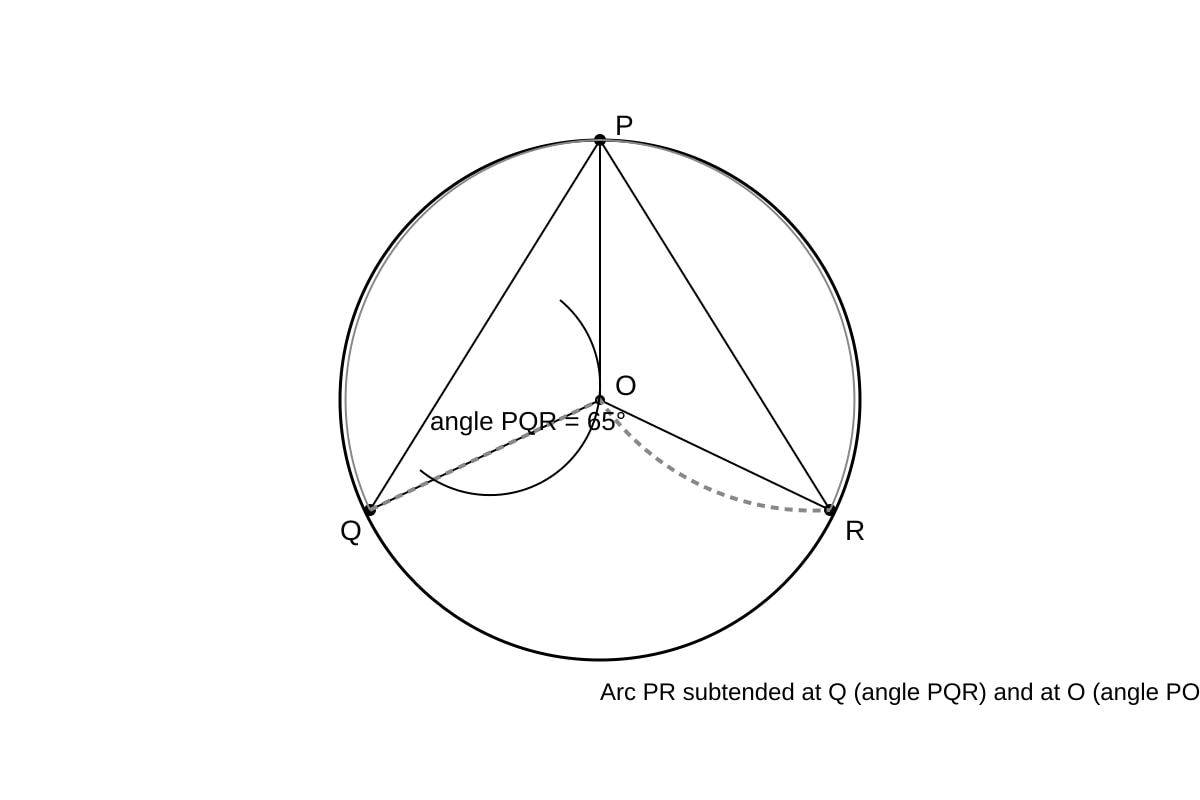

18. [3 marks] A circle has centre $O$ . Points $P, Q, R$ on circumference with $\angle PQR = 65^\circ$ . Find $\angle POR$ .

Diagram for Q18 (OLEVEL Emaths)

Generated diagram for Q18.

19. [4 marks] A rectangular field is 30 m by 40 m. A goat is tied to a corner with a 15 m rope. Find the area the goat can graze.

20. [3 marks] Explain why the sine of an angle in a right-angled triangle cannot exceed 1.

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper — Answer Key (Version 4)

Subject: Elementary Mathematics
Level: O-Level
Total Marks: 60

Section A Answers (16 marks)

Q1 [2]
$\sin 30^\circ = \frac{1}{2}$ .
Teaching note: From special angles, $\sin 30^\circ$ is opposite/hypotenuse in a 30-60-90 triangle = 1/2.

Q2 [2]
$\angle ABC = 60^\circ$ .
Method: Angle at centre = 2 × angle at circumference subtended by same arc. $120^\circ / 2 = 60^\circ$ .

Q3 [2]
$\cos \theta = 4/5$ .
Method: $\theta$ opposite 3 cm side → adjacent = 4 cm, hypotenuse = 5 cm. $\cos = \text{adj}/\text{hyp} = 4/5$ .

Q4 [2]
$(A \cup B)'$ or $A' \cap B'$ .
Teaching note: Shaded is outside both A and B → complement of union.

Q5 [2]
$P = \frac{\pi \times 5^2}{\pi \times 10^2} = \frac{25}{100} = \frac{1}{4}$ .
Method: Area ratio of concentric circles.

Q6 [2]
$\angle OCD = 90^\circ$ .
Reason: Radius perpendicular to tangent at point of contact.

Q7 [2]
$x = 8 / \sin 45^\circ = 8 / (\sqrt{2}/2) = 8\sqrt{2}$ cm.
Method: $\sin 45^\circ = \text{opp}/\text{hyp}$ → hyp = opp / sin45.

Q8 [2]
$h = 12 \times \tan 30^\circ = 12 \times \frac{1}{\sqrt{3}} = 4\sqrt{3}$ m.
Method: $\tan = \text{opp}/\text{adj}$ .

Section B Answers (24 marks)

Q9 [4]
$\tan \theta = 20/15 = 4/3$ . Tree height = $9 \times (4/3) = 12$ m.
Marks: 2 for ratio, 2 for height.

Q10 [4]
$\angle OCD = 90^\circ$ (tangent-radius). $\angle OCA = (180-70)/2 = 55^\circ$ (isosceles OAC).
Marks: 2 each.

Q11 [4]
$AD:AB = 1:3$ → area ratio = $(1/3)^2 = 1/9$ . Area ABC = $6 \times 9 = 54\text{ cm}^2$ .
Marks: 2 ratio, 2 area.

Q12 [4]
Use cosine rule on triangle with included angle $150-60=90^\circ$ : $d = \sqrt{8^2+6^2} = 10$ km.
Marks: 2 method, 2 answer.

Q13 [4]
Art = $360 - (90+120+60) = 90^\circ$ .
Marks: 2 subtraction, 2 answer.

Q14 [4]
$AM = \sqrt{7^2 - 3^2} = \sqrt{40} = 2\sqrt{10}$ ; $AB = 2 \times AM = 4\sqrt{10}$ cm.
Marks: 2 Pythagoras, 2 double.

Section C Answers (20 marks)

Q15 [3]
Sequence 4,7,10 → common diff 3 → $3n+1$ .
Marks: 1 diff, 2 formula.

Q16 [3]
Shaded region = A only → $A \cap B'$ .
Marks: 1 shade, 2 notation.

Q17 [4]
$h = 50 \times \tan 40^\circ \approx 41.95$ m.
Marks: 2 setup, 2 value.

Q18 [3]
$\angle POR = 2 \times 65^\circ = 130^\circ$ .
Marks: 1 relation, 2 answer.

Q19 [4]
Quarter circle radius 15: Area = $\frac{1}{4}\pi (15)^2 = 56.25\pi \text{ m}^2$ .
Marks: 2 shape, 2 calc.

Q20 [3]
In right triangle, $\sin = \text{opp}/\text{hyp}$ , opp < hyp always → ratio < 1. Max at $90^\circ$ is 1.
Marks: 1 def, 2 reason.
