TuitionGoWhere Practice Paper - Elementary Mathematics O-Level

TuitionGoWhere Practice Paper (AI) — Version 3 of 5

Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 1 hour 15 minutes
Total Marks: 60
Name: ________________________
Class: ________
Date: ________

Instructions

Answer all questions.
Show your working clearly where required.
Diagrams are not drawn to scale unless stated.
Calculators may be used.
Write your answers in the spaces provided.

Section A (Questions 1–8) — Short Answer [16 marks]

Each question carries 2 marks unless stated.

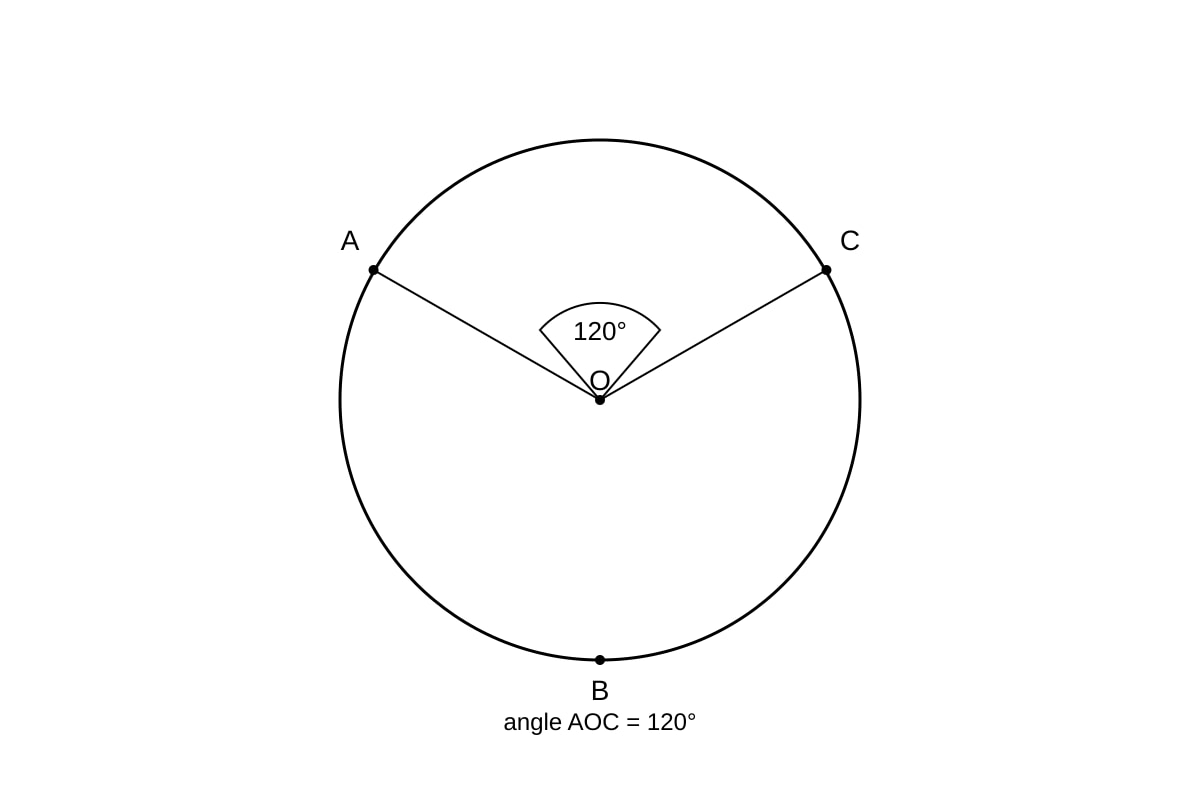

In the diagram below, $O$ is the centre of a circle and $A$ , $B$ , $C$ lie on the circle. $\angle AOC = 120^\circ$ . Find $\angle ABC$ .

Diagram for Q1 (OLEVEL Emaths)

Generated diagram for Q1.

Write down the exact value of $\tan 45^\circ$ .

A point is chosen at random inside a rectangle of length 12 cm and width 5 cm. A triangle inside the rectangle has base 6 cm and height 4 cm. Find the probability that the point lies inside the triangle.

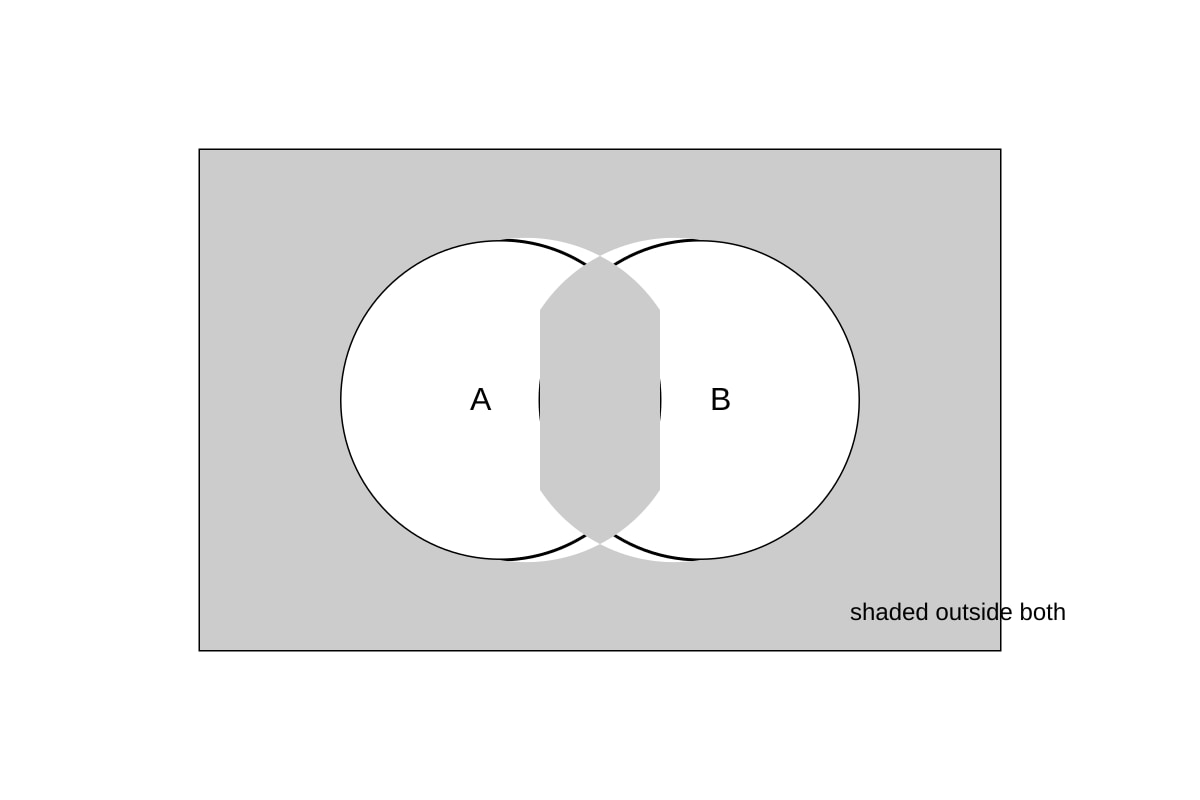

In the Venn diagram, $\xi$ is the universal set, and $A$ and $B$ are subsets. The shaded region is outside both $A$ and $B$ . Write the set notation for the shaded region.

Diagram for Q4 (OLEVEL Emaths)

Generated diagram for Q4.

A right-angled triangle has opposite side 3 cm and adjacent side 4 cm to angle $\theta$ . Find $\sin \theta$ .

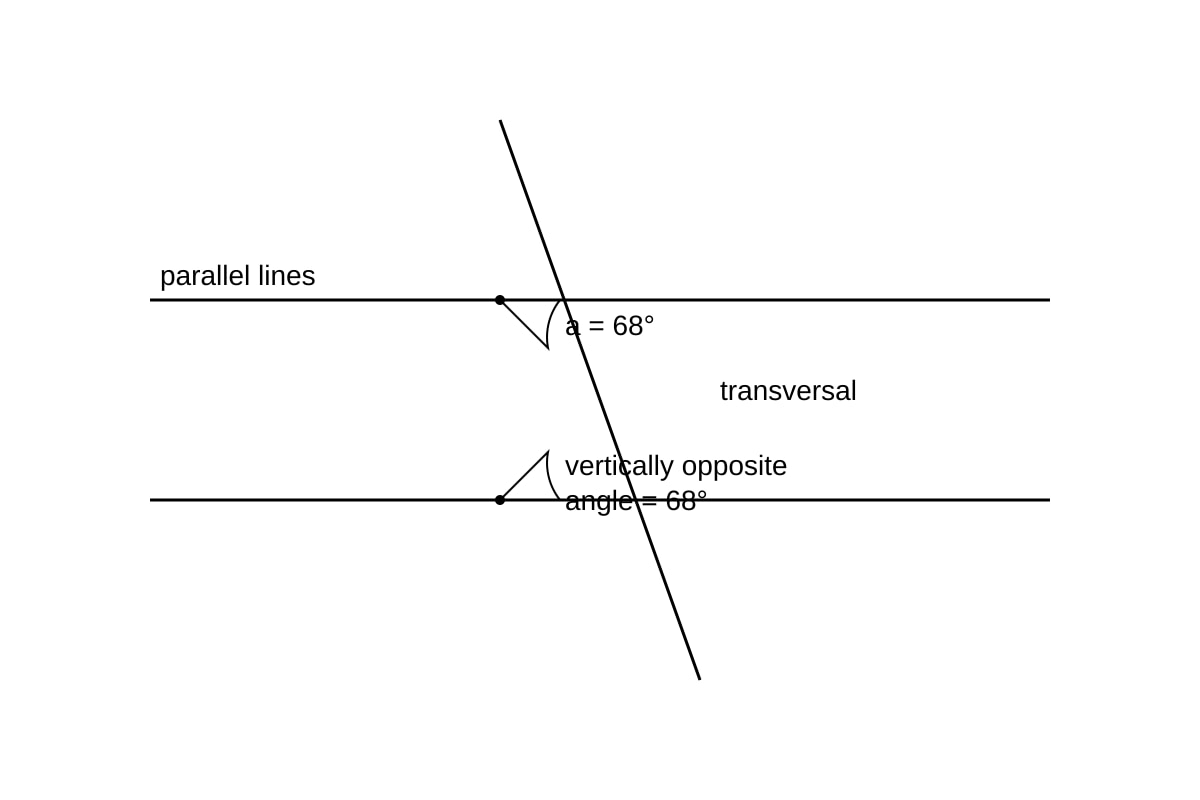

The diagram shows two parallel lines cut by a transversal. $\angle a = 68^\circ$ (corresponding to given). Find the vertically opposite angle to $\angle a$ .

Diagram for Q6 (OLEVEL Emaths)

Generated diagram for Q6.

A sector of a circle has radius 10 cm and angle $72^\circ$ . Find its arc length in terms of $\pi$ .

Triangle $ABC$ has $DE \parallel BC$ , with $AD:DB = 1:2$ . If area of $\triangle ADE = 6\text{ cm}^2$ , find area of $\triangle ABC$ .

Section B (Questions 9–14) — Structured [24 marks]

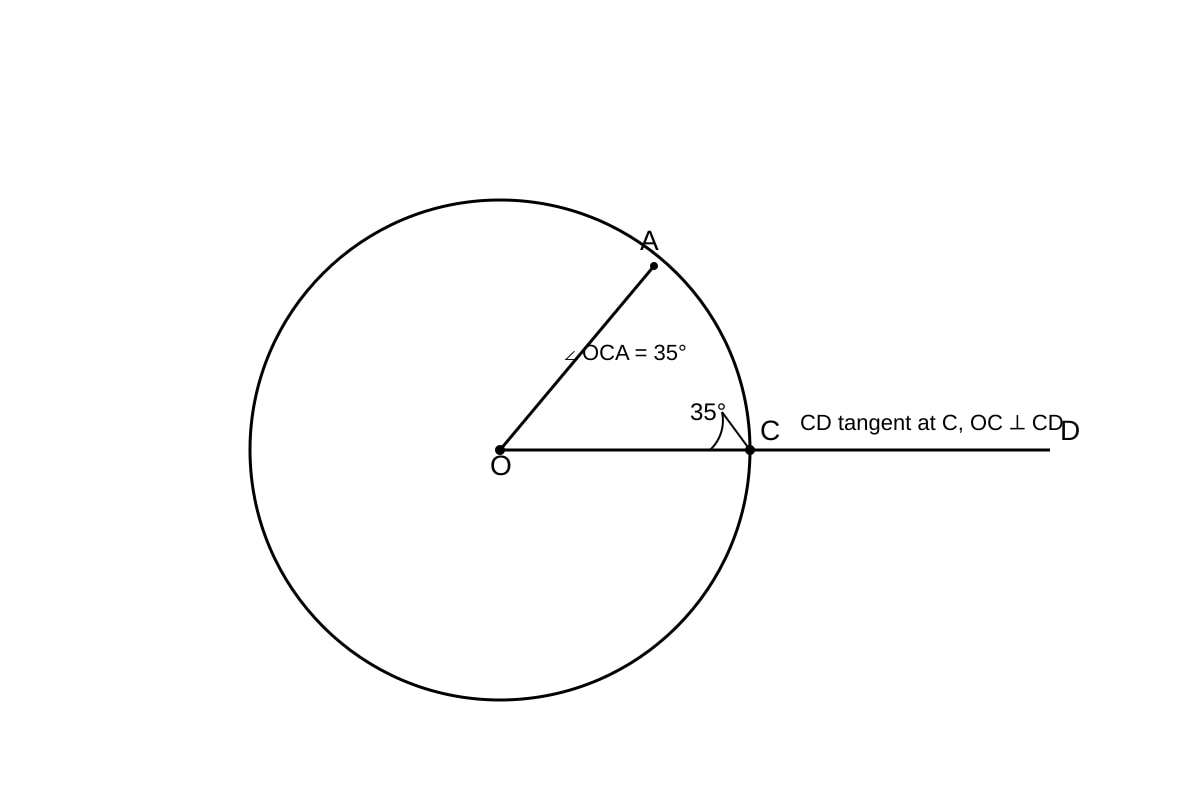

(a) In the diagram, $O$ is the centre of the circle. $CD$ is a tangent at $C$ . $\angle OCA = 35^\circ$ . Find $\angle OCD$ . [2]
(b) Hence find $\angle ACD$ . [1]

Diagram for Q9 (OLEVEL Emaths)

Generated diagram for Q9.

A tower of height 20 m casts a shadow of 12 m. At the same time, a tree casts a shadow of 9 m. Find the height of the tree. [4]

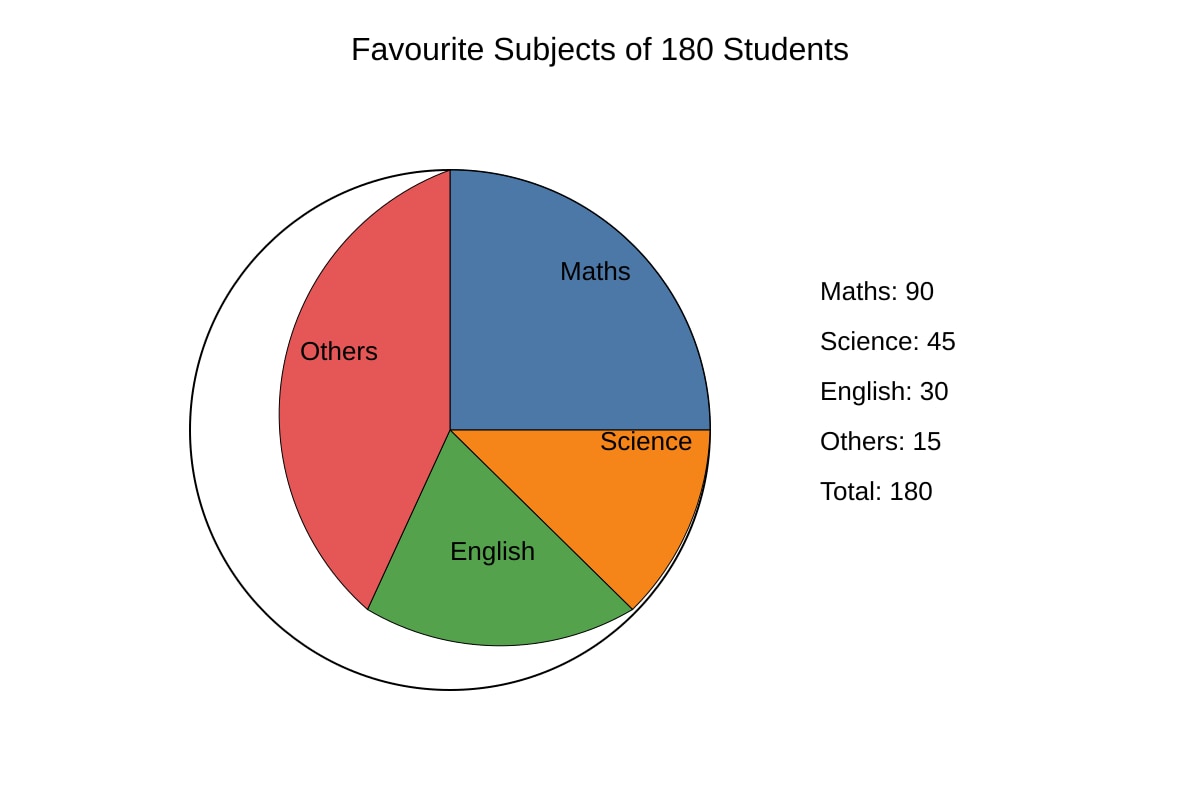

The pie chart shows favourite subjects of 180 students. Maths = 90 students, Science = 45, English = 30, Others = rest. Calculate the angle for "Others". [3]

Chart for Q11 (OLEVEL Emaths)

Generated chart for Q11.

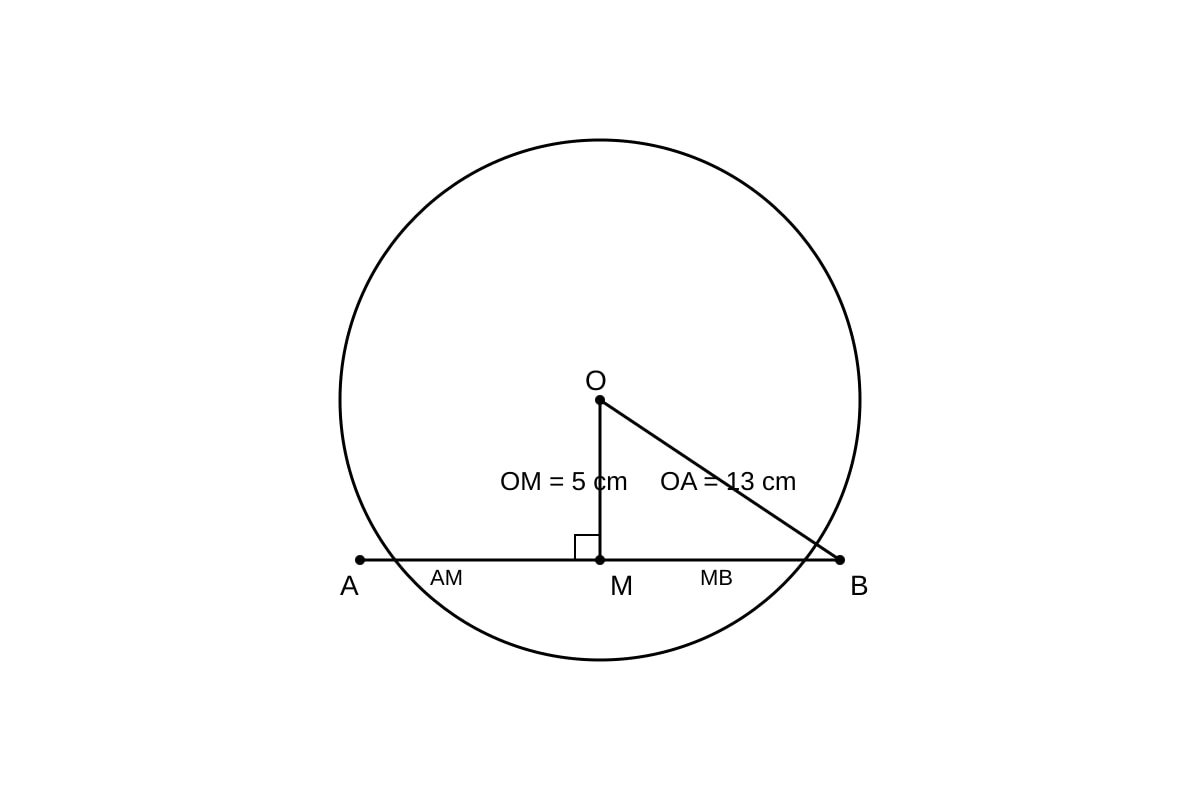

In the diagram, $AB$ is a chord of a circle centre $O$ , radius 13 cm. The perpendicular from $O$ to $AB$ meets $AB$ at $M$ , and $OM = 5$ cm. Find the length of $AB$ . [4]

Diagram for Q12 (OLEVEL Emaths)

Generated diagram for Q12.

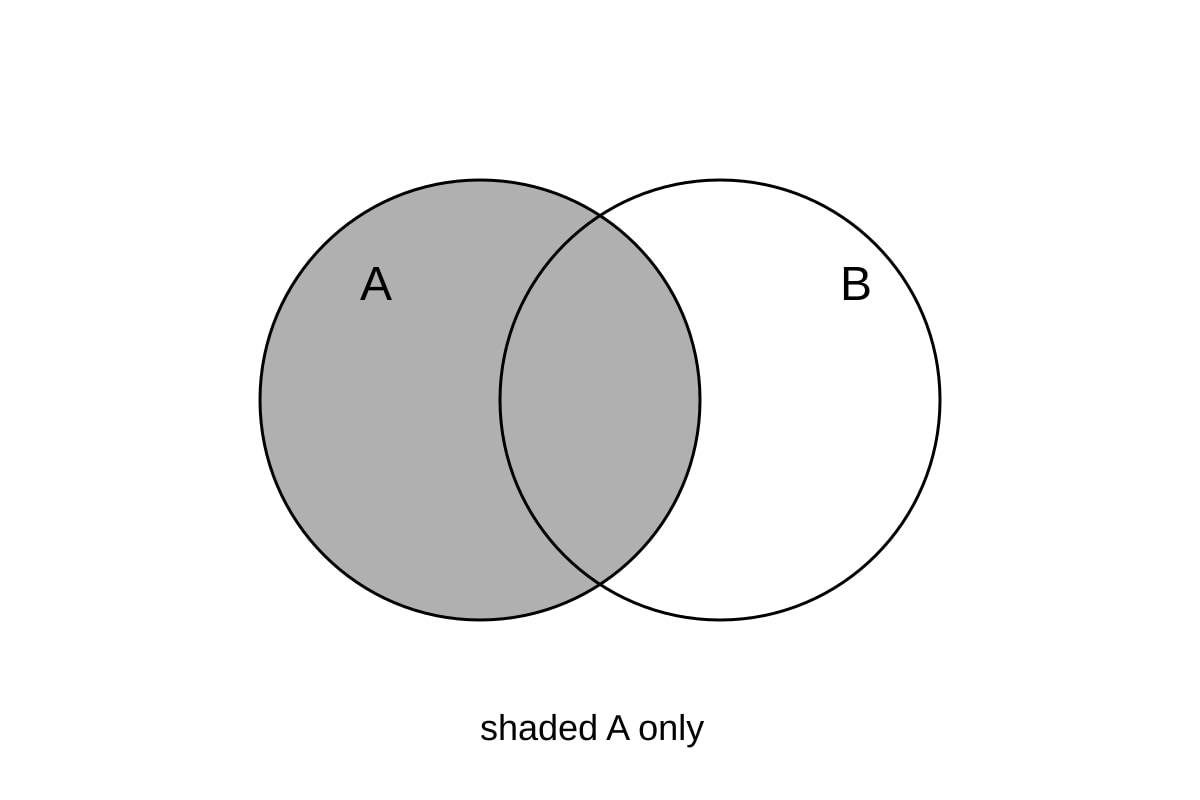

(a) Express in set notation the shaded region: inside $A$ but outside $B$ . [1]
(b) If $n(A)=20$ , $n(B)=15$ , $n(A\cap B)=5$ , find $n(A\cup B)$ . [2]
(c) Draw a Venn diagram for the above. [1]

Diagram for Q13 (OLEVEL Emaths)

Generated diagram for Q13.

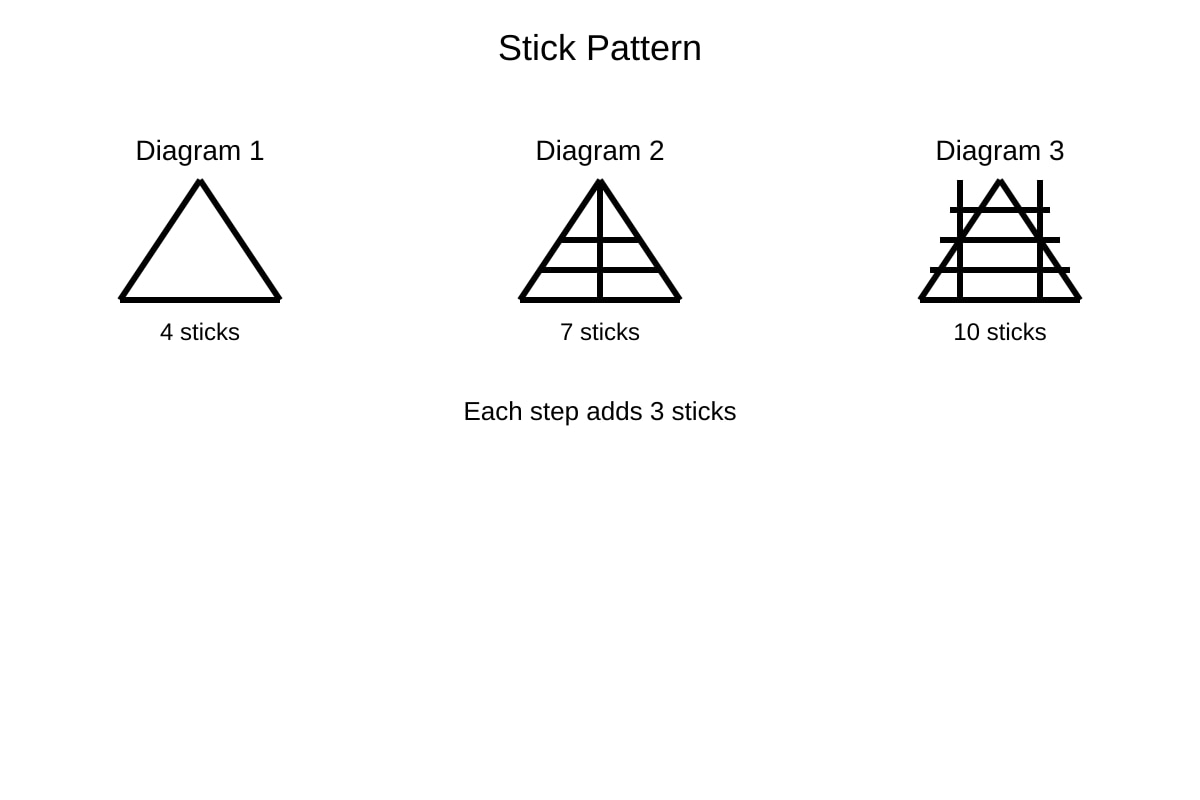

A stick pattern: Diagram 1 has 4 sticks, Diagram 2 has 7, Diagram 3 has 10. Find expression for sticks in Diagram $n$ . [4]

Diagram for Q14 (OLEVEL Emaths)

Generated diagram for Q14.

Section C (Questions 15–20) — Problem Solving [20 marks]

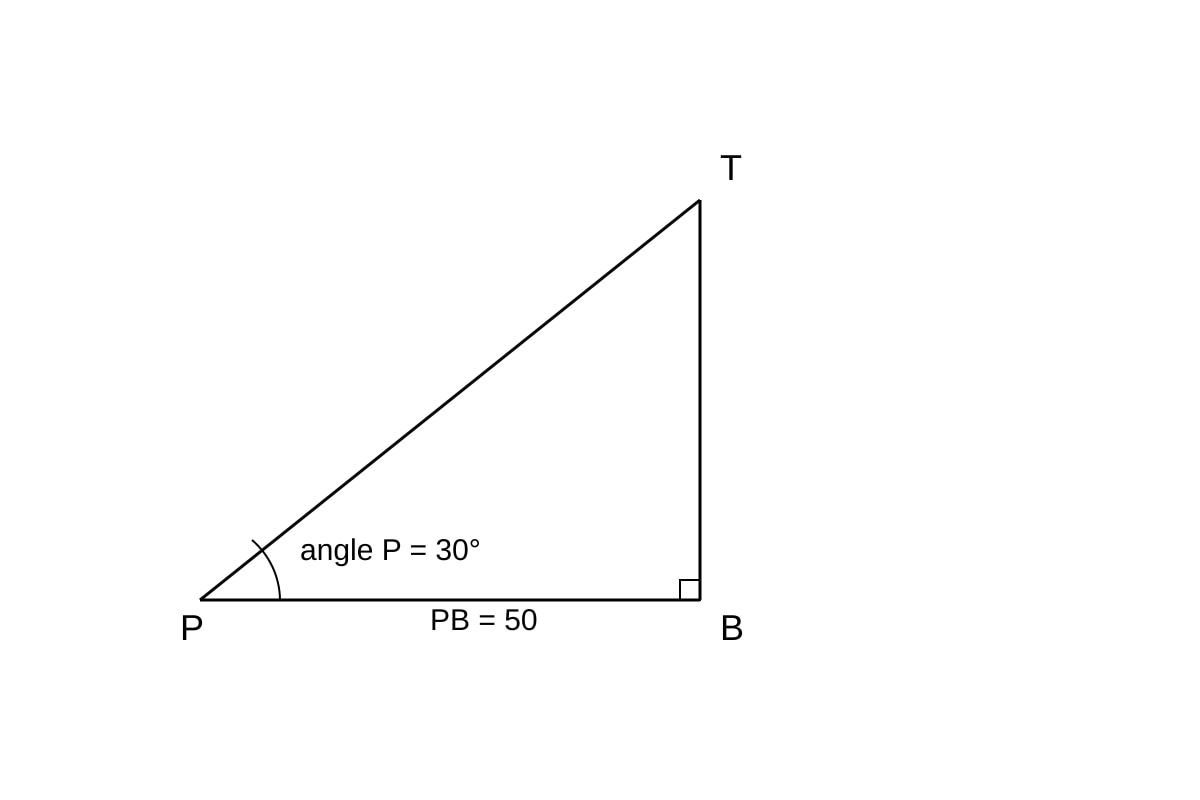

From a point $P$ , the angle of elevation of the top $T$ of a cliff is $30^\circ$ . The distance from $P$ to the base $B$ is 50 m. Find the height of the cliff $TB$ . [3]

Diagram for Q15 (OLEVEL Emaths)

Generated diagram for Q15.

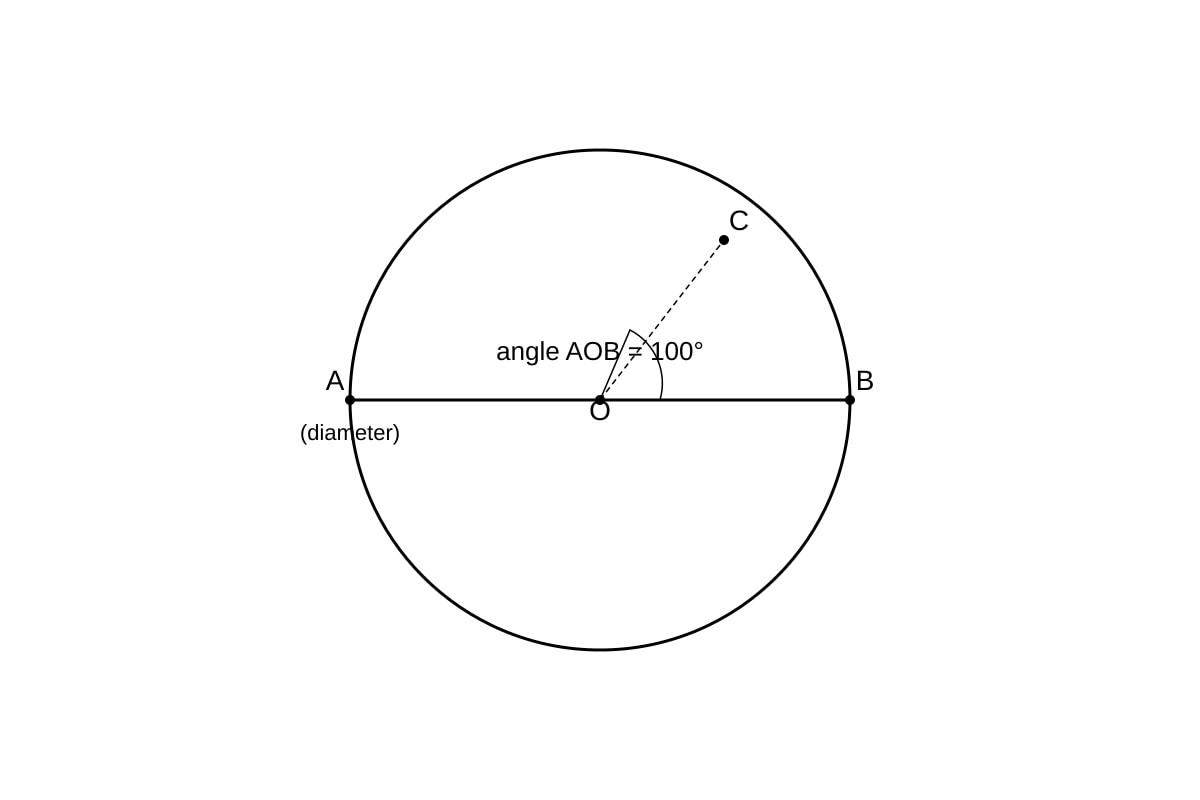

In the diagram, $O$ is centre. $\angle AOB = 100^\circ$ , $C$ on circle. Find $\angle ACB$ and $\angle CAB$ if $AB$ is diameter. [4]

Diagram for Q16 (OLEVEL Emaths)

Generated diagram for Q16.

A rectangular field 30 m by 20 m has a circular pond radius 7 m. A point is chosen at random in the field. Find probability it is outside the pond. (use $\pi = \frac{22}{7}$ ) [3]

Triangle $ABC$ has $DE \parallel BC$ , $AD:AB = 2:5$ , area $ADE = 16\text{ cm}^2$ . Find area of trapezoid $DECB$ . [4]

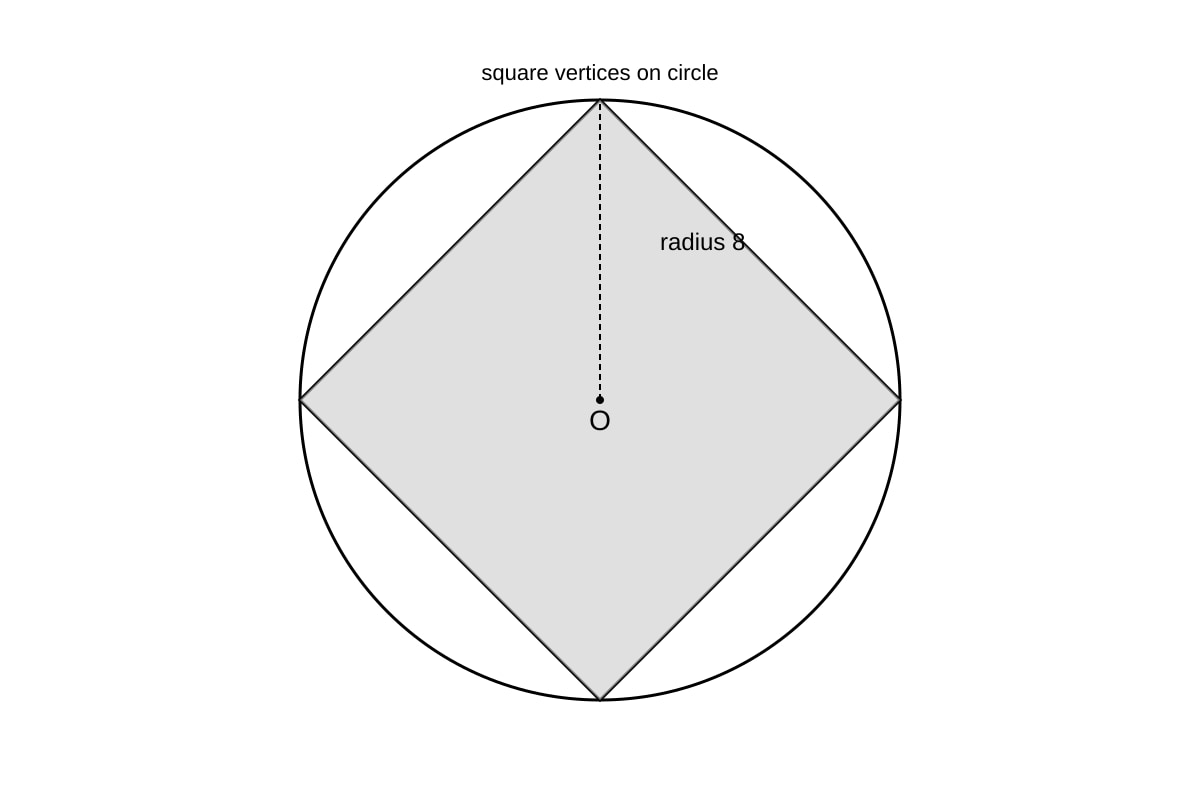

The diagram shows a circle, centre $O$ , radius 8 cm. A square is inscribed. Find the area of the shaded region outside square but inside circle. [3]

Diagram for Q19 (OLEVEL Emaths)

Generated diagram for Q19.

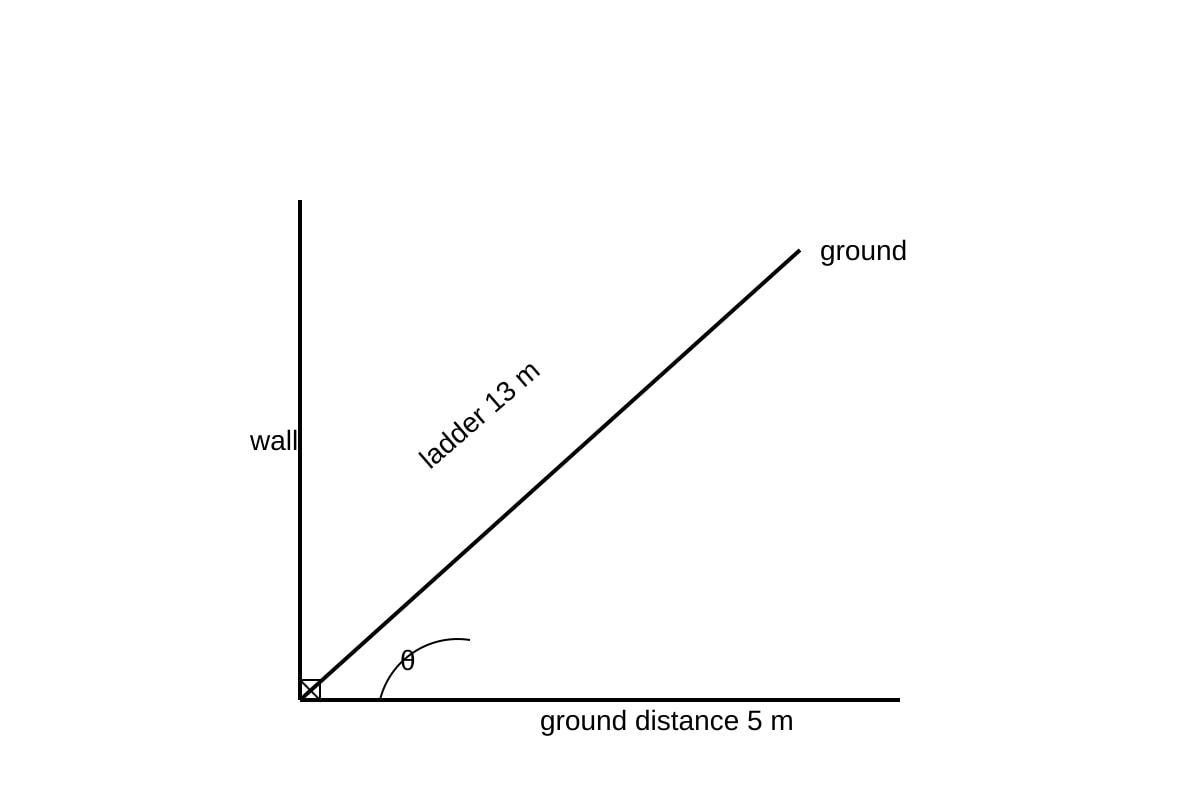

A ladder 13 m long leans against a wall. Its foot is 5 m from the wall. Find the angle the ladder makes with the ground. [3]

Diagram for Q20 (OLEVEL Emaths)

Generated diagram for Q20.

End of Paper

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Elementary Mathematics O-Level (Answers)

Version 3 of 5 — Answer Key with Teaching Notes

Section A

Q1 [2 marks]
$\angle ABC = 60^\circ$ .
Method: Angle at centre ( $\angle AOC = 120^\circ$ ) is twice angle at circumference on same arc: $\angle ABC = \frac{1}{2} \times 120^\circ = 60^\circ$ .
Teaching: Circle theorem — angle at centre is 2× angle at circumference subtended by same arc.
Common mistake: Using 120° directly.

Q2 [2 marks]
$\tan 45^\circ = 1$ .
Method: From special triangle or unit circle, $\tan 45^\circ = \frac{\text{opp}}{\text{adj}} = 1$ .
Teaching: Exact trig value to recall.

Q3 [2 marks]
Area rectangle $= 12 \times 5 = 60\text{ cm}^2$ . Area triangle $= \frac{1}{2} \times 6 \times 4 = 12\text{ cm}^2$ .
$P = \frac{12}{60} = \frac{1}{5}$ .
Teaching: Geometric probability = area shaded / total area.

Q4 [2 marks]
$(A \cup B)'$ or $A' \cap B'$ .
Teaching: Outside both = complement of union.

Q5 [2 marks]
Hypotenuse $= \sqrt{3^2+4^2}=5$ . $\sin\theta = \frac{3}{5}$ .
Teaching: $\sin = \text{opp}/\text{hyp}$ .

Q6 [2 marks]
Vertically opposite angle $= 68^\circ$ .
Teaching: Vertically opposite angles are equal.

Q7 [2 marks]
Arc $= \frac{72}{360} \times 2\pi(10) = 4\pi\text{ cm}$ .
Teaching: Arc length $= \frac{\theta}{360} \times 2\pi r$ .

Q8 [2 marks]
$AD:AB = 1:3$ . Area ratio $= (1/3)^2 = 1/9$ .
Area $ABC = 6 \div \frac{1}{9} = 54\text{ cm}^2$ .
Teaching: Similar triangles — area ratio = square of length ratio.

Section B

Q9 [3 marks]
(a) [2] $\angle OCD = 90^\circ$ (tangent ⊥ radius).
(b) [1] $\angle ACD = 90^\circ - 35^\circ = 55^\circ$ .
Teaching: Radius to tangent point is perpendicular.

Q10 [4 marks]
$\tan\theta = \frac{20}{12} = \frac{5}{3}$ . Tree height $= 9 \times \frac{5}{3} = 15\text{ m}$ .
Marking: 2 for ratio, 2 for height.
Teaching: Same sun angle → same tan.

Q11 [3 marks]
Others $= 180 - (90+45+30) = 15$ . Angle $= \frac{15}{180}\times 360^\circ = 30^\circ$ .
Teaching: Pie angle = freq/total × 360.

Q12 [4 marks]
$AM = \sqrt{13^2 - 5^2} = 12$ . $AB = 2 \times 12 = 24\text{ cm}$ .
Marking: 2 Pythagoras, 2 double.
Teaching: Perpendicular from centre bisects chord.

Q13 [4 marks]
(a) [1] $A \cap B'$
(b) [2] $n(A\cup B)=20+15-5=30$
(c) [1] Venn with overlap 5, A-only 15, B-only 10.
Teaching: Union formula.

Q14 [4 marks]
Difference constant 3 → linear $3n + b$ . $n=1$ : $3+b=4 \Rightarrow b=1$ . Sticks $= 3n+1$ .
Marking: 2 pattern, 2 expression.

Section C

Q15 [3 marks]
$\tan 30^\circ = \frac{TB}{50} \Rightarrow TB = 50 \times \frac{1}{\sqrt{3}} \approx 28.9\text{ m}$ .
Teaching: Angle of elevation, opposite = adj × tan.

Q16 [4 marks]
$\angle ACB = 90^\circ$ (angle in semicircle). $\angle CAB = 180 - 90 - (\frac{1}{2}\times 100) = 40^\circ$ using triangle sum with $\angle CBA = 50^\circ$ .
Marking: 2 each.

Q17 [3 marks]
Field $= 600$ , pond $= \frac{22}{7}\times 49 = 154$ . Outside $= \frac{600-154}{600} = \frac{223}{300}$ .
Teaching: Complement probability.

Q18 [4 marks]
Area $ABC = 16 \div (2/5)^2 = 100$ . Trapezoid $= 100 - 16 = 84\text{ cm}^2$ .
Marking: 2 ratio, 2 subtract.

Q19 [3 marks]
Square diagonal = 16 → side $= 8\sqrt{2}$ , area $= 128$ . Circle $= 64\pi \approx 201.1$ . Shaded $= 64\pi - 128$ .
Teaching: Inscribed square diagonal = diameter.

Q20 [3 marks]
$\cos\theta = \frac{5}{13} \Rightarrow \theta \approx 67.4^\circ$ .
Teaching: Adj/hyp = cos.

Total Marks: 60 — verified.
