O Level Elementary Mathematics Practice Paper 2

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper - Elementary Mathematics O-Level

TuitionGoWhere Practice Paper (AI) — Version 2

Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper (Topic: Geometry & Trigonometry)
Duration: 1 hour 15 minutes
Total Marks: 60
Name: ________________________
Class: ________
Date: ________

Instructions:

• Answer all questions.
• Show your working clearly where required.
• Calculators may be used.
• Write answers in the spaces provided.

---

Section A (Questions 1–8) — Short Answer [16 marks]

1. In the right-angled triangle $ABC$, $\angle B = 90^\circ$, $AB = 5$ cm, $BC = 12$ cm. Write down the exact value of $\sin \angle ACB$. [1]

2. A point is chosen at random inside a circle of radius 10 cm. A smaller concentric circle of radius 6 cm is shaded. Find the probability that the point lies in the shaded region. [2]

3. In the Venn diagram below, the universal set $\xi = A \cup B$. Describe the shaded region using set notation.

Image pending generation: diagram for Q3.

[2]

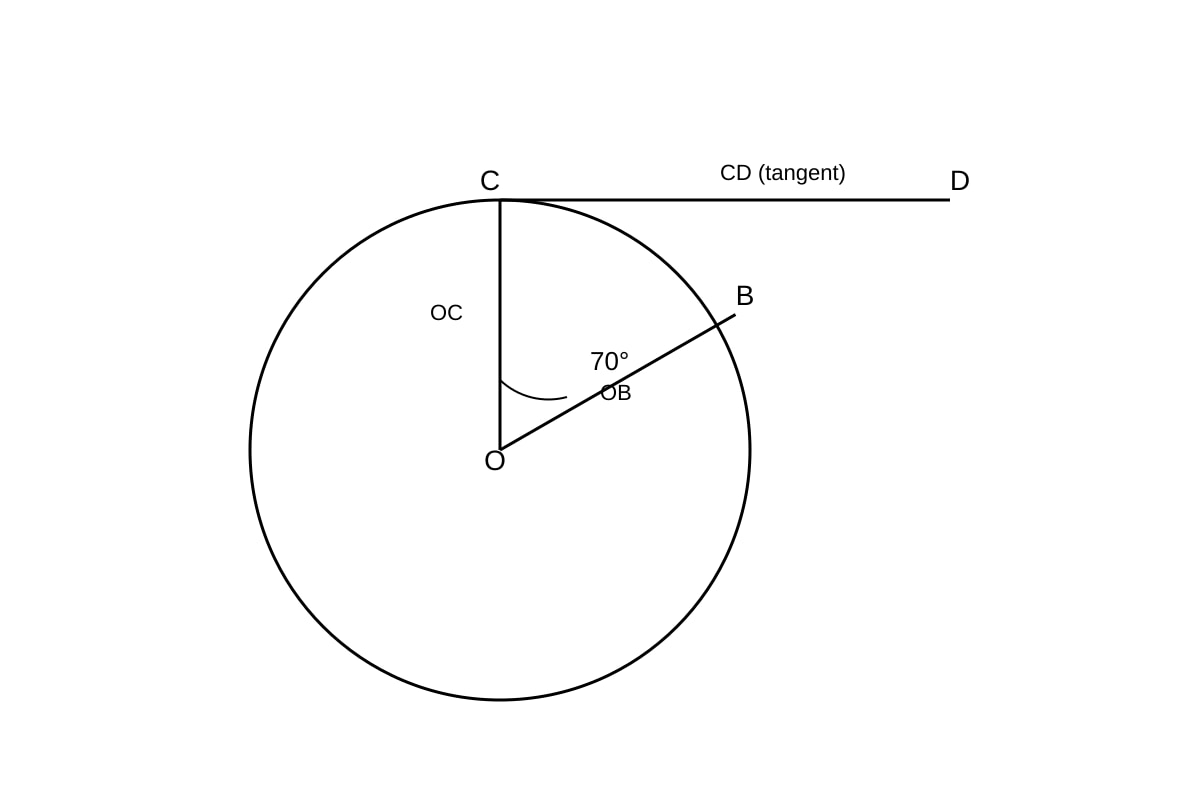

4. In the diagram, $O$ is the centre of the circle and $CD$ is a tangent at $C$. $\angle COB = 70^\circ$. Find $\angle OCD$. [2]

Image pending generation: diagram for Q4.

5. The angles in a pie chart sum to $360^\circ$. A category has frequency 30 out of total 120. Calculate its pie chart angle. [1]

6. Triangle $ABC$ has $DE \parallel BC$, with $AD:DB = 1:2$. If area of $\triangle ADE = 6\text{ cm}^2$, find area of $\triangle ABC$. [2]

Image pending generation: diagram for Q6.

7. Write down the exact value of $\tan 45^\circ$. [1]

8. A stick pattern: Diagram 1 has 4 sticks, Diagram 2 has 7, Diagram 3 has 10. Find an expression for the number of sticks in Diagram $n$. [2]

---

Section B (Questions 9–14) — Structured [24 marks]

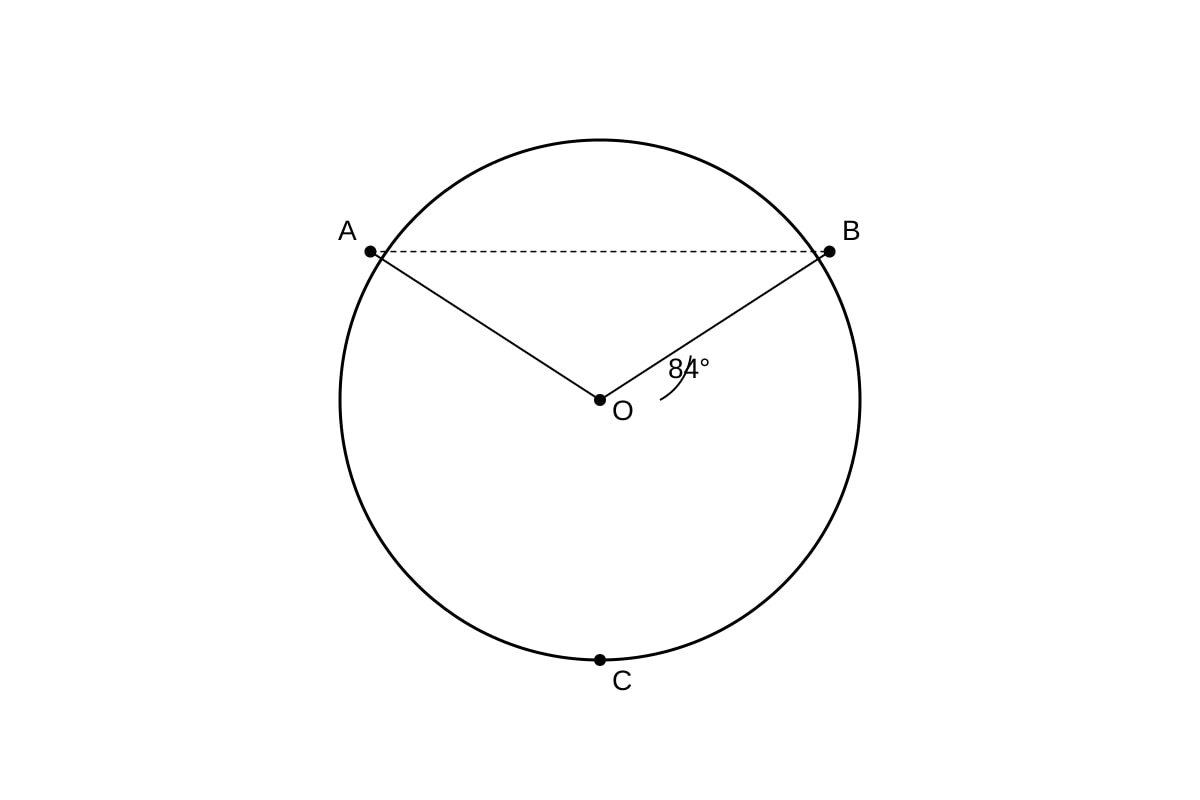

9. In the diagram, $O$ is the centre of the circle. $\angle AOB = 84^\circ$ and $C$ is on the circumference subtended by $AB$. Find $\angle ACB$. [2]

Image pending generation: diagram for Q9.

10. A tower of height 20 m casts a shadow of 12 m. At the same time, a tree casts a shadow of 9 m. Find the height of the tree. [3]

11. The diagram shows two concentric circles, centre $O$. The larger radius is 14 cm, smaller radius 5 cm. Find the area of the annulus (shaded ring). [3]

Image pending generation: diagram for Q11.

12. In the Venn diagram, $\xi = A \cup B \cup C$. Shaded region is $A \cap B'$ only (inside A, outside B and C). Describe using set notation. [2]

Image pending generation: diagram for Q12.

13. A right-angled triangle has sides 8 cm and 15 cm forming the right angle. Find the length of the hypotenuse. [2]

14. The table shows frequencies for a pie chart:

Category	Freq
P	40
Q	60
R	100

Calculate the angle for Q. [2]

---

Section C (Questions 15–20) — Extended [20 marks]

15. A building of height 30 m casts a shadow of 18 m. A flagpole casts a shadow of 6 m at the same time.
(a) Find the angle of elevation of the sun. [2]
(b) Find the height of the flagpole. [2]

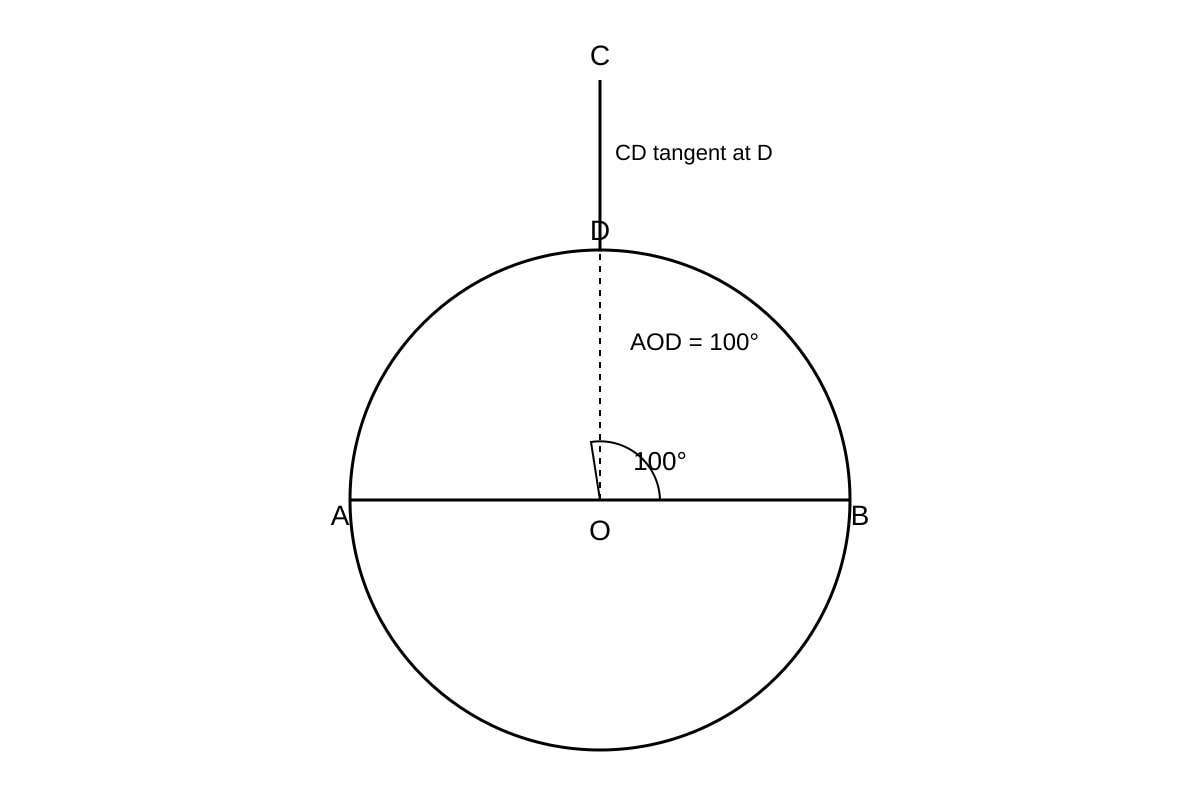

16. In the diagram, $O$ is centre, $AB$ is a diameter, $CD$ is tangent at $D$, $\angle ODC = 90^\circ$, $\angle AOD = 100^\circ$. Find $\angle OBD$. [3]

Image pending generation: diagram for Q16.

17. Stick diagrams: Diagram 1 (3 sticks), Diagram 2 (5), Diagram 3 (7), Diagram 4 (9).
(a) Find expression for sticks in Diagram $n$. [2]
(b) Find sticks in Diagram 10. [1]

18. Triangle $ABC$, $DE \parallel BC$, $AD:AB = 2:5$, area $\triangle ADE = 16\text{ cm}^2$. Find area of trapezoid $DECB$. [3]

Image pending generation: diagram for Q18.

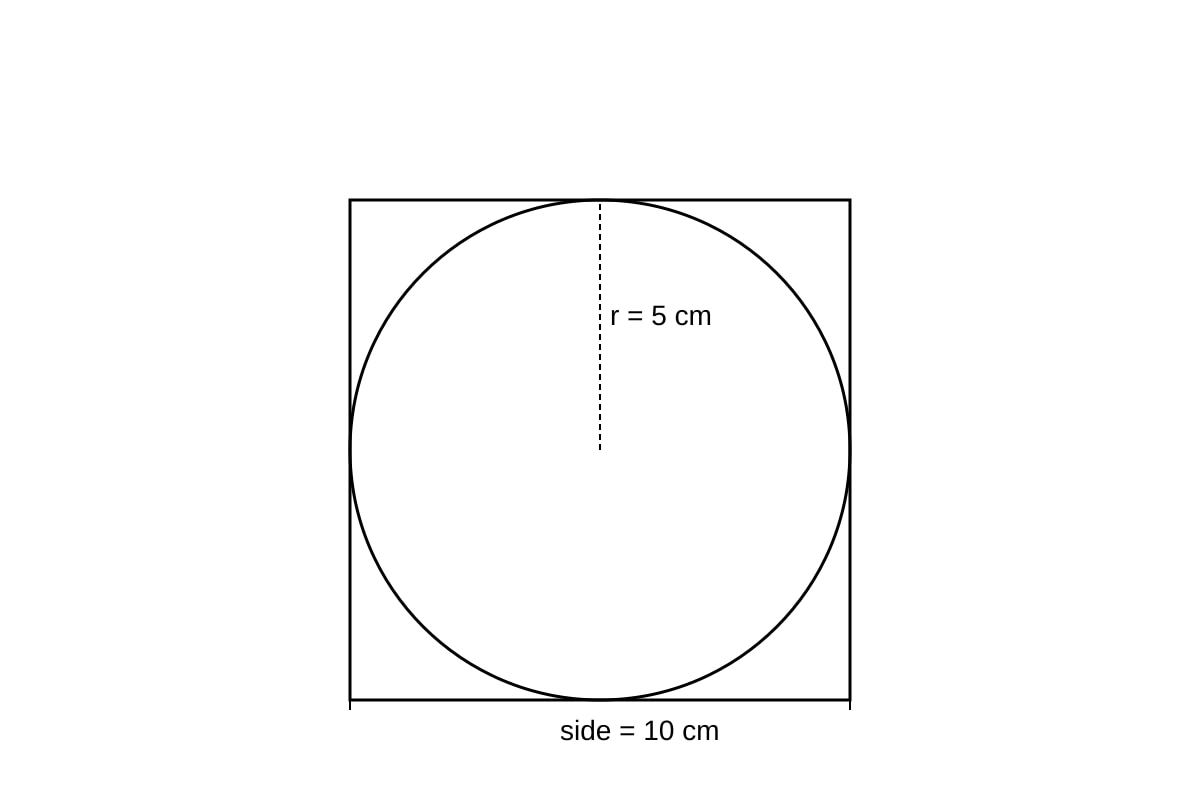

19. A point is chosen randomly in a square of side 10 cm with inscribed circle radius 5 cm. Find probability it is inside the circle. [3]

Image pending generation: diagram for Q19.

20. The pie chart has angles: P = $90^\circ$, Q = $120^\circ$, R = unknown, S = $60^\circ$. Find angle R and state total. [2]

---

End of Paper

<!-- TuitionGoWhere generation metadata: stage=5-2; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

TuitionGoWhere Practice Paper — Answer Key (Version 2)

Subject: Elementary Mathematics (O-Level)
Topic: Geometry & Trigonometry
Total Marks: 60

---

Section A Answers

Q1. [1 mark]
$\sin \angle ACB = \frac{AB}{AC}$.
$AC = \sqrt{5^2 + 12^2} = 13$ cm.
$\sin \angle ACB = \frac{5}{13}$.
Teaching note: Sine of angle = opposite/hypotenuse. Opposite to ∠ACB is AB.

Q2. [2 marks]
Area shaded = $\pi \times 6^2 = 36\pi$.
Total area = $\pi \times 10^2 = 100\pi$.
$P = \frac{36\pi}{100\pi} = \frac{9}{25}$.
Marks: 1 for areas, 1 for probability.

Q3. [2 marks]
Shaded = outside A and B = $(A \cup B)'$.
Accept $A' \cap B'$. Marks: 1 notation, 1 correctness.

Q4. [2 marks]
Radius $OC \perp$ tangent $CD$ ⇒ $\angle OCD = 90^\circ$.
$\angle COB$ not needed.
Marks: 1 tangent property, 1 answer.

Q5. [1 mark]
Angle = $\frac{30}{120} \times 360^\circ = 90^\circ$.

Q6. [2 marks]
$AD:AB = 1:3$. Area ratio = $(1/3)^2 = 1/9$.
Area ABC = $6 \div \frac{1}{9} = 54\text{ cm}^2$.
Marks: 1 ratio, 1 answer.

Q7. [1 mark]
$\tan 45^\circ = 1$.

Q8. [2 marks]
Sequence: 4,7,10 → diff 3.
Expression = $3n + 1$.
Marks: 1 pattern, 1 answer.

---

Section B Answers

Q9. [2 marks]
Angle at centre = 2 × angle at circumference.
$\angle ACB = 84^\circ \div 2 = 42^\circ$.

Q10. [3 marks]
$\tan \theta = 20/12 = 5/3$.
Tree height = $9 \times (5/3) = 15$ m.
Marks: 1 ratio, 2 working/answer.

Q11. [3 marks]
Area = $\pi(14^2 - 5^2) = \pi(196-25) = 171\pi\text{ cm}^2$.
Marks: 1 each step.

Q12. [2 marks]
Region = $A \cap B' \cap C'$ or $A \setminus (B \cup C)$.
Marks: 1 notation, 1 correctness.

Q13. [2 marks]
$h = \sqrt{8^2 + 15^2} = \sqrt{289} = 17$ cm.

Q14. [2 marks]
Total = 200. Angle Q = $\frac{60}{200} \times 360^\circ = 108^\circ$.

---

Section C Answers

Q15. [4 marks]
(a) $\tan \theta = 30/18 = 5/3$ ⇒ $\theta = \tan^{-1}(5/3) \approx 59.0^\circ$. [2]
(b) Height = $6 \times (5/3) = 10$ m. [2]

Q16. [3 marks]
$\angle BOD = 180^\circ - 100^\circ = 80^\circ$ (straight line AOB).
$OB = OD$ (radii) ⇒ isosceles ⇒ $\angle OBD = (180^\circ - 80^\circ)/2 = 50^\circ$.

Q17. [3 marks]
(a) Diff = 2 ⇒ $2n + 1$. [2]
(b) $n=10$: $2(10)+1 = 21$. [1]

Q18. [3 marks]
Area ABC = $16 \div (2/5)^2 = 16 \div 4/25 = 100\text{ cm}^2$.
Trapezoid = $100 - 16 = 84\text{ cm}^2$.

Q19. [3 marks]
Circle area = $\pi \times 5^2 = 25\pi$.
Square area = $100$.
$P = 25\pi / 100 = \pi/4$.

Q20. [2 marks]
Total = $360^\circ$. R = $360 - (90+120+60) = 90^\circ$.

---

End of Answer Key
