TuitionGoWhere Practice Paper - Elementary Mathematics O-Level

TuitionGoWhere Practice Paper (AI)

Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper 1 (Version 1)
Duration: 2 hours 15 minutes
Total Marks: 90
Name: __________________________ Class: __________ Date: __________

Instructions to Candidates:

1. Answer all questions.
2. Write your answers in the spaces provided.
3. Give your answers to 3 significant figures, or 1 decimal place for angles in degrees, unless otherwise specified.
4. Use of an approved scientific calculator is allowed.
5. All working must be clearly shown.

---

Section A: Short Answer Questions (40 Marks)

1. Express 0.0007824 in standard form to 3 significant figures. [1]

   Answer: ____________________

2. Given that $y$ is inversely proportional to the square of $x$, and $y = 12$ when $x = 3$, find $y$ when $x = 2$. [2]

   Answer: ____________________

3. Solve the simultaneous equations: $3x + 2y = 16$ $2x - y = 6$ [2]

   Answer: ____________________

4. Factorise completely: $6ax - 9ay - 4bx + 6by$. [2]

   Answer: ____________________

5. A sector of a circle with radius 8 cm has an angle of 1.5 radians. Calculate the arc length of the sector. [2]

   Answer: ____________________

6. In $\triangle ABC$, $AB = 5$ cm, $BC = 8$ cm and $\angle ABC = 60^\circ$. Calculate the area of $\triangle ABC$. [2]

   Answer: ____________________

7. Find the magnitude of vector $\vec{v} = -3\mathbf{i} + 4\mathbf{j}$. [1]

   Answer: ____________________

8. A point is chosen at random within a circle of radius 10 cm. Find the probability that the point lies within a concentric circle of radius 4 cm. [2]

   Answer: ____________________

9. Given $V = \frac{1}{3}\pi r^2 h$, express $h$ in terms of $V, \pi,$ and $r$. [2]

   Answer: ____________________

10. Find the gradient of the line passing through points $P(2, -3)$ and $Q(-4, 5)$. [2]

    Answer: ____________________

11. Simplify $\left(\frac{8a^6}{b^3}\right)^{1/3}$. [2]

    Answer: ____________________

12. In a Venn diagram, the universal set $\xi$ contains 30 students. Set $A$ is students who like Math, and Set $B$ is students who like Science. If $n(A) = 18, n(B) = 15$ and $n(A \cup B)' = 5$, find $n(A \cap B)$. [2]

    Answer: ____________________

13. Write down the exact value of $\tan 45^\circ$. [1]

    Answer: ____________________

14. A bag contains 5 red and 3 blue marbles. Two marbles are drawn without replacement. Find the probability that both are red. [2]

    Answer: ____________________

15. Find the equation of the straight line that passes through $(1, 4)$ and is parallel to $y = 3x - 2$. [2]

    Answer: ____________________

16. Calculate the length of the hypotenuse of a right-angled triangle with legs of 9 cm and 12 cm. [2]

    Answer: ____________________

17. Express 45 seconds as a percentage of 10 minutes. [2]

    Answer: ____________________

18. Find the value of $x$ if $2^{x-1} = 32$. [2]

    Answer: ____________________

19. A regular polygon has an interior angle of $144^\circ$. Find the number of sides of the polygon. [2]

    Answer: ____________________

20. Given $\vec{OA} = 2\mathbf{i} + 3\mathbf{j}$ and $\vec{OB} = 5\mathbf{i} - \mathbf{j}$, find $\vec{AB}$. [2]

    Answer: ____________________

---

Section B: Structured Questions (50 Marks)

21. (a) In $\triangle PQR$, $PQ = 12$ cm, $QR = 15$ cm and $\angle PQR = 110^\circ$. (i) Calculate the length of $PR$. [3] (ii) Calculate the area of $\triangle PQR$. [2] (b) If $\angle QPR = 30^\circ$, find $\angle PRQ$. [2]


    \

22. A cylinder has a radius of 4 cm and a height of 10 cm. (a) Calculate the total surface area of the cylinder. [3] (b) Calculate the volume of the cylinder. [2] (c) If the radius is doubled and the height is halved, find the new volume. [3]


    \

23. The coordinates of three vertices of a quadrilateral are $A(0, 0), B(4, 0), C(6, 3)$ and $D(2, 3)$. (a) Show that $ABCD$ is a parallelogram. [3] (b) Find the area of the parallelogram. [2] (c) Find the perimeter of $ABCD$. [3]


    \

24. (a) Given the function $f(x) = \frac{4}{x}$, sketch the graph of $y = f(x)$ for $-4 \le x \le 4, x \neq 0$. [3] (b) State the coordinates of the point where the graph intersects the line $y = 2$. [2] (c) Describe the effect on the graph if the function was changed to $g(x) = \frac{4}{x} + 1$. [2]


    \

25. A set of data consists of the marks of 40 students in a test.

    • Mean = 65
    • Standard Deviation = 8.2 (a) If every student's mark is increased by 5, find the new mean and new standard deviation. [2] (b) In a cumulative frequency diagram, the median is 63 and the upper quartile is 72. Calculate the interquartile range. [2] (c) Explain why the standard deviation is a better measure of spread than the range. [3]


      \

26. (a) In a circle with centre $O$, $AB$ is a diameter and $C$ is a point on the circumference. $\angle BAC = 35^\circ$. Find $\angle ACB$ and $\angle ABC$. [3] (b) A tangent $PT$ is drawn from point $P$ to the circle at point $T$. If $OT = 5$ cm and $OP = 13$ cm, find the length of $PT$. [3] (c) Find the angle $\angle OPT$ to 1 decimal place. [2]


    \

27. (a) Solve the quadratic equation $2x^2 - 5x - 3 = 0$ by factorisation. [3] (b) Solve $x^2 + 6x + 4 = 0$ using the quadratic formula. [3] (c) State the nature of the roots for $x^2 - 4x + 4 = 0$. [2]


    \

28. A boat travels from point $A$ on a bearing of $060^\circ$ for 10 km to point $B$. It then changes direction and travels on a bearing of $150^\circ$ for 12 km to point $C$. (a) Draw a sketch diagram to represent this journey. [2] (b) Calculate the distance $AC$. [4] (c) Calculate the bearing of $A$ from $C$. [4]


    \

29. (a) Simplify $\frac{3x^2 - 5x - 2}{x^2 - 4}$. [3] (b) Solve the inequality $2x - 7 \le 5x + 2$ and represent the solution on a number line. [3] (c) Find the value of $k$ such that $x^2 + kx + 9$ is a perfect square. [2]


    \

30. Real-World Application: A conical water tank has a radius of 3m and a height of 4m. (a) Calculate the volume of the tank when full. [3] (b) If water is poured into the tank at a constant rate of $0.5\text{m}^3/\text{min}$, how long will it take to fill the tank? [3] (c) The tank is currently half-full by height. Calculate the volume of water currently in the tank. [4]


    \

<!-- TuitionGoWhere generation metadata: stage=5-2; model=google/gemma-4-31b-it; model_label=Gemma 4 31B; generated=2026-05-29; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

Answer Key - Elementary Mathematics O-Level Practice Paper 1 (Version 1)

Section A

1. $7.82 \times 10^{-4}$
2. $y = k/x^2 \rightarrow 12 = k/9 \rightarrow k=108$. For $x=2, y=108/4 = 27$.
3. $3x+2y=16, 4x-2y=12 \rightarrow 7x=28 \rightarrow x=4, y=2$.
4. $3a(2x-3y) - 2b(2x-3y) = (3a-2b)(2x-3y)$.
5. $s = r\theta = 8 \times 1.5 = 12$ cm.
6. Area $= \frac{1}{2}(5)(8)\sin 60^\circ = 20 \times 0.866 = 17.3\text{cm}^2$.
7. $\sqrt{(-3)^2 + 4^2} = \sqrt{25} = 5$.
8. $P = \frac{\pi(4^2)}{\pi(10^2)} = \frac{16}{100} = 0.16$.
9. $h = \frac{3V}{\pi r^2}$.
10. $m = \frac{5 - (-3)}{-4 - 2} = \frac{8}{-6} = -1.33$.
11. $\frac{(8a^6)^{1/3}}{(b^3)^{1/3}} = \frac{2a^2}{b}$.
12. $n(A \cup B) = 30 - 5 = 25$. $n(A \cap B) = 18 + 15 - 25 = 8$.
14. $\frac{5}{8} \times \frac{4}{7} = \frac{20}{56} = \frac{5}{14} \approx 0.357$.
15. $y - 4 = 3(x - 1) \rightarrow y = 3x + 1$.
16. $\sqrt{9^2 + 12^2} = \sqrt{81 + 144} = \sqrt{225} = 15$ cm.
17. $\frac{45}{600} \times 100\% = 7.5\%$.
18. $2^{x-1} = 2^5 \rightarrow x-1=5 \rightarrow x=6$.
19. Ext angle $= 180 - 144 = 36^\circ$. Sides $= 360/36 = 10$.
20. $\vec{AB} = \vec{OB} - \vec{OA} = (5-2)\mathbf{i} + (-1-3)\mathbf{j} = 3\mathbf{i} - 4\mathbf{j}$.

---

Section B

21. (a)(i) $PR^2 = 12^2 + 15^2 - 2(12)(15)\cos 110^\circ \rightarrow PR = \sqrt{144+225+123.1} \approx 22.2$ cm. (ii) Area $= \frac{1}{2}(12)(15)\sin 110^\circ = 84.6\text{cm}^2$. (b) $\angle PRQ = 180 - 110 - 30 = 40^\circ$.

22. (a) $SA = 2\pi(4)^2 + 2\pi(4)(10) = 32\pi + 80\pi = 112\pi \approx 352\text{cm}^2$. (b) $V = \pi(4^2)(10) = 160\pi \approx 503\text{cm}^3$. (c) $r=8, h=5 \rightarrow V = \pi(8^2)(5) = 320\pi \approx 1005\text{cm}^3$.

23. (a) $\vec{AB} = (4,0), \vec{DC} = (6-2, 3-3) = (4,0)$. Since $\vec{AB} = \vec{DC}$, it is a parallelogram. (b) Area $= \text{base} \times \text{height} = 4 \times 3 = 12$ units$^2$. (c) $AB=4, BC=\sqrt{2^2+3^2}=\sqrt{13} \approx 3.61$. Perim $= 2(4 + 3.61) = 15.2$ units.

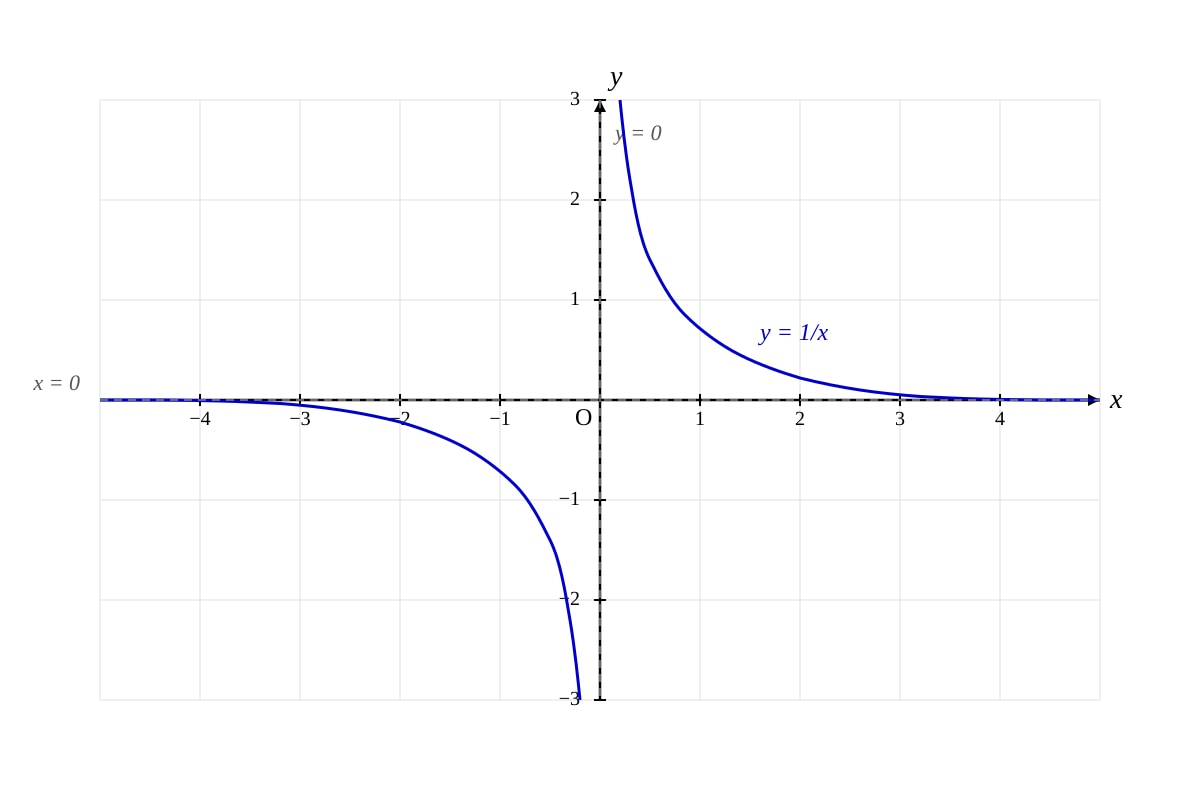

24. (a) [Graph: Hyperbola in 1st and 3rd quadrants, asymptotes $x=0, y=0$]. (b) $2 = 4/x \rightarrow x=2$. Point $(2, 2)$. (c) Vertical translation upwards by 1 unit.

25. (a) New Mean $= 65 + 5 = 70$. New SD $= 8.2$ (unchanged). (b) $IQR = 72 - 63 = 9$. (c) Range only considers extremes; SD considers every data point, making it more representative of overall consistency.

26. (a) $\angle ACB = 90^\circ$ (angle in semicircle). $\angle ABC = 180 - 90 - 35 = 55^\circ$. (b) $PT^2 = 13^2 - 5^2 = 169 - 25 = 144 \rightarrow PT = 12$ cm. (c) $\sin \angle OPT = 5/13 \rightarrow \angle OPT = 22.6^\circ$.

27. (a) $(2x+1)(x-3) = 0 \rightarrow x = -0.5, x = 3$. (b) $x = \frac{-6 \pm \sqrt{36 - 16}}{2} = \frac{-6 \pm \sqrt{20}}{2} = -3 \pm \sqrt{5} \approx -0.76, -5.24$. (c) $D = (-4)^2 - 4(1)(4) = 0$. Real and equal roots.

28. (a) [Sketch: A $\rightarrow$ B (60°), B $\rightarrow$ C (150°)]. (b) $\angle ABC = 180 - (150-60) = 90^\circ$ (or using interior angles). $AC = \sqrt{10^2 + 12^2} = \sqrt{244} \approx 15.6$ km. (c) $\tan \angle BAC = 12/10 = 1.2 \rightarrow \angle BAC = 50.2^\circ$. Bearing $A$ from $C$ is $180 + (60 + 50.2) = 290.2^\circ$ (approx).

29. (a) $\frac{(3x+1)(x-2)}{(x-2)(x+2)} = \frac{3x+1}{x+2}$. (b) $-3x \le 9 \rightarrow x \ge -3$. [Number line: solid dot at -3, arrow to right]. (c) $k^2 - 4(1)(9) = 0 \rightarrow k^2 = 36 \rightarrow k = \pm 6$.

30. (a) $V = \frac{1}{3}\pi(3^2)(4) = 12\pi \approx 37.7\text{m}^3$. (b) Time $= 37.7 / 0.5 = 75.4$ minutes. (c) $h_{new} = 2$. By similarity, $r_{new} = 1.5$. $V = \frac{1}{3}\pi(1.5^2)(2) = 1.5\pi \approx 4.71\text{m}^3$.
