O Level Elementary Mathematics Practice Paper 4

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Exam Practice (AI) - Elementary Mathematics O-Level

Practice Paper (Version 4 of 5)

School: TuitionGoWhere Secondary School (AI)
Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper (Geometry & Trigonometry Focus)
Duration: 60 minutes
Total Marks: 60
Name: ___________________________
Class: ____________
Date: ____________

Instructions:

• Answer all questions.
• Show your working clearly where required.
• Calculators may be used.
• Take $\pi = 3.142$ unless stated otherwise.

---

Section A (Questions 1–8) — Short Answer [16 marks]

Each question carries 2 marks unless stated.

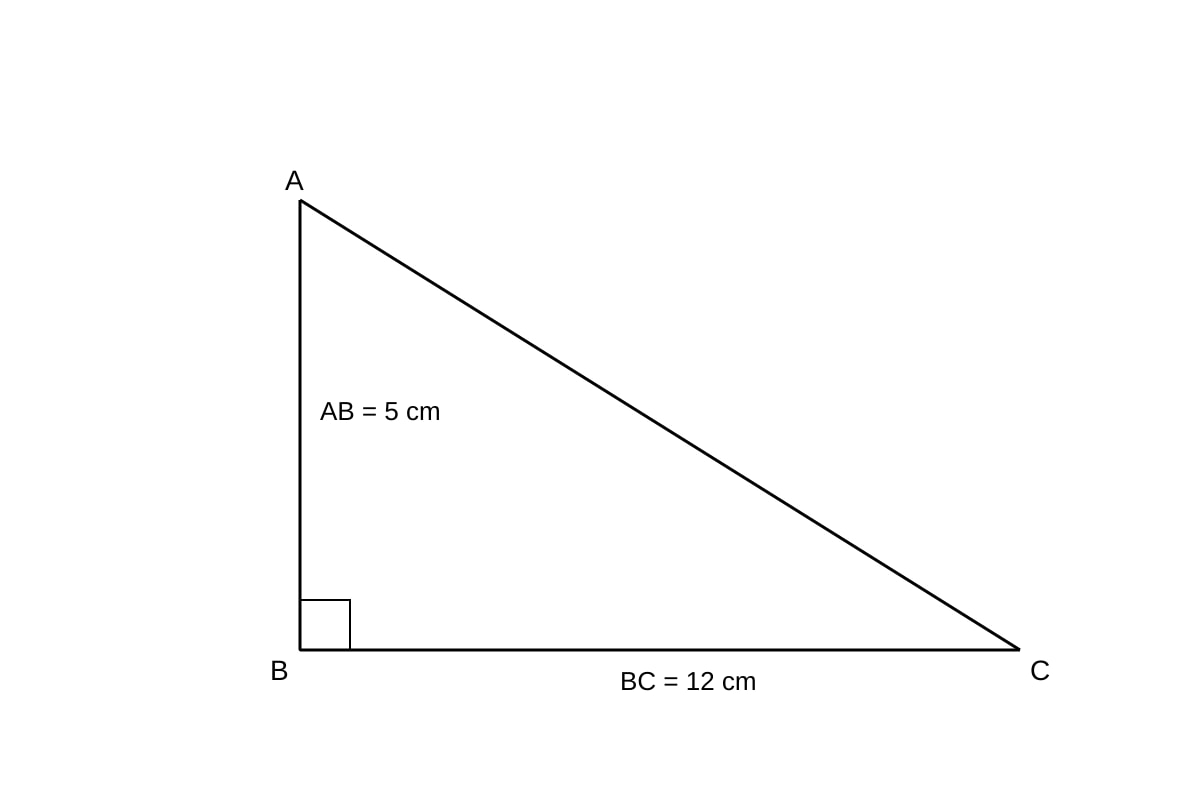

1. In the diagram below, $ABC$ is a right-angled triangle with $\angle ABC = 90^\circ$, $AB = 5$ cm and $BC = 12$ cm. Write down the exact value of $\sin \angle BAC$.

Image pending generation: diagram for Q1.

2. A point is chosen at random inside a circle of radius 10 cm. A smaller concentric circle of radius 6 cm is drawn. The annulus (ring) between them is shaded. Find the probability that the point lies in the shaded region. Give your answer as a fraction in simplest form.

3. The table shows the number of students in three clubs.

Club	Art	Music	Sport
Count	40	60	100

The data is to be shown in a pie chart. Calculate the angle representing Music.

4. Write down the set notation for the shaded region in the diagram below.

Image pending generation: diagram for Q4.

5. Diagram 1 uses 4 sticks, Diagram 2 uses 7 sticks, Diagram 3 uses 10 sticks. Find an expression, in terms of $n$, for the number of sticks in Diagram $n$.

6. In the diagram, $O$ is the centre of a circle of radius 13 cm. $AB$ is a chord and $M$ is the midpoint of $AB$. $OM = 5$ cm. Find the length of $AB$.

Image pending generation: diagram for Q6.

7. Write down the exact value of $\tan 45^\circ$.

8. A sector of a circle of radius 8 cm subtends an angle of $60^\circ$ at the centre. Find the area of the sector.

---

Section B (Questions 9–14) — Structured Response [24 marks]

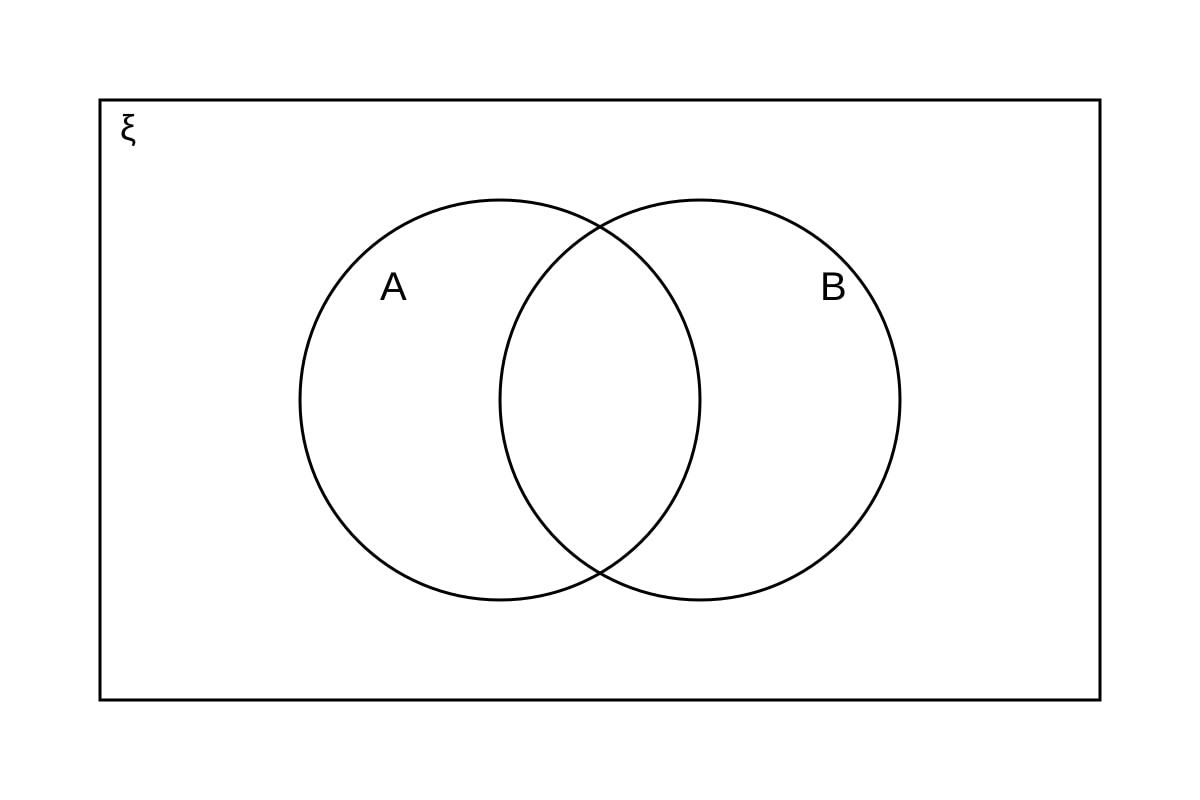

9. (a) In the Venn diagram below, shade the region $A \cap B'$. [1]
   (b) Hence write down the set notation for the unshaded region within $\xi$. [1]

Image pending generation: diagram for Q9.

10. A triangle $PQR$ has $\angle P = 90^\circ$, $PQ = 9$ cm, $PR = 12$ cm.
    (a) Find the length of $QR$. [2]
    (b) Find $\cos \angle QRP$. [1]

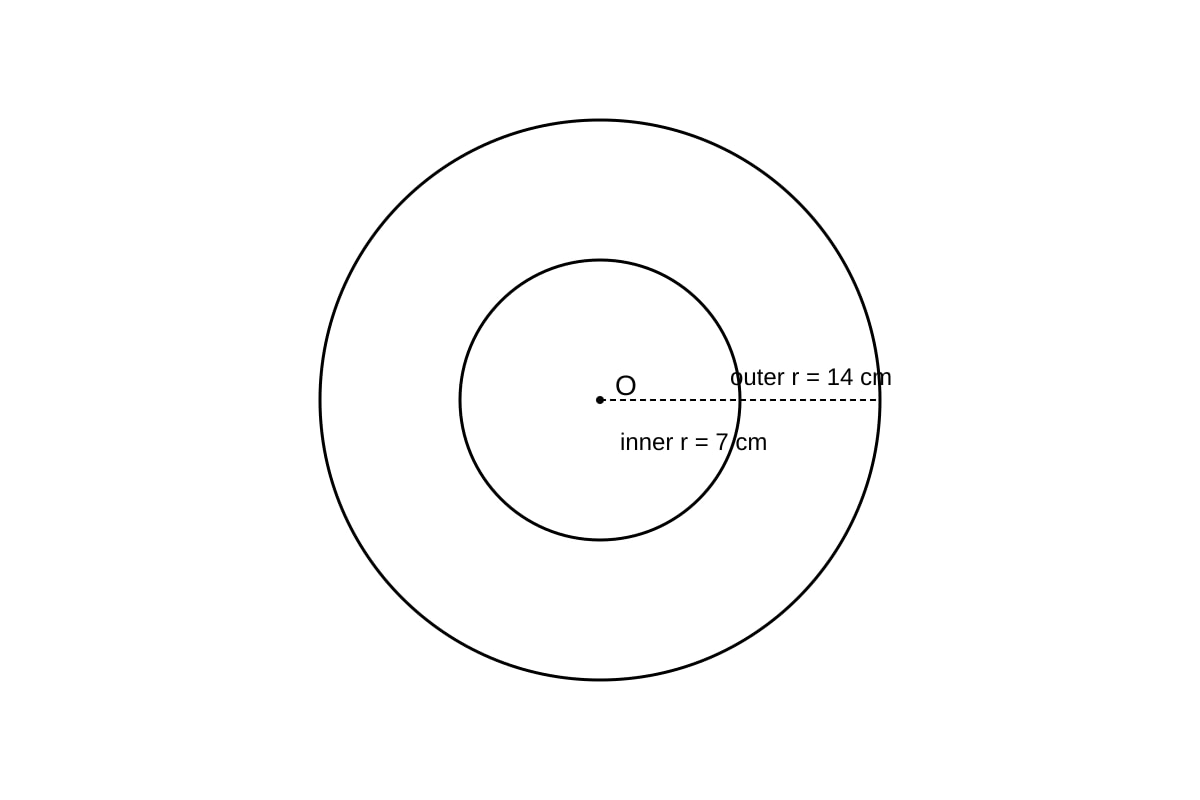

11. The diagram shows two concentric circles, centre $O$. The larger circle has radius 14 cm and the smaller has radius 7 cm. A point is chosen at random in the larger circle. Find the probability it lies in the smaller circle. [3]

Image pending generation: diagram for Q11.

12. The stick pattern below: Diagram 1 (3 sticks), Diagram 2 (5 sticks), Diagram 3 (7 sticks).
    (a) Find the number of sticks in Diagram 4. [1]
    (b) Find an expression for the number of sticks in Diagram $n$. [2]

13. In the pie chart, Art = $90^\circ$, Music = $120^\circ$, Sport = unknown. Total students = 240.
    (a) Find the angle for Sport. [1]
    (b) Find the number of students in Sport. [2]

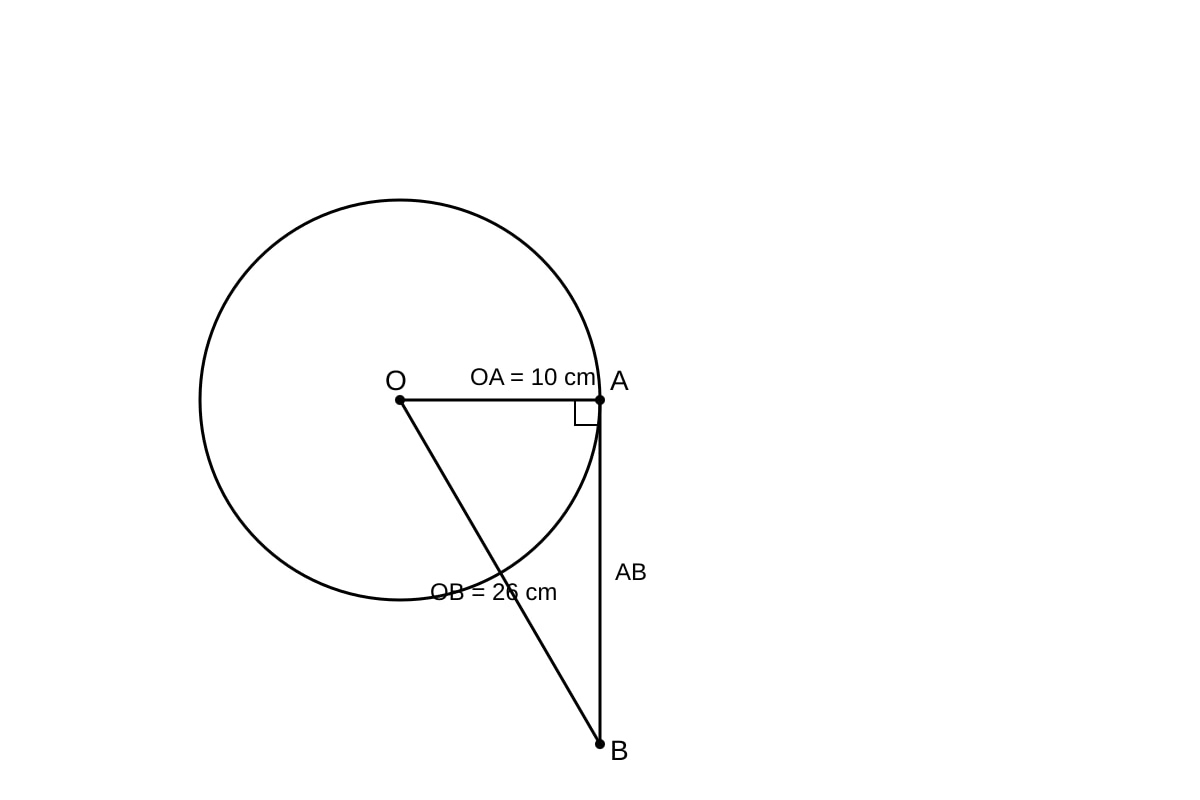

14. A circle centre $O$ has radius 10 cm. A tangent at $A$ meets a line from $O$ at $B$ such that $OB = 26$ cm. Find the length $AB$. [3]

Image pending generation: diagram for Q14.

---

Section C (Questions 15–20) — Problem Solving [20 marks]

15. A rectangular field measures 30 m by 20 m. A triangular shaded region inside has base 12 m and height 8 m. A point is chosen at random in the field. Find the probability it is in the shaded triangle. [3]

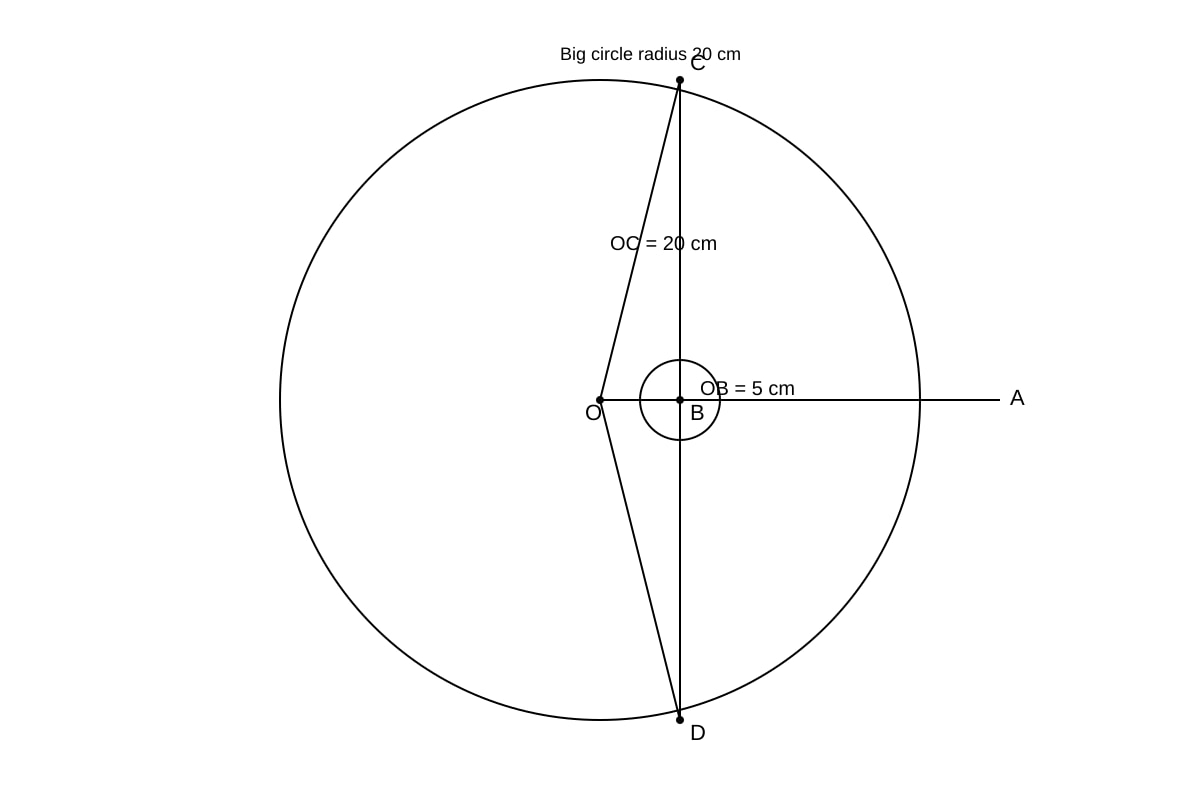

16. In the diagram, $O$ is centre of big circle radius 20 cm. Small circle centre $B$ lies on $OA$. $AOB$ is a straight line. $CD$ is tangent to small circle at $B$ and meets big circle at $C$ and $D$. $OB = 5$ cm. Find the perimeter of triangle $OCD$. [4]

Image pending generation: diagram for Q16.

17. The table shows favourite sports of 200 students.

Sport	Swim	Run	Cycle
Count	50	70	80

(a) Calculate the pie chart angles. [2]
(b) If Cycling angle is increased by $10^\circ$, what is the new count for Cycle? [2]

18. In triangle $XYZ$, $\angle Y = 90^\circ$, $XY = 8$ cm, $YZ = 15$ cm.
    (a) Find $XZ$. [2]
    (b) Find $\sin \angle XZY$. [1]
    (c) Find the area of triangle $XYZ$. [1]

19. Diagram 1: 6 sticks, Diagram 2: 11 sticks, Diagram 3: 18 sticks.
    (a) Find the number of sticks in Diagram 4. [1]
    (b) Find expression for Diagram $n$. [3]

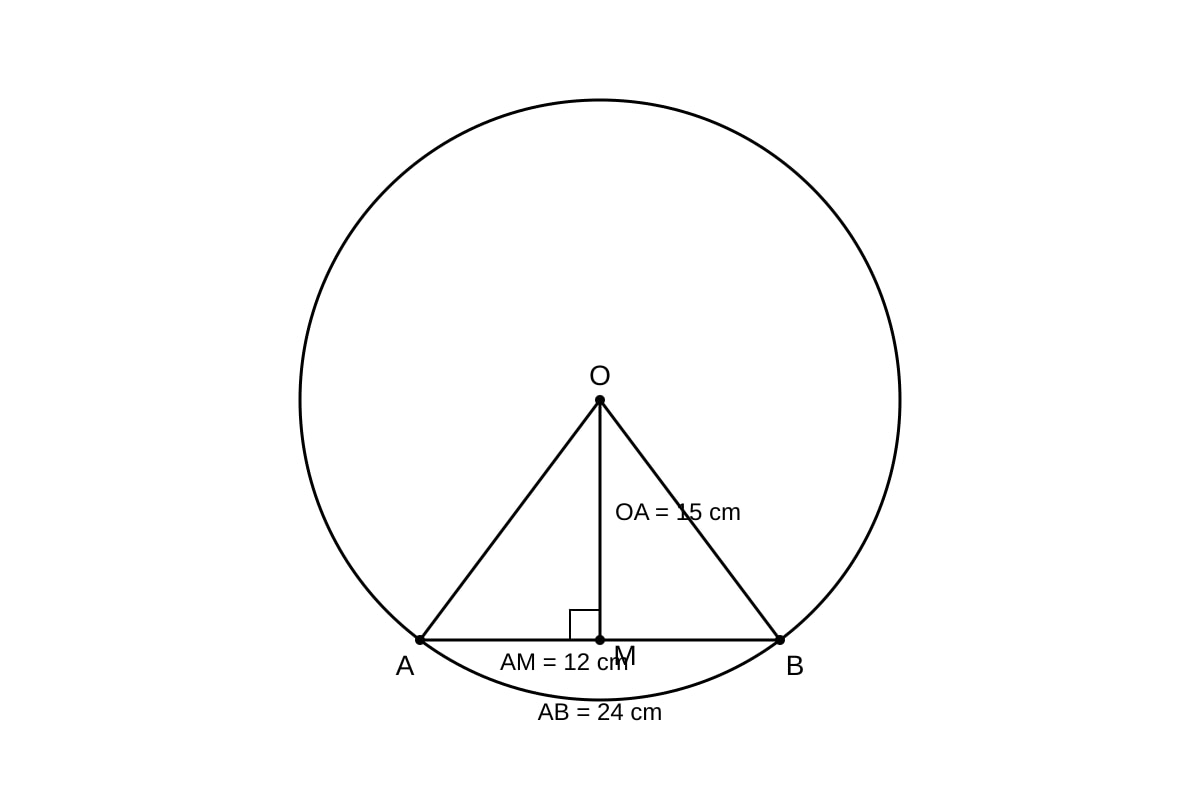

20. A circle centre $O$ radius 15 cm. Chord $AB = 24$ cm. $M$ is midpoint of $AB$. Find the distance $OM$ and the area of triangle $OAB$. [4]

Image pending generation: diagram for Q20.

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

Answer Key — TuitionGoWhere Exam Practice (AI) O-Level E.Math Practice Paper V4

Topic: Geometry & Trigonometry
Total Marks: 60

---

Section A (Q1–8)

Q1 [2]
$AC = \sqrt{5^2 + 12^2} = 13$ cm.
$\sin \angle BAC = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{BC}{AC} = \frac{12}{13}$.
Teaching note: In right triangle, sine of angle = opposite side ÷ hypotenuse. Opposite to ∠BAC is BC.
Answer: $\frac{12}{13}$.

Q2 [2]
Area total = $\pi \times 10^2 = 100\pi$.
Area inner = $\pi \times 6^2 = 36\pi$.
Shaded annulus = $100\pi - 36\pi = 64\pi$.
$P = \frac{64\pi}{100\pi} = \frac{16}{25}$.
Common mistake: using diameter not radius.
Answer: $\frac{16}{25}$.

Q3 [2]
Total = 40+60+100 = 200.
Angle Music = $\frac{60}{200} \times 360^\circ = 108^\circ$.
Answer: $108^\circ$.

Q4 [2]
Region outside both = complement of union = $(A \cup B)'$ or $A' \cap B'$.
Answer: $(A \cup B)'$.

Q5 [2]
Diff = 3 each time → linear $3n + c$.
n=1: 4 → $3(1)+c=4 \Rightarrow c=1$.
Expression = $3n+1$.
Answer: $3n+1$.

Q6 [2]
$OA = 13$, $OM = 5$, right angle at M.
$AM = \sqrt{13^2 - 5^2} = \sqrt{169-25} = \sqrt{144} = 12$.
$AB = 2 \times 12 = 24$ cm.
Answer: 24 cm.

Q7 [2]
$\tan 45^\circ = 1$.
Answer: 1.

Q8 [2]
Area sector = $\frac{60}{360} \times \pi \times 8^2 = \frac{1}{6} \times 64\pi = \frac{32\pi}{3}$ cm² (≈ 33.5 cm²).
Answer: $\frac{32\pi}{3}$ cm².

---

Section B (Q9–14)

Q9 [2]
(a) Shade region in A but not B.
(b) Unshaded within ξ = $(A \cap B')' \cap \xi = A' \cup B$ (or complement of shaded).
Marking: 1 for correct shade, 1 for notation.

Q10 [3]
(a) $QR = \sqrt{9^2+12^2} = 15$ cm. [2]
(b) $\cos \angle QRP = \frac{PR}{QR} = \frac{12}{15} = \frac{4}{5}$. [1]

Q11 [3]
Area large = $\pi \times 14^2 = 196\pi$.
Area small = $\pi \times 7^2 = 49\pi$.
$P = \frac{49\pi}{196\pi} = \frac{1}{4}$.
Marks: 1 area large, 1 area small, 1 probability.

Q12 [3]
(a) Pattern +2 → D4 = 9. [1]
(b) $2n+1$. [2] (verify n=1→3)

Q13 [3]
(a) Sport angle = $360 - 90 - 120 = 150^\circ$. [1]
(b) Count = $\frac{150}{360} \times 240 = 100$. [2]

Q14 [3]
$OA \perp AB$, so $\triangle OAB$ right at A.
$AB = \sqrt{26^2 - 10^2} = \sqrt{676-100} = \sqrt{576} = 24$ cm.
Marks: 1 Pythagoras setup, 2 answer.

---

Section C (Q15–20)

Q15 [3]
Area field = $30 \times 20 = 600$ m².
Area triangle = $\frac{1}{2} \times 12 \times 8 = 48$ m².
$P = \frac{48}{600} = \frac{2}{25}$.
Marks: 1 each.

Q16 [4]
$OC = OD = 20$ cm (radii). $OB = 5$, $CD \perp OA$ at B → $CB = BD = \sqrt{20^2 - 5^2} = \sqrt{375} = 5\sqrt{15}$.
Perimeter = $20 + 20 + 2 \times 5\sqrt{15} = 40 + 10\sqrt{15}$ cm.
Marks: 1 OC/OD, 1 CB, 1 BD, 1 sum.

Q17 [4]
(a) Total 200. Swim = $\frac{50}{200}\times360=90^\circ$, Run = $126^\circ$, Cycle = $144^\circ$. [2]
(b) New Cycle angle = $154^\circ$ → count = $\frac{154}{360}\times200 \approx 85.6$ → 86 students. [2]

Q18 [4]
(a) $XZ = \sqrt{8^2+15^2} = 17$ cm. [2]
(b) $\sin \angle XZY = \frac{XY}{XZ} = \frac{8}{17}$. [1]
(c) Area = $\frac{1}{2} \times 8 \times 15 = 60$ cm². [1]

Q19 [4]
(a) Diffs: 5,7 → next diff 9 → D4 = 27. [1]
(b) 2nd diff = 2 → $n^2 + bn + c$. n=1: $1+b+c=6$; n=2: $4+2b+c=11$ → b=2,c=3 → $n^2+2n+3$. [3]

Q20 [4]
$AM = 12$, $OA = 15$. $OM = \sqrt{15^2 - 12^2} = 9$ cm. [2]
Area $\triangle OAB = \frac{1}{2} \times 24 \times 9 = 108$ cm². [2]
