Questions

TuitionGoWhere Practice Paper - Elementary Mathematics O-Level

TuitionGoWhere Exam Practice (AI)
Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper (Version 3 of 5)
Duration: 60 minutes
Total Marks: 60
Name: ________________________
Class: ________________________
Date: ________________________

Instructions

Answer all questions.
Show your working clearly where required.
Calculators may be used.
Write your answers in the spaces provided.

Section A: Geometry and Set Notation (Questions 1–5) [15 marks]

1. [2 marks]

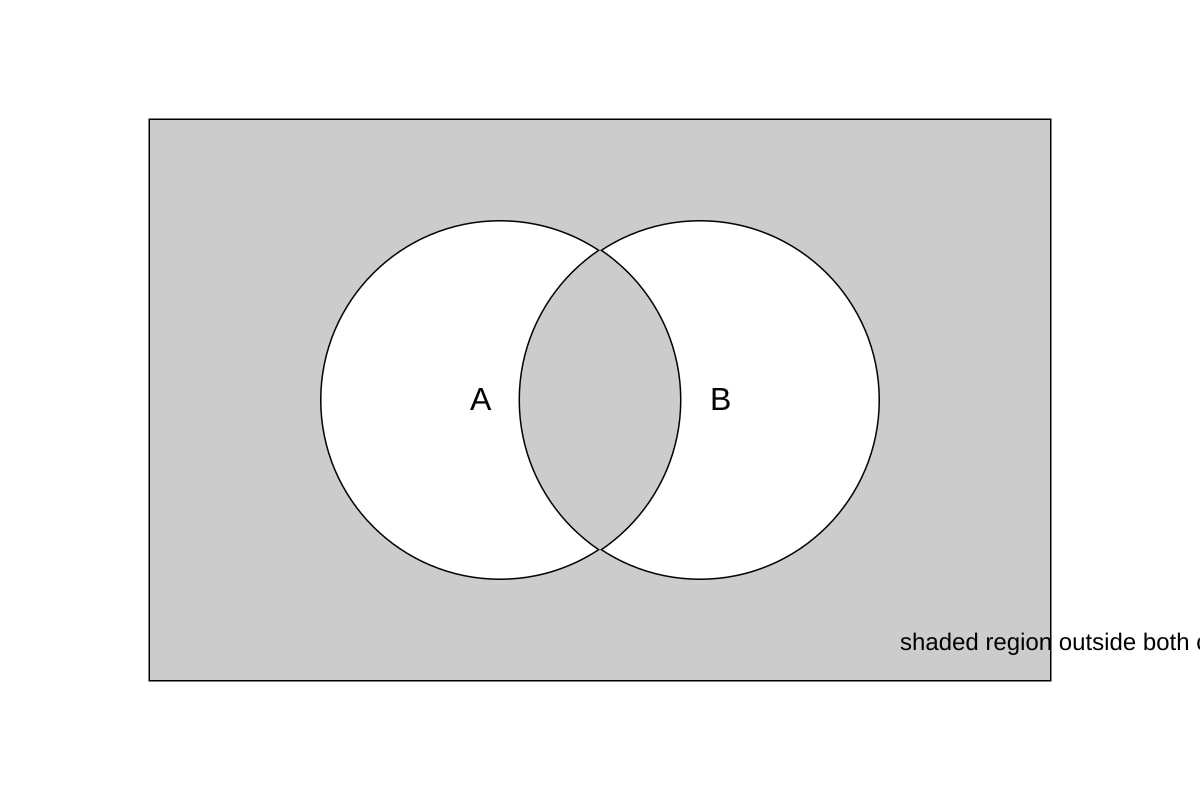

In the Venn diagram below, ξ is the universal set, and A and B are two sets.

Diagram for Q1 (OLEVEL Emaths)

Generated diagram for Q1.

Use set notation to describe the shaded region.

2. [2 marks]

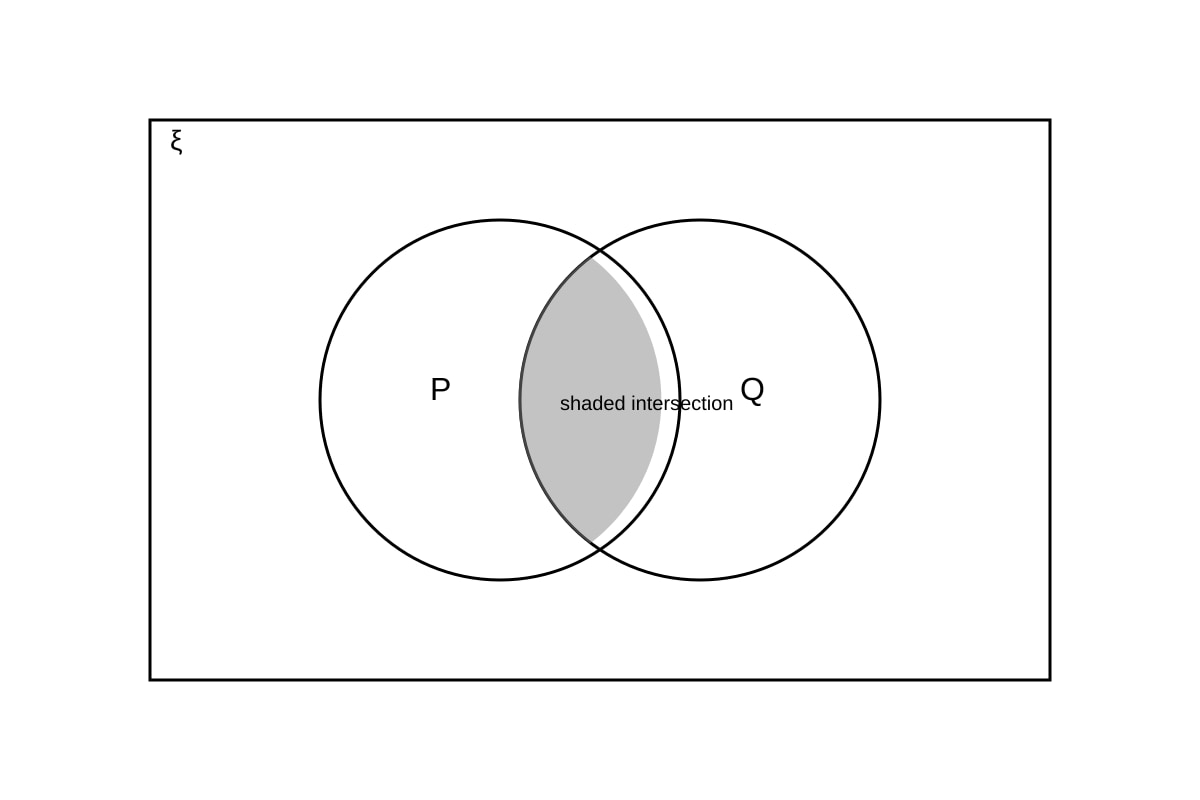

The diagram shows a universal set ξ with sets P and Q overlapping. The intersection $P \cap Q$ is shaded.

Diagram for Q2 (OLEVEL Emaths)

Generated diagram for Q2.

Write the set notation for the shaded region.

3. [3 marks]
A point is chosen at random inside a large circle of radius 10 cm. A smaller concentric circle of radius 6 cm is drawn and the annulus (ring between them) is shaded. Find the probability that the point lies in the shaded region. Give your answer as a fraction in simplest form.

4. [4 marks]
The diagram shows a big circle centre O with radius 13 cm. A smaller circle centre B is internally tangent at point C. A, O, B, C, D lie on a straight line with CD = 5 cm. Find the perimeter of the shaded region bounded by arc ADC and the line segments OA and OD.

Diagram for Q4 (OLEVEL Emaths)

Generated diagram for Q4.

5. [4 marks]
The table below shows the number of students in a class who like three sports.

Sport	Number
Football	12
Basketball	8
Tennis	10
Total	30

Represent this data on a pie chart and calculate the angle for Football.

Section B: Patterns and Trigonometry (Questions 6–13) [20 marks]

6. [2 marks]
Diagram 1 has 4 sticks, Diagram 2 has 7 sticks, Diagram 3 has 10 sticks. Find an expression for the number of sticks in Diagram n.

7. [2 marks]
In the right-angled triangle PQR, ∠R = 90°, PQ = 5 cm, PR = 4 cm. Write down the exact value of $\sin \angle PQR$ .

8. [2 marks]
Without using a calculator, write down the exact value of $\cos 60^\circ$ .

9. [3 marks]
A ladder of length 5 m leans against a wall. The foot of the ladder is 3 m from the wall. Find the angle between the ladder and the ground.

10. [3 marks]
In triangle ABC, AB = 8 cm, BC = 6 cm, ∠B = 90°. Find the length of AC.

11. [2 marks]
The diagram shows a sector of a circle radius 14 cm and angle 90°. Find its area. (Use $\pi = \frac{22}{7}$ )

12. [3 marks]
In the figure, a point is randomly chosen inside a rectangle 12 cm by 8 cm. A triangle inside has base 6 cm and height 4 cm shaded. Find probability it is in shaded triangle.

13. [3 marks]
Given $\tan \theta = \frac{3}{4}$ and θ acute, find $\sin \theta$ and $\cos \theta$ .

Section C: Extended Geometry (Questions 14–20) [25 marks]

14. [3 marks]
The mathematics test scores of 200 students are grouped: Grade A: 50, B: 70, C: 80. Draw a pie chart and find the angle for Grade B.

15. [4 marks]
In the pattern below, Diagram 1: 1 square (4 sticks), Diagram 2: 2 squares side by side (7 sticks), Diagram 3: 3 squares (10 sticks). Find sticks for Diagram n and for Diagram 10.

16. [4 marks]
A circle centre O radius 10 cm has chord AB = 16 cm. Find the distance from O to AB.

17. [4 marks]
In the Venn diagram, ξ has sets X and Y. Shaded is X but not Y. Write notation and if n(X)=20, n(Y)=15, n(X∩Y)=5, find n(shaded).

18. [3 marks]
A point is chosen in a square of side 10 cm with an inscribed circle. Find probability in circle.

19. [3 marks]
Triangle DEF: ∠E=90°, DE=12, EF=5. Find $\sin \angle DFE$ .

20. [4 marks]
Big circle radius 20 cm, small concentric radius 12 cm shaded annulus. Find area of shaded region. (Use $\pi = 3.14$ )

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

Answer Key - TuitionGoWhere Practice Paper (Version 3) Elementary Mathematics O-Level

Total Marks: 60

Section A

Q1 [2]
Answer: $A' \cap B'$ or $(A \cup B)'$
Teaching: The shaded part is outside A and outside B. Complement of A is $A'$ , complement of B is $B'$ , intersection means both → $A' \cap B'$ . By De Morgan, this equals $(A \cup B)'$ .
Common mistake: writing $A \cap B'$ (that is A only).

Q2 [2]
Answer: $P \cap Q$
Teaching: Shaded is the overlap of P and Q, which is intersection.
Marking: 2 marks for correct notation.

Q3 [3]
Area big = $\pi \times 10^2 = 100\pi$
Area small = $\pi \times 6^2 = 36\pi$
Shaded annulus = $100\pi - 36\pi = 64\pi$
P = $\frac{64\pi}{100\pi} = \frac{64}{100} = \frac{16}{25}$
Answer: $\frac{16}{25}$
Teaching: Probability = area shaded / total area. Cancel $\pi$ .
Marks: 1 for areas, 1 for subtract, 1 for fraction simplified.

Q4 [4]
OC = 13 cm (radius big). CD = 5 → OD = 18 cm.
Small radius = OB = OC - BC? Actually B inside, tangent at C so BC = small radius, O,B,C collinear, OB + BC = 13. Not needed for perimeter of segment? Perimeter = OA + OD + arc ADC. OA = 13, OD = 18, arc ADC is semicircle? Actually arc from A to D through C is major? Given A-O-B-C-D straight, shaded right side bounded by arc ADC (from A left around to D right) and segments OA, OD. Arc ADC = half big circle = $\pi \times 13 = 13\pi$ (if semicircle). Perimeter = 13 + 18 + 13π = 31 + 13π cm.
Answer: $(31 + 13\pi)$ cm
Marks: 1 id lengths, 1 arc, 2 sum.

Q5 [4]
Total = 30. Angle Football = $\frac{12}{30} \times 360 = 144^\circ$ .
Pie chart: Football 144°, Basketball $\frac{8}{30}\times360=96^\circ$ , Tennis $\frac{10}{30}\times360=120^\circ$ .
Answer: 144° and chart drawn.
Marks: 2 calc, 2 draw.

Section B

Q6 [2]
Diff = 3 each → linear $3n + c$ . n=1: 4 = 3+b → b=1. Expression $3n+1$ .
Answer: $3n+1$

Q7 [2]
QR = $\sqrt{5^2-4^2} = 3$ . $\sin \angle PQR = \frac{PR}{PQ} = \frac{4}{5}$ .
Answer: $\frac{4}{5}$

Q8 [2]
$\cos 60^\circ = \frac{1}{2}$ .
Answer: $\frac{1}{2}$

Q9 [3]
$\cos \theta = \frac{3}{5}$ → $\theta = \cos^{-1}(0.6) \approx 53.1^\circ$ .
Answer: $53.1^\circ$

Q10 [3]
$AC = \sqrt{8^2+6^2} = \sqrt{100}=10$ cm.
Answer: 10 cm

Q11 [2]
Area = $\frac{90}{360}\pi r^2 = \frac{1}{4} \times \frac{22}{7} \times 14^2 = 154$ cm².
Answer: 154 cm²

Q12 [3]
Rect area = 96. Triangle = $\frac{1}{2}\times6\times4=12$ . P = $\frac{12}{96}=\frac{1}{8}$ .
Answer: $\frac{1}{8}$

Q13 [3]
Triangle sides 3,4,5. $\sin\theta=\frac{3}{5}$ , $\cos\theta=\frac{4}{5}$ .
Answer: $\frac{3}{5}, \frac{4}{5}$

Section C

Q14 [3]
Total 200. B angle = $\frac{70}{200}\times360 = 126^\circ$ .
Answer: 126°

Q15 [4]
Sticks = $3n+1$ . n=10 → 31.
Answer: $3n+1$ , 31

Q16 [4]
Half chord = 8. Dist = $\sqrt{10^2-8^2} = 6$ cm.
Answer: 6 cm

Q17 [4]
Notation: $X \setminus Y$ or $X \cap Y'$ . n = 20-5 = 15.
Answer: $X \cap Y'$ , 15

Q18 [3]
Square area = 100. Circle area = $\pi \times 5^2 = 25\pi$ . P = $\frac{25\pi}{100} = \frac{\pi}{4}$ .
Answer: $\frac{\pi}{4}$

Q19 [3]
DF = 13. $\sin \angle DFE = \frac{DE}{DF} = \frac{12}{13}$ .
Answer: $\frac{12}{13}$

Q20 [4]
Area = $\pi(20^2-12^2)= \pi(400-144)=256\pi \approx 803.84$ cm².
Answer: 803.84 cm²
