TuitionGoWhere Practice Paper - Elementary Mathematics O-Level (Version 2)

School: TuitionGoWhere Exam Practice (AI)
Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper 2 of 5
Duration: 75 minutes
Total Marks: 60
Name: ___________________________
Class: ___________________________
Date: ___________________________

Instructions:

Answer all questions.
Show your working clearly.
Calculators may be used.
Take $\pi = 3.142$ unless stated otherwise.

Section A (Questions 1–8) — Short Structured [16 marks]

1. In the right-angled triangle $PQR$ , $\angle PRQ = 90^\circ$ , $PQ = 13$ cm, $PR = 5$ cm. Write down the exact value of $\sin \angle PQR$ . [1]

2. In the right-angled triangle $XYZ$ , $\angle XYZ = 90^\circ$ , $XZ = 10$ cm, $YZ = 8$ cm. Write down the exact value of $\cos \angle XZY$ . [1]

3. The diagram below shows two overlapping circles inside a rectangle. A point is chosen at random inside the rectangle. Find the probability that the point lies in the shaded region between the two circles but inside the rectangle.

Diagram for Q3 (OLEVEL Emaths)

Generated diagram for Q3.

[2]

4. Use set notation to describe the shaded region in the Venn diagram below.

Diagram for Q4 (OLEVEL Emaths)

Generated diagram for Q4.

[2]

5. The first three diagrams of a stick pattern are shown. Diagram 1 has 4 sticks, Diagram 2 has 7 sticks, Diagram 3 has 10 sticks. Find an expression, in terms of $n$ , for the number of sticks in Diagram $n$ . [2]

6. A pie chart shows the favourite subjects of 120 students. Mathematics has 30 students, Science has 50, English has 40. Calculate the angle for the Mathematics sector. [2]

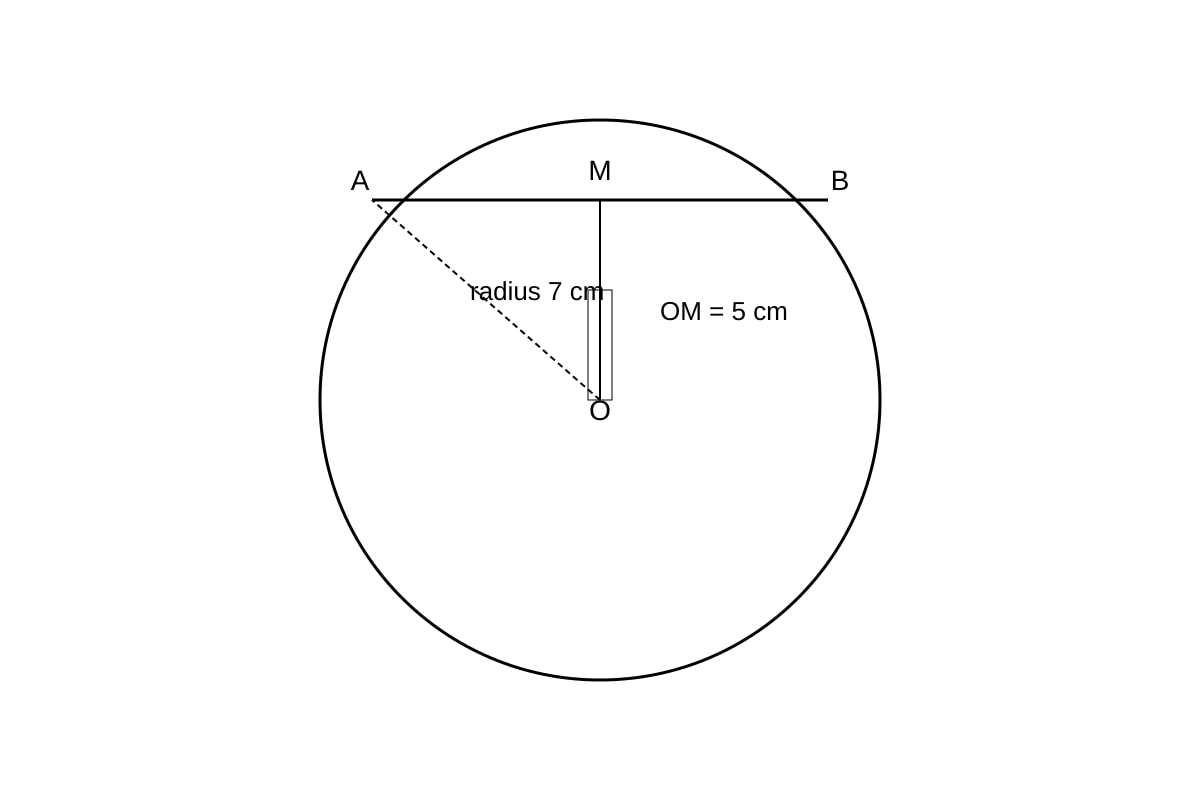

7. In the diagram, $O$ is the centre of a circle of radius 7 cm. $AB$ is a chord and $M$ is the midpoint of $AB$ . $OM = 5$ cm. Find the length of $AB$ .

Diagram for Q7 (OLEVEL Emaths)

Generated diagram for Q7.

[2]

8. Write down the exact value of $\tan 45^\circ$ . [1]

Section B (Questions 9–14) — Problem Solving [24 marks]

9. A big circle has centre $O$ and radius 10 cm. A smaller circle inside it has centre $B$ and radius 4 cm. $O$ , $B$ , and $C$ are on a straight line, with $C$ on the big circle. The shaded region is the annulus between the two circles. Find the area of the shaded region. [3]

10. The table below shows the number of books read by students in a month.

Category	Frequency
0–2	10
3–5	20
6–8	15
9+	5

Represent this data in a pie chart by calculating the missing angles for each category. [3]

11. In the diagram, $AOB$ is a straight line. $O$ is the centre of a circle of radius 8 cm. A tangent at $C$ meets $AB$ extended at $D$ , with $CD = 6$ cm. Find the length of $OD$ .

Diagram for Q11 (OLEVEL Emaths)

Generated diagram for Q11.

[3]

12. A point is chosen at random inside a circle of radius 14 cm. A sector of angle $90^\circ$ is shaded. Find the probability that the point is in the shaded sector. [2]

13. The diagram shows sets ξ, A, B, C. The region belonging to A and B but not C is shaded. Use set notation to describe the shaded region.

Diagram for Q13 (OLEVEL Emaths)

Generated diagram for Q13.

[2]

14. A stick pattern: Diagram 1 = 6 sticks, Diagram 2 = 11, Diagram 3 = 16. Find the number of sticks in Diagram $n$ and the number in Diagram 10. [3]

Section C (Questions 15–20) — Extended Application [20 marks]

15. A triangular garden $PQR$ has $\angle PRQ = 90^\circ$ , $PR = 9$ m, $QR = 12$ m. (a) Find the length of $PQ$ . [2] (b) Find $\angle PQR$ . [2] (c) Find the area of the garden. [1]

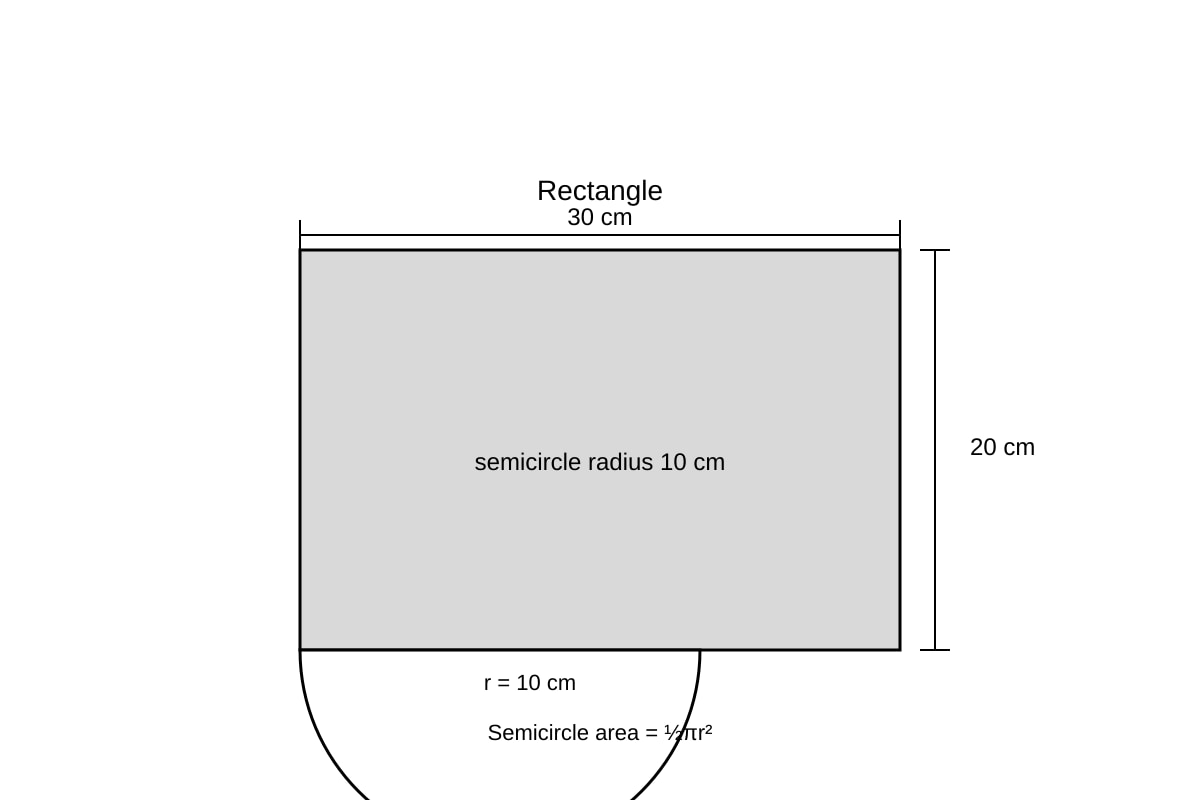

16. The diagram shows a rectangle of 30 cm by 20 cm with a semicircle of radius 10 cm cut from one side. The remaining shape is shaded. A point is chosen at random inside the original rectangle. Find the probability it is in the shaded region.

Diagram for Q16 (OLEVEL Emaths)

Generated diagram for Q16.

[3]

17. In the Venn diagram, ξ = students, A = like Maths, B = like Science. The shaded region is A but not B. Describe in set notation and in words.

Diagram for Q17 (OLEVEL Emaths)

Generated diagram for Q17.

[2]

18. A circle has centre O and radius 13 cm. A chord AB is 10 cm from O. Find the length of AB. [3]

19. The angles of a pie chart for 4 clubs are: Chess 80°, Drama 100°, Art 90°. Find the angle for Music and the number of students in Music if total is 180. [3]

20. A ladder 5 m long leans against a wall. The foot is 3 m from the wall. (a) Find the height up the wall. [2] (b) Find the angle the ladder makes with the ground. [2]

Total Marks: 60

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Elementary Mathematics O-Level (Version 2) Answer Key

Total Marks: 60

Section A Answers

1. [1 mark]
$\sin \angle PQR = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{PR}{PQ} = \frac{5}{13}$ .
Teaching note: In right triangle $PQR$ , angle at Q, opposite side is $PR = 5$ , hypotenuse is $PQ = 13$ .
Answer: $\frac{5}{13}$ .

2. [1 mark]
$\cos \angle XZY = \frac{\text{adjacent}}{\text{hypotenuse}} = \frac{YZ}{XZ} = \frac{8}{10} = \frac{4}{5}$ .
Teaching note: Angle at Z, adjacent is $YZ = 8$ , hypotenuse $XZ = 10$ .
Answer: $\frac{4}{5}$ .

3. [2 marks]
Rectangle area = $20 \times 12 = 240$ cm².
Each circle area = $\pi \times 4^2 = 16\pi \approx 50.27$ cm²; two circles = $32\pi \approx 100.54$ cm².
Shaded = $240 - 32\pi$ cm².
Probability = $\frac{240 - 32\pi}{240} = 1 - \frac{32\pi}{240} = 1 - \frac{2\pi}{15} \approx 0.581$ .
Marking: 1 mark area, 1 mark probability.
Answer: $1 - \frac{2\pi}{15}$ or $\approx 0.581$ .

4. [2 marks]
Shaded is outside A and outside B → $A' \cap B'$ or $(A \cup B)'$ .
Teaching note: Complement of union equals intersection of complements (De Morgan).
Answer: $A' \cap B'$ .

5. [2 marks]
Sequence: 4, 7, 10 → first difference 3 → linear $3n + b$ .
$n=1$ : $3(1)+b=4 \Rightarrow b=1$ .
Expression: $3n + 1$ .
Answer: $3n+1$ .

6. [2 marks]
Total = 120. Maths fraction = $30/120 = 1/4$ .
Angle = $\frac{1}{4} \times 360^\circ = 90^\circ$ .
Answer: $90^\circ$ .

7. [2 marks]
In $\triangle OMA$ , $OA = 7$ , $OM = 5$ , right-angled at M.
$AM = \sqrt{7^2 - 5^2} = \sqrt{24} = 2\sqrt{6}$ cm.
$AB = 2 \times AM = 4\sqrt{6}$ cm.
Answer: $4\sqrt{6}$ cm.

8. [1 mark]
$\tan 45^\circ = 1$ .
Answer: $1$ .

Section B Answers

9. [3 marks]
Big circle area = $\pi \times 10^2 = 100\pi$ .
Small circle area = $\pi \times 4^2 = 16\pi$ .
Shaded annulus = $100\pi - 16\pi = 84\pi$ cm².
Marking: 1 mark each area, 1 mark subtract.
Answer: $84\pi$ cm² ( $\approx 263.9$ cm²).

10. [3 marks]
Total = $10+20+15+5 = 50$ .
0–2: $\frac{10}{50}\times 360 = 72^\circ$
3–5: $\frac{20}{50}\times 360 = 144^\circ$
6–8: $\frac{15}{50}\times 360 = 108^\circ$
9+: $\frac{5}{50}\times 360 = 36^\circ$
Marking: 1 mark each for correct angles (all 4 required for full).
Answer: 72°, 144°, 108°, 36°.

11. [3 marks]
$\triangle OCD$ right at C, $OC = 8$ , $CD = 6$ .
$OD = \sqrt{8^2 + 6^2} = \sqrt{100} = 10$ cm.
Marking: 1 tangent perpendicular, 1 Pythagoras, 1 answer.
Answer: 10 cm.

12. [2 marks]
Sector angle 90° out of 360° → fraction = $\frac{90}{360} = \frac{1}{4}$ .
Probability = $\frac{1}{4}$ .
Answer: $\frac{1}{4}$ .

13. [2 marks]
Region in A and B but not C: $(A \cap B) \cap C'$ or $A \cap B \cap C'$ .
Answer: $A \cap B \cap C'$ .

14. [3 marks]
6, 11, 16 → diff 5 → $5n + b$ .
$n=1$ : $5+b=6 \Rightarrow b=1$ .
Expression: $5n+1$ .
Diagram 10: $5(10)+1 = 51$ .
Marking: 1 formula, 1 substitute, 1 answer.
Answer: $5n+1$ , 51 sticks.

Section C Answers

15. [5 marks total]
(a) [2] $PQ = \sqrt{9^2+12^2} = \sqrt{225} = 15$ m.
(b) [2] $\tan \angle PQR = \frac{9}{12} = 0.75 \Rightarrow \angle PQR = \tan^{-1}(0.75) \approx 36.87^\circ$ .
(c) [1] Area = $\frac{1}{2} \times 9 \times 12 = 54$ m².
Answers: (a) 15 m, (b) 36.9°, (c) 54 m².

16. [3 marks]
Rectangle = $30 \times 20 = 600$ cm².
Semicircle = $\frac{1}{2}\pi \times 10^2 = 50\pi \approx 157.1$ cm².
Shaded = $600 - 50\pi$ .
Probability = $\frac{600 - 50\pi}{600} = 1 - \frac{\pi}{12} \approx 0.738$ .
Answer: $1 - \frac{\pi}{12}$ .

17. [2 marks]
Notation: $A \cap B'$ . Words: Students who like Maths but not Science.
Answer: $A \cap B'$ .

18. [3 marks]
Distance from centre to chord = 10, radius = 13.
Half-chord = $\sqrt{13^2 - 10^2} = \sqrt{69}$ cm.
$AB = 2\sqrt{69}$ cm.
Answer: $2\sqrt{69}$ cm.

19. [3 marks]
Known angles = $80+100+90 = 270^\circ$ .
Music = $360 - 270 = 90^\circ$ .
Fraction = $90/360 = 1/4$ . Students = $\frac{1}{4} \times 180 = 45$ .
Answer: 90°, 45 students.

20. [4 marks]
(a) [2] Height = $\sqrt{5^2 - 3^2} = \sqrt{16} = 4$ m.
(b) [2] $\cos \theta = \frac{3}{5} = 0.6 \Rightarrow \theta = \cos^{-1}(0.6) \approx 53.1^\circ$ .
Answers: (a) 4 m, (b) 53.1°.

End of Answer Key
