O Level Elementary Mathematics Practice Paper 1

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Practice Paper - Elementary Mathematics O-Level

TuitionGoWhere Exam Practice (AI)
Subject: Elementary Mathematics
Level: O-Level
Paper: Practice Paper (Version 1 of 5)
Duration: 60 minutes
Total Marks: 60
Name: ___________________________
Class: ___________________________
Date: ___________________________

Instructions:

• Answer all questions.
• Show your working clearly where required.
• Calculators may be used.
• Write your answers in the spaces provided.

---

Section A: Set Notation, Pie Charts and Patterns (Questions 1–7) [21 marks]

1. [2 marks]
In the Venn diagram below, ξ is the universal set, and A and B are two sets.

Image pending generation: diagram for Q1.

Use set notation to describe the shaded region.

---

2. [2 marks]

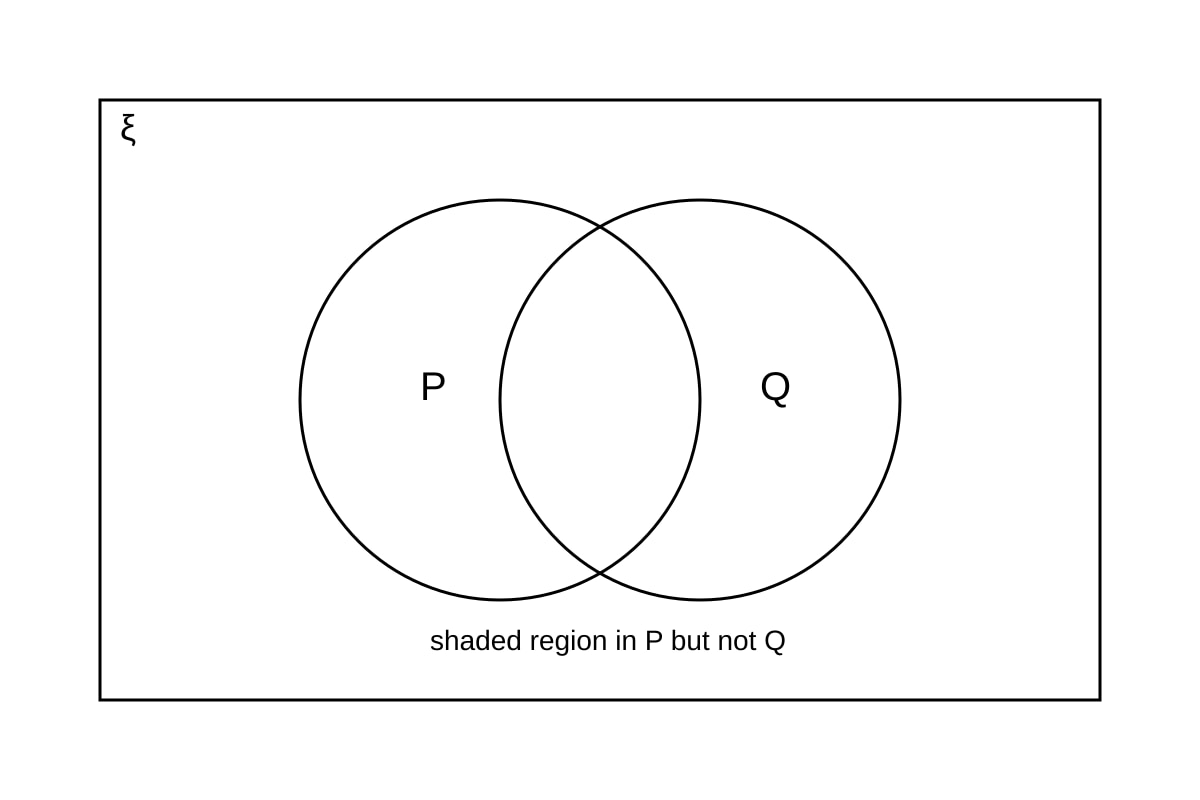

The Venn diagram shows sets ξ, P and Q with the region inside P but outside Q shaded.

Image pending generation: diagram for Q2.

Write the shaded region using set notation.

---

3. [3 marks]
A class of 40 students were asked about their favourite subjects. The table shows the results.

Subject	Number of students
Mathematics	12
Science	10
English	8
Others	10

The data is to be shown on a pie chart. Calculate the angle for the Mathematics sector.

---

---

4. [3 marks]
Using the table in Question 3, calculate the angles for Science and English sectors of the pie chart.

---

---

5. [2 marks]

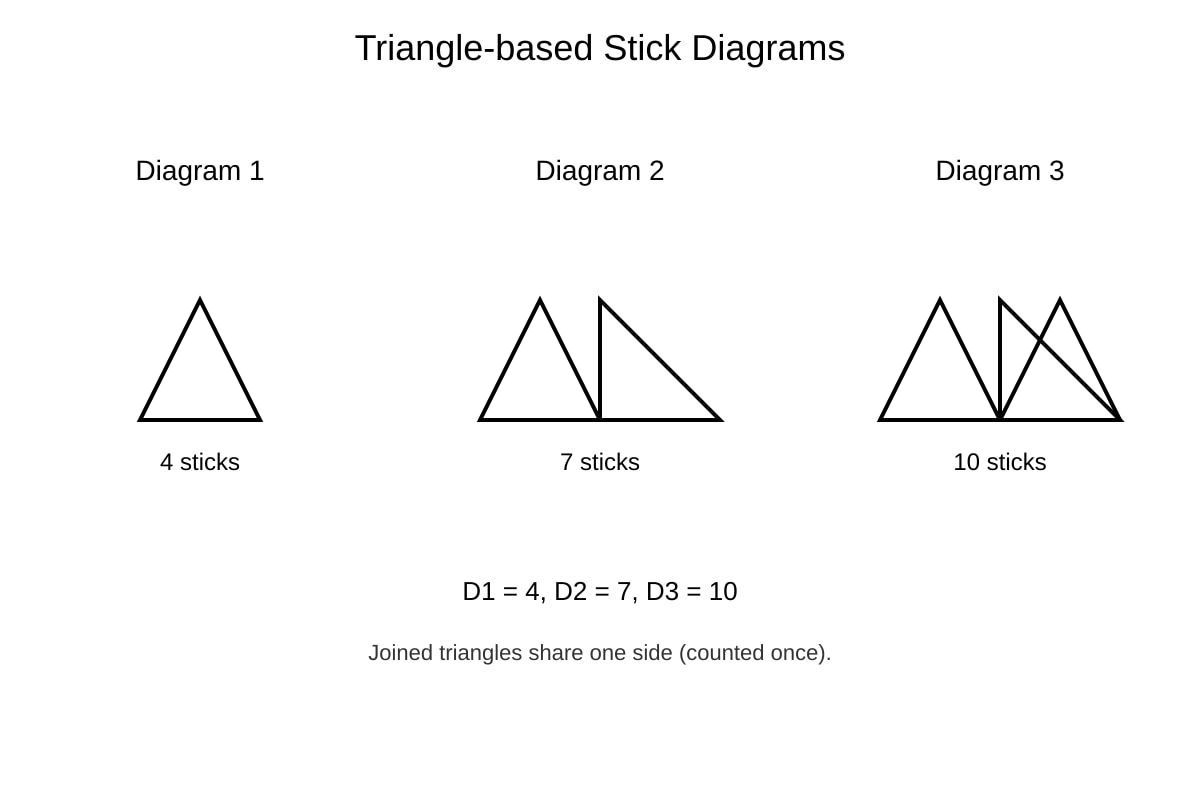

Diagram 1 has 4 sticks, Diagram 2 has 7 sticks, Diagram 3 has 10 sticks.

Image pending generation: diagram for Q5.

Find an expression, in terms of n, for the number of sticks in Diagram n. Simplify your answer.

---

6. [2 marks]
A point is chosen at random inside a large circle of radius 10 cm. A smaller concentric circle of radius 5 cm is shaded. Find the probability that the point lies in the shaded region.

---

7. [2 marks]
A sector of a circle of radius 8 cm subtends an angle of 90° at the centre and is shaded. The whole circle is the target region. Find the probability that a random point in the circle lies in the shaded sector.

---

---

Section B: Circle Properties and Trigonometry (Questions 8–14) [21 marks]

8. [1 mark]
In the right-angled triangle ABC, angle B = 90°, AB = 3 cm, BC = 4 cm. Write down the exact value of $\sin \angle ACB$.

---

9. [1 mark]
In the triangle in Q8, write down the exact value of $\cos \angle CAB$.

---

10. [2 marks]

Image pending generation: diagram for Q10.

Find the length of PQ.

---

11. [3 marks]

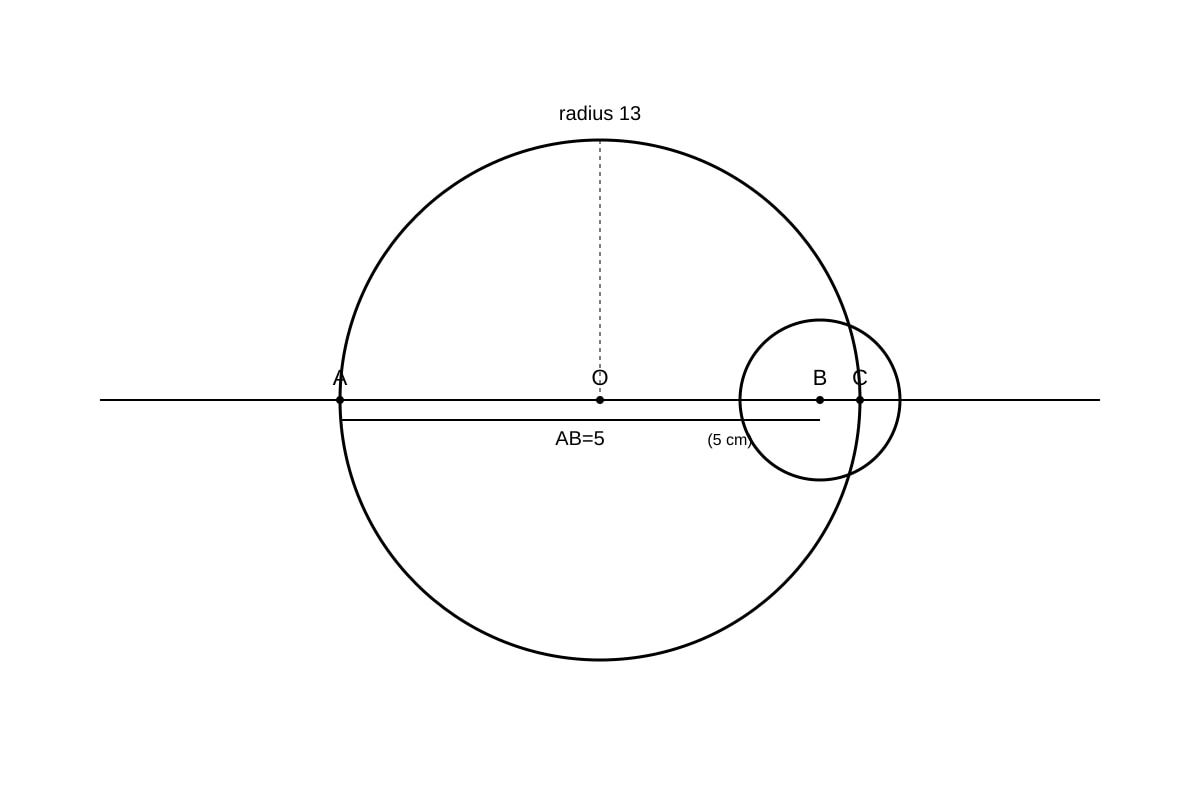

In the diagram, O is the centre of a big circle of radius 13 cm. A smaller circle centre B is internally tangent at C. A, O, B, C are collinear. AB = 5 cm. Find the radius of the small circle.

Image pending generation: diagram for Q11.

---

---

12. [3 marks]
Using the circles in Q11, the distance from A to C along the line is AC = AO + OC = 13 + 13 = 26 cm. Given AB = 5 cm, find the perimeter of the region bounded by the big circle arc from A to C and the small circle (semicircle). Show steps.

---

---

13. [2 marks]
A chord of length 16 cm is drawn in a circle of radius 10 cm. The perpendicular from the centre bisects the chord. Find the distance from the centre to the chord.

---

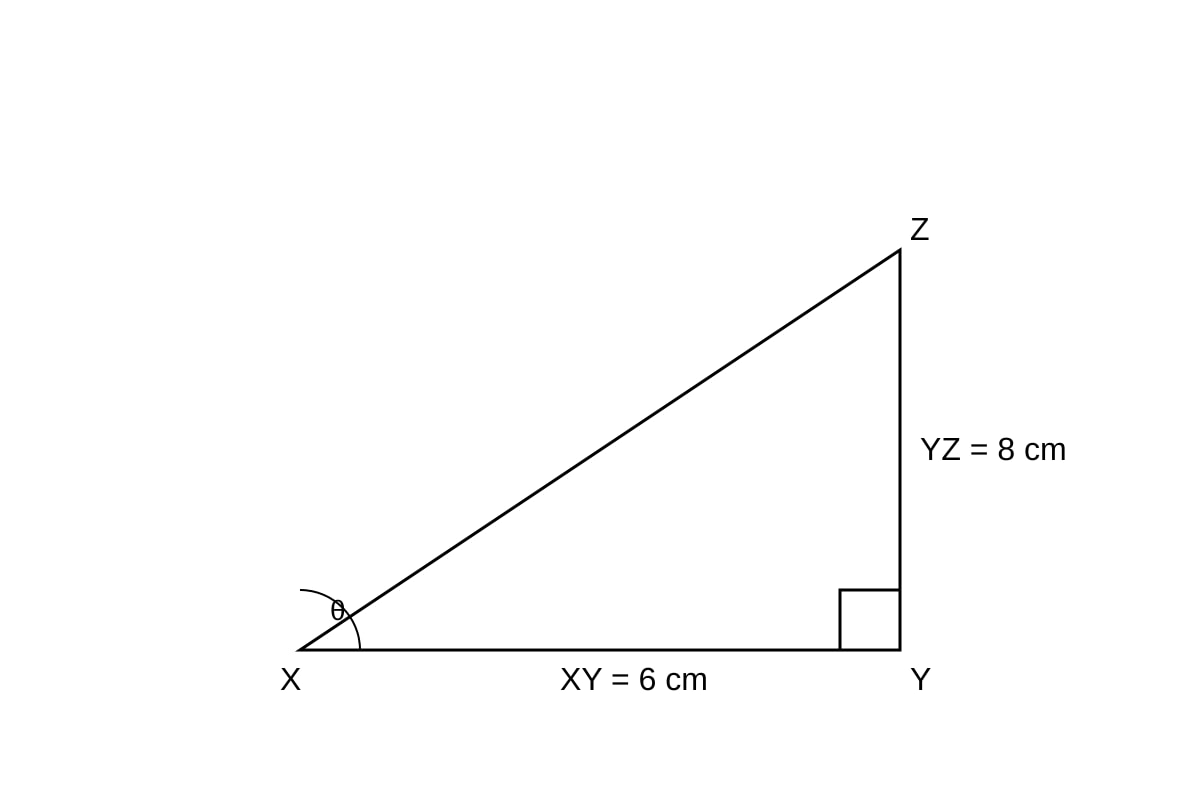

14. [3 marks]

Image pending generation: diagram for Q14.

Find $\tan \theta$ and hence state the value of $\angle X$ to the nearest degree.

---

---

---

Section C: Combined and Applied Geometry-Trigonometry (Questions 15–20) [18 marks]

15. [3 marks]
A rectangle measures 8 cm by 6 cm. A diagonal is drawn. Find the length of the diagonal and the angle it makes with the longer side.

---

---

16. [3 marks]
A ladder 5 m long leans against a wall. The foot of the ladder is 3 m from the wall. Find the height the ladder reaches up the wall and the angle with the ground.

---

---

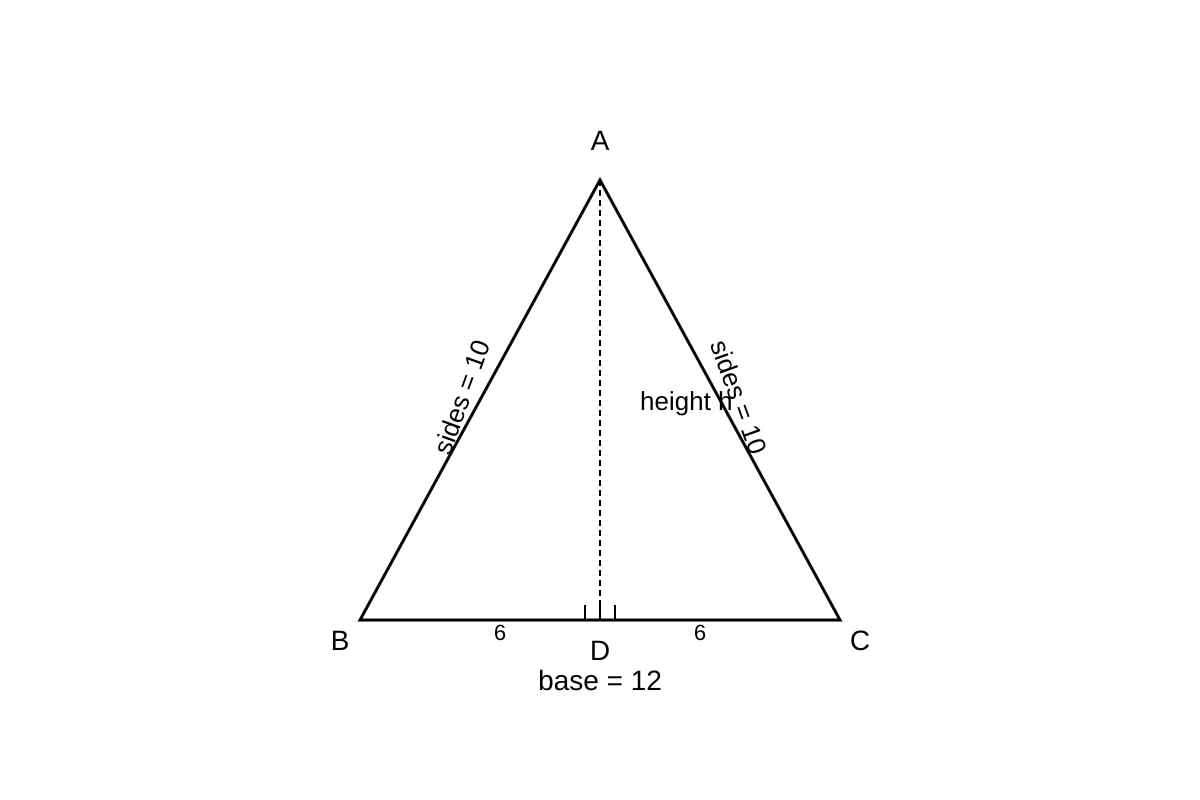

17. [3 marks]

Image pending generation: diagram for Q17.

Find the height of the triangle and its area.

---

---

18. [3 marks]
A circle has centre O and radius 15 cm. A tangent from point P outside the circle meets the circle at T. OP = 17 cm. Find the length of PT.

---

---

19. [2 marks]
In a Venn diagram with ξ, A and B, the region (A ∩ B') ∪ (A' ∩ B) is shaded. Describe this region in words.

---

20. [1 mark]
Write the set notation for "elements in A or in B but not in both" using the symbols from Q19.

---

<!-- TuitionGoWhere generation metadata: stage=3-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

TuitionGoWhere Practice Paper - Elementary Mathematics O-Level (Answers)

Version 1 of 5 — Answer Key with Teaching Notes

---

Section A

Q1 [2 marks]
Answer: $(A \cup B)'$ or $A' \cap B'$
Teaching: The shaded part is outside both A and B. The complement of the union is everything not in A and not in B.
Marking: 1 mark for identifying outside both, 1 mark for correct notation.

Q2 [2 marks]
Answer: $P \cap Q'$
Teaching: Inside P but not in Q means intersection of P with complement of Q. Common mistake: writing $P \cup Q'$ (that includes outside both).
Marking: 1 mark concept, 1 mark notation.

Q3 [3 marks]
Total = 40. Angle = $\frac{12}{40} \times 360° = 108°$.
Teaching: Pie chart angles are proportional to frequency.
Marking: 1 mark total, 2 marks calculation.

Q4 [3 marks]
Science: $\frac{10}{40}\times360° = 90°$. English: $\frac{8}{40}\times360° = 72°$.
Teaching: Same method as Q3.
Marking: 1.5 each.

Q5 [2 marks]
Differences: +3 each time → linear $3n + c$. n=1: 4 = 3(1)+c → c=1. Expression: $3n+1$.
Teaching: First difference constant → $an+b$.
Marking: 1 formula, 1 simplify.

Q6 [2 marks]
$P = \frac{\pi \times 5^2}{\pi \times 10^2} = \frac{25}{100} = \frac{1}{4}$.
Teaching: Probability = area shaded / total area.
Marking: 1 area, 1 final.

Q7 [2 marks]
Sector angle 90° of 360° → $\frac{90}{360} = \frac{1}{4}$.
Teaching: Sector probability = angle/360.
Marking: 1 mark, 1 final.

---

Section B

Q8 [1 mark]
Hypotenuse AC = 5 (3-4-5). $\sin \angle ACB = \frac{AB}{AC} = \frac{4}{5}$.
Teaching: sin = opposite/hypotenuse.

Q9 [1 mark]
$\cos \angle CAB = \frac{AB}{AC} = \frac{3}{5}$.

Q10 [2 marks]
$PQ = \sqrt{5^2+12^2} = \sqrt{169} = 13$ cm.
Teaching: Pythagoras.

Q11 [3 marks]
Big radius OC = 13. OB = OC - BC; also AO = 13, AB = 5 → OB = 13 - 5 = 8? Wait: A-O-B-C collinear, O centre, C on big circle right, B between O and C. AO = 13 (radius). AB = 5 → OB = 8. Small radius = BC = OC - OB = 13 - 8 = 5 cm.
Teaching: Internal tangent → centres and tangent collinear.
Marking: 1 OB, 2 small radius.

Q12 [3 marks]
Big semicircle arc A to C = $\pi \times 13 = 13\pi$ cm. Small semicircle = $\pi \times 5 = 5\pi$ cm. Perimeter = $13\pi + 5\pi = 18\pi$ cm.
Teaching: Semicircle length = $\pi r$.

Q13 [2 marks]
Half chord = 8. Distance $d = \sqrt{10^2 - 8^2} = \sqrt{36} = 6$ cm.
Teaching: Perpendicular from centre bisects chord.

Q14 [3 marks]
$\tan \theta = \frac{8}{6} = \frac{4}{3}$. $\theta = \tan^{-1}(4/3) \approx 53°$.
Teaching: tan = opp/adj.

---

Section C

Q15 [3 marks]
Diagonal = $\sqrt{8^2+6^2} = 10$ cm. Angle $\alpha$: $\tan \alpha = 6/8$ → $\alpha \approx 37°$.
Marking: 1 diag, 2 angle.

Q16 [3 marks]
Height = $\sqrt{5^2-3^2} = 4$ m. Angle: $\cos \theta = 3/5$ → $\theta \approx 53°$.

Q17 [3 marks]
Half base = 6. Height $h = \sqrt{10^2-6^2} = 8$ cm. Area = $\frac{1}{2}\times12\times8 = 48$ cm².

Q18 [3 marks]
OT ⟂ PT. $PT = \sqrt{17^2-15^2} = \sqrt{64} = 8$ cm.
Teaching: Tangent perpendicular to radius.

Q19 [2 marks]
Answer: Region in exactly one of A or B (symmetric difference).
Teaching: Union of "in A not B" and "in B not A".

Q20 [1 mark]
Answer: $(A \cap B') \cup (A' \cap B)$ or $A \triangle B$ if allowed, but use given form.
