O-Level Combined Science Quiz - Chemistry Materials

Name: _________________________ Class: _________________________ Date: _________________________ Score: ______ / 50

Duration: 45 minutes Total Marks: 50

Instructions:

This quiz contains 20 questions on Chemistry Materials.
Answer ALL questions in the spaces provided.
Show all working for calculation questions.
Marks are indicated in brackets [ ].
You may use a calculator.

Section A: Multiple Choice (10 marks)

Circle the correct answer for each question.

1. Which of the following is a property of a typical ionic compound? A. Low melting point B. Conducts electricity in solid state C. Soluble in organic solvents D. Conducts electricity when molten

[1 mark]

2. An atom of element X has an electronic configuration of 2.8.2. What is the formula of its oxide? A. XO B. X₂O C. XO₂ D. X₂O₃

[1 mark]

3. Which substance has a giant covalent structure? A. Sodium chloride B. Carbon dioxide C. Silicon dioxide D. Magnesium oxide

[1 mark]

4. A student tests an unknown solid. It has a high melting point and does not conduct electricity in any state. The solid is most likely: A. An ionic compound B. A metal C. A giant covalent substance D. A simple molecular substance

[1 mark]

5. Which statement about isotopes is correct? A. They have the same number of neutrons B. They have different chemical properties C. They have the same number of protons D. They have the same mass number

[1 mark]

6. What is the relative molecular mass (Mᵣ) of aluminium sulfate, Al₂(SO₄)₃? (Aᵣ: Al = 27, S = 32, O = 16) A. 150 B. 214 C. 278 D. 342

[1 mark]

7. Which of the following metals reacts most vigorously with cold water? A. Copper B. Iron C. Potassium D. Zinc

[1 mark]

8. A sample of air is passed over heated copper turnings. Which gas is removed from the air? A. Carbon dioxide B. Nitrogen C. Oxygen D. Water vapour

[1 mark]

9. Which process is used to separate a mixture of liquids with different boiling points? A. Chromatography B. Crystallisation C. Filtration D. Fractional distillation

[1 mark]

10. An element has 19 protons and 20 neutrons. To which Group of the Periodic Table does it belong? A. Group I B. Group II C. Group VII D. Group 0

[1 mark]

Section B: Structured Questions (25 marks)

Answer all questions in the spaces provided.

11. The table below shows information about four substances, W, X, Y, and Z.

Substance	Melting point (°C)	Electrical conductivity (solid)	Electrical conductivity (molten)
W	801	Poor	Good
X	1610	Poor	Poor
Y	-78	Poor	Poor
Z	1083	Good	Good

(a) Identify the type of structure and bonding present in substance W. Explain your answer using information from the table. [2 marks]

(b) Suggest what substance Z could be. Explain your answer. [2 marks]

(c) Substance Y is carbon dioxide. Explain why it has a low melting point. [2 marks]

12. Magnesium reacts with oxygen to form magnesium oxide.

(a) Write a balanced chemical equation for this reaction. [1 mark]

(b) Draw a 'dot-and-cross' diagram to show the bonding in magnesium oxide. Show only the outer shell electrons. [3 marks]

(c) Explain why magnesium oxide has a high melting point. [2 marks]

13. A student carries out chromatography on three known dyes, A, B, and C, and an unknown mixture, M. The chromatogram obtained is shown below.

Solvent front
    |
    |    *  *     *
    |    *  *  *  *
    |    *  *  *  *
    |    *  *  *  *
    |____*__*__*__*____
         A  B  C  M

(a) Which dye(s) are present in mixture M? [1 mark]

(b) Explain why dye B has a higher Rf value than dye A. [2 marks]

(c) State one precaution that should be taken when setting up the chromatography experiment. [1 mark]

14. The electronic structure of an atom of element P is 2.8.7.

(a) In which Group and Period of the Periodic Table is element P found? [2 marks]

Group: _______________ Period: _______________

(b) Element P reacts with sodium to form a compound. State the type of bonding in this compound and give its formula. [2 marks]

Type of bonding: _______________

Formula: _______________

(c) Predict one physical property of the compound formed in (b). [1 mark]

15. A student investigates the reactivity of four metals: copper, iron, magnesium, and zinc. Each metal is added to dilute hydrochloric acid.

(a) State the observations you would expect for magnesium and copper. [2 marks]

Magnesium: _______________________________________________

Copper: __________________________________________________

(b) Arrange the four metals in order of increasing reactivity. [1 mark]

_______________ < _______________ < _______________ < _______________

(c) Write a balanced chemical equation for the reaction between zinc and hydrochloric acid. [1 mark]

Section C: Data Analysis and Application (15 marks)

Answer all questions in the spaces provided.

16. The table shows the percentage composition by volume of clean, dry air.

Gas	Percentage (%)
Nitrogen	78
Oxygen	21
Noble gases (mainly argon)	0.9
Carbon dioxide	0.04

(a) Name the most abundant noble gas in air. [1 mark]

(b) State one use of argon that relates to its unreactivity. [1 mark]

(c) Explain why the percentage of carbon dioxide in the atmosphere has increased over the past 200 years. [2 marks]

17. A sample of hydrated copper(II) sulfate crystals (CuSO₄·5H₂O) has a mass of 5.00 g. The crystals are heated until all the water of crystallisation is removed. The mass of the remaining anhydrous copper(II) sulfate is 3.20 g.

(Aᵣ: H = 1, O = 16, S = 32, Cu = 64)

(a) Calculate the mass of water removed. [1 mark]

(b) Calculate the number of moles of anhydrous copper(II) sulfate (CuSO₄) remaining. [1 mark]

(c) Calculate the number of moles of water removed. [1 mark]

(d) Use your answers to (b) and (c) to determine the value of x in CuSO₄·xH₂O. Show your working. [2 marks]

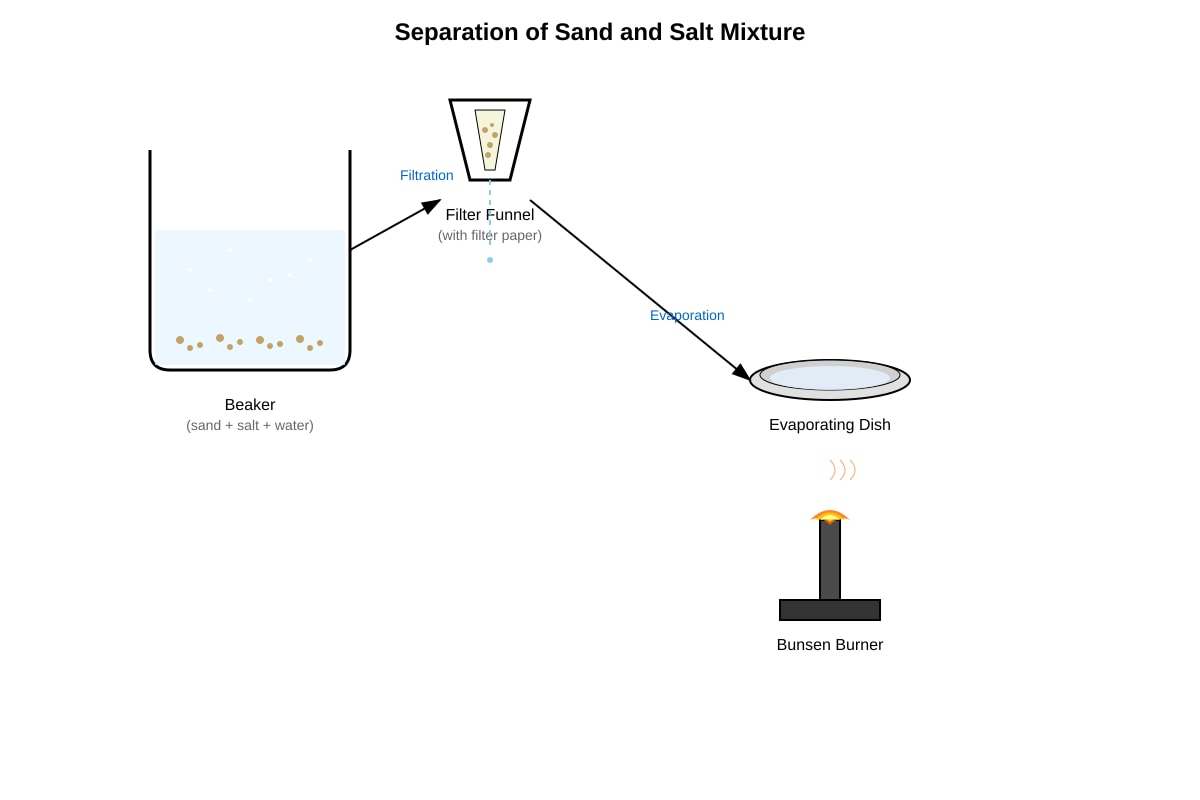

18. The diagram below shows the apparatus used to separate a mixture of sand and salt (sodium chloride).

[Diagram: Beaker containing mixture of sand, salt, and water. Mixture is filtered through filter paper in a funnel into an evaporating dish. The evaporating dish is heated over a Bunsen burner.]

(a) Name the separation process occurring in the filter funnel. [1 mark]

(b) Explain why the sand remains on the filter paper while the salt solution passes through. [2 marks]

(c) Name the process occurring in the evaporating dish. State one precaution that should be taken during this process. [2 marks]

Process: __________________________________________________

Precaution: _______________________________________________

19. The reactivity series of metals can be determined by the reactions of metals with water, acids, and other metal salt solutions.

(a) A piece of calcium metal is added to a beaker of cold water. State two observations you would expect to see. [2 marks]

(b) Explain why copper cannot displace zinc from zinc sulfate solution. [1 mark]

20. A student investigates the effect of surface area on the rate of reaction between marble (calcium carbonate) and hydrochloric acid. The equation for the reaction is:

CaCO₃(s) + 2HCl(aq) → CaCl₂(aq) + H₂O(l) + CO₂(g)

Experiment 1 uses large marble chips. Experiment 2 uses the same mass of powdered marble. All other conditions are kept the same.

(a) On the axes below, sketch and label the graphs you would expect for both experiments. [2 marks]

Volume of CO₂
    |
    |
    |
    |
    |
    |_____________________________________
                    Time

(b) Explain the difference in the shapes of the two graphs using collision theory. [2 marks]

(c) State one other factor, besides surface area, that affects the rate of a chemical reaction. [1 mark]

END OF QUIZ

Answers

O-Level Combined Science Quiz - Chemistry Materials - ANSWER KEY

Total Marks: 50

Section A: Multiple Choice (10 marks)

Question	Answer	Explanation
1	D	Ionic compounds conduct electricity when molten or dissolved in water because ions are free to move. They do not conduct in solid state as ions are held in fixed positions.
2	A	Element X has 2 valence electrons (Group II), so it forms X²⁺ ions. Oxygen forms O²⁻ ions. The formula is XO.
3	C	Silicon dioxide (SiO₂) has a giant covalent structure similar to diamond, with each silicon atom bonded to four oxygen atoms in a tetrahedral arrangement.
4	C	Giant covalent substances have high melting points and do not conduct electricity (except graphite). Ionic compounds conduct when molten; metals conduct in all states.
5	C	Isotopes are atoms of the same element with the same number of protons but different numbers of neutrons. They have the same chemical properties.
6	D	Mᵣ = 2(27) + 3[32 + 4(16)] = 54 + 3(96) = 54 + 288 = 342
7	C	Potassium is a Group I alkali metal and reacts very vigorously with cold water. Copper does not react; iron and zinc react slowly or with steam/acids.
8	C	Heated copper reacts with oxygen in the air to form copper(II) oxide: 2Cu + O₂ → 2CuO. This removes oxygen from the air sample.
9	D	Fractional distillation separates miscible liquids based on differences in boiling points. The liquid with the lower boiling point distils over first.
10	A	19 protons means atomic number 19 (potassium). Electronic configuration is 2.8.8.1, so it has 1 valence electron and belongs to Group I.

Section B: Structured Questions (25 marks)

11. [6 marks]

(a) Substance W has ionic bonding with a giant ionic lattice structure. [1 mark] Explanation: It has a high melting point (801°C), which indicates strong bonds. It does not conduct electricity when solid but conducts when molten, showing that ions are present but can only move when the lattice breaks down. [1 mark]

(b) Substance Z is a metal (e.g., copper). [1 mark] Explanation: It has a high melting point and conducts electricity in both solid and molten states. This is characteristic of metallic bonding where delocalised electrons are always free to move. [1 mark]

(c) Carbon dioxide has a simple molecular structure. [1 mark] The molecules are held together by weak intermolecular forces (van der Waals' forces) which require little energy to overcome, resulting in a low melting point. [1 mark]

12. [6 marks]

(a) 2Mg + O₂ → 2MgO [1 mark]

(b) Dot-and-cross diagram showing:

Mg atom with 2 outer electrons, O atom with 6 outer electrons [1 mark]
Mg loses 2 electrons to become Mg²⁺ with no outer shell electrons shown [1 mark]
O gains 2 electrons to become O²⁻ with 8 outer shell electrons, shown as complete octet with both dots and crosses [1 mark]
Correct charges on ions: [Mg]²⁺ and [O]²⁻

(c) Magnesium oxide has a giant ionic lattice structure. [1 mark] There are strong electrostatic forces of attraction between the oppositely charged Mg²⁺ and O²⁻ ions. A large amount of energy is required to overcome these strong forces, resulting in a high melting point. [1 mark]

13. [4 marks]

(a) Dyes A and C are present in mixture M. [1 mark]

(b) Dye B is more soluble in the solvent than dye A. [1 mark] It spends more time dissolved in the mobile phase and travels further up the paper, resulting in a higher Rf value. [1 mark]

(c) Any one of: [1 mark]

The baseline must be drawn in pencil (not ink)
The spots must be above the solvent level
The solvent level must be below the baseline
The chromatogram must be removed before the solvent front reaches the top

14. [5 marks]

(a) Group VII (or 17) [1 mark], Period 3 [1 mark]

(b) Type of bonding: Ionic [1 mark] Formula: NaP or NaCl (if identifying P as chlorine) [1 mark] Note: Element P with electronic configuration 2.8.7 is chlorine (Cl). Accept NaCl.

(c) Any one of: [1 mark]

High melting point / boiling point
Conducts electricity when molten or dissolved in water
Does not conduct electricity when solid
Soluble in water

15. [4 marks]

(a) Magnesium: Effervescence / bubbles of gas produced rapidly; magnesium dissolves; solution gets hot. [1 mark] Copper: No reaction / no change observed. [1 mark]

(b) Copper < Iron < Zinc < Magnesium [1 mark] Accept: Cu < Fe < Zn < Mg

(c) Zn + 2HCl → ZnCl₂ + H₂ [1 mark]

Section C: Data Analysis and Application (15 marks)

16. [4 marks]

(a) Argon [1 mark]

(b) Any one of: [1 mark]

Used as a shielding gas in welding to prevent oxidation
Used to fill incandescent light bulbs to prevent the filament from burning
Used to provide an inert atmosphere for reactions

(c) The burning of fossil fuels (coal, oil, natural gas) releases carbon dioxide. [1 mark] Deforestation reduces the number of trees available to absorb carbon dioxide through photosynthesis. Industrialisation and increased energy consumption have led to higher CO₂ emissions. [1 mark]

17. [5 marks]

(a) Mass of water removed = 5.00 - 3.20 = 1.80 g [1 mark]

(b) Mᵣ of CuSO₄ = 64 + 32 + 4(16) = 160 [0.5 mark for working] Moles of CuSO₄ = 3.20 / 160 = 0.0200 mol [0.5 mark]

(c) Mᵣ of H₂O = 2(1) + 16 = 18 [0.5 mark for working] Moles of H₂O = 1.80 / 18 = 0.100 mol [0.5 mark]

(d) Ratio of moles H₂O : CuSO₄ = 0.100 : 0.0200 = 5 : 1 [1 mark] Therefore, x = 5 [1 mark] The formula is CuSO₄·5H₂O

18. [5 marks]

(a) Filtration [1 mark]

(b) Sand particles are insoluble in water and are too large to pass through the pores of the filter paper. [1 mark] Salt (sodium chloride) dissolves in water to form a solution. The dissolved ions are small enough to pass through the filter paper along with the water. [1 mark]

(c) Process: Evaporation / Crystallisation [1 mark] Precaution: Any one of: [1 mark]

Heat gently / use a water bath to avoid spitting
Stop heating when crystals start to form / do not heat to dryness
Use a tripod and gauze for even heating
Wear safety goggles

19. [3 marks]

(a) Any two of: [2 marks]

Effervescence / bubbles of gas produced
Calcium moves on the surface of the water
Calcium dissolves / disappears gradually
A white precipitate/suspension forms (calcium hydroxide)
The solution becomes warm / heat is released

(b) Copper is less reactive than zinc / copper is below zinc in the reactivity series. [1 mark] A less reactive metal cannot displace a more reactive metal from its salt solution.

20. [5 marks]

(a) Graph showing: [2 marks]

Both curves starting at the origin [0.5 mark]
Both curves levelling off at the same final volume of CO₂ [0.5 mark]
Curve for powdered marble (Experiment 2) has a steeper initial gradient [0.5 mark]
Curve for marble chips (Experiment 1) has a less steep initial gradient [0.5 mark]
Correct labelling of curves

(b) Powdered marble has a larger surface area than marble chips. [1 mark] This increases the frequency of effective collisions between reactant particles (CaCO₃ and H⁺ ions), so the rate of reaction is faster. The same mass of marble produces the same total volume of CO₂. [1 mark]

(c) Any one of: [1 mark]

Concentration of acid
Temperature
Use of a catalyst
Pressure (for gaseous reactions)

END OF ANSWER KEY
