O Level Combined Science Practice Paper 2
Free O Level Combined Sci Practice Paper 2, HY3 Exam version, with questions, answers, and O Level-style practice for Singapore students.
These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.
Questions
TuitionGoWhere Exam Practice (AI) - Combined Science O-Level
Physical Sciences Practice Paper (Version 2 of 5)
School: TuitionGoWhere Secondary School (AI)
Subject: Combined Science (Physical Sciences)
Level: O-Level
Paper: Practice Paper 2 (Physical Sciences)
Duration: 1 h 15 min
Total Marks: 65
Name: ___________________________
Class: ____________
Date: ____________
Instructions:
- Answer all questions in the spaces provided.
- Show all working clearly where calculation is required.
- Use a calculator where permitted.
- Marks for each question are shown in brackets [ ].
Section A: Energy, Forces and Motion (Questions 1–8) [26 marks]
1. State the principle of conservation of energy. [2]
2. A boy of weight 500 N runs up a flight of 25 steps in 12 s. Each step has a height of 15 cm. Calculate the average power developed by the boy. [3]

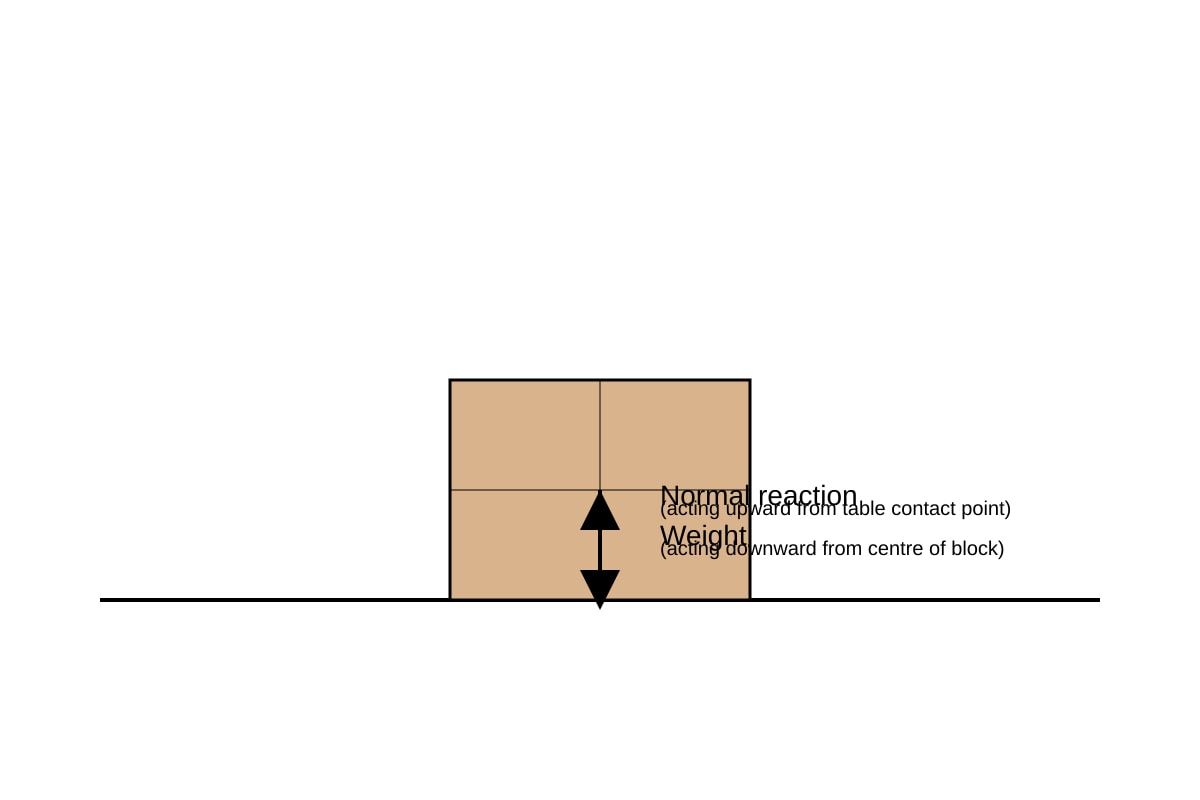

3. Draw a free-body diagram to show the forces acting on a wooden block of mass 2.0 kg resting on a horizontal table. [2]
Image pending generation: diagram for Q3.
4. A metal sphere is suspended by a string and is at rest. State the two forces acting on the sphere and their directions. [2]

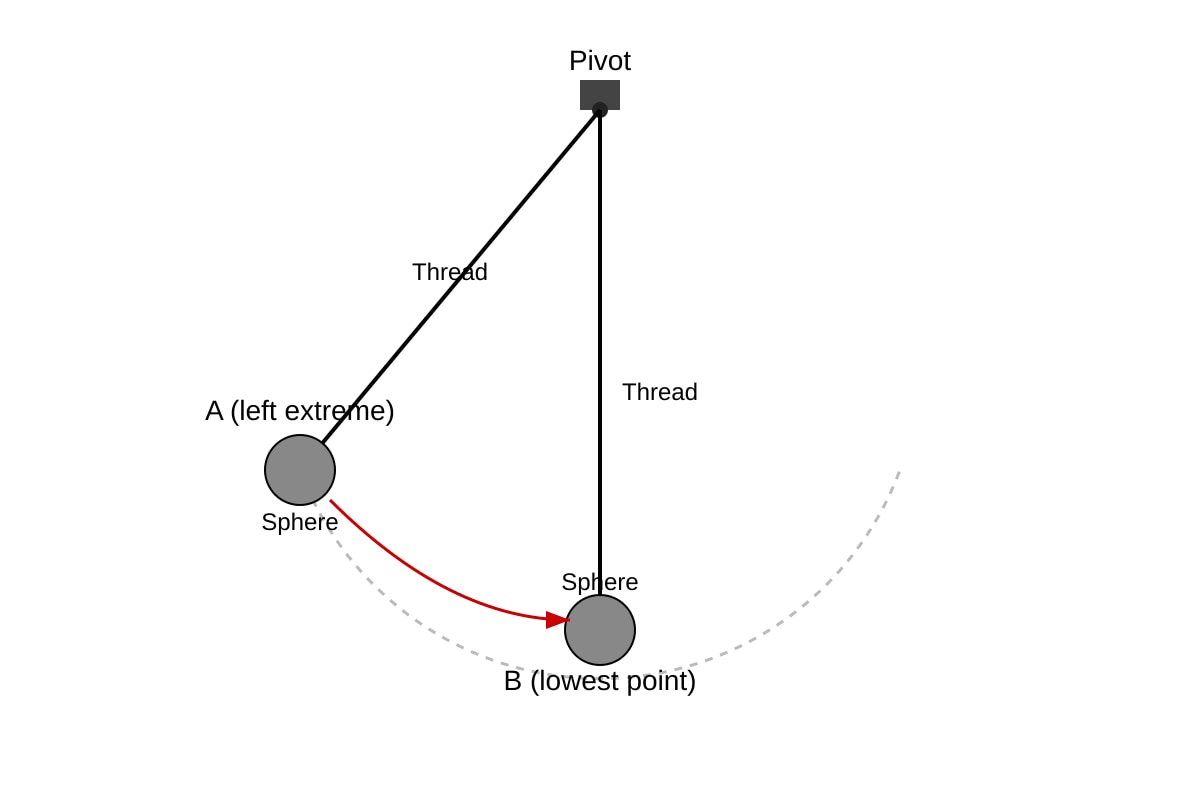

5. A pendulum consists of a metal sphere attached to a thread, as shown in Fig. 1. At position A (highest point on the left), state the form of energy that is maximum. [1]
Image pending generation: diagram for Q5.
6. The same pendulum is released from A. Describe the energy transformation as it moves from A to B. [2]
7. A car of mass 1200 kg accelerates from rest to 20 m/s in 10 s. Calculate the resultant force acting on the car. [3]
8. Explain why a passenger in a moving bus continues forward when the bus suddenly stops. [2]
Section B: Thermal Physics and Waves (Questions 9–14) [19 marks]
9. A metal rod is heated at one end. Which statement best describes the conduction of heat through the metal rod? [1]
A. Heat travels by movement of the rod itself.
B. Free electrons and vibrating particles transfer kinetic energy.
C. Hot air rises and cold air sinks around the rod.
D. Radiation from the rod heats the other end.
10. State one difference between conduction and convection. [1]

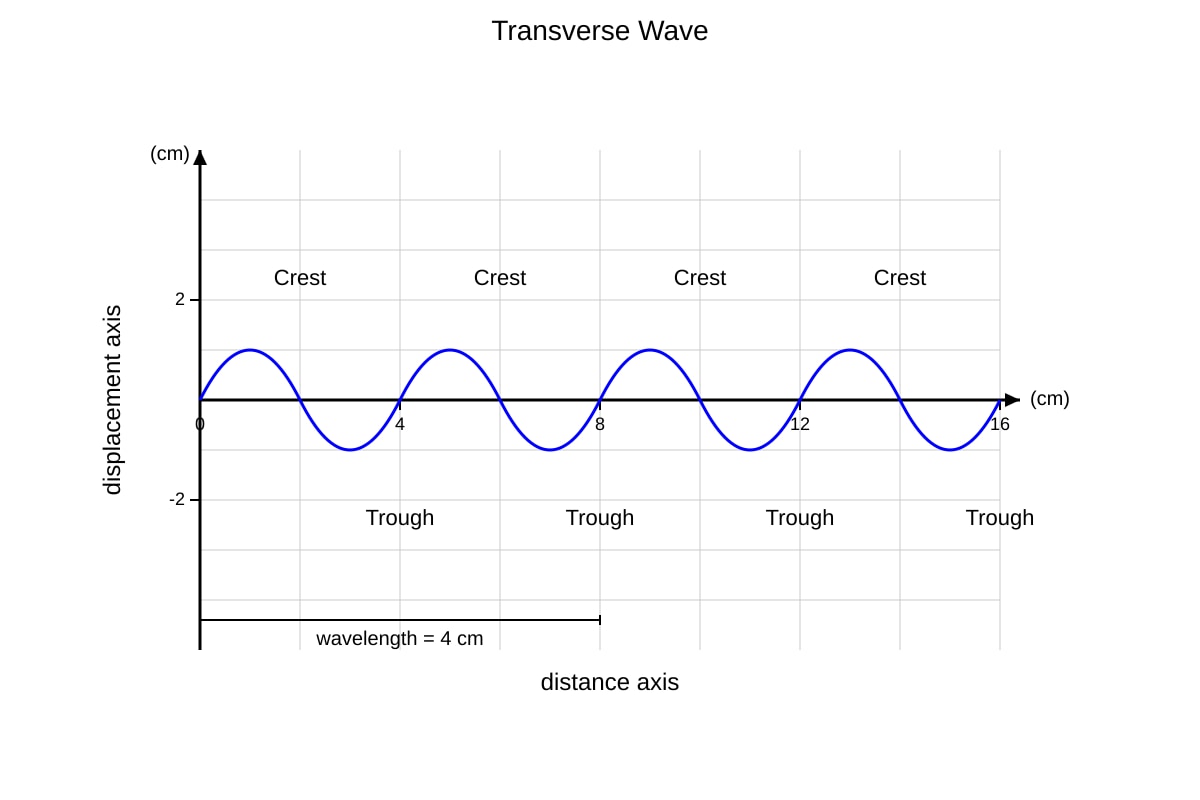

11. The diagram shows a transverse wave. Measure the wavelength from the diagram. [2]
Image pending generation: graph for Q11.
12. Light travels from air into glass. State what happens to the speed and direction of light. [2]
13. Name two properties of electromagnetic waves that are the same in vacuum for all types. [2]
14. A student places a shiny metal lid and a black cloth over two identical cups of hot water. After 10 min, the cup with the black cloth is cooler. Explain this observation using radiation. [3]
Section C: Electricity and Magnetism (Questions 15–20) [20 marks]
15. State Ohm's law. [1]
16. A resistor of 10 Ω is connected to a 6 V battery. Calculate the current flowing through the resistor. [2]
17. Two resistors of 4 Ω and 6 Ω are connected in series to a 10 V supply. Calculate the total resistance and the current. [3]

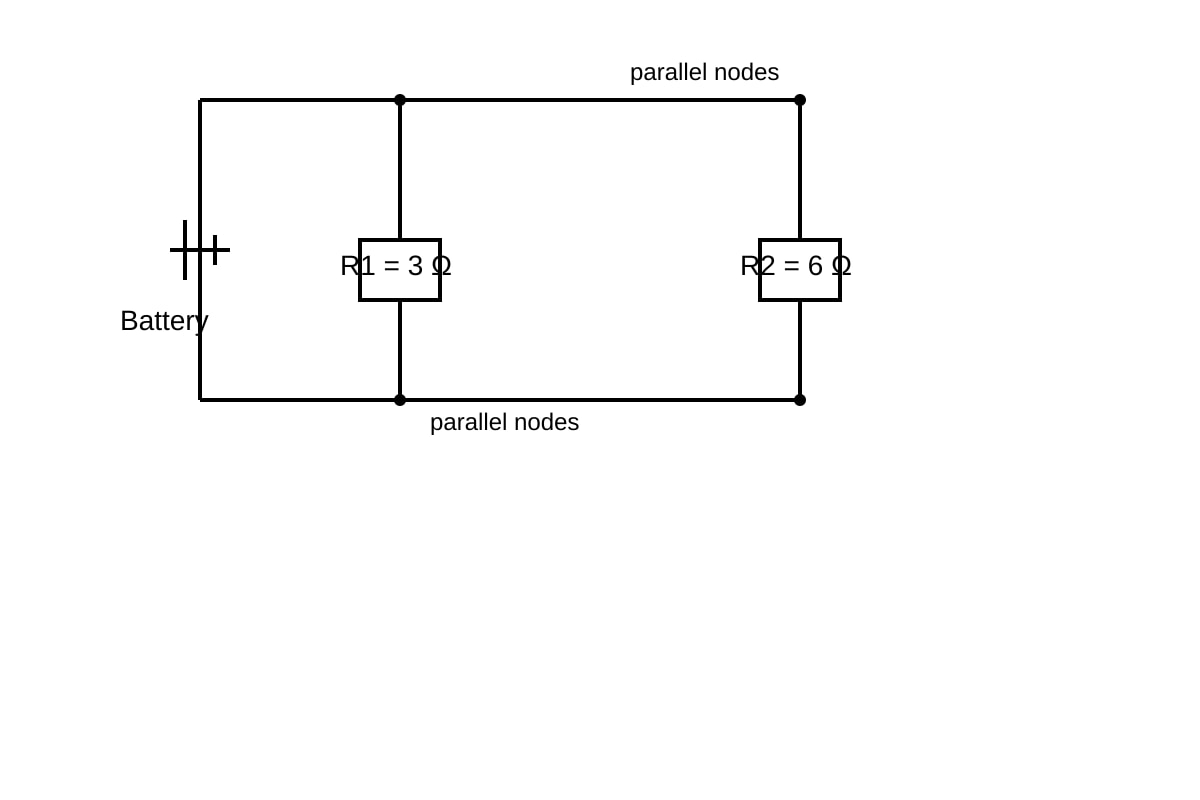

18. The circuit shown has two resistors in parallel. Calculate the effective resistance. [3]
Image pending generation: circuit for Q18.

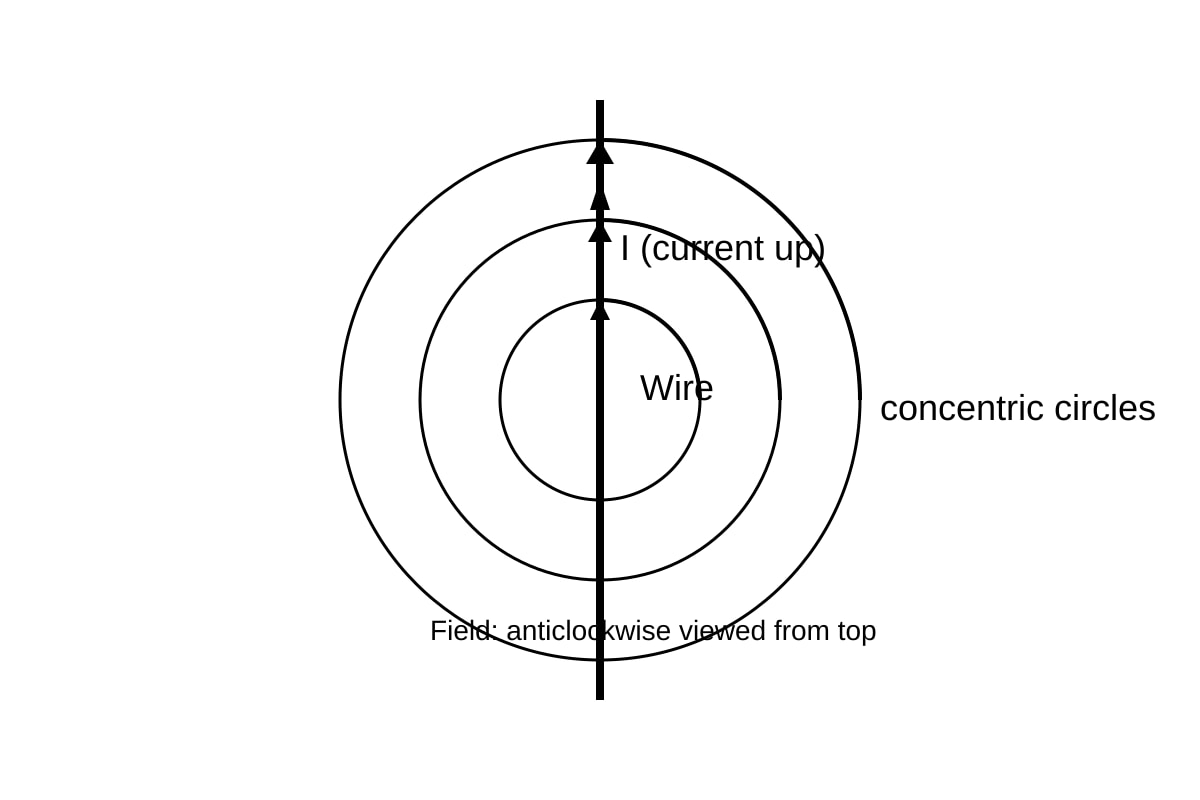

19. Draw the magnetic field pattern around a straight current-carrying wire. [2]
Image pending generation: diagram for Q19.
20. A transformer has 100 turns on the primary coil and 200 turns on the secondary coil. The primary voltage is 12 V. Calculate the secondary voltage and state whether it is step-up or step-down. [4]
Total Marks for Paper: 65
Answers
TuitionGoWhere Exam Practice (AI) - Combined Science O-Level
Physical Sciences Practice Paper (Version 2 of 5) - Answer Key
Total Marks: 65
Section A: Energy, Forces and Motion (26 marks)
Q1 [2 marks]
Answer: Energy cannot be created or destroyed, only converted from one form to another (or total energy in a closed system is conserved).
Teaching note: This is the principle of conservation of energy. Students must mention both "not created/destroyed" and "converted/transformed" for full marks. Common mistake: stating only "energy cannot be created or destroyed" without conversion → 1 mark only.
Q2 [3 marks]
Step 1: Total height = 25 × 15 cm = 375 cm = 3.75 m. [1]
Step 2: Work done against gravity = Weight × height = 500 N × 3.75 m = 1875 J. [1]
Step 3: Power = Work / time = 1875 J / 12 s = 156.25 W ≈ 156 W. [1]
Answer: 156 W (or 156.25 W).
Teaching note: Convert cm to m before calculating. Using mass instead of weight is a trap; weight given directly so no need for mg.
Q3 [2 marks]
Answer: Diagram must show:
- Weight (W) downward from centre of block. [1]
- Normal reaction (N) upward from base, equal length to W. [1]
Teaching note: Block at rest on horizontal table → forces balanced. No friction if no horizontal push. From image placeholder: rectangle on table line, downward arrow W, upward arrow N equal size.
Q4 [2 marks]
Answer: Weight (downward), Tension in string (upward). [1+1]
Teaching note: At rest → two forces only, equal and opposite. Do not include air resistance unless specified.
Q5 [1 mark]
Answer: Gravitational potential energy (G.P.E.) is maximum at A.
Teaching note: Highest point = max height = max G.P.E., min kinetic energy.
Q6 [2 marks]
Answer: G.P.E. transforms to kinetic energy (K.E.) as it descends. [1] At B, G.P.E. is min, K.E. is max. [1]
Teaching note: Energy conservation in pendulum; from A to B height decreases.
Q7 [3 marks]
Step 1: Acceleration a = (v - u)/t = (20 - 0)/10 = 2 m/s². [1]
Step 2: Resultant force F = ma = 1200 kg × 2 m/s² = 2400 N. [1]
Step 3: Direction: forward (in direction of motion). [1]
Answer: 2400 N forward.
Teaching note: Use Newton's 2nd law. Mass given, not weight.
Q8 [2 marks]
Answer: Due to inertia (Newton's first law), the passenger's body tends to continue in its state of motion (forward) when the bus stops. [1+1]
Teaching note: Inertia = resistance to change in motion. Bus stops, passenger not acted on by same stopping force immediately.
Section B: Thermal Physics and Waves (19 marks)
Q9 [1 mark]
Answer: B. Free electrons and vibrating particles transfer kinetic energy.
Teaching note: Conduction in metals via free electrons; A is wrong (no bulk movement), C is convection, D is radiation.
Q10 [1 mark]
Answer: Conduction transfers heat without bulk movement of material; convection involves bulk movement of fluid. (Any one valid difference.)
Teaching note: e.g., conduction in solids, convection needs fluid circulation.
Q11 [2 marks]
Step 1: From diagram, one full wave = 4 cm. [1]
Step 2: Wavelength λ = 4 cm. [1]
Answer: 4 cm.
Teaching note: Distance between two successive crests/troughs. Image shows 4 cm per wave.
Q12 [2 marks]
Answer: Speed decreases; direction bends towards normal. [1+1]
Teaching note: Light enters denser medium (glass) → slows, refracts toward normal.
Q13 [2 marks]
Answer: Travel at speed of light in vacuum (3×10⁸ m/s); transverse waves; can travel vacuum. (Any two correct.) [1+1]
Teaching note: All EM waves share speed in vacuum and transverse nature.
Q14 [3 marks]
Answer: Black surface is a better emitter and absorber of infrared radiation. [1] Cloth radiates heat away faster. [1] Shiny metal reflects radiation, reducing loss. [1]
Teaching note: Radiation depends on surface colour/texture; black > shiny for emission.
Section C: Electricity and Magnetism (20 marks)
Q15 [1 mark]
Answer: Current through a metallic conductor is directly proportional to potential difference across it, at constant temperature.
Teaching note: Must mention constant temp for full definition.
Q16 [2 marks]
Step 1: V = IR → I = V/R = 6 / 10 = 0.6 A. [1 for formula, 1 for answer]
Answer: 0.6 A.
Q17 [3 marks]
Step 1: R_total = 4 + 6 = 10 Ω. [1]
Step 2: I = V / R = 10 / 10 = 1.0 A. [1]
Step 3: State units: R = 10 Ω, I = 1 A. [1]
Answer: 10 Ω, 1 A.
Q18 [3 marks]
Step 1: 1/R_eff = 1/3 + 1/6 = 2/6 + 1/6 = 3/6 = 1/2. [1]
Step 2: R_eff = 2 Ω. [1]
Step 3: Units stated. [1]
Answer: 2 Ω.
Teaching note: Parallel formula required; from image R1=3, R2=6.
Q19 [2 marks]
Answer: Concentric circles around wire, arrow anticlockwise (viewed from top) for upward current. [1 for circles, 1 for direction]
Teaching note: Right-hand grip rule; from image placeholder wire with I up.
Q20 [4 marks]
Step 1: V_s / V_p = N_s / N_p → V_s = 12 × (200/100) = 24 V. [2]
Step 2: Since N_s > N_p, step-up transformer. [1]
Step 3: Units and conclusion. [1]
Answer: 24 V, step-up.
Teaching note: Transformer equation; turns ratio >1 → step-up.
End of Answer Key – Total 65 marks
