O Level Chemistry Practice Paper 5

TuitionGoWhere Practice Paper - Chemistry O-Level

Answer Key and Marking Scheme

Version 5 of 5

Section A: Multiple Choice & Short Structured Questions

[20 marks]

Question 1

Answer: A

Explanation: Neutralisation is specifically the reaction between H⁺ ions (from an acid) and OH⁻ ions (from an alkali/base) to form water. Option A shows this ionic equation correctly. Option B is the formation of water from its elements. Option C is the full equation for a specific neutralisation reaction, not the ionic equation. Option D is the self-ionisation of water.

[1 mark]

Question 2

(a) pH range: approximately 11–14 (or any value in this range, e.g., 12–13).

Explanation: Blue-violet colour with Universal Indicator indicates a strongly alkaline solution, corresponding to pH 11–14.

[1 mark]

(b) Any suitable household alkali, e.g., sodium hydroxide (drain cleaner), ammonia solution (household cleaner), bleach, oven cleaner, or soap solution.

[1 mark]

Question 3

(a) A weak acid is an acid that only partially ionises/dissociates in aqueous solution to form H⁺ ions. Only a small proportion of the acid molecules release H⁺ ions; the ionisation is reversible and an equilibrium is established between the undissociated acid molecules and the ions.

Marking points:

• Partial ionisation/dissociation [1]
• Reference to equilibrium/reversibility OR contrast with complete ionisation of strong acids [1]

[2 marks]

(b) The reaction with magnesium would be slower/less vigorous with ethanoic acid than with hydrochloric acid (of equal concentration). There would be less effervescence/bubbling per unit time.

Explanation: Ethanoic acid has a lower concentration of H⁺ ions in solution because it is only partially ionised, so the rate of reaction with magnesium is slower.

[1 mark]

Question 4

(a) CuO(s) + H₂SO₄(aq) → CuSO₄(aq) + H₂O(l)

Marking points:

• Correct formulae for all reactants and products [1]
• Correct state symbols [1]

[2 marks]

(b) Excess copper(II) oxide is used to ensure that all the sulfuric acid is completely reacted/neutralised. This ensures no excess acid remains in the solution, which would contaminate the copper(II) sulfate crystals.

[1 mark]

(c) Steps to obtain pure, dry crystals:

1. Filter the reaction mixture to remove the excess (unreacted) copper(II) oxide. [1]
2. Heat the filtrate (copper(II) sulfate solution) to evaporate some of the water until the solution is saturated / until crystallisation point is reached. [1]
3. Allow the hot saturated solution to cool slowly so that copper(II) sulfate crystals form. Filter the crystals and dry them between pieces of filter paper / leave to dry in a warm place. [1]

Note: Accept "heat until saturated, then allow to cool and crystallise" as equivalent to steps 2 and 3.

[3 marks]

Question 5

(a) The anion present is chloride (Cl⁻).

Explanation:

• Addition of dilute nitric acid followed by aqueous silver nitrate produces a white precipitate. [1]
• This white precipitate is silver chloride (AgCl), which confirms the presence of chloride ions. The nitric acid is added first to remove any carbonate ions that might also produce a precipitate with silver nitrate. [1]

[2 marks]

(b) The cation could be any cation that does not produce a pungent gas with warm sodium hydroxide (i.e., not ammonium, NH₄⁺) and does not form an insoluble sulfate (since no precipitate formed with barium nitrate).

Acceptable answers: Sodium (Na⁺), potassium (K⁺), calcium (Ca²⁺), magnesium (Mg²⁺), etc.

Explanation: No pungent gas evolved on warming with NaOH means ammonium ions are absent. No precipitate with barium nitrate after acidification means sulfate ions are absent (this confirms the anion identification and also rules out cations that would interfere, though this test is primarily for anions). Any cation whose chloride is soluble and does not produce ammonia with NaOH is acceptable.

Marking points:

• Correct identification of a suitable cation [1]
• Logical reasoning referencing the test observations [1]

[2 marks]

Question 6

(a) N₂(g) + 3H₂(g) ⇌ 2NH₃(g)

Marking points:

• Correct formulae [1]
• Correct state symbols AND reversible arrow [1]

[2 marks]

(b) Temperature: approximately 450°C; Pressure: approximately 200–250 atm (accept 200 atm).

[1 mark]

(c) The reaction is exothermic in the forward direction (N₂ + 3H₂ → 2NH₃, ΔH = −92 kJ mol⁻¹).

• A lower temperature would favour the forward reaction and give a higher equilibrium yield of ammonia. However, a lower temperature would make the reaction too slow to be economical. [1]
• A higher temperature increases the rate of reaction (more particles have energy greater than activation energy), so ammonia is produced faster. However, it reduces the equilibrium yield because the equilibrium shifts to favour the endothermic reverse reaction. [1]
• The chosen temperature (450°C) is a compromise that gives a reasonable rate of reaction while still producing an acceptable yield of ammonia.

[2 marks]

Section B: Data-Based and Diagram Questions

[20 marks]

Question 7

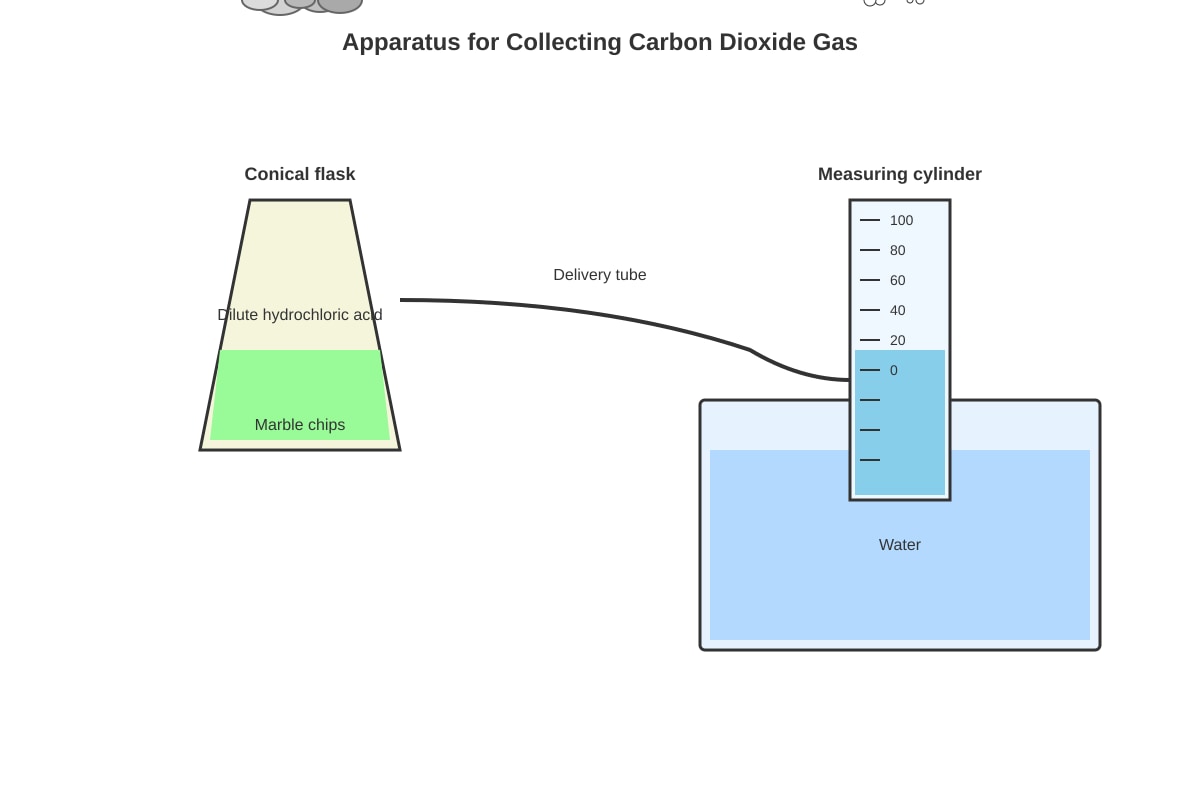

(a) Displacement of water / downward displacement of water / collection over water.

[1 mark]

(b) CaCO₃(s) + 2HCl(aq) → CaCl₂(aq) + H₂O(l) + CO₂(g)

Marking points:

• Correct formulae [1]
• Correct state symbols [1]

[2 marks]

(c) Sketch should show four curves on the same axes:

• Curve A (large chips, 25°C, 1.0 M): Slowest initial rate (shallowest initial gradient), reaches the same final volume as B, C, and D (since same amount of CaCO₃).
• Curve B (large chips, 35°C, 1.0 M): Faster than A but slower than C and D. Same final volume.
• Curve C (small chips, 25°C, 1.0 M): Faster than A and B (steeper initial gradient). Same final volume.
• Curve D (small chips, 25°C, 2.0 M): Fastest initial rate (steepest initial gradient). Same final volume as others.

Marking points:

• All four curves reaching the same final volume [1]
• Correct relative initial gradients: D > C > B > A [1]
• Curves correctly labelled [1]
• Curves levelling off (plateauing) at the same height [1]

[4 marks]

(d) Explanation using collision theory:

• In Experiment D, the marble chips are smaller (greater surface area) and the acid concentration is higher (2.0 mol dm⁻³ vs. 1.0 mol dm⁻³) compared to Experiment A. [1]
• The smaller chip size means there is a larger total surface area of calcium carbonate exposed to the acid. This allows more frequent collisions between H⁺ ions and CaCO₃ particles per unit time. [1]
• The higher acid concentration means there are more H⁺ ions per unit volume of solution. This also increases the frequency of effective collisions between reactant particles. [1]
• Both factors (greater surface area and higher concentration) increase the frequency of effective collisions, leading to a faster rate of reaction in Experiment D compared to Experiment A. [1]

[3 marks]

Question 8

(a)

Marking points: 1 mark for each correct row.

Explanation: HCl is a strong acid, fully ionised, so [H⁺] = 0.1 mol dm⁻³, pH ≈ 1. Ethanoic acid is a weak acid, partially ionised, so [H⁺] < 0.1 mol dm⁻³, pH ≈ 3. NaOH is a strong alkali, fully ionised, so [OH⁻] = 0.1 mol dm⁻³, pOH = 1, pH = 13.

[3 marks]

(b) Suitable substance: calcium hydroxide (slaked lime) / calcium oxide (quicklime) / calcium carbonate (limestone).

Explanation: Calcium hydroxide (or calcium oxide/calcium carbonate) is commonly used because:

• It is a base that neutralises the excess acidity in the soil, raising the pH. [1]
• It is relatively cheap and widely available. It is not too strongly alkaline, so it is less likely to make the soil excessively alkaline if used in appropriate amounts. [1]

[2 marks]

(c) Equation: SO₂(g) + H₂O(l) → H₂SO₃(aq)

Marking points:

• Correct equation with state symbols [1]
• Correct name of acid: sulfurous acid [1]

Note: Accept H₂SO₄ (sulfuric acid) only if the equation shows further oxidation: 2SO₂ + O₂ + 2H₂O → 2H₂SO₄, but the direct dissolution product is sulfurous acid.

[2 marks]

Question 9

(a) Calculation:

Moles of NaOH = concentration × volume (in dm³)
= 0.150 × (30.0 / 1000) = 0.00450 mol [1]

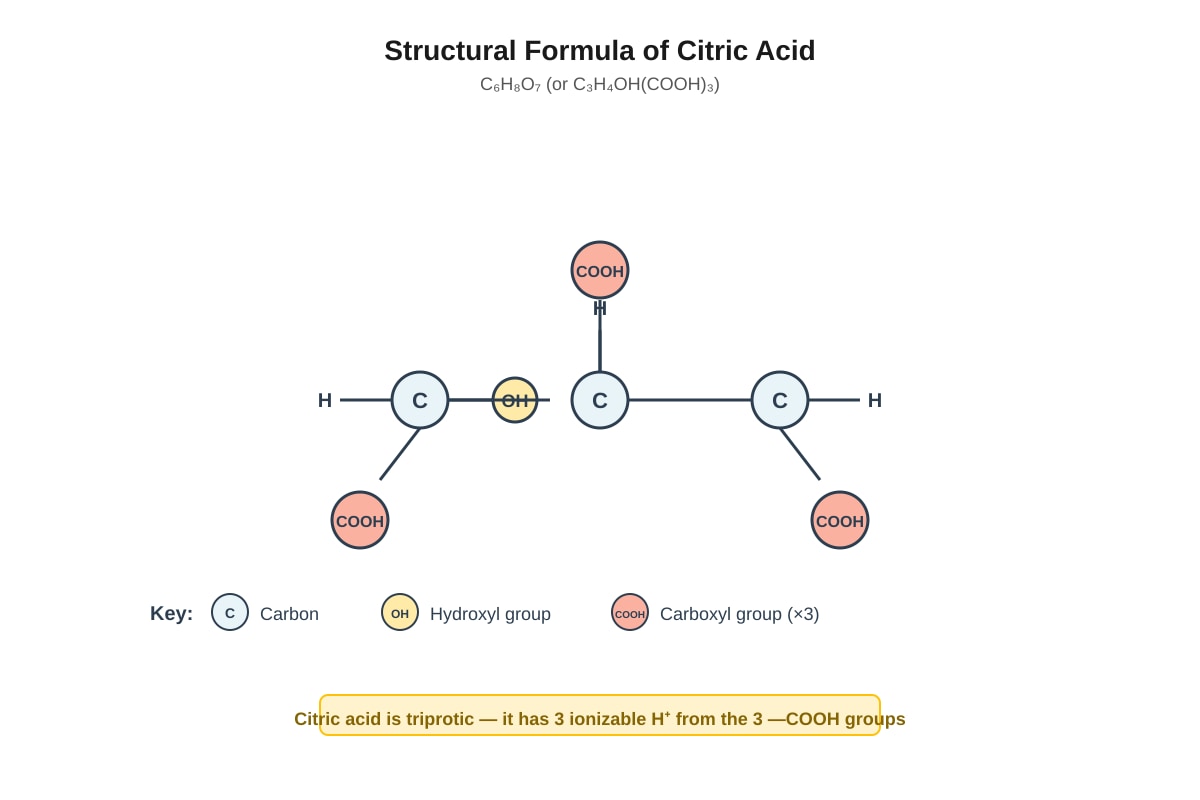

From equation: 3 mol NaOH reacts with 1 mol citric acid (C₆H₈O₇)
Moles of citric acid = 0.00450 / 3 = 0.00150 mol [1]

Concentration of citric acid = moles / volume (in dm³)
= 0.00150 / (25.0 / 1000) = 0.0600 mol dm⁻³ [1]

Answer: 0.0600 mol dm⁻³

[3 marks]

(b) The titre volume would be the same.

Explanation: Both sodium hydroxide and potassium hydroxide are strong alkalis that fully ionise in water to produce OH⁻ ions. The concentration of OH⁻ ions is the same (0.150 mol dm⁻³) in both solutions. Since the reaction is between H⁺ (from citric acid) and OH⁻ (from the alkali), the same number of moles of OH⁻ are needed regardless of whether the cation is Na⁺ or K⁺. Therefore, the same volume of alkali solution is required.

Marking points:

• States that volume is the same [1]
• Explains in terms of equal OH⁻ concentration / same mole ratio [1]

[2 marks]

Question 10

(a) Carbon dioxide (CO₂).

Explanation: The gas turns limewater milky, which is the characteristic test for carbon dioxide.

[1 mark]

(b) The cation is zinc (Zn²⁺).

Explanation:

• With aqueous sodium hydroxide, a white precipitate is formed. This white precipitate is soluble in excess NaOH. [1]
• With aqueous ammonia, a white precipitate is formed. This white precipitate is soluble in excess NH₃(aq). [1]
• These observations are characteristic of Zn²⁺ ions. (Al³⁺ and Pb²⁺ also give white precipitates with NaOH and NH₃, but Al³⁺ precipitate is insoluble in excess NH₃, and Pb²⁺ precipitate is insoluble in excess NH₃. Only Zn²⁺ gives a precipitate soluble in both excess NaOH and excess NH₃.)

[2 marks]

(c) The anion is carbonate (CO₃²⁻).

Explanation: Addition of dilute nitric acid produces effervescence of a colourless, odourless gas that turns limewater milky. This confirms the presence of carbonate ions.

[1 mark]

(d) Compound X is zinc carbonate (ZnCO₃).

[1 mark]

Section C: Free-Response Questions

[20 marks]

Question 11

(a)(i) Sodium chloride, NaCl: Method 1 (Titration)

Explanation: Sodium chloride is a soluble salt formed from a strong acid (HCl) and a strong alkali (NaOH). Both reactants are soluble, so the excess solid method cannot be used (there would be no insoluble excess to filter off). Titration is used because the exact volumes of acid and alkali needed for complete neutralisation can be determined using an indicator. The solution is then evaporated to obtain the salt crystals.

Marking points:

• Correct method [1]
• Valid explanation (both reactants soluble; titration needed to find exact volumes) [1]

[2 marks]

(a)(ii) Lead(II) sulfate, PbSO₄: Method 3 (Precipitation)

Explanation: Lead(II) sulfate is an insoluble salt (as indicated by solubility rules: most sulfates are soluble, but lead(II) sulfate is an exception). Insoluble salts are best prepared by precipitation — mixing two aqueous solutions containing the required ions. The insoluble salt precipitates out and can be collected by filtration.

Marking points:

• Correct method [1]
• Valid explanation (PbSO₄ is insoluble; precipitation is the standard method for insoluble salts) [1]

[2 marks]

(a)(iii) Zinc sulfate, ZnSO₄: Method 2 (Acid + excess insoluble base/carbonate)

Explanation: Zinc sulfate is a soluble salt. It can be prepared by reacting dilute sulfuric acid with an excess of an insoluble zinc compound, such as zinc oxide, zinc carbonate, or zinc metal. The excess solid can be removed by filtration after the reaction is complete, leaving a pure solution of zinc sulfate, which can then be crystallised.

Marking points:

• Correct method [1]
• Valid explanation (soluble salt; can use excess insoluble reactant that can be filtered off) [1]

[2 marks]

(b) Preparation of lead(II) chloride by precipitation:

Starting materials: Lead(II) nitrate solution (or any soluble lead(II) salt) and sodium chloride solution (or any soluble chloride salt), e.g., Pb(NO₃)₂(aq) and NaCl(aq).

Steps:

1. Mix equal volumes of lead(II) nitrate solution and sodium chloride solution in a beaker. Stir the mixture. [1]
2. A white precipitate of lead(II) chloride will form immediately. [1]
3. Filter the mixture to separate the precipitate from the solution. [1]
4. Wash the residue (precipitate) on the filter paper with distilled water to remove any soluble impurities. [1]
5. Dry the precipitate between pieces of filter paper or in a warm oven/desiccator to obtain pure, dry lead(II) chloride. [1]

Equation: Pb(NO₃)₂(aq) + 2NaCl(aq) → PbCl₂(s) + 2NaNO₃(aq)

Marking points: Award marks for clear, logical sequence covering mixing, precipitation, filtration, washing, and drying.

[4 marks]

Question 12

(a) An amphoteric oxide is a metal oxide that can react with both acids and alkalis/bases to form a salt and water. It displays both acidic and basic properties.

Example: Zinc oxide (ZnO), aluminium oxide (Al₂O₃), or lead(II) oxide (PbO).

Marking points:

• Correct definition (reacts with both acids and bases) [1]
• Correct example [1]

[2 marks]

(b)(i) Sodium oxide, Na₂O: Basic oxide

Equation: Na₂O(s) + H₂O(l) → 2NaOH(aq)
OR Na₂O(s) + 2HCl(aq) → 2NaCl(aq) + H₂O(l)

Explanation: Sodium oxide is a metal oxide that reacts with water to form an alkaline solution (sodium hydroxide) or reacts with acids to form a salt and water.

Marking points:

• Correct classification [1]
• Correct balanced equation with state symbols [1]

[2 marks]

(b)(ii) Sulfur trioxide, SO₃: Acidic oxide

Equation: SO₃(g) + H₂O(l) → H₂SO₄(aq)
OR SO₃(g) + 2NaOH(aq) → Na₂SO₄(aq) + H₂O(l)

Explanation: Sulfur trioxide is a non-metal oxide that reacts with water to form an acidic solution (sulfuric acid) or reacts with alkalis to form a salt and water.

Marking points:

• Correct classification [1]
• Correct balanced equation with state symbols [1]

[2 marks]

(b)(iii) Zinc oxide, ZnO: Amphoteric oxide

Equation (with acid): ZnO(s) + 2HCl(aq) → ZnCl₂(aq) + H₂O(l)
Equation (with alkali): ZnO(s) + 2NaOH(aq) + H₂O(l) → Na₂Zn(OH)₄(aq)
OR ZnO(s) + 2NaOH(aq) → Na₂ZnO₂(aq) + H₂O(l)

Explanation: Zinc oxide reacts with both acids (forming zinc chloride and water) and alkalis (forming sodium zincate and water), demonstrating amphoteric behaviour.

Marking points:

• Correct classification [1]
• At least one correct balanced equation with state symbols (either with acid or alkali) [1]

[2 marks]

(c) A neutral oxide is an oxide that does not react with either acids or alkalis to form a salt. It shows neither acidic nor basic properties.

Explanation for difference from CO₂:

• Carbon dioxide (CO₂) is an acidic oxide because it reacts with water to form carbonic acid (H₂CO₃) and reacts with alkalis to form carbonates. The carbon atom in CO₂ is in a +4 oxidation state and can accept electron pairs from water or hydroxide ions.
• Carbon monoxide (CO) does not react with water or alkalis under normal conditions. The carbon atom in CO has a +2 oxidation state, and the molecule is relatively stable and unreactive towards water and aqueous alkalis. CO does not have the same tendency as CO₂ to form an acid when dissolved in water.

Marking points:

• Correct definition of neutral oxide [1]
• Valid explanation for why CO differs from CO₂ (reference to reactivity with water/alkalis, or oxidation state, or molecular stability) [1]

[2 marks]

END OF ANSWER KEY
