O Level Additional Mathematics Geometry Trigonometry Quiz

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

O-Level Additional Mathematics Quiz - Geometry Trigonometry

Name: ________________________
Class: ________________________
Date: ________________________
Score: ______ / 50

Duration: 60 minutes
Total Marks: 50

Instructions:

• Answer all 20 questions.
• Show all working clearly. Marks are awarded for correct methods and final answers.
• Use a calculator where permitted. Give non-exact answers to 3 significant figures unless stated otherwise.
• This quiz is syllabus-first practice generated from AI-inferred templates. It is not derived from any specific past-year exam paper.

---

Section A: Trigonometric Ratios and Identities (Questions 1–5)

1. Given that $\sin \theta = \frac{3}{5}$ and $\theta$ is acute, find the exact value of $\cos \theta$. [2]

---

2. Without using a calculator, evaluate $\tan 45^\circ + \cos 60^\circ$. [2]

---

3. Prove the identity $\frac{\sin x}{\cos x} + \frac{\cos x}{\sin x} = \frac{1}{\sin x \cos x}$. [3]

---

4. Given that $\tan A = \frac{5}{12}$ and $A$ is acute, find the exact value of $\sin A$. [2]

---

5. Simplify $(\sin \theta + \cos \theta)^2 - (\sin^2 \theta + \cos^2 \theta)$. [2]

---

---

Section B: Trigonometric Equations and Graphs (Questions 6–10)

6. Solve $2\sin x - 1 = 0$ for $0^\circ \le x \le 360^\circ$. [2]

---

7. Solve $\cos 2x = 0.5$ for $0 \le x \le 2\pi$ radians, giving your answers in terms of $\pi$. [3]

---

8. The graph of $y = 3\sin(2x) + 1$ is drawn for $0 \le x \le \pi$. State the amplitude and the maximum value of $y$. [2]

---

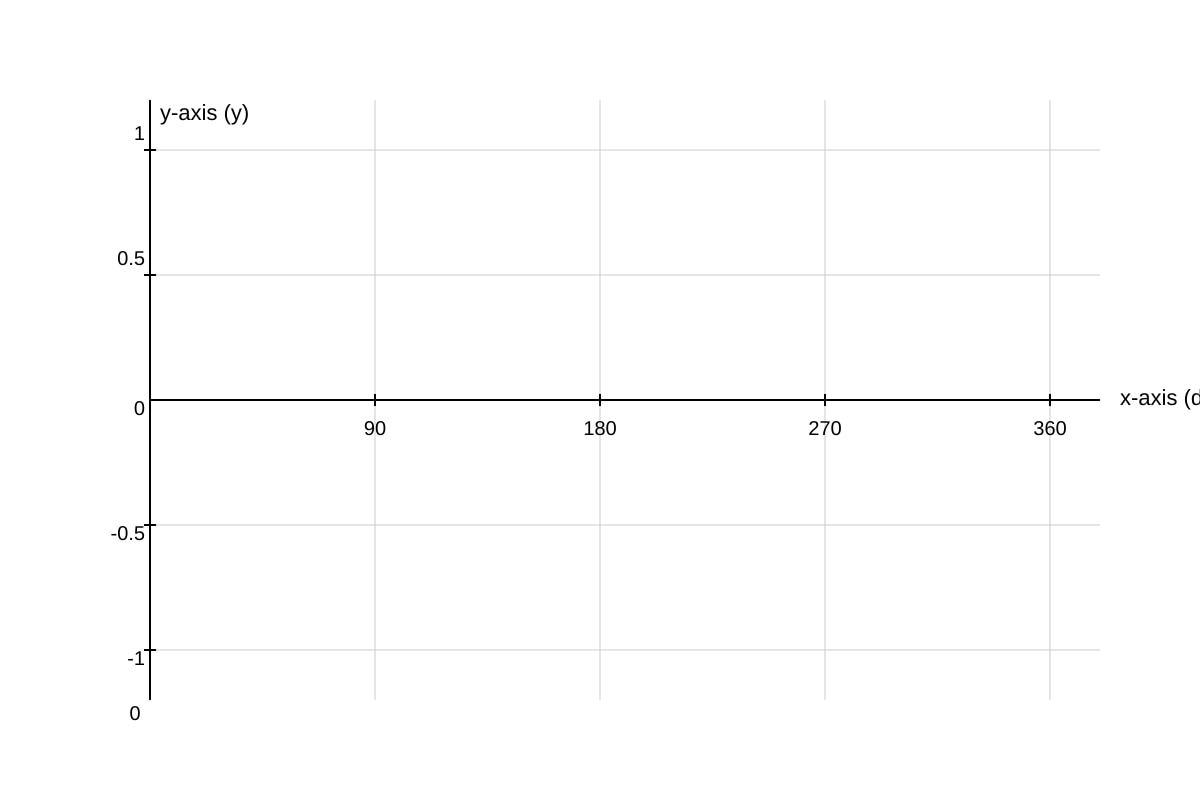

9. Sketch the graph of $y = \cos x$ for $0^\circ \le x \le 360^\circ$. Mark the intercepts with the axes. [3]

Image pending generation: graph for Q9.

---

10. The function $y = a \sin(bx) + c$ has period $180^\circ$ and maximum value 4, minimum value 0. Find $a$, $b$, and $c$. [3]

---

---

Section C: Triangle Geometry and Bearings (Questions 11–15)

11. In triangle $ABC$, $AB = 7$ cm, $BC = 10$ cm, and $\angle ABC = 50^\circ$. Use the cosine rule to find the length of $AC$. [3]

---

12. In triangle $PQR$, $PQ = 8$, $PR = 11$, and $QR = 14$. Find $\angle QPR$ using the cosine rule. [3]

---

13. A triangle has sides $5$ cm, $7$ cm, and $9$ cm. Find the area using Heron's formula. [3]

---

14. From a point $O$, town $A$ is on a bearing of $040^\circ$ and town $B$ is on a bearing of $130^\circ$. If $OA = 12$ km and $OB = 9$ km, find the distance $AB$. [3]

---

15. In triangle $XYZ$, $\angle X = 30^\circ$, $\angle Y = 70^\circ$, and $XY = 15$ cm. Use the sine rule to find the length of $YZ$. [3]

---

---

Section D: Circle Geometry and 3D Trigonometry (Questions 16–20)

16. A circle has equation $x^2 + y^2 - 4x + 6y - 12 = 0$. Find the coordinates of its centre and its radius. [3]

---

17. Find the equation of the circle with centre $(2, -3)$ and radius $5$. [2]

---

18. A chord of a circle with centre $O$ and radius $10$ cm is $12$ cm long. Find the perpendicular distance from $O$ to the chord. [3]

---

19. A ladder $5$ m long leans against a vertical wall. The foot of the ladder is $2$ m from the wall. Find the angle the ladder makes with the ground. [3]

---

20. In a triangle formed by two vectors $\vec{u} = (3, 4)$ and $\vec{v} = (4, -3)$, find the angle between them using the scalar product. [4]

---

<!-- TuitionGoWhere generation metadata: stage=5-1; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 4-0 LLM templates, syllabus context, and Stage 2 evidence where available. -->

O-Level Additional Mathematics Quiz - Geometry Trigonometry (Answer Key)

Total Marks: 50
Topic: Geometry & Trigonometry (syllabus-first AI practice)

---

Section A: Trigonometric Ratios and Identities

1. [2 marks]
Given $\sin \theta = \frac{3}{5}$, acute $\theta$.
Use $\sin^2\theta + \cos^2\theta = 1$:
$\cos^2\theta = 1 - \left(\frac{3}{5}\right)^2 = 1 - \frac{9}{25} = \frac{16}{25}$
$\cos\theta = \sqrt{\frac{16}{25}} = \frac{4}{5}$ (positive since acute).
Answer: $\frac{4}{5}$
Teaching note: Acute angle → all trig ratios positive. Pythagorean identity is core.

2. [2 marks]
$\tan 45^\circ = 1$, $\cos 60^\circ = \frac{1}{2}$.
Sum = $1 + \frac{1}{2} = \frac{3}{2}$.
Answer: $\frac{3}{2}$
Teaching note: Exact values from 30-60-90 and 45-45-90 triangles.

3. [3 marks]
LHS: $\frac{\sin x}{\cos x} + \frac{\cos x}{\sin x} = \frac{\sin^2 x + \cos^2 x}{\sin x \cos x} = \frac{1}{\sin x \cos x}$ = RHS.
Marking: Common denominator (1), use identity (1), final form (1).
Teaching note: Always combine fractions to reveal identity.

4. [2 marks]
$\tan A = \frac{5}{12}$ → opposite 5, adjacent 12, hypotenuse $\sqrt{5^2+12^2}=13$.
$\sin A = \frac{5}{13}$.
Answer: $\frac{5}{13}$

5. [2 marks]
$(\sin\theta+\cos\theta)^2 = \sin^2\theta + 2\sin\theta\cos\theta + \cos^2\theta$.
Subtract $(\sin^2\theta+\cos^2\theta)=1$: result $2\sin\theta\cos\theta$.
Answer: $2\sin\theta\cos\theta$

---

Section B: Trigonometric Equations and Graphs

6. [2 marks]
$2\sin x = 1 \Rightarrow \sin x = 0.5$.
$x = 30^\circ, 150^\circ$ in given range.
Answer: $30^\circ, 150^\circ$

7. [3 marks]
$\cos 2x = 0.5 \Rightarrow 2x = \frac{\pi}{3}, \frac{5\pi}{3}, \frac{7\pi}{3}, \frac{11\pi}{3}$ (within $0\le 2x\le 4\pi$).
$x = \frac{\pi}{6}, \frac{5\pi}{6}, \frac{7\pi}{6}, \frac{11\pi}{6}$.
Answer: $\frac{\pi}{6}, \frac{5\pi}{6}, \frac{7\pi}{6}, \frac{11\pi}{6}$

8. [2 marks]
$y = 3\sin(2x)+1$: amplitude $= |3| = 3$. Max $= 3+1 = 4$.
Answer: amplitude 3, max 4

9. [3 marks]
Graph: starts at (0,1), crosses x-axis at 90° and 270°, min at 180° (-1), ends at (360,1).
Image requirement: axes labelled, points (0,1),(90,0),(180,-1),(270,0),(360,1) shown.
Marking: correct shape (1), intercepts marked (1), labels (1).

10. [3 marks]
Max 4, min 0 → $a = \frac{4-0}{2}=2$, $c = \frac{4+0}{2}=2$.
Period $180^\circ = \frac{360^\circ}{b} \Rightarrow b = 2$.
Answer: $a=2, b=2, c=2$

---

Section C: Triangle Geometry and Bearings

11. [3 marks]
$AC^2 = 7^2 + 10^2 - 2(7)(10)\cos 50^\circ = 49+100-140(0.6428)=149-89.99=59.01$.
$AC = \sqrt{59.01} \approx 7.68$ cm.
Answer: 7.68 cm

12. [3 marks]
$\cos \angle QPR = \frac{8^2+11^2-14^2}{2(8)(11)} = \frac{64+121-196}{176} = \frac{-11}{176} = -0.0625$.
$\angle QPR = \cos^{-1}(-0.0625) \approx 93.6^\circ$.
Answer: $93.6^\circ$

13. [3 marks]
$s = \frac{5+7+9}{2}=10.5$.
Area $= \sqrt{10.5(5.5)(3.5)(1.5)} = \sqrt{303.19} \approx 17.4$ cm².
Answer: 17.4 cm²

14. [3 marks]
Angle $AOB = 130^\circ - 40^\circ = 90^\circ$.
$AB^2 = 12^2+9^2 = 144+81=225 \Rightarrow AB=15$ km.
Answer: 15 km

15. [3 marks]
$\angle Z = 180^\circ-30^\circ-70^\circ = 80^\circ$.
$\frac{YZ}{\sin 30^\circ} = \frac{15}{\sin 80^\circ} \Rightarrow YZ = \frac{15\sin 30^\circ}{\sin 80^\circ} = \frac{7.5}{0.9848} \approx 7.62$ cm.
Answer: 7.62 cm

---

Section D: Circle Geometry and 3D Trigonometry

16. [3 marks]
$x^2-4x + y^2+6y = 12$.
$(x-2)^2-4 + (y+3)^2-9 = 12 \Rightarrow (x-2)^2+(y+3)^2=25$.
Centre $(2,-3)$, radius $5$.
Answer: centre (2,-3), radius 5

17. [2 marks]
$(x-2)^2+(y+3)^2 = 25$.
Answer: $(x-2)^2+(y+3)^2=25$

18. [3 marks]
Half-chord = 6 cm. Right triangle: $d^2 + 6^2 = 10^2 \Rightarrow d^2=64 \Rightarrow d=8$ cm.
Answer: 8 cm

19. [3 marks]
$\cos \theta = \frac{2}{5} = 0.4 \Rightarrow \theta = \cos^{-1}(0.4) \approx 66.4^\circ$.
Answer: $66.4^\circ$

20. [4 marks]
$\vec{u}\cdot\vec{v} = 3(4)+4(-3)=0$.
$|\vec{u}|=5, |\vec{v}|=5$.
$\cos\theta = \frac{0}{25}=0 \Rightarrow \theta = 90^\circ$.
Answer: $90^\circ$
Marking: dot product (1), magnitudes (1), cosine formula (1), angle (1).
