O-Level Additional Mathematics Quiz - Geometry Trigonometry

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40

Instructions:

• Answer all 20 questions.
• Show your working clearly where required.
• Use a calculator where permitted.
• Write your answers in the spaces provided.

---

Section A: Trigonometric Functions and Identities (Questions 1–7)

1. Given that $\sin \theta = \frac{3}{5}$ and $\theta$ is acute, find the exact value of $\cos \theta$. [2]

---

2. Without using a calculator, evaluate $\tan 45^\circ + \cos 60^\circ$. [2]

---

3. Prove the identity $\frac{1 - \cos^2 x}{\sin x} = \sin x$. [3]

---

4. Solve the equation $2\sin x - 1 = 0$ for $0^\circ \le x \le 360^\circ$. [3]

---

5. Express $4\sin x + 3\cos x$ in the form $R\sin(x + \alpha)$, where $R > 0$ and $0^\circ < \alpha < 90^\circ$. [4]

---

6. Find the principal value of $\cos^{-1}\left(-\frac{1}{2}\right)$ in degrees. [2]

---

7. Given $\tan A = \frac{5}{12}$ and $A$ is acute, find $\sin A$ and $\cos A$ as exact fractions. [3]

---

---

Section B: Trigonometric Graphs and Equations (Questions 8–13)

8. Sketch the graph of $y = 2\sin x$ for $0^\circ \le x \le 360^\circ$. State the amplitude and period. [3]

---

9. The graph of $y = a\sin(bx) + c$ has maximum value 5 and minimum value 1. Find $a$ and $c$. [3]

---

10. Solve $\cos 2x = \frac{1}{2}$ for $0 \le x \le 2\pi$ radians. [4]

---

11. State the period of the function $y = \tan(3x)$. [2]

---

12.

Image pending generation: graph for Q12.

Using the graph above, write the equation of the curve in the form $y = a\sin(bx)$. [2]

---

13. Solve $3\tan x + \sqrt{3} = 0$ for $0^\circ < x < 180^\circ$. [2]

---

---

Section C: Geometry with Trigonometry (Questions 14–20)

14. In triangle $ABC$, $AB = 7$ cm, $BC = 5$ cm, and $\angle ABC = 60^\circ$. Find the length of $AC$ using the cosine rule. [3]

---

15. A ladder 10 m long leans against a wall so that the foot of the ladder is 6 m from the wall. Find the angle the ladder makes with the ground. [3]

---

16. In triangle $PQR$, $PQ = 8$ cm, $PR = 11$ cm, and $\angle QPR = 40^\circ$. Find the area of triangle $PQR$. [3]

---

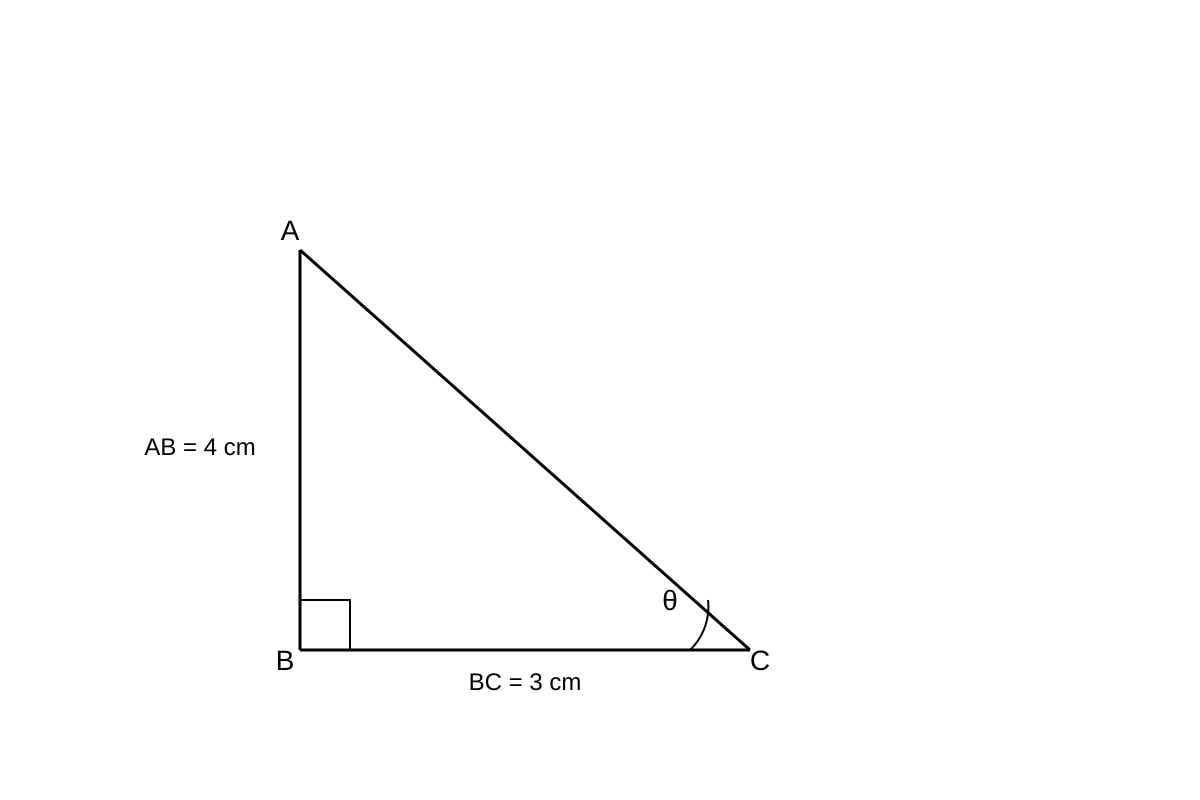

17.

Image pending generation: diagram for Q17.

Using the diagram above, find $\tan \theta$. [2]

---

18. Points $P(1, 2)$ and $Q(4, 6)$ are given. Find the distance $PQ$ and the angle that $PQ$ makes with the positive x-axis. [4]

---

19. A triangle has sides 9 cm, 12 cm, and 15 cm. Show that it is right-angled and find the angle opposite the 15 cm side. [3]

---

20. From a point 50 m from the base of a vertical tower, the angle of elevation to the top is $30^\circ$. Find the height of the tower. [3]

---

<!-- TuitionGoWhere generation metadata: stage=3-0; model=tencent/hy3:free; model_label=Tencent HY3 Free; generated=2026-07-09; Sources: Stage 2-1 real exam-derived templates and Stage 2-2 exam-enriched syllabus. -->

O-Level Additional Mathematics Quiz - Geometry Trigonometry (Answer Key)

Total Marks: 40
Topic: Geometry Trigonometry

---

Section A: Trigonometric Functions and Identities

Q1. [2 marks]
Given $\sin\theta = \frac{3}{5}$, acute $\theta$.
Use $\sin^2\theta + \cos^2\theta = 1$:
$\cos^2\theta = 1 - \left(\frac{3}{5}\right)^2 = 1 - \frac{9}{25} = \frac{16}{25}$
$\cos\theta = \sqrt{\frac{16}{25}} = \frac{4}{5}$ (positive since acute).
Answer: $\frac{4}{5}$
Teaching note: Acute angle → all trig ratios positive. Common mistake: forgetting to take square root or wrong sign.

Q2. [2 marks]
$\tan 45^\circ = 1$, $\cos 60^\circ = \frac{1}{2}$.
Sum = $1 + \frac{1}{2} = \frac{3}{2}$.
Answer: $\frac{3}{2}$
Teaching note: Exact values from special angles must be memorised.

Q3. [3 marks]
LHS: $\frac{1 - \cos^2 x}{\sin x}$.
Using $1 - \cos^2 x = \sin^2 x$,
= $\frac{\sin^2 x}{\sin x} = \sin x$ = RHS.
Answer: Proved.
Marking: 1 mark identity, 1 mark substitution, 1 mark simplification.

Q4. [3 marks]
$2\sin x - 1 = 0 \Rightarrow \sin x = \frac{1}{2}$.
In $0^\circ \le x \le 360^\circ$, $\sin$ positive in Q1, Q2.
$x = 30^\circ, 150^\circ$.
Answer: $30^\circ, 150^\circ$
Common mistake: missing second solution in Q2.

Q5. [4 marks]
$R\sin(x+\alpha) = R\sin x\cos\alpha + R\cos x\sin\alpha$.
Match: $R\cos\alpha = 4$, $R\sin\alpha = 3$.
$R^2 = 4^2+3^2 = 25 \Rightarrow R = 5$.
$\tan\alpha = \frac{3}{4} \Rightarrow \alpha = \tan^{-1}(0.75) \approx 36.87^\circ$.
Answer: $5\sin(x + 36.87^\circ)$
Marking: 2 marks for R, 2 for α.

Q6. [2 marks]
$\cos^{-1}(-0.5)$ principal value in $[0^\circ,180^\circ]$ is $120^\circ$.
Answer: $120^\circ$

Q7. [3 marks]
$\tan A = 5/12$ → opposite 5, adjacent 12, hypotenuse $= \sqrt{5^2+12^2}=13$.
$\sin A = 5/13$, $\cos A = 12/13$.
Answer: $\sin A = \frac{5}{13}, \cos A = \frac{12}{13}$

---

Section B: Trigonometric Graphs and Equations

Q8. [3 marks]
Amplitude = 2, period = $360^\circ$. Sketch: sine wave scaled vertically by 2.
Marking: 1 graph, 1 amp, 1 period.

Q9. [3 marks]
Max = $a + c = 5$, Min = $-a + c = 1$.
Add: $2c = 6 \Rightarrow c = 3$; then $a = 2$.
Answer: $a=2, c=3$

Q10. [4 marks]
$\cos 2x = 1/2 \Rightarrow 2x = \pi/3, 5\pi/3, 7\pi/3, 11\pi/3$ (within $0\le 2x\le 4\pi$).
$x = \pi/6, 5\pi/6, 7\pi/6, 11\pi/6$.
Answer: $\frac{\pi}{6}, \frac{5\pi}{6}, \frac{7\pi}{6}, \frac{11\pi}{6}$

Q11. [2 marks]
Period of $\tan(kx)$ is $180^\circ/k = 60^\circ$.
Answer: $60^\circ$

Q12. [2 marks]
From placeholder: amplitude 2, period 360° → $a=2, b=1$.
Answer: $y = 2\sin x$

Q13. [2 marks]
$3\tan x = -\sqrt{3} \Rightarrow \tan x = -\frac{\sqrt{3}}{3} = -\frac{1}{\sqrt{3}}$.
In $(0^\circ,180^\circ)$, Q2 solution: $x = 150^\circ$.
Answer: $150^\circ$

---

Section C: Geometry with Trigonometry

Q14. [3 marks]
$AC^2 = 7^2 + 5^2 - 2(7)(5)\cos 60^\circ = 49+25-35 = 39$.
$AC = \sqrt{39}$ cm.
Answer: $\sqrt{39}$ cm

Q15. [3 marks]
$\cos\theta = \frac{6}{10} = 0.6 \Rightarrow \theta = \cos^{-1}(0.6) \approx 53.13^\circ$.
Answer: $53.1^\circ$ (or 53.13°)

Q16. [3 marks]
Area = $\frac{1}{2}(8)(11)\sin 40^\circ = 44 \times 0.6428 \approx 28.3$ cm².
Answer: 28.3 cm²

Q17. [2 marks]
$\tan\theta = \frac{\text{opp}}{\text{adj}} = \frac{AB}{BC} = \frac{4}{3}$.
Answer: $\frac{4}{3}$

Q18. [4 marks]
Distance: $\sqrt{(4-1)^2+(6-2)^2} = \sqrt{9+16} = 5$.
Angle: $\tan\theta = \frac{6-2}{4-1} = \frac{4}{3} \Rightarrow \theta \approx 53.13^\circ$.
Answer: distance 5, angle 53.1°

Q19. [3 marks]
$9^2+12^2 = 81+144 = 225 = 15^2$ → right-angled by converse of Pythagoras.
Angle opposite 15 cm is $90^\circ$.
Answer: right-angled, $90^\circ$

Q20. [3 marks]
$\tan 30^\circ = \frac{h}{50} \Rightarrow h = 50 \times \frac{1}{\sqrt{3}} \approx 28.9$ m.
Answer: 28.9 m
