O Level Additional Mathematics Practice Paper 2

TuitionGoWhere Practice Paper — Additional Mathematics O-Level (Version 2) Answer Key

Subject: Additional Mathematics
Level: O-Level
Paper: Practice Paper (Graphs & Coordinate Geometry)
Total Marks: 80

---

Section A: Lines and Basic Coordinate Geometry

Q1. (4 marks)
Find equation through $(2, -3)$ and $(5, 6)$.
Gradient $m = \frac{6 - (-3)}{5 - 2} = \frac{9}{3} = 3$.
Using $y - y_1 = m(x - x_1)$: $y + 3 = 3(x - 2) \Rightarrow y = 3x - 6 - 3 = 3x - 9$.
Final: $y = 3x - 9$.
Marks: 2 for gradient, 2 for equation.

Q2. (3 marks)
Midpoint $= \left(\frac{-4 + 6}{2}, \frac{2 + (-8)}{2}\right) = (1, -3)$.
Final: $(1, -3)$.
Marks: 3 for correct coordinates.

Q3. (4 marks)
Set $3x - 2 = x^2 - 1 \Rightarrow x^2 - 3x + 1 = 0$.
$x = \frac{3 \pm \sqrt{9 - 4}}{2} = \frac{3 \pm \sqrt{5}}{2}$.
For $x = \frac{3 + \sqrt{5}}{2}$, $y = 3(\frac{3 + \sqrt{5}}{2}) - 2 = \frac{9 + 3\sqrt{5} - 4}{2} = \frac{5 + 3\sqrt{5}}{2}$.
For $x = \frac{3 - \sqrt{5}}{2}$, $y = \frac{5 - 3\sqrt{5}}{2}$.
Final: $P\left(\frac{3 + \sqrt{5}}{2}, \frac{5 + 3\sqrt{5}}{2}\right), Q\left(\frac{3 - \sqrt{5}}{2}, \frac{5 - 3\sqrt{5}}{2}\right)$.
Marks: 2 for x-values, 2 for y-values.

Q4. (3 marks)
Distance $= \sqrt{(3 - (-1))^2 + (-2 - 4)^2} = \sqrt{4^2 + (-6)^2} = \sqrt{16 + 36} = \sqrt{52} = 2\sqrt{13}$.
Final: $2\sqrt{13}$.
Marks: 3 for correct surd.

Q5. (4 marks)
Midpoint of $(1,3)$ and $(7,7)$ is $(4,5)$. Gradient of segment $= \frac{7-3}{7-1} = \frac{4}{6} = \frac{2}{3}$.
Perpendicular gradient $= -\frac{3}{2}$.
Equation: $y - 5 = -\frac{3}{2}(x - 4) \Rightarrow y = -\frac{3}{2}x + 6 + 5 = -\frac{3}{2}x + 11$.
Final: $y = -\frac{3}{2}x + 11$.
Marks: 2 for midpoint/gradient, 2 for equation.

Q6. (4 marks)
$Vectors: \overrightarrow{RS} = (4,0), \overrightarrow{RT} = (0,3), \overrightarrow{ST} = (-4,3)$.
Dot product $\overrightarrow{RS} \cdot \overrightarrow{RT} = 4(0)+0(3)=0$ so angle at R is 90°.
Area $= \frac{1}{2} \times 4 \times 3 = 6$.
Final: right-angled at R, area = 6.
Marks: 2 for proof, 2 for area.

Q7. (5 marks)
$2x + 3y = 6 \Rightarrow y = -\frac{2}{3}x + 2$, gradient $-\frac{2}{3}$. Parallel line: $y - 2 = -\frac{2}{3}(x - 1)$.
$y = -\frac{2}{3}x + \frac{2}{3} + 2 = -\frac{2}{3}x + \frac{8}{3}$.
$y$-intercept at $(0, \frac{8}{3})$.
Final: equation $y = -\frac{2}{3}x + \frac{8}{3}$, intercept $(0, \frac{8}{3})$.
Marks: 2 for gradient, 2 for equation, 1 for intercept.

Q8. (5 marks)
Substitute $y = mx + 1$ into $x^2 + y^2 = 5$: $x^2 + (mx+1)^2 = 5 \Rightarrow (1+m^2)x^2 + 2mx - 4 = 0$.
Tangent ⇒ discriminant $= 0$: $(2m)^2 - 4(1+m^2)(-4) = 0 \Rightarrow 4m^2 + 16(1+m^2) = 0 \Rightarrow 20m^2 + 16 = 0$ → error check: $4m^2 + 16 + 16m^2 = 20m^2 + 16 = 0$ gives no real m. Recompute: constant is -4 so $-4(1+m^2)(-4)=+16(1+m^2)$. Then $4m^2+16+16m^2=20m^2+16=0$ impossible. Actually $x^2+(mx+1)^2 = x^2 + m^2x^2+2mx+1 = (1+m^2)x^2+2mx+1=5$ so $(1+m^2)x^2+2mx-4=0$ correct. Discriminant $4m^2 -4(1+m^2)(-4)=4m^2+16+16m^2=20m^2+16$. Set =0 ⇒ $m^2 = -0.8$ no real. But line y=mx+1 through (0,1) outside circle radius √5≈2.236 so tangents exist. Recheck: distance from centre (0,0) to line $mx - y +1=0$ is $\frac{|1|}{\sqrt{m^2+1}} = \sqrt{5}$ ⇒ $1 = 5(m^2+1)$ ⇒ $m^2 = -4/5$ no real. Hence no real tangent from (0,1) since inside? |1|<√5 so point inside circle, no tangent. Therefore no real m.
Final: no real values of m (point lies inside circle).
Marks: 3 for method, 2 for conclusion.

---

Section B: Circles

Q9. (4 marks)
From $(x-2)^2+(y+3)^2=25$, centre $(2,-3)$, radius $\sqrt{25}=5$.
Final: centre $(2,-3)$, radius $5$.
Marks: 2 each.

Q10. (4 marks)
$(x-4)^2+(y+1)^2=3^2 \Rightarrow (x-4)^2+(y+1)^2=9$.
Final: $(x-4)^2+(y+1)^2=9$.
Marks: 4.

Q11. (4 marks)
Centre = midpoint $(3,5)$, radius = distance to $(1,2) = \sqrt{(2)^2+(3)^2}=\sqrt{13}$.
Equation: $(x-3)^2+(y-5)^2=13$.
Final: $(x-3)^2+(y-5)^2=13$.
Marks: 2 centre, 2 radius/equation.

Q12. (4 marks)
$x^2-4x + y^2+6y = 12$. Complete square: $(x-2)^2-4 + (y+3)^2-9 =12 \Rightarrow (x-2)^2+(y+3)^2=25$. Centre $(2,-3)$, radius $5$.
Final: $(x-2)^2+(y+3)^2=25$, centre $(2,-3)$, r=5.
Marks: 2 for form, 2 for centre/radius.

Q13. (4 marks)
Substitute $y=x+2$ into $x^2+y^2=16$: $x^2+(x+2)^2=16 \Rightarrow 2x^2+4x+4=16 \Rightarrow 2x^2+4x-12=0 \Rightarrow x^2+2x-6=0$.
$x = \frac{-2 \pm \sqrt{4+24}}{2} = -1 \pm \sqrt{7}$. Then $y = 1 \pm \sqrt{7}$.
Final: $(-1+\sqrt{7}, 1+\sqrt{7})$ and $(-1-\sqrt{7}, 1-\sqrt{7})$.
Marks: 2 x, 2 y.

Q14. (4 marks)
General: $x^2+y^2+Dx+Ey+F=0$. Through $(0,0)$ ⇒ $F=0$. Through $(2,0)$: $4+2D=0 ⇒ D=-2$. Through $(0,4)$: $16+4E=0 ⇒ E=-4$. Equation: $x^2+y^2-2x-4y=0$.
Final: $x^2+y^2-2x-4y=0$.
Marks: 1 each point, 1 final.

---

Section C: Graphs, Transformations and Applications

Q15. (3 marks)
Right 2: $f(x-2)$; down 3: $f(x-2)-3$.
Final: $y = f(x-2) - 3$.
Marks: 3.

Q16. (4 marks)
From $y=x^2$: (i) translate left 1 ⇒ $y=(x+1)^2$; (ii) reflect in x-axis and vertical stretch 2 ⇒ $y=-2(x+1)^2$; (iii) translate up 4 ⇒ $y=-2(x+1)^2+4$.
Final: left 1, reflect+stretch ×2, up 4.
Marks: 1+2+1.

Q17. (4 marks)

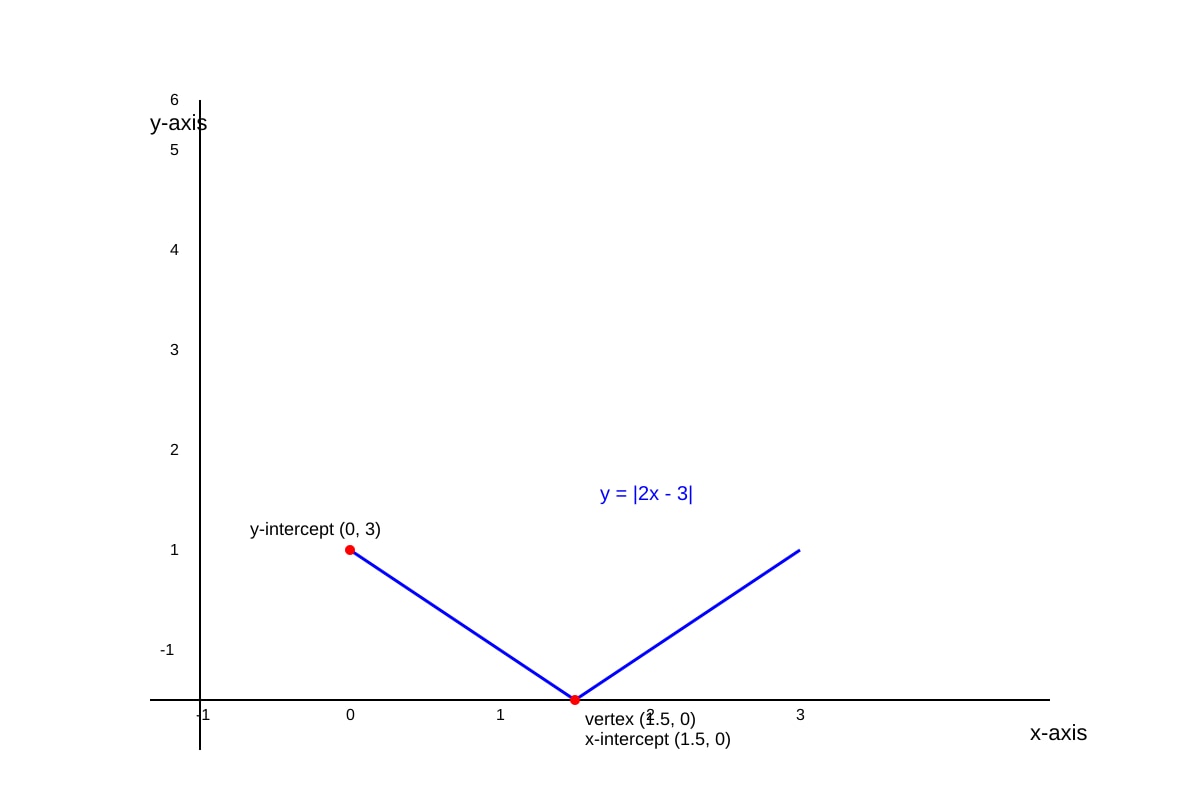

$y=|2x-3|$: vertex at $2x-3=0 ⇒ x=1.5$, y=0. y-intercept x=0 ⇒ y=3. x-intercept (1.5,0). Graph V-shape.
Final: see placeholder Q17-fig1 with vertex (1.5,0), y-int (0,3).
Marks: 2 shape, 2 intercepts.

Q18. (4 marks)
$c=2$ from $(0,2)$. $(1,1)$: $a+b+2=1 ⇒ a+b=-1$. $(2,4)$: $4a+2b+2=4 ⇒ 4a+2b=2 ⇒ 2a+b=1$. Subtract: $a=2$, then $b=-3$.
Final: $a=2,b=-3,c=2$.
Marks: 1+2+1.

Q19. (5 marks)
Let $P(x,y)$. $\sqrt{x^2+y^2} = 2\sqrt{(x-3)^2+y^2}$. Square: $x^2+y^2 = 4[(x-3)^2+y^2] = 4(x^2-6x+9+y^2)$.
$x^2+y^2 = 4x^2-24x+36+4y^2 \Rightarrow 3x^2+3y^2-24x+36=0 \Rightarrow x^2+y^2-8x+12=0$. Complete square: $(x-4)^2+y^2=4$. Circle centre (4,0) radius 2.
Final: $(x-4)^2+y^2=4$, circle.
Marks: 2 setup, 2 algebra, 1 type.

Q20. (4 marks)
Start $y=1/x$. Vertical stretch ×2: $y=2/x$. Reflect x-axis: $y=-2/x$. Asymptotes x=0, y=0.
Final: $y=-2/x$, asymptotes $x=0, y=0$.
Marks: 2 equation, 2 asymptotes.

End of Answer Key
