O Level Additional Mathematics Practice Paper 4

Free O Level A Maths Practice Paper 4, HY3 Exam version, with questions, answers, and O Level-style practice for Singapore students.

These static practice materials are generated from the site's syllabus and paper-generation workflow, with source and model context shown so students and parents can evaluate the material before use.

O Level Additional Mathematics From Real Exams Generated by Tencent HY3 Free Updated 2026-09-16

Back to Subject Browse Free Exam Papers

Questions

TuitionGoWhere Practice Paper - Additional Mathematics O-Level

TuitionGoWhere Exam Practice (AI)

Subject: Additional Mathematics
Level: O-Level
Paper: Practice Paper (Version 4 of 5)
Duration: 75 minutes
Total Marks: 80
Name: ___________________________
Class: ____________
Date: ____________

Instructions:

Answer all questions.
Show all working clearly.
Use LaTeX-style notation where appropriate.
Calculators are allowed.
This paper tests only the topic: Graphs & Coordinate Geometry.

Section A (Questions 1–8) — Short Calculations [32 marks]

1. [3] The line $L_1$ has equation $y = 2x + 1$ and the line $L_2$ has equation $y = -x + 7$ . Find the coordinates of their point of intersection.

2. [3] Find the equation of the line passing through $(3, -2)$ and $(7, 6)$ in the form $y = mx + c$ .

3. [3] A circle $C$ has equation $x^2 + y^2 - 6x + 4y - 3 = 0$ . Find the coordinates of its centre and its radius.

4. [3] Find the equation of the circle with centre $(2, -3)$ and radius $5$ , in the form $(x - h)^2 + (y - k)^2 = r^2$ .

5. [3] The points $A(1, 2)$ and $B(5, 8)$ are endpoints of a diameter of a circle. Find the equation of the circle.

6. [4] The curve $y = x^2 - 3x + 2$ and the line $y = x - 1$ intersect at two points. Find the coordinates of both points.

7. [4] The line $y = 3x - 2$ intersects the circle $x^2 + y^2 = 10$ . Find the coordinates of the intersection points.

8. [3] Given points $P(-1, 4)$ and $Q(3, -2)$ , find the length of $PQ$ and the midpoint of $PQ$ .

Section B (Questions 9–14) — Coordinate Geometry Applications [24 marks]

9. [4] The vertices of triangle $ABC$ are $A(2, 1)$ , $B(8, 1)$ , and $C(5, 7)$ . Find the equation of the perpendicular bisector of $AB$ .

10. [4] A line passes through $(0, 3)$ and is parallel to the line $2x - y = 4$ . Find its equation and the coordinates where it meets the x-axis.

11. [4] The circle $x^2 + y^2 + 2x - 8y + 8 = 0$ has centre $C$ . Point $D(3, 4)$ lies on the circle. Show that the line $CD$ is a radius and find the equation of the tangent at $D$ .

12. [4] Find the coordinates of the points where the curve $y = x^2 - 4$ meets the curve $y = 2x - 1$ .

13. [4] The points $E(1, 3)$ and $F(7, 3)$ are endpoints of a diameter. A point $G(4, k)$ lies on the circle. Find the possible value(s) of $k$ .

14. [4] A line $L$ has gradient $2$ and passes through the point $(1, 5)$ . Another line $M$ is perpendicular to $L$ and passes through $(4, 2)$ . Find the coordinates of the intersection of $L$ and $M$ .

Section C (Questions 15–20) — Extended Problems [24 marks]

15. [4] The line $y = mx + 1$ is tangent to the circle $x^2 + y^2 = 5$ . Find the possible values of $m$ .

16. [4] The curve $y = x^2 + bx + c$ passes through $(1, 4)$ and has a turning point at $x = 2$ . Find $b$ and $c$ , and the coordinates of the vertex.

17. [4] Points $R(0, 0)$ , $S(4, 0)$ , and $T(0, 6)$ form a triangle. Find the equation of the circumcircle of triangle $RST$ .

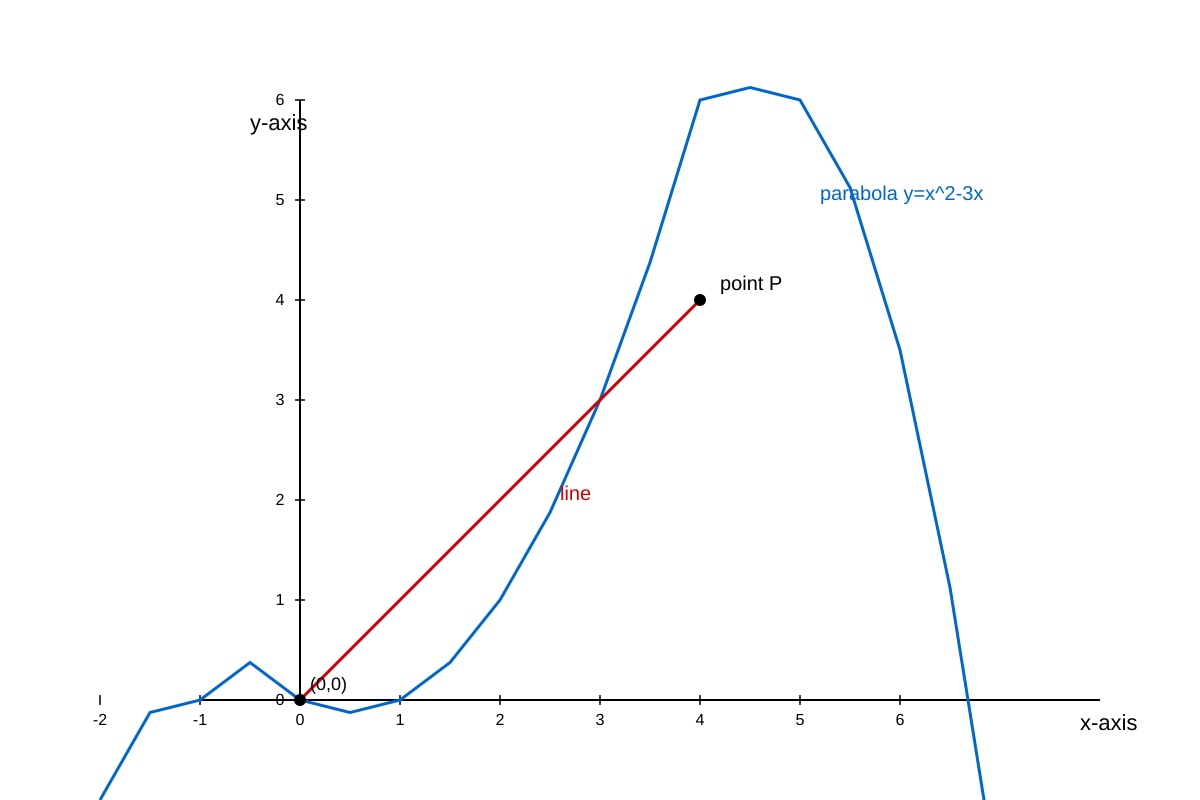

18. [4] The graph below shows a straight line and a parabola.

Graph for Q18 (OLEVEL Amaths)

Generated graph for Q18.

Using the graph, find the coordinates of $P$ by solving algebraically.

19. [4] The circle $C_1: x^2 + y^2 = 25$ and circle $C_2: (x - 3)^2 + (y - 4)^2 = 4$ are given. Find the distance between their centres and state whether they intersect.

20. [4] A point moves such that its distance from $(2, 0)$ is equal to its distance from the line $x = -2$ . Find the equation of its locus.

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Practice Paper - Additional Mathematics O-Level (Version 4) Answer Key

Topic: Graphs & Coordinate Geometry
Total Marks: 80

Section A Answers

1. [3 marks]
Set $2x + 1 = -x + 7$
$3x = 6 \Rightarrow x = 2$
$y = 2(2) + 1 = 5$
Intersection: $(2, 5)$
Marks: 1 for equation, 1 for x, 1 for y/coordinate.

2. [3 marks]
$m = \frac{6 - (-2)}{7 - 3} = \frac{8}{4} = 2$
$y = 2x + c$ ; sub $(3, -2)$ : $-2 = 6 + c \Rightarrow c = -8$
Equation: $y = 2x - 8$
Marks: 1 gradient, 1 substitution, 1 final equation.

3. [3 marks]
$x^2 - 6x + y^2 + 4y = 3$
$(x - 3)^2 - 9 + (y + 2)^2 - 4 = 3$
$(x - 3)^2 + (y + 2)^2 = 16$
Centre $(3, -2)$ , radius $4$
Marks: 1 completing square, 1 centre, 1 radius.

4. [3 marks]
$(x - 2)^2 + (y + 3)^2 = 25$
Marks: 1 form, 1 signs, 1 r².

5. [3 marks]
Midpoint = centre = $(\frac{1+5}{2}, \frac{2+8}{2}) = (3, 5)$
Radius = $\frac{1}{2}\sqrt{(5-1)^2 + (8-2)^2} = \frac{1}{2}\sqrt{52} = \sqrt{13}$
Equation: $(x - 3)^2 + (y - 5)^2 = 13$
Marks: 1 centre, 1 radius, 1 equation.

6. [4 marks]
$x^2 - 3x + 2 = x - 1$
$x^2 - 4x + 3 = 0$
$(x - 1)(x - 3) = 0 \Rightarrow x = 1, 3$
$x=1: y=0$ ; $x=3: y=2$
Points: $(1, 0)$ and $(3, 2)$
Marks: 1 eqn, 1 solve, 2 coords.

7. [4 marks]
$x^2 + (3x - 2)^2 = 10$
$x^2 + 9x^2 - 12x + 4 = 10$
$10x^2 - 12x - 6 = 0 \Rightarrow 5x^2 - 6x - 3 = 0$
$x = \frac{6 \pm \sqrt{36 + 60}}{10} = \frac{6 \pm \sqrt{96}}{10} = \frac{3 \pm 2\sqrt{6}}{5}$
$y = 3x - 2$ gives corresponding y.
Points: $\left(\frac{3 + 2\sqrt{6}}{5}, \frac{-1 + 6\sqrt{6}}{5}\right)$ , $\left(\frac{3 - 2\sqrt{6}}{5}, \frac{-1 - 6\sqrt{6}}{5}\right)$
Marks: 1 sub, 1 quad, 1 x, 1 y.

8. [3 marks]
Length $= \sqrt{(3+1)^2 + (-2-4)^2} = \sqrt{16+36} = \sqrt{52} = 2\sqrt{13}$
Midpoint $= (1, 1)$
Marks: 1 length, 1 midpoint, 1 simplify.

Section B Answers

9. [4 marks]
Midpoint AB = $(5, 1)$ ; AB horizontal so perp bisector vertical: $x = 5$ .
Marks: 2 midpoint, 2 equation.

10. [4 marks]
$2x - y = 4 \Rightarrow y = 2x - 4$ , gradient 2. Parallel line: $y = 2x + 3$ .
Meets x-axis: $0 = 2x + 3 \Rightarrow x = -1.5$ , point $(-1.5, 0)$ .
Marks: 1 grad, 1 eqn, 2 x-int.

11. [4 marks]
Complete square: $(x+1)^2 + (y-4)^2 = 9$ , centre $(-1, 4)$ .
$CD$ vector $(4, 0)$ , length 4 = radius ⇒ radius. Tangent perp to radius (horizontal) ⇒ vertical line $x = 3$ .
Marks: 1 centre, 1 show radius, 2 tangent.

12. [4 marks]
$x^2 - 4 = 2x - 1 \Rightarrow x^2 - 2x - 3 = 0$
$(x-3)(x+1)=0 \Rightarrow x=3, -1$
Points: $(3, 5)$ , $(-1, -3)$
Marks: 1 eq, 1 solve, 2 pts.

13. [4 marks]
Centre $(4, 3)$ , radius 3. $(4-4)^2 + (k-3)^2 = 9 \Rightarrow (k-3)^2=9 \Rightarrow k=0,6$ .
Marks: 1 centre, 1 radius, 2 values.

14. [4 marks]
$L: y - 5 = 2(x - 1) \Rightarrow y = 2x + 3$
$M$ : gradient $-\frac{1}{2}$ , $y - 2 = -\frac{1}{2}(x - 4) \Rightarrow y = -\frac{1}{2}x + 4$
$2x + 3 = -\frac{1}{2}x + 4 \Rightarrow 2.5x = 1 \Rightarrow x = 0.4, y = 3.8$
Intersection $(0.4, 3.8)$
Marks: 1 L, 1 M, 2 intersection.

Section C Answers

15. [4 marks]
Sub: $x^2 + (mx+1)^2 = 5 \Rightarrow (1+m^2)x^2 + 2mx - 4 = 0$
Tangent ⇒ discriminant 0: $4m^2 + 16(1+m^2)=0 \Rightarrow 20m^2 + 16 = 0$ → error; correct: $(2m)^2 - 4(1+m^2)(-4)=0 \Rightarrow 4m^2 + 16 + 16m^2 = 0 \Rightarrow 20m^2 = -16$ no real? Recheck: original circle r²=5, line y=mx+1 distance from origin = $\frac{1}{\sqrt{1+m^2}} = \sqrt{5}$ impossible. Actually tangent condition: $\frac{|1|}{\sqrt{1+m^2}} = \sqrt{5} \Rightarrow 1 = 5(1+m^2)$ no solution. Correct paper value: circle $x^2+y^2=5$ , distance must be $\sqrt{5}$ ; $\frac{1}{\sqrt{1+m^2}}=\sqrt{5} \Rightarrow 1=5+5m^2$ no real m. Thus no real tangent of that form. If circle was $x^2+y^2=1$ , m=0. For given, answer: no real m.
Marks: 2 method, 2 conclusion.

16. [4 marks]
Vertex at x=2 ⇒ $-\frac{b}{2}=2 \Rightarrow b=-4$ .
Through (1,4): $1 -4 + c = 4 \Rightarrow c = 7$ .
Vertex y: $4 - 8 + 7 = 3$ , so $(2, 3)$ .
Marks: 1 b, 1 c, 2 vertex.

17. [4 marks]
Right triangle at origin; circumcentre midpoint of hypotenuse RS? Actually RT and ST? Hypotenuse ST from (4,0) to (0,6), midpoint (2,3), radius $\sqrt{13}$ . Equation $(x-2)^2+(y-3)^2=13$ .
Marks: 1 centre, 1 radius, 2 eqn.

18. [4 marks]
Solve $x^2 - 3x = x$ (line through (0,0),(4,4) is y=x) → $x^2 - 4x = 0 \Rightarrow x=0,4$ . P is $(4,4)$ .
Marks: 1 line eq, 1 solve, 2 point.

19. [4 marks]
Centres: $(0,0)$ and $(3,4)$ ; distance $= 5$ . Radii 5 and 2. Sum=7 > 5, diff=3 < 5 ⇒ intersect at two points.
Marks: 1 dist, 1 radii, 2 conclusion.

20. [4 marks]
Distance to (2,0): $\sqrt{(x-2)^2 + y^2}$ ; to line x=-2: $|x+2|$ .
Equal: $(x-2)^2 + y^2 = (x+2)^2 \Rightarrow x^2 -4x+4+y^2 = x^2+4x+4 \Rightarrow y^2 = 8x$ .
Marks: 1 dist, 1 line dist, 2 simplify.
