Questions

A-Level Physics H2 Quiz - Energy Power

Name: ___________________________
Class: ___________________________
Date: ___________________________
Score: _______ / 40

Duration: 60 minutes
Total Marks: 40
Topic: Energy & Power (Topic 4: Energy and Fields; Topic 5/6 cross-links)

Instructions:

Answer all 20 questions.
Show all working where calculation is required.
Use $g = 9.81\ \text{m s}^{-2}$ unless stated otherwise.
Section A: Short structured (1–5). Section B: Calculation & data (6–13). Section C: Extended response (14–20).

Section A: Short Structured Questions (1–5) — 10 marks

1. [2 marks] State the principle of conservation of energy.

2. [2 marks] Define power in terms of work done and time. Write the derived SI unit.

3. [2 marks] A device does $240\ \text{J}$ of work in $20\ \text{s}$ . Calculate its average power output in watts.

Working: __________________________________________________

4. [2 marks] State the condition under which the work done by a force is zero even though the force is non-zero.

5. [2 marks] A lift of mass $800\ \text{kg}$ is raised at constant speed through $15\ \text{m}$ . Calculate the increase in gravitational potential energy. ( $g = 9.81\ \text{m s}^{-2}$ )

Working: __________________________________________________

Section B: Calculation and Data Interpretation (6–13) — 18 marks

6. [2 marks] A car engine delivers $90\ \text{kW}$ to move the car at a constant speed of $30\ \text{m s}^{-1}$ . Calculate the resistive force acting on the car.

Working: __________________________________________________

7. [3 marks] A block of mass $2.0\ \text{kg}$ slides from rest down a frictionless incline of vertical height $1.2\ \text{m}$ . (a) Calculate the loss in gravitational potential energy. (b) Hence find the speed of the block at the bottom.

Working: __________________________________________________

8. [2 marks] The efficiency of a hydroelectric turbine is $82\%$ . If the water delivers $5.0\ \text{MW}$ of power to the turbine, calculate the useful electrical power output.

Working: __________________________________________________

9. [3 marks] A constant force of $50\ \text{N}$ pushes a box $8.0\ \text{m}$ in the direction of the force in $4.0\ \text{s}$ . (a) Calculate the work done. (b) Calculate the power developed by the force.

Working: __________________________________________________

10. [2 marks]

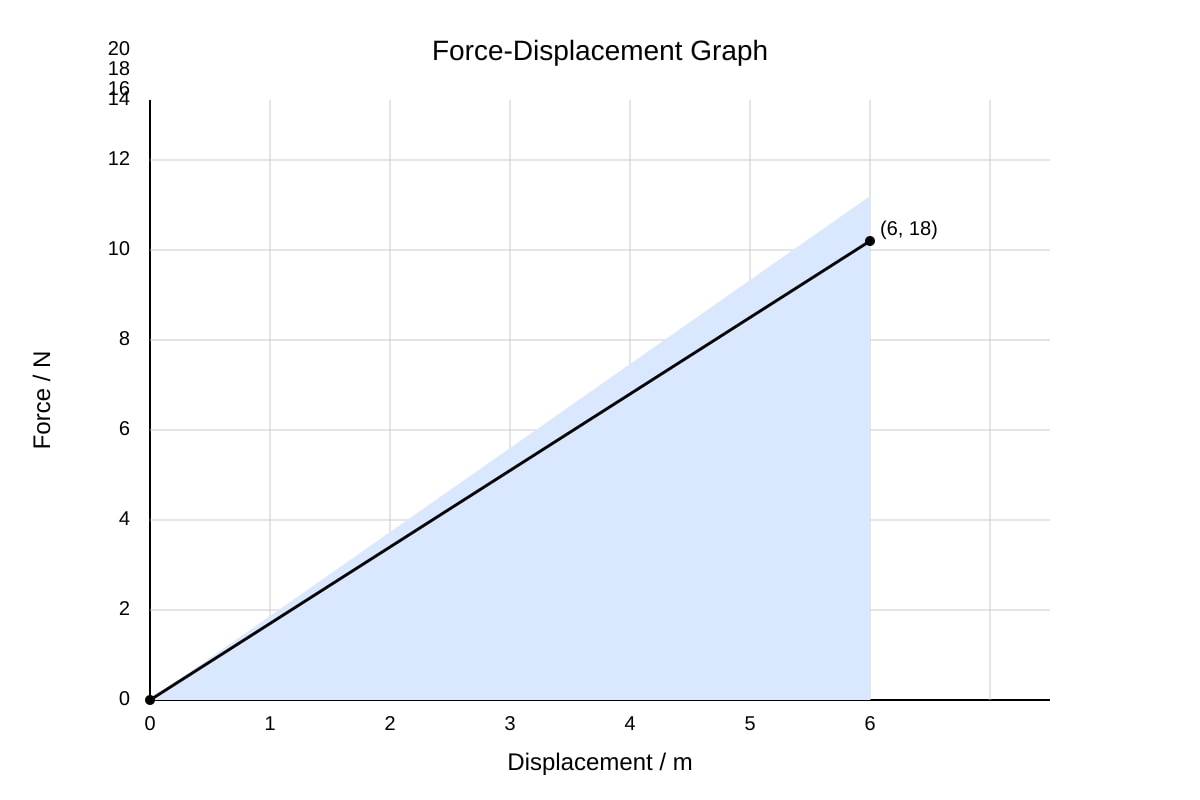

Graph for 10 (ALEVEL Physics H2)

Generated graph for 10.

Using the graph described, calculate the work done by the force as the object moves from $x = 0$ to $x = 6\ \text{m}$ .

Working: __________________________________________________

11. [2 marks] An electric heater rated $2.0\ \text{kW}$ is used for $15\ \text{minutes}$ . Calculate the total energy transferred in kJ.

Working: __________________________________________________

12. [2 marks] A pump lifts $0.050\ \text{m}^3$ of water per second to a height of $12\ \text{m}$ . Given water density $\rho = 1000\ \text{kg m}^{-3}$ , calculate the useful power output of the pump. ( $g = 9.81\ \text{m s}^{-2}$ )

Working: __________________________________________________

13. [2 marks] The table below shows energy resources.

Source	Power rating / MW
Solar	40
Wind	25
Diesel	60

If the solar and wind operate continuously and diesel covers $70\%$ of its rating, calculate the total average power supplied in MW.

Working: __________________________________________________

Section C: Extended Response (14–20) — 12 marks

14. [2 marks] Explain, with reference to energy conservation, why a bouncing ball eventually comes to rest.

15. [2 marks] A student claims: "A more powerful motor always does more work than a less powerful one." State whether this is correct and explain your answer.

16. [2 marks] Describe one precaution to improve accuracy when measuring the efficiency of a mechanical system using a ramp and a force sensor, and explain how it helps.

17. [2 marks]

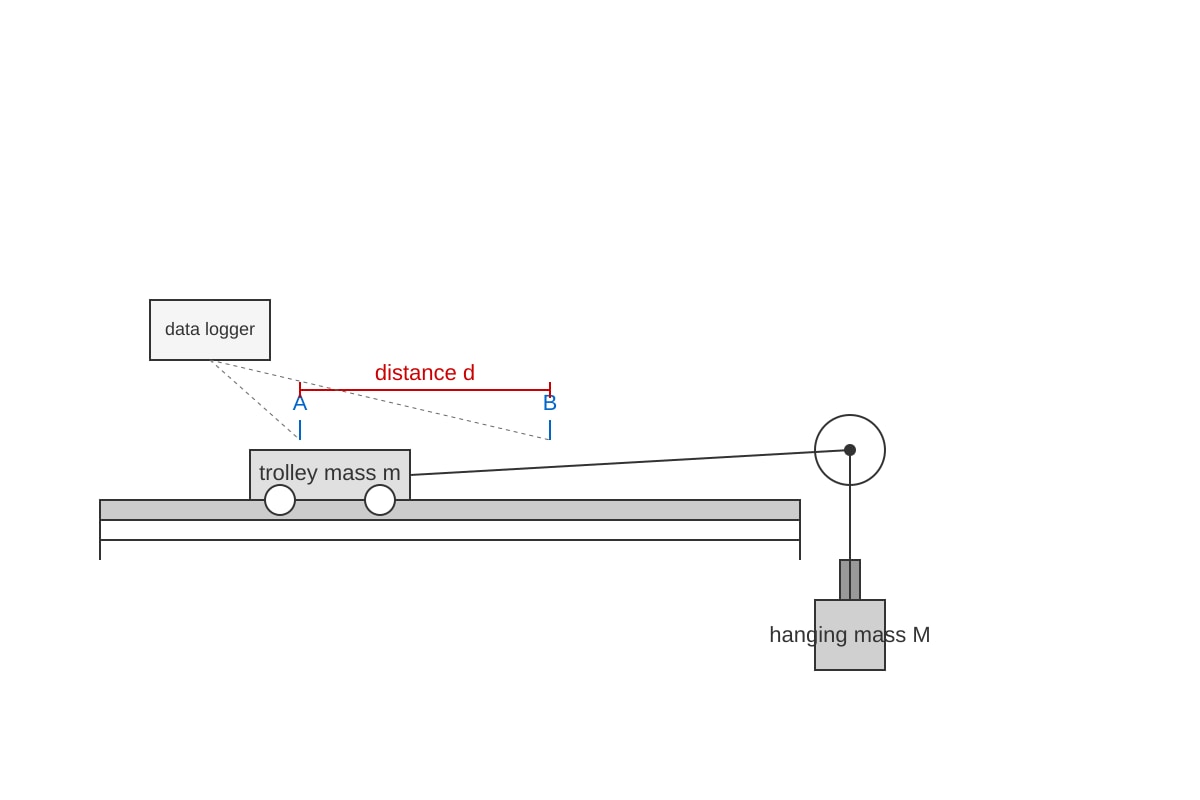

Experimental Setup for 17 (ALEVEL Physics H2)

Generated experimental_setup for 17.

Using the setup shown, describe how you would determine the efficiency of the conversion of gravitational potential energy of M into kinetic energy of the trolley.

18. [1 mark] State one assumption made in the experiment of Q17 that affects measured efficiency.

19. [2 marks] Compare the energy transfers in an electric heater and a mechanical brake, both dissipating $1.0\ \text{kJ}$ of energy in $10\ \text{s}$ . Which has the higher power and why?

20. [1 mark] Give one real-world example where high power but low total energy is desirable, and briefly state why.

</stage3_quiz_answers_md>

<stage3_quiz_answers_md>

A-Level Physics H2 Quiz - Energy Power (Answer Key)

Total Marks: 40
Topic: Energy & Power

Section A: Short Structured (1–5)

1. [2 marks]
Teaching note: Conservation of energy is a foundational principle in Topic 4 (Energy and Fields).
Answer: Energy cannot be created or destroyed; it can only be converted from one form to another or transferred from one system to another. The total energy of an isolated system is constant.
Marking: 1 mark for "not created/destroyed", 1 mark for "converted/transferred form".

2. [2 marks]
Answer: Power $P = \dfrac{W}{t}$ where $W$ is work done, $t$ is time. SI unit: watt (W) = J s⁻¹.
Marking: Definition 1 mark, unit 1 mark.

3. [2 marks]
$P = \dfrac{240}{20} = 12\ \text{W}$ .
Working: $P = W/t = 240/20 = 12\ \text{W}$ .
Marking: Correct substitution 1 mark, answer 1 mark.

4. [2 marks]
Answer: When the displacement is perpendicular to the direction of the force (e.g. centripetal force), or when there is no displacement in the direction of the force.
Marking: Perpendicular displacement / zero displacement component 2 marks.

5. [2 marks]
$\Delta E_p = mgh = 800 \times 9.81 \times 15 = 1.18 \times 10^5\ \text{J}$ (3 s.f.).
Working: $\Delta E_p = 800 \times 9.81 \times 15 = 117720\ \text{J} \approx 1.18 \times 10^5\ \text{J}$ .
Marking: Use of $mgh$ 1 mark, answer 1 mark.

Section B: Calculation and Data (6–13)

6. [2 marks]
$P = Fv \Rightarrow F = P/v = 90000 / 30 = 3000\ \text{N}$ .
Working: $F = 90\,000 / 30 = 3000\ \text{N}$ .
Marking: Formula 1 mark, answer 1 mark.

7. [3 marks]
(a) $\Delta E_p = mgh = 2.0 \times 9.81 \times 1.2 = 23.5\ \text{J}$ .
(b) $\tfrac12 mv^2 = 23.5 \Rightarrow v = \sqrt{2 \times 23.5 / 2.0} = 4.85\ \text{m s}^{-1}$ .
Marking: (a) 1 mark PE loss, (b) 2 marks KE = PE loss and $v$ value.

8. [2 marks]
$P_{\text{out}} = 0.82 \times 5.0 = 4.1\ \text{MW}$ .
Working: $5.0 \times 0.82 = 4.1\ \text{MW}$ .
Marking: Conversion 1 mark, answer 1 mark.

9. [3 marks]
(a) $W = Fd = 50 \times 8.0 = 400\ \text{J}$ .
(b) $P = W/t = 400/4.0 = 100\ \text{W}$ .
Marking: (a) 1 mark, (b) 2 marks for working and answer.

10. [2 marks]
Area = $\tfrac12 \times 6 \times 18 = 54\ \text{J}$ .
Working: Triangle area under graph = $\tfrac12 \times 6 \times 18 = 54\ \text{J}$ .
Marking: Correct area method 1 mark, answer 1 mark.

11. [2 marks]
$E = Pt = 2.0\ \text{kW} \times 0.25\ \text{h} = 0.5\ \text{kWh} = 1800\ \text{kJ}$ .
Working: $t = 15\ \text{min} = 900\ \text{s}$ ; $E = 2000 \times 900 = 1.8 \times 10^6\ \text{J} = 1800\ \text{kJ}$ .
Marking: Time conversion 1 mark, energy 1 mark.

12. [2 marks]
$\dot{m} = \rho V/t = 1000 \times 0.050 = 50\ \text{kg s}^{-1}$ ; $P = \dot{m}gh = 50 \times 9.81 \times 12 = 5.89\ \text{kW}$ .
Marking: Mass flow 1 mark, power 1 mark.

13. [2 marks]
Total = $40 + 25 + 0.70 \times 60 = 107\ \text{MW}$ .
Working: $40 + 25 + 42 = 107\ \text{MW}$ .
Marking: Diesel part 1 mark, sum 1 mark.

Section C: Extended (14–20)

14. [2 marks]
Each bounce loses energy to sound/heat; total mechanical energy decreases until zero.
Marking: Energy dissipation 1 mark, rest state 1 mark.

15. [2 marks]
Incorrect; power = rate of work, total work depends on time. High power for short time may do less work.
Marking: Correct verdict 1 mark, explanation 1 mark.

16. [2 marks]
Use a spirit level to ensure ramp angle constant; reduces systematic error in height measurement.
Marking: Precaution 1 mark, reason 1 mark.

17. [2 marks]
Measure $v_A, v_B$ ; $\Delta E_{p,M} = Mg d$ ; KE gain = $\tfrac12 m(v_B^2 - v_A^2)$ ; efficiency = KE gain / $\Delta E_{p,M}$ .
Marking: Method 2 marks (measurement, formula).

18. [1 mark]
Friction at pulley / track negligible assumed.
Marking: Any valid assumption 1 mark.

19. [2 marks]
Both have same power $100\ \text{W}$ ; power = energy/time, identical.
Marking: Same power 1 mark, reason 1 mark.

20. [1 mark]
e.g. camera flash: high power brief pulse, low total energy saves battery.
Marking: Example 1 mark. </stage3_quiz_answers_md>
