TuitionGoWhere Practice Paper - Physics H2 A-Level

TuitionGoWhere Practice Paper (AI)

Subject: Physics H2 Level: A-Level Paper: Practice Paper — Mechanics Duration: 1 hour 30 minutes Total Marks: 60 Name: ___________________________ Class: ___________________________ Date: ___________________________

Instructions

Answer all questions in the spaces provided.
The number of marks for each question or part-question is shown in brackets [ ].
Assume the acceleration due to gravity $g = 9.81 \text{ m s}^{-2}$ unless otherwise stated.
Unless otherwise stated, all distances are measured from the origin.
The use of an approved scientific calculator is expected where appropriate.
Show all working clearly. Marks may be awarded for correct reasoning even if the final answer is incorrect.
Where a question requires a written explanation, use precise physics terminology and refer to relevant laws or principles.

Section A: Multiple Choice [10 marks]

Questions 1–10: Each question is worth 1 mark. Choose the one best answer.

1. A ball is thrown vertically upward with an initial speed of $20 \text{ m s}^{-1}$ . Neglecting air resistance, what is the maximum height reached by the ball?

A. $10.2 \text{ m}$ B. $20.4 \text{ m}$ C. $30.6 \text{ m}$ D. $40.8 \text{ m}$

2. A car accelerates uniformly from rest to $30 \text{ m s}^{-1}$ in $6.0 \text{ s}$ . What is the distance travelled during this time?

A. $60 \text{ m}$ B. $90 \text{ m}$ C. $120 \text{ m}$ D. $180 \text{ m}$

3. Which of the following is a vector quantity?

A. Energy B. Power C. Speed D. Momentum

4. A force of $12 \text{ N}$ acts on an object of mass $3.0 \text{ kg}$ on a frictionless surface. What is the acceleration of the object?

A. $0.25 \text{ m s}^{-2}$ B. $4.0 \text{ m s}^{-2}$ C. $9.0 \text{ m s}^{-2}$ D. $36 \text{ m s}^{-2}$

5. An object moves in a horizontal circle of radius $2.0 \text{ m}$ at a constant speed of $4.0 \text{ m s}^{-1}$ . What is the centripetal acceleration of the object?

A. $2.0 \text{ m s}^{-2}$ B. $4.0 \text{ m s}^{-2}$ C. $8.0 \text{ m s}^{-2}$ D. $16.0 \text{ m s}^{-2}$

6. A projectile is launched at an angle of $30°$ above the horizontal with an initial speed of $40 \text{ m s}^{-1}$ . What is the horizontal component of the initial velocity?

A. $20.0 \text{ m s}^{-1}$ B. $23.1 \text{ m s}^{-1}$ C. $34.6 \text{ m s}^{-1}$ D. $40.0 \text{ m s}^{-1}$

7. A $2.0 \text{ kg}$ object moving at $5.0 \text{ m s}^{-1}$ collides with a stationary $3.0 \text{ kg}$ object. After the collision, the two objects stick together. What is their common velocity?

A. $1.0 \text{ m s}^{-1}$ B. $2.0 \text{ m s}^{-1}$ C. $3.0 \text{ m s}^{-1}$ D. $5.0 \text{ m s}^{-1}$

8. A uniform plank of length $4.0 \text{ m}$ and mass $10 \text{ kg}$ is supported at its two ends. A $20 \text{ kg}$ child sits $1.0 \text{ m}$ from the left end. What is the reaction force at the right support?

A. $73.6 \text{ N}$ B. $98.1 \text{ N}$ C. $122.6 \text{ N}$ D. $147.2 \text{ N}$

9. A satellite orbits the Earth in a circular orbit of radius $r$ . If the orbital radius is doubled, what happens to the orbital speed?

A. It becomes $\frac{1}{\sqrt{2}}$ times the original. B. It becomes $\frac{1}{2}$ times the original. C. It becomes $\sqrt{2}$ times the original. D. It becomes $2$ times the original.

10. A spring of spring constant $200 \text{ N m}^{-1}$ is compressed by $0.10 \text{ m}$ . What is the elastic potential energy stored in the spring?

A. $0.5 \text{ J}$ B. $1.0 \text{ J}$ C. $2.0 \text{ J}$ D. $10.0 \text{ J}$

Section B: Structured Questions [30 marks]

Questions 11–15: Answer all questions. Show all working.

11. [6 marks]

(a) State Newton's second law of motion. [1 mark]

..................................................................................................................................

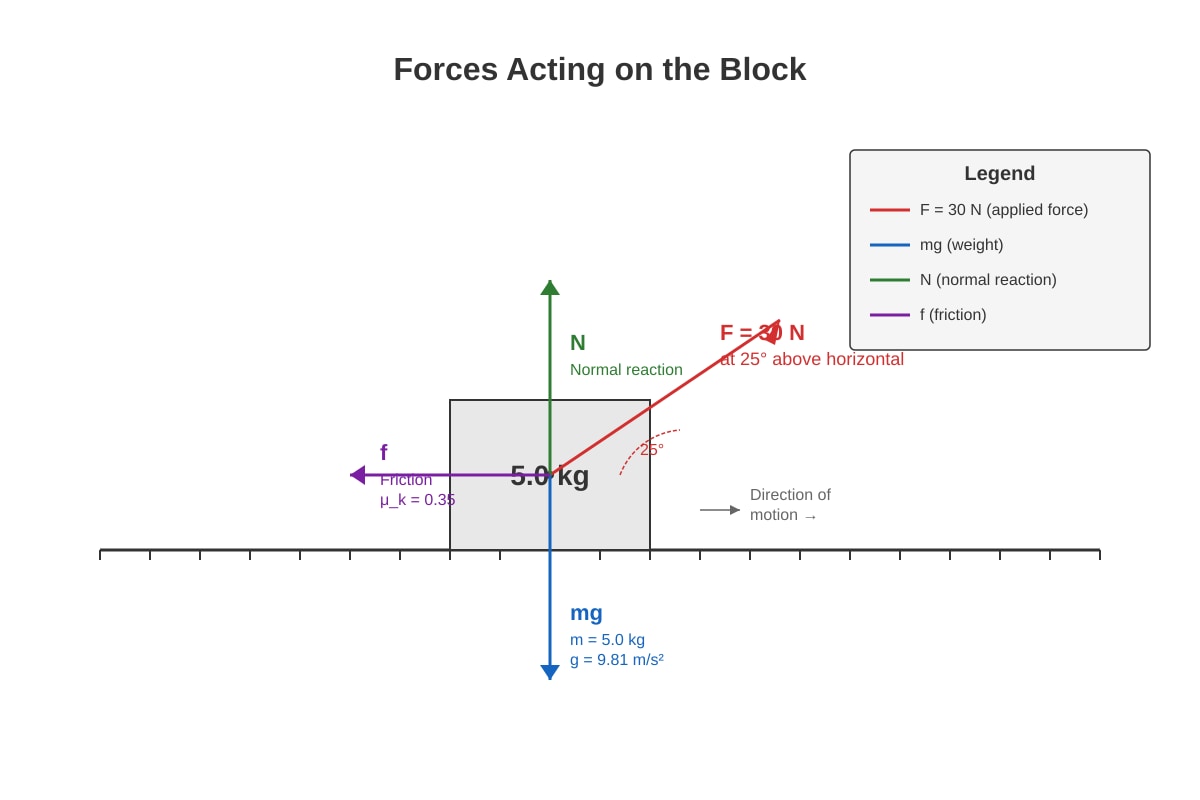

(b) A $5.0 \text{ kg}$ block is pulled along a horizontal rough surface by a force of $30 \text{ N}$ applied at an angle of $25°$ above the horizontal. The coefficient of kinetic friction between the block and the surface is $0.35$ .

<image_placeholder> id: Q11-fig1 type: diagram linked_question: Q11 description: A block of mass 5.0 kg on a horizontal rough surface, with a force of 30 N applied at 25° above the horizontal, showing weight mg, normal reaction N, applied force F at 25°, and friction f opposing motion. labels: F = 30 N at 25° above horizontal, m = 5.0 kg, g = 9.81 m/s², μ_k = 0.35, weight mg downward, normal reaction N upward, friction f to the left values: F = 30 N, θ = 25°, m = 5.0 kg, μ_k = 0.35 must_show: Block on surface, force vector at 25° above horizontal, weight vector downward, normal reaction upward, friction force opposing motion, labels for all forces </image_placeholder>

(i) Calculate the normal contact force exerted by the surface on the block. [2 marks]

..................................................................................................................................

(ii) Calculate the acceleration of the block. [3 marks]

..................................................................................................................................

12. [7 marks]

(a) State the principle of conservation of linear momentum. [1 mark]

..................................................................................................................................

(b) A trolley A of mass $0.80 \text{ kg}$ is moving at $2.5 \text{ m s}^{-1}$ on a frictionless track. It collides with a stationary trolley B of mass $1.2 \text{ kg}$ . After the collision, trolley A rebounds at $0.50 \text{ m s}^{-1}$ in the opposite direction.

(i) Calculate the velocity of trolley B after the collision. [3 marks]

..................................................................................................................................

(ii) Determine whether the collision is elastic or inelastic. Show your reasoning. [3 marks]

..................................................................................................................................

13. [6 marks]

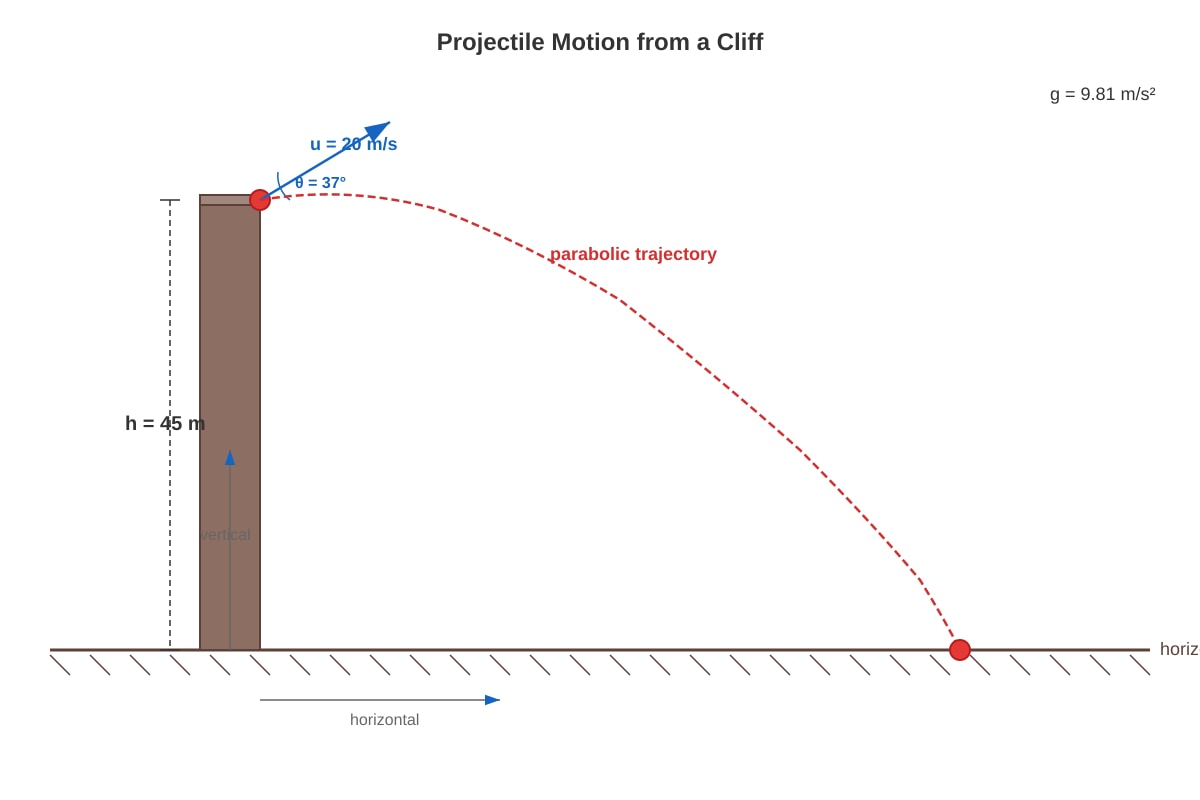

A small ball is projected from the top of a cliff $45 \text{ m}$ above level ground. The initial velocity of the ball is $20 \text{ m s}^{-1}$ at an angle of $37°$ above the horizontal.

<image_placeholder> id: Q13-fig1 type: diagram linked_question: Q13 description: A cliff of height 45 m with a ball projected from the top at 20 m/s at 37° above the horizontal, showing the parabolic trajectory to the ground below. Horizontal ground is shown at the base of the cliff. labels: Cliff height h = 45 m, initial speed u = 20 m/s, angle θ = 37° above horizontal, horizontal ground, parabolic trajectory values: h = 45 m, u = 20 m/s, θ = 37°, g = 9.81 m/s² must_show: Cliff with height marked, velocity vector at 37° at launch point, trajectory curve to ground, horizontal and vertical axes implied </image_placeholder>

(a) Calculate the horizontal and vertical components of the initial velocity. [2 marks]

..................................................................................................................................

(b) Determine the time taken for the ball to reach the ground. [2 marks]

..................................................................................................................................

14. [5 marks]

(a) Define the term centripetal force. [1 mark]

..................................................................................................................................

(b) A car of mass $900 \text{ kg}$ travels around a horizontal circular bend of radius $50 \text{ m}$ at a constant speed of $15 \text{ m s}^{-1}$ .

(i) Calculate the centripetal force acting on the car. [2 marks]

..................................................................................................................................

(ii) The road is banked at an angle $\theta$ to the horizontal so that no friction is required to keep the car on the bend. Show that the angle of banking is given by $\theta = \tan^{-1}\left(\frac{v^2}{rg}\right)$ and calculate the value of $\theta$ . [2 marks]

..................................................................................................................................

15. [6 marks]

(a) State the work-energy theorem. [1 mark]

..................................................................................................................................

(b) A $0.50 \text{ kg}$ ball is dropped from a height of $10.0 \text{ m}$ above the ground. After hitting the ground, it rebounds to a height of $6.4 \text{ m}$ .

(i) Calculate the speed of the ball just before it hits the ground. [2 marks]

..................................................................................................................................

(ii) Calculate the speed of the ball just after it leaves the ground. [1 mark]

..................................................................................................................................

(iii) Using the work-energy theorem, calculate the energy lost during the collision with the ground. [2 marks]

..................................................................................................................................

Section C: Long Structured Questions [20 marks]

Questions 16–20: Answer all questions. Show all working.

16. [10 marks]

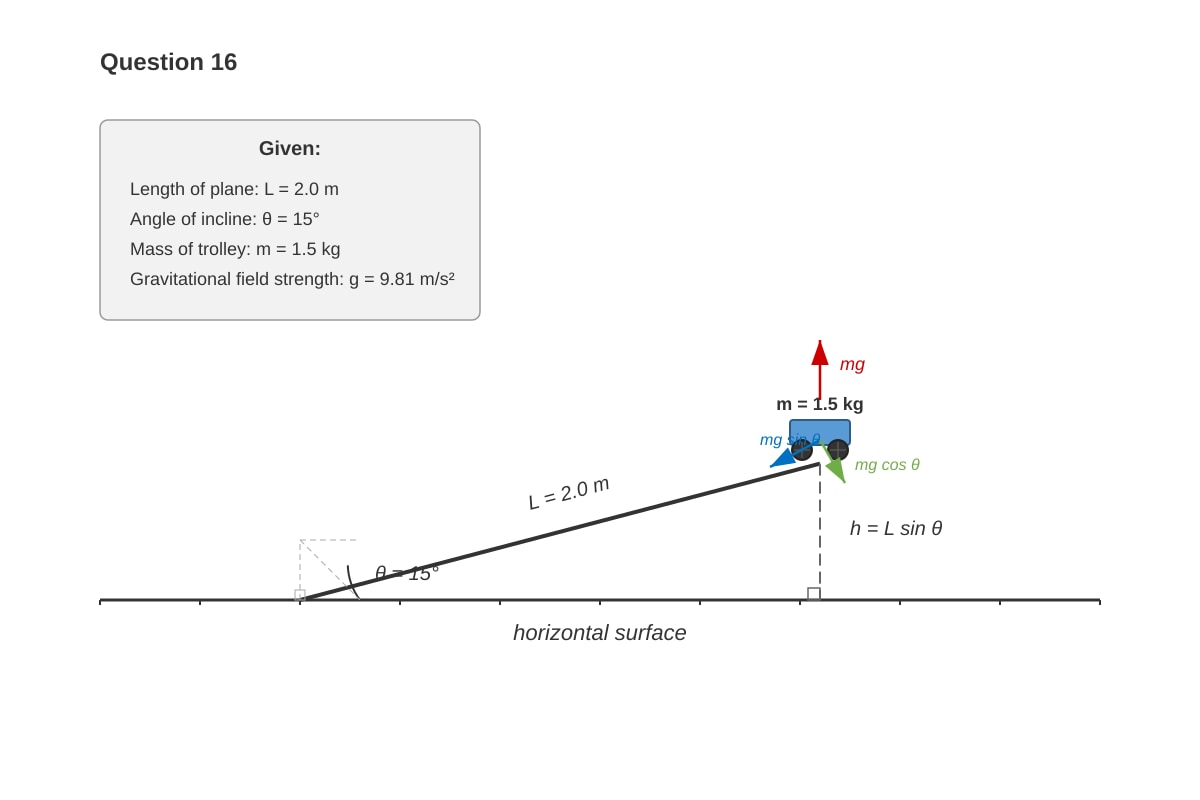

A student sets up an experiment to investigate the motion of a trolley on an inclined plane. The plane is inclined at an angle of $15°$ to the horizontal. A trolley of mass $1.5 \text{ kg}$ is released from rest at the top of the plane. The length of the plane is $2.0 \text{ m}$ .

<image_placeholder> id: Q16-fig1 type: diagram linked_question: Q16 description: An inclined plane of length 2.0 m at angle 15° to the horizontal, with a trolley of mass 1.5 kg at the top. The vertical height of the incline is shown. The base of the incline rests on a horizontal surface. labels: Inclined plane length L = 2.0 m, angle θ = 15°, trolley mass m = 1.5 kg, height h = L sin θ, g = 9.81 m/s² values: L = 2.0 m, θ = 15°, m = 1.5 kg, g = 9.81 m/s² must_show: Inclined plane with angle marked, trolley at top, length and height indicated, horizontal surface at base </image_placeholder>

(a) Calculate the component of the gravitational force acting down the slope. [2 marks]

..................................................................................................................................

(b) Assuming the surface is frictionless, calculate the acceleration of the trolley down the slope. [2 marks]

..................................................................................................................................

(d) In a real experiment, the student measures the speed at the bottom of the slope to be $1.8 \text{ m s}^{-1}$ , which is less than the theoretical value.

(i) Suggest one reason for this discrepancy. [1 mark]

..................................................................................................................................

(ii) Using the measured speed, calculate the average frictional force acting on the trolley along the slope. [3 marks]

..................................................................................................................................

17. [10 marks]

A spacecraft of mass $2000 \text{ kg}$ is in a circular orbit around the Earth at an altitude of $400 \text{ km}$ above the Earth's surface. The radius of the Earth is $6.37 \times 10^6 \text{ m}$ and the mass of the Earth is $5.97 \times 10^{24} \text{ kg}$ .

(a) State Newton's law of universal gravitation. Write the equation and define all symbols. [2 marks]

..................................................................................................................................

(b) Calculate the gravitational force acting on the spacecraft. [3 marks]

..................................................................................................................................

(c) Show that the orbital speed $v$ of the spacecraft is given by $v = \sqrt{\frac{GM}{r}}$ , where $r$ is the orbital radius. [2 marks]

..................................................................................................................................

(d) Calculate the orbital speed of the spacecraft. [2 marks]

..................................................................................................................................

(e) Calculate the orbital period of the spacecraft. [1 mark]

..................................................................................................................................

End of Paper

Answers

TuitionGoWhere Practice Paper — Physics H2 A-Level

Answer Key: Practice Paper — Mechanics (Version 4)

Section A: Multiple Choice [10 marks]

1. B — $20.4 \text{ m}$ [1 mark]

Teaching note: At maximum height, the final velocity is zero. Using $v^2 = u^2 - 2gh$ with $v = 0$ : $0 = (20)^2 - 2(9.81)h \implies h = \frac{400}{19.62} = 20.4 \text{ m}$ This uses the kinematic equation for constant acceleration (deceleration due to gravity). The key insight is that at the highest point, the ball momentarily stops before falling back down.

2. B — $90 \text{ m}$ [1 mark]

Teaching note: For uniform acceleration from rest, $s = \frac{1}{2}(u+v)t = \frac{1}{2}(0+30)(6.0) = 90 \text{ m}$ . Alternatively, find acceleration first: $a = \frac{v-u}{t} = \frac{30}{6} = 5 \text{ m s}^{-2}$ , then $s = \frac{1}{2}at^2 = \frac{1}{2}(5)(36) = 90 \text{ m}$ .

3. D — Momentum [1 mark]

Teaching note: Momentum $\mathbf{p} = m\mathbf{v}$ is a vector quantity because it has both magnitude and direction (the direction of velocity). Energy, power, and speed are all scalar quantities — they have magnitude but no direction. This is a fundamental distinction in mechanics.

4. B — $4.0 \text{ m s}^{-2}$ [1 mark]

Teaching note: From Newton's second law, $F = ma$ , so $a = \frac{F}{m} = \frac{12}{3.0} = 4.0 \text{ m s}^{-2}$ . This is a direct application of $F = ma$ on a frictionless surface where the net force equals the applied force.

5. C — $8.0 \text{ m s}^{-2}$ [1 mark]

Teaching note: Centripetal acceleration is given by $a_c = \frac{v^2}{r} = \frac{(4.0)^2}{2.0} = \frac{16}{2.0} = 8.0 \text{ m s}^{-2}$ . This acceleration is always directed toward the center of the circular path. Even though the speed is constant, the changing direction of velocity means the object is accelerating.

6. C — $34.6 \text{ m s}^{-1}$ [1 mark]

Teaching note: The horizontal component is $u_x = u\cos\theta = 40\cos 30° = 40 \times 0.866 = 34.6 \text{ m s}^{-1}$ . Students often confuse $\cos$ and $\sin$ — remember that the horizontal component uses $\cos$ when the angle is measured from the horizontal.

7. B — $2.0 \text{ m s}^{-1}$ [1 mark]

Teaching note: This is a perfectly inelastic collision (objects stick together). Using conservation of momentum: $m_1 u_1 + m_2 u_2 = (m_1 + m_2)v$ $(2.0)(5.0) + (3.0)(0) = (2.0 + 3.0)v$ $10 = 5.0v \implies v = 2.0 \text{ m s}^{-1}$ Note that kinetic energy is NOT conserved in this type of collision — some energy is converted to heat, sound, and deformation.

8. C — $122.6 \text{ N}$ [1 mark]

Teaching note: Taking moments about the left support (so the left reaction has zero moment): $\text{Anticlockwise} = \text{Clockwise}$ $R_R \times 4.0 = (10 \times 9.81) \times 2.0 + (20 \times 9.81) \times 1.0$ $R_R \times 4.0 = 196.2 + 196.2 = 392.4$ $R_R = 98.1 \text{ N}$

Wait — let me recalculate. The plank's weight acts at its center (2.0 m from left), and the child sits 1.0 m from the left: $R_R \times 4.0 = (10 \times 9.81) \times 2.0 + (20 \times 9.81) \times 1.0$ $R_R \times 4.0 = 196.2 + 196.2 = 392.4$ $R_R = 98.1 \text{ N}$

Hmm, that gives 98.1 N which is option B. Let me recheck: $10 \times 9.81 = 98.1$ , times 2.0 = 196.2. $20 \times 9.81 = 196.2$ , times 1.0 = 196.2. Sum = 392.4. Divided by 4.0 = 98.1 N.

Corrected answer: B — $98.1 \text{ N}$ [1 mark]

Teaching note: Taking moments about the left support: The plank's weight (98.1 N) acts at the center (2.0 m from left), and the child's weight (196.2 N) acts 1.0 m from the left. Setting anticlockwise moments = clockwise moments: $R_R \times 4.0 = 98.1 \times 2.0 + 196.2 \times 1.0 = 196.2 + 196.2 = 392.4$ , giving $R_R = 98.1 \text{ N}$ .

9. A — It becomes $\frac{1}{\sqrt{2}}$ times the original. [1 mark]

Teaching note: For a circular orbit, $\frac{GMm}{r^2} = \frac{mv^2}{r}$ , so $v = \sqrt{\frac{GM}{r}}$ . If $r$ doubles, $v$ becomes $\sqrt{\frac{GM}{2r}} = \frac{1}{\sqrt{2}}\sqrt{\frac{GM}{r}}$ . So the orbital speed decreases by a factor of $\frac{1}{\sqrt{2}}$ . This is an important result in orbital mechanics — higher orbits are slower.

10. B — $1.0 \text{ J}$ [1 mark]

Teaching note: Elastic potential energy is given by $E = \frac{1}{2}kx^2 = \frac{1}{2}(200)(0.10)^2 = \frac{1}{2}(200)(0.01) = 1.0 \text{ J}$ . This energy is stored in the spring and can be released when the spring returns to its natural length.

Section B: Structured Questions [30 marks]

11. [6 marks]

(a) Newton's second law states that the net force acting on an object is equal to the rate of change of its momentum. For constant mass, this simplifies to $F = ma$ , where the acceleration is in the direction of the net force. [1 mark]

Marking: Award 1 mark for stating that net force equals rate of change of momentum, OR $F = ma$ with correct description of direction.

(b)(i) The normal contact force is found by resolving forces vertically. The applied force has an upward vertical component $F\sin\theta$ that partially supports the weight:

$N + F\sin\theta = mg$ $N = mg - F\sin\theta$ $N = (5.0)(9.81) - (30)\sin 25°$ $N = 49.05 - 30 \times 0.4226$ $N = 49.05 - 12.68$ $\boxed{N = 36.4 \text{ N}}$

[2 marks] — 1 mark for correct equation, 1 mark for correct numerical answer.

Common mistake: Students often forget that the upward component of the applied force reduces the normal force. If the force were applied downward at an angle, it would increase the normal force.

(b)(ii) The friction force is: $f = \mu_k N = 0.35 \times 36.4 = 12.7 \text{ N}$

The net horizontal force is: $F_{\text{net}} = F\cos\theta - f = 30\cos 25° - 12.7$ $F_{\text{net}} = 30 \times 0.9063 - 12.7 = 27.19 - 12.7 = 14.5 \text{ N}$

The acceleration is: $a = \frac{F_{\text{net}}}{m} = \frac{14.5}{5.0}$ $\boxed{a = 2.90 \text{ m s}^{-2}}$

[3 marks] — 1 mark for friction force, 1 mark for net force, 1 mark for acceleration.

Teaching note: This is a multi-step problem requiring careful resolution of forces. The key steps are: (1) find the normal force by vertical equilibrium, (2) calculate friction, (3) find net horizontal force, (4) apply Newton's second law.

12. [7 marks]

(a) The principle of conservation of linear momentum states that the total momentum of a closed system remains constant (is conserved) provided that no external resultant force acts on the system. [1 mark]

Marking: Award 1 mark for a complete statement including both the constancy of total momentum AND the condition of no external force / closed system.

(b)(i) Taking the initial direction of trolley A as positive:

$m_A u_A + m_B u_B = m_A v_A + m_B v_B$ $(0.80)(2.5) + (1.2)(0) = (0.80)(-0.50) + (1.2)v_B$ $2.0 = -0.40 + 1.2v_B$ $1.2v_B = 2.4$ $\boxed{v_B = 2.0 \text{ m s}^{-1}}$

The positive sign means trolley B moves in the original direction of trolley A.

[3 marks] — 1 mark for correct equation with signs, 1 mark for correct substitution, 1 mark for correct answer with unit.

Common mistake: Forgetting that trolley A rebounds, so $v_A$ must be negative. This is the most common sign error in collision problems.

(b)(ii) Calculate total kinetic energy before and after:

Before: $KE_{\text{before}} = \frac{1}{2}(0.80)(2.5)^2 + 0 = \frac{1}{2}(0.80)(6.25) = 2.50 \text{ J}$

After: $KE_{\text{after}} = \frac{1}{2}(0.80)(-0.50)^2 + \frac{1}{2}(1.2)(2.0)^2 = \frac{1}{2}(0.80)(0.25) + \frac{1}{2}(1.2)(4.0)$ $= 0.10 + 2.40 = 2.50 \text{ J}$

Since $KE_{\text{before}} = KE_{\text{after}} = 2.50 \text{ J}$ , kinetic energy is conserved, so the collision is elastic. [3 marks]

Marking: 1 mark for calculating KE before, 1 mark for calculating KE after, 1 mark for correct conclusion.

Teaching note: An elastic collision is one where both momentum AND kinetic energy are conserved. An inelastic collision conserves momentum but not kinetic energy. In a perfectly inelastic collision, the objects stick together and the maximum kinetic energy is lost.

13. [6 marks]

(a) Horizontal component: $u_x = u\cos\theta = 20\cos 37° = 20 \times 0.7986 = 15.97 \approx 16.0 \text{ m s}^{-1}$

Vertical component (upward positive): $u_y = u\sin\theta = 20\sin 37° = 20 \times 0.6018 = 12.04 \approx 12.0 \text{ m s}^{-1}$

[2 marks] — 1 mark each for horizontal and vertical components.

Note: Using $\cos 37° \approx 0.80$ and $\sin 37° \approx 0.60$ gives $u_x = 16.0 \text{ m s}^{-1}$ and $u_y = 12.0 \text{ m s}^{-1}$ .

(b) Taking upward as positive, the vertical displacement is $-45 \text{ m}$ (the ball ends up 45 m below the launch point):

$s_y = u_y t + \frac{1}{2}a_y t^2$ $-45 = 12.0t + \frac{1}{2}(-9.81)t^2$ $-45 = 12.0t - 4.905t^2$ $4.905t^2 - 12.0t - 45 = 0$

Using the quadratic formula: $t = \frac{12.0 \pm \sqrt{(-12.0)^2 + 4(4.905)(45)}}{2(4.905)}$ $t = \frac{12.0 \pm \sqrt{144 + 882.9}}{9.81}$ $t = \frac{12.0 \pm \sqrt{1026.9}}{9.81}$ $t = \frac{12.0 \pm 32.05}{9.81}$

Taking the positive root: $t = \frac{12.0 + 32.05}{9.81} = \frac{44.05}{9.81}$ $\boxed{t = 4.49 \text{ s}}$

[2 marks] — 1 mark for correct equation, 1 mark for correct answer.

(c) The horizontal distance from the base of the cliff: $R = u_x \times t = 16.0 \times 4.49$ $\boxed{R = 71.8 \text{ m}}$

[2 marks] — 1 mark for using horizontal velocity × time, 1 mark for correct answer. Allow ecf from (a) and (b).

Teaching note: Projectile motion problems are solved by treating horizontal and vertical motions independently. Horizontal motion has zero acceleration (constant velocity), while vertical motion has constant acceleration $g$ downward.

14. [5 marks]

(a) Centripetal force is the net force directed toward the center of a circular path that keeps an object moving in a circle. It is not a new type of force but is provided by forces such as tension, gravity, friction, or a combination. [1 mark]

Marking: Must mention "toward the center" and "circular path" for the mark.

(b)(i) $F_c = \frac{mv^2}{r} = \frac{900 \times (15)^2}{50} = \frac{900 \times 225}{50} = \frac{202500}{50}$ $\boxed{F_c = 4050 \text{ N}}$

[2 marks] — 1 mark for correct formula, 1 mark for correct answer.

(b)(ii) For a banked curve with no friction, resolving forces:

Vertically: $N\cos\theta = mg$ ... (i) Horizontally: $N\sin\theta = \frac{mv^2}{r}$ ... (ii)

Dividing (ii) by (i): $\frac{N\sin\theta}{N\cos\theta} = \frac{mv^2/r}{mg}$ $\tan\theta = \frac{v^2}{rg}$ $\theta = \tan^{-1}\left(\frac{v^2}{rg}\right)$

Substituting values: $\theta = \tan^{-1}\left(\frac{(15)^2}{50 \times 9.81}\right) = \tan^{-1}\left(\frac{225}{490.5}\right) = \tan^{-1}(0.4587)$ $\boxed{\theta = 24.6°}$

[2 marks] — 1 mark for derivation, 1 mark for correct angle.

Teaching note: On a banked curve, the horizontal component of the normal force provides the centripetal force. The faster the car or the tighter the bend, the greater the banking angle needed.

15. [6 marks]

(a) The work-energy theorem states that the net work done on an object is equal to the change in its kinetic energy: $W_{\text{net}} = \Delta KE = \frac{1}{2}mv^2 - \frac{1}{2}mu^2$ [1 mark]

(b)(i) Using conservation of energy (or $v^2 = u^2 + 2as$ ): $v^2 = 0 + 2(9.81)(10.0) = 196.2$ $\boxed{v = 14.0 \text{ m s}^{-1}}$

[2 marks] — 1 mark for correct method, 1 mark for correct answer.

(b)(ii) Using $v^2 = u^2 + 2gh$ for the rebound (final speed at max height = 0): $0 = v_{\text{after}}^2 - 2(9.81)(6.4)$ $v_{\text{after}}^2 = 2 \times 9.81 \times 6.4 = 125.57$ $\boxed{v_{\text{after}} = 11.2 \text{ m s}^{-1}}$

[1 mark] for correct answer.

(b)(iii) Energy lost = $KE_{\text{before}} - KE_{\text{after}}$ $= \frac{1}{2}(0.50)(14.0)^2 - \frac{1}{2}(0.50)(11.2)^2$ $= \frac{1}{2}(0.50)(196) - \frac{1}{2}(0.50)(125.44)$ $= 49.0 - 31.36$ $\boxed{= 17.6 \text{ J}}$

[2 marks] — 1 mark for correct KE values, 1 mark for correct energy lost.

Teaching note: The energy lost during the collision is converted to other forms — sound, heat, and permanent deformation of the ball or ground. The coefficient of restitution can also be found: $e = \frac{11.2}{14.0} = 0.80$ .

Section C: Long Structured Questions [20 marks]

16. [10 marks]

(a) The component of gravitational force down the slope: $F_{\text{parallel}} = mg\sin\theta = 1.5 \times 9.81 \times \sin 15°$ $= 1.5 \times 9.81 \times 0.2588$ $\boxed{F_{\text{parallel}} = 3.81 \text{ N}}$

[2 marks] — 1 mark for correct formula, 1 mark for correct answer.

(b) By Newton's second law along the slope (frictionless): $a = \frac{F_{\text{parallel}}}{m} = g\sin\theta = 9.81 \times \sin 15°$ $\boxed{a = 2.54 \text{ m s}^{-2}}$

[2 marks] — 1 mark for correct method, 1 mark for correct answer.

(c) Using $v^2 = u^2 + 2as$ with $u = 0$ : $v^2 = 0 + 2(2.54)(2.0) = 10.16$ $\boxed{v = 3.19 \text{ m s}^{-1}}$

[2 marks] — 1 mark for correct equation, 1 mark for correct answer.

(d)(i) The measured speed is less than theoretical because of friction between the trolley and the slope (or air resistance). [1 mark]

(d)(ii) Using the work-energy theorem. The net work done equals the change in kinetic energy:

Theoretical KE at bottom (frictionless): $\frac{1}{2}mv_{\text{theoretical}}^2 = \frac{1}{2}(1.5)(3.19)^2 = 7.63 \text{ J}$

Actual KE at bottom: $\frac{1}{2}mv_{\text{measured}}^2 = \frac{1}{2}(1.5)(1.8)^2 = \frac{1}{2}(1.5)(3.24) = 2.43 \text{ J}$

Energy lost to friction = $7.63 - 2.43 = 5.20 \text{ J}$

This energy loss equals the work done by friction: $f \times d = 5.20$ $f \times 2.0 = 5.20$ $\boxed{f = 2.60 \text{ N}}$

Alternatively, using forces: Net force with friction: $mg\sin\theta - f = ma_{\text{measured}}$ From $v^2 = 2as$ : $a_{\text{measured}} = \frac{(1.8)^2}{2(2.0)} = \frac{3.24}{4.0} = 0.81 \text{ m s}^{-2}$ $f = mg\sin\theta - ma_{\text{measured}} = 3.81 - 1.5 \times 0.81 = 3.81 - 1.215 = 2.60 \text{ N}$

[3 marks] — 1 mark for calculating measured acceleration or KE, 1 mark for correct method, 1 mark for correct frictional force.

Teaching note: This question tests the work-energy theorem in a practical context. The difference between theoretical and measured values is a common theme in experimental physics and is how we quantify real-world effects like friction.

17. [10 marks]

(a) Newton's law of universal gravitation states that every particle attracts every other particle with a force that is directly proportional to the product of their masses and inversely proportional to the square of the distance between their centres:

$F = \frac{GMm}{r^2}$

where:

$F$ = gravitational force (N)
$G$ = gravitational constant ( $6.674 \times 10^{-11} \text{ N m}^2 \text{ kg}^{-2}$ )
$M$ = mass of the Earth (kg)
$m$ = mass of the spacecraft (kg)
$r$ = distance between centres (m)

[2 marks] — 1 mark for equation, 1 mark for defining symbols.

(b) Orbital radius: $r = R_E + h = 6.37 \times 10^6 + 400 \times 10^3 = 6.77 \times 10^6 \text{ m}$

$F = \frac{GMm}{r^2} = \frac{(6.674 \times 10^{-11})(5.97 \times 10^{24})(2000)}{(6.77 \times 10^6)^2}$ $= \frac{(6.674 \times 10^{-11})(1.194 \times 10^{28})}{4.583 \times 10^{13}}$ $= \frac{7.969 \times 10^{17}}{4.583 \times 10^{13}}$ $\boxed{F = 1.74 \times 10^4 \text{ N} \approx 17400 \text{ N}}$

[3 marks] — 1 mark for correct orbital radius, 1 mark for correct substitution, 1 mark for correct answer.

(c) For a circular orbit, the gravitational force provides the centripetal force:

$\frac{GMm}{r^2} = \frac{mv^2}{r}$

Cancel $m$ from both sides: $\frac{GM}{r^2} = \frac{v^2}{r}$

Multiply both sides by $r$ : $\frac{GM}{r} = v^2$

Therefore: $\boxed{v = \sqrt{\frac{GM}{r}}}$

[2 marks] — 1 mark for equating gravitational force to centripetal force, 1 mark for correct derivation to final expression.

(d) $v = \sqrt{\frac{GM}{r}} = \sqrt{\frac{(6.674 \times 10^{-11})(5.97 \times 10^{24})}{6.77 \times 10^6}}$ $= \sqrt{\frac{3.984 \times 10^{14}}{6.77 \times 10^6}}$ $= \sqrt{5.885 \times 10^7}$ $\boxed{v = 7671 \text{ m s}^{-1} \approx 7.67 \times 10^3 \text{ m s}^{-1}}$

[2 marks] — 1 mark for correct substitution, 1 mark for correct answer.

(e) The orbital period: $T = \frac{2\pi r}{v} = \frac{2\pi(6.77 \times 10^6)}{7671} = \frac{4.254 \times 10^7}{7671}$ $\boxed{T = 5546 \text{ s} \approx 92.4 \text{ minutes}}$

[1 mark] for correct answer.

Teaching note: Orbital mechanics connects Newton's law of gravitation with circular motion. The key insight is that gravity provides the centripetal force. Notice that the orbital speed and period are independent of the mass of the orbiting object — a heavier satellite orbits at the same speed as a lighter one at the same altitude.

Total: 60 marks

Mark Summary:

Section	Marks
A: Q1–10 (Multiple Choice)	10
B: Q11	6
B: Q12	7
B: Q13	6
B: Q14	5
B: Q15	6
C: Q16	10
C: Q17	10
Total	60
