Questions

A-Level Physics H2 Quiz - Mechanics

Name: _________________________ Class: _________________________ Date: _________________________ Score: ______ / 50

Duration: 1 hour 15 minutes Total Marks: 50

Instructions:

Answer ALL questions in the spaces provided.
Show all working for calculation questions.
State any assumptions made.
Use g = 9.81 m s⁻² unless otherwise stated.
Give answers to an appropriate number of significant figures.

Section A: Structured Questions (20 marks)

Answer all questions in this section.

1. State the principle of conservation of linear momentum.

[2 marks]

2. A ball of mass 0.50 kg is attached to a spring and oscillates with simple harmonic motion. The amplitude of oscillation is 4.0 cm and the period is 0.80 s.

(a) Calculate the angular frequency of the oscillation.

[1 mark]

(b) Calculate the maximum acceleration of the ball.

[2 marks]

3. A student investigates the motion of a trolley on a friction-compensated runway. The trolley is pulled by a falling mass attached to a string passing over a pulley. A motion sensor records the velocity-time graph.

State TWO precautions the student should take to improve the accuracy of the experiment, explaining how each precaution improves accuracy.

[4 marks]

Precaution 1:

Precaution 2:

4. A car of mass 1200 kg travels at a constant speed of 15 m s⁻¹ around a circular bend of radius 50 m.

(a) Calculate the centripetal acceleration of the car.

[2 marks]

(b) Calculate the centripetal force acting on the car.

[1 mark]

5. A particle moves along a straight line with velocity v given by v = 3t² - 6t + 2, where t is in seconds and v is in m s⁻¹.

(a) Find the acceleration of the particle at t = 2.0 s.

[2 marks]

(b) Determine the time(s) when the particle is instantaneously at rest.

[2 marks]

6. A stone is projected horizontally from the top of a cliff 45 m high with a speed of 20 m s⁻¹.

(a) Calculate the time taken for the stone to reach the ground.

[2 marks]

(b) Calculate the horizontal distance travelled by the stone.

[1 mark]

Section B: Calculation and Application (20 marks)

Answer all questions in this section.

7. A block of mass 2.0 kg slides down a frictionless incline of height 3.0 m. The incline makes an angle of 30° with the horizontal.

(a) Calculate the gravitational potential energy lost by the block.

[1 mark]

(b) Using energy considerations, calculate the speed of the block at the bottom of the incline.

[2 marks]

(c) The block then slides along a rough horizontal surface with coefficient of kinetic friction 0.25. Calculate the distance travelled before coming to rest.

[3 marks]

8. A ball of mass 0.15 kg is dropped from a height of 2.0 m onto a horizontal surface. It rebounds to a height of 1.6 m. The ball is in contact with the surface for 0.050 s.

(a) Calculate the speed of the ball just before impact.

[2 marks]

(b) Calculate the speed of the ball just after impact.

[2 marks]

[3 marks]

9. Two masses m₁ = 3.0 kg and m₂ = 2.0 kg are connected by a light inextensible string passing over a smooth pulley. m₁ rests on a smooth horizontal table and m₂ hangs freely.

(a) Draw a free-body diagram showing all forces acting on each mass.

[2 marks]

(b) Calculate the acceleration of the system.

[3 marks]

[2 marks]

Section C: Data Analysis and Extended Response (10 marks)

Answer all questions in this section.

10. A student investigates the relationship between the period T of a simple pendulum and its length L. The following data is obtained:

Length L / m	Period T / s	T² / s²
0.40	1.27
0.60	1.55
0.80	1.79
1.00	2.01
1.20	2.20

(a) Complete the table by calculating T² for each length. Give your answers to 3 significant figures.

[2 marks]

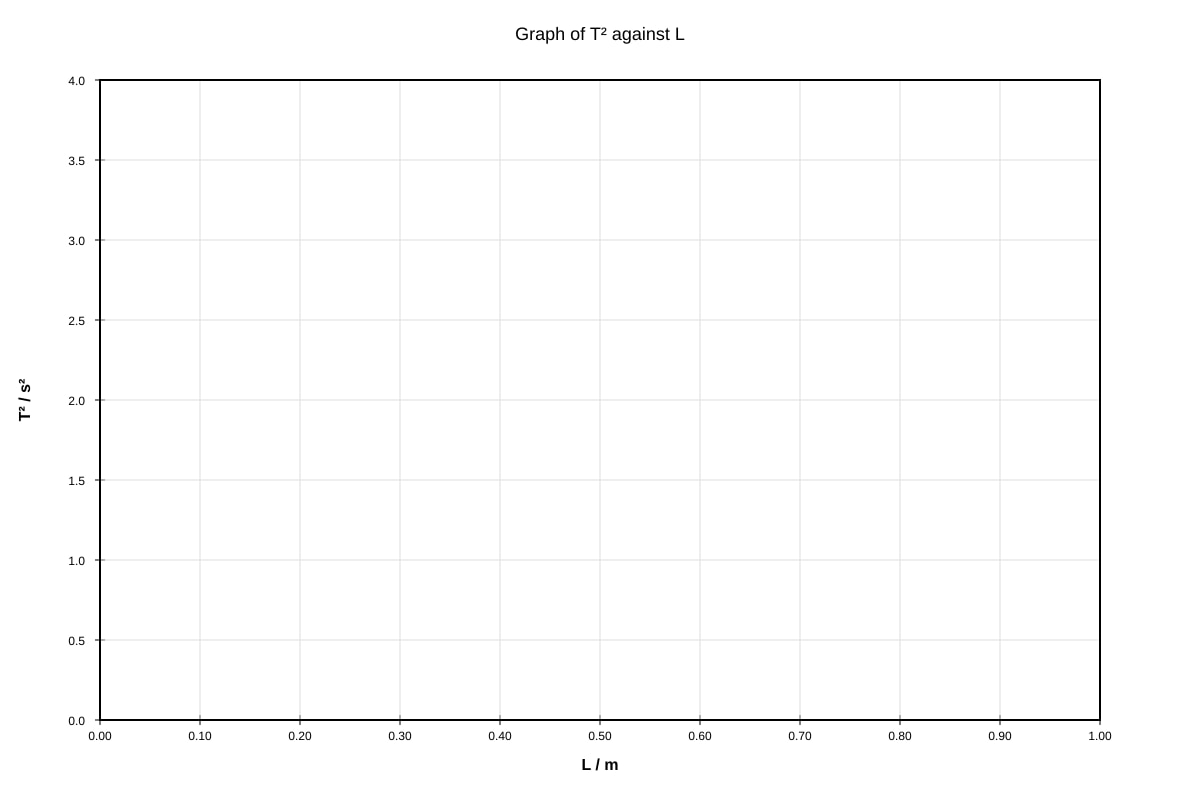

(b) Plot a graph of T² (y-axis) against L (x-axis) on the grid provided. Draw the best-fit straight line.

[4 marks]

[Graph grid would be provided in actual paper]

(c) The relationship between T and L is given by T = 2π√(L/g). Use your graph to determine the experimental value of g, the acceleration due to gravity.

[4 marks]

END OF PAPER

Answers

A-Level Physics H2 Quiz - Mechanics: ANSWER KEY

Total Marks: 50

Section A: Structured Questions (20 marks)

1. State the principle of conservation of linear momentum. [2 marks]

Answer: The total momentum of a closed/isolated system remains constant (1 mark) provided no external resultant/net force acts on the system (1 mark).

Alternative acceptable answer: In the absence of external forces, the total momentum before a collision/interaction equals the total momentum after the collision/interaction.

Marking notes:

Award 1 mark for "total momentum constant/conserved" or equivalent.
Award 1 mark for condition: "no external force" / "closed system" / "isolated system".
Do not award marks for "momentum is conserved" alone without condition.

2. (a) Calculate the angular frequency of the oscillation. [1 mark]

Answer: ω = 2π / T = 2π / 0.80 = 7.85 rad s⁻¹ (accept 7.9 rad s⁻¹)

Marking notes:

Award 1 mark for correct formula and correct numerical answer with units.
Accept 7.85 or 7.9 rad s⁻¹.

(b) Calculate the maximum acceleration of the ball. [2 marks]

Answer: a_max = ω² × x₀ a_max = (7.85)² × 0.040 a_max = 61.6 × 0.040 = 2.46 m s⁻² (accept 2.5 m s⁻²)

Marking notes:

Award 1 mark for correct formula a_max = ω²x₀.
Award 1 mark for correct substitution and answer with units.
Accept 2.46 or 2.5 m s⁻².
Deduct 1 mark if amplitude not converted to metres (0.040 m).

3. State TWO precautions to improve accuracy, explaining how each improves accuracy. [4 marks]

Answer (any two of the following or equivalent valid precautions):

Ensure the runway is properly friction-compensated (slightly tilted) so that the trolley moves at constant velocity when no external force is applied. This eliminates the effect of friction as a systematic error. (2 marks)
Use a motion sensor/datalogger instead of a stopwatch to measure velocity. This reduces random error from human reaction time. (2 marks)
Ensure the string is parallel to the runway so that the full tension acts along the direction of motion. This ensures the accelerating force equals the tension. (2 marks)
Repeat measurements and calculate average values to reduce random errors. (2 marks)
Use a light gate or motion sensor to measure time more precisely than a stopwatch. (2 marks)

Marking notes:

Award 1 mark for stating the precaution, 1 mark for explaining how it improves accuracy.
Maximum 4 marks (2 precautions × 2 marks each).
Accept any valid, specific precaution with clear link to accuracy improvement.
Generic answers without explanation (e.g., "be careful") score 0.

4. (a) Calculate the centripetal acceleration of the car. [2 marks]

Answer: a = v² / r a = (15)² / 50 a = 225 / 50 = 4.5 m s⁻²

Marking notes:

Award 1 mark for correct formula.
Award 1 mark for correct substitution and answer with units.

(b) Calculate the centripetal force acting on the car. [1 mark]

Answer: F = ma = 1200 × 4.5 = 5400 N (or 5.4 × 10³ N)

Marking notes:

Award 1 mark for correct answer with units.
Accept use of F = mv²/r directly.

Answer: The frictional force between the tyres and the road surface provides the centripetal force.

Marking notes:

Award 1 mark for "friction" or "frictional force between tyres and road".
Accept "static friction" or "lateral friction".

5. (a) Find the acceleration of the particle at t = 2.0 s. [2 marks]

Answer: a = dv/dt = 6t - 6 At t = 2.0 s: a = 6(2.0) - 6 = 12 - 6 = 6.0 m s⁻²

Marking notes:

Award 1 mark for correct differentiation.
Award 1 mark for correct substitution and answer with units.

(b) Determine the time(s) when the particle is instantaneously at rest. [2 marks]

Answer: v = 0 ⇒ 3t² - 6t + 2 = 0 Using quadratic formula: t = [6 ± √(36 - 24)] / 6 = [6 ± √12] / 6 = [6 ± 3.46] / 6 t = 1.58 s or t = 0.42 s

Marking notes:

Award 1 mark for setting v = 0.
Award 1 mark for both correct times with units.
Accept 1.6 s and 0.42 s (or 0.4 s).

6. (a) Calculate the time taken for the stone to reach the ground. [2 marks]

Answer: Vertical motion: s = ut + ½at² 45 = 0 + ½(9.81)t² t² = 90 / 9.81 = 9.17 t = 3.03 s (accept 3.0 s)

Marking notes:

Award 1 mark for correct equation of motion in vertical direction.
Award 1 mark for correct answer with units.
Initial vertical velocity is zero for horizontal projection.

(b) Calculate the horizontal distance travelled by the stone. [1 mark]

Answer: Horizontal distance = v_x × t = 20 × 3.03 = 60.6 m (accept 61 m or 60 m)

Marking notes:

Award 1 mark for correct answer with units.
Accept consistent use of t from part (a).

Section B: Calculation and Application (20 marks)

7. (a) Calculate the gravitational potential energy lost by the block. [1 mark]

Answer: ΔGPE = mgh = 2.0 × 9.81 × 3.0 = 58.9 J (accept 59 J)

Marking notes:

Award 1 mark for correct answer with units.

(b) Using energy considerations, calculate the speed of the block at the bottom of the incline. [2 marks]

Answer: Loss in GPE = Gain in KE mgh = ½mv² 58.9 = ½ × 2.0 × v² v² = 58.9 v = 7.67 m s⁻¹ (accept 7.7 m s⁻¹)

Marking notes:

Award 1 mark for equating GPE loss to KE gain.
Award 1 mark for correct answer with units.

Answer: Work done against friction = Loss in KE μmg × d = ½mv² 0.25 × 2.0 × 9.81 × d = ½ × 2.0 × (7.67)² 4.905d = 58.9 d = 12.0 m

Marking notes:

Award 1 mark for equating work done against friction to KE.
Award 1 mark for correct expression for friction force (μmg).
Award 1 mark for correct answer with units.

8. (a) Calculate the speed of the ball just before impact. [2 marks]

Answer: v² = u² + 2as v² = 0 + 2(9.81)(2.0) v² = 39.24 v = 6.26 m s⁻¹ (accept 6.3 m s⁻¹) downwards

Marking notes:

Award 1 mark for correct equation.
Award 1 mark for correct answer with units.

(b) Calculate the speed of the ball just after impact. [2 marks]

Answer: Using rebound height: v² = u² + 2as 0 = u² + 2(-9.81)(1.6) u² = 31.39 u = 5.60 m s⁻¹ (accept 5.6 m s⁻¹) upwards

Marking notes:

Award 1 mark for correct method using rebound height.
Award 1 mark for correct answer with units.
Direction (upwards) should be indicated or implied.

Answer: Change in momentum: Δp = m(v - u) = 0.15(5.60 - (-6.26)) = 0.15(11.86) = 1.779 kg m s⁻¹ Average force: F = Δp / Δt = 1.779 / 0.050 = 35.6 N (accept 36 N)

Marking notes:

Award 1 mark for correct change in momentum (accounting for direction change).
Award 1 mark for using F = Δp/Δt.
Award 1 mark for correct answer with units.
Note: velocity before impact is negative if upward is positive (or vice versa). The key is correct magnitude of change.

9. (a) Draw a free-body diagram showing all forces acting on each mass. [2 marks]

Answer: For m₁ (3.0 kg on table):

Weight (m₁g) downwards
Normal reaction (N) upwards
Tension (T) to the right

For m₂ (2.0 kg hanging):

Weight (m₂g) downwards
Tension (T) upwards

Marking notes:

Award 1 mark for correct forces on m₁ (all three forces correctly labelled).
Award 1 mark for correct forces on m₂ (both forces correctly labelled).
Arrows must indicate correct directions.

(b) Calculate the acceleration of the system. [3 marks]

Answer: For m₂: m₂g - T = m₂a ... (1) For m₁: T = m₁a ... (2)

Substituting (2) into (1): m₂g - m₁a = m₂a m₂g = (m₁ + m₂)a a = m₂g / (m₁ + m₂) = (2.0 × 9.81) / (3.0 + 2.0) = 19.62 / 5.0 = 3.92 m s⁻² (accept 3.9 m s⁻²)

Marking notes:

Award 1 mark for correct equation of motion for each mass.
Award 1 mark for combining equations correctly.
Award 1 mark for correct answer with units.

Answer: T = m₁a = 3.0 × 3.92 = 11.8 N (accept 12 N)

Marking notes:

Award 1 mark for correct method (using either mass).
Award 1 mark for correct answer with units.

Section C: Data Analysis and Extended Response (10 marks)

10. (a) Complete the table by calculating T² for each length. [2 marks]

Answer:

Length L / m	Period T / s	T² / s²
0.40	1.27	1.61
0.60	1.55	2.40
0.80	1.79	3.20
1.00	2.01	4.04
1.20	2.20	4.84

Marking notes:

Award 1 mark for at least 3 correct values.
Award 2 marks for all 5 correct values to 3 significant figures.
Accept 1.61, 2.40, 3.20, 4.04, 4.84.

(b) Plot a graph of T² against L and draw the best-fit straight line. [4 marks]

Answer:

Axes correctly labelled with units: T² / s² (y-axis), L / m (x-axis) [1 mark]
Appropriate scales chosen (linear, covering data range) [1 mark]
All 5 points plotted correctly (within ± half small square) [1 mark]
Best-fit straight line drawn (even distribution of points above and below line) [1 mark]

Marking notes:

Award marks as indicated above.
Graph should show linear relationship passing close to origin.

Answer: From T = 2π√(L/g), we get T² = (4π²/g) × L Gradient of T² vs L graph = 4π²/g

Gradient = Δ(T²) / ΔL = (4.84 - 1.61) / (1.20 - 0.40) = 3.23 / 0.80 = 4.04 s² m⁻¹

g = 4π² / gradient = 4π² / 4.04 = 39.48 / 4.04 = 9.77 m s⁻² (accept 9.8 m s⁻²)

Marking notes:

Award 1 mark for deriving T² = (4π²/g)L.
Award 1 mark for correct gradient calculation using large triangle.
Award 1 mark for rearranging to find g.
Award 1 mark for correct answer with units (9.77 or 9.8 m s⁻²).
Accept values in range 9.5-10.0 m s⁻² depending on graph line.

END OF ANSWER KEY
