TuitionGoWhere Exam Practice (AI) - Physics H2 A-Level

Mechanics Practice Paper (Version 1 of 5)

School: TuitionGoWhere Exam Practice (AI)
Subject: Physics H2
Level: A-Level
Paper: Practice Paper 1 (Mechanics)
Version: 1 of 5
Duration: 75 minutes
Total Marks: 60
Name: ___________________________
Class: ___________________________
Date: ___________________________

Instructions

Answer all questions in the spaces provided.
Show all working clearly where calculation is required.
Use the data and formulae sheet if needed.
Marks allocated are shown at the end of each question or subpart.

Section A: Foundations of Mechanics (Questions 1–5) [12 marks]

1. State the principle of conservation of linear momentum. [2]

2. A block of mass $2.0\ \text{kg}$ is pulled along a horizontal frictionless surface by a constant force of $6.0\ \text{N}$ . Calculate the acceleration of the block. [2]

3. A force of $10\ \text{N}$ is applied at a perpendicular distance of $0.40\ \text{m}$ from a pivot. Calculate the moment of the force about the pivot. [1]

4. Resolve a velocity vector of magnitude $20\ \text{m s}^{-1}$ acting at $30^\circ$ above the horizontal into horizontal and vertical components. [2]

5. A car travels $100\ \text{m}$ in $8.0\ \text{s}$ with uniform acceleration from rest. Calculate its final speed. [2]

Section B: Motion, Collisions and Circular Motion (Questions 6–13) [24 marks]

6. A ball is thrown vertically upward with initial speed $15\ \text{m s}^{-1}$ . Calculate the maximum height reached. (Take $g = 9.8\ \text{m s}^{-2}$ .) [2]

7. A projectile is launched horizontally from a height of $45\ \text{m}$ with speed $20\ \text{m s}^{-1}$ . (a) Calculate the time taken to reach the ground. [2] (b) Calculate the horizontal distance travelled. [1]

8. Two trolleys collide on a straight track. Trolley A ( $m_A = 1.5\ \text{kg}$ ) moves at $4.0\ \text{m s}^{-1}$ and trolley B ( $m_B = 1.0\ \text{kg}$ ) is initially at rest. After collision they stick together. Calculate their common final speed. [3]

9. A $0.20\ \text{kg}$ ball hits a wall with speed $10\ \text{m s}^{-1}$ and rebounds at $8.0\ \text{m s}^{-1}$ . The contact time is $0.050\ \text{s}$ . Calculate the magnitude of the average force exerted by the wall on the ball. [3]

10. A mass of $0.50\ \text{kg}$ is attached to a string of length $0.80\ \text{m}$ and whirled in a horizontal circle at $4.0\ \text{rev s}^{-1}$ . (a) Calculate the angular velocity $\omega$ in rad s⁻¹. [1] (b) Calculate the centripetal force. [2]

11. A car of mass $1200\ \text{kg}$ rounds a bend of radius $50\ \text{m}$ at $20\ \text{m s}^{-1}$ . Calculate the centripetal force required. [2]

12.

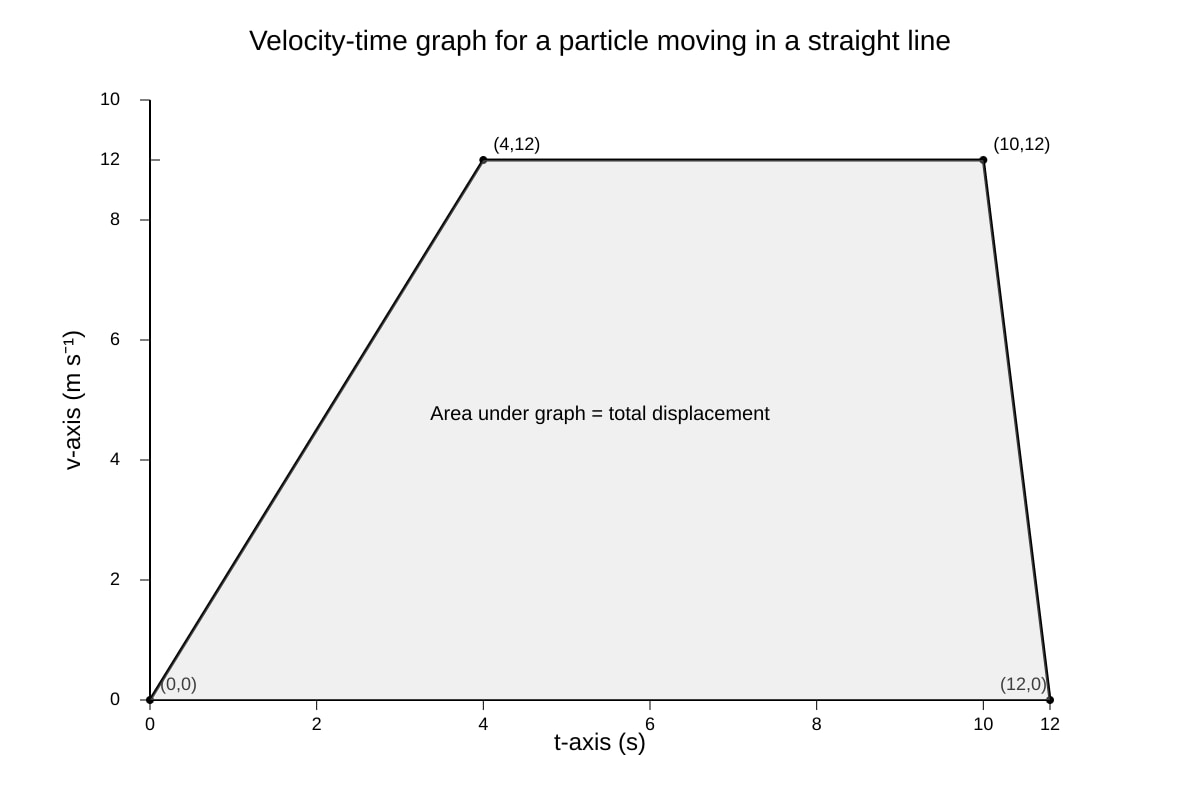

Graph for Q12 (ALEVEL Physics H2)

Generated graph for Q12.

Using the graph in Q12-fig1, calculate the total displacement of the particle. [3]

13. A simple pendulum has period $2.0\ \text{s}$ . Calculate its angular frequency $\omega$ . [2]

Section C: Gravitation, Oscillations and Extended Reasoning (Questions 14–20) [24 marks]

14. State Newton's law of gravitation in words. [2]

15. Two point masses $m_1 = 5.0\ \text{kg}$ and $m_2 = 10\ \text{kg}$ are separated by $2.0\ \text{m}$ . Calculate the gravitational force between them. ( $G = 6.67 \times 10^{-11}\ \text{N m}^2\ \text{kg}^{-2}$ ) [2]

16. A satellite orbits Earth at radius $r = 4.2 \times 10^7\ \text{m}$ . Given Earth mass $M = 6.0 \times 10^{24}\ \text{kg}$ and $G = 6.67 \times 10^{-11}\ \text{N m}^2\ \text{kg}^{-2}$ , calculate the gravitational field strength $g$ at that orbit. [2]

17. A mass on a spring performs simple harmonic motion with amplitude $X_0 = 0.050\ \text{m}$ and angular frequency $\omega = 1.57\ \text{rad s}^{-1}$ . Calculate the maximum acceleration. [2]

18. A mass-spring system has $k = 80\ \text{N m}^{-1}$ and $m = 0.20\ \text{kg}$ . (a) Calculate the angular frequency $\omega$ . [2] (b) Calculate the maximum kinetic energy if amplitude is $0.10\ \text{m}$ . [2]

19.

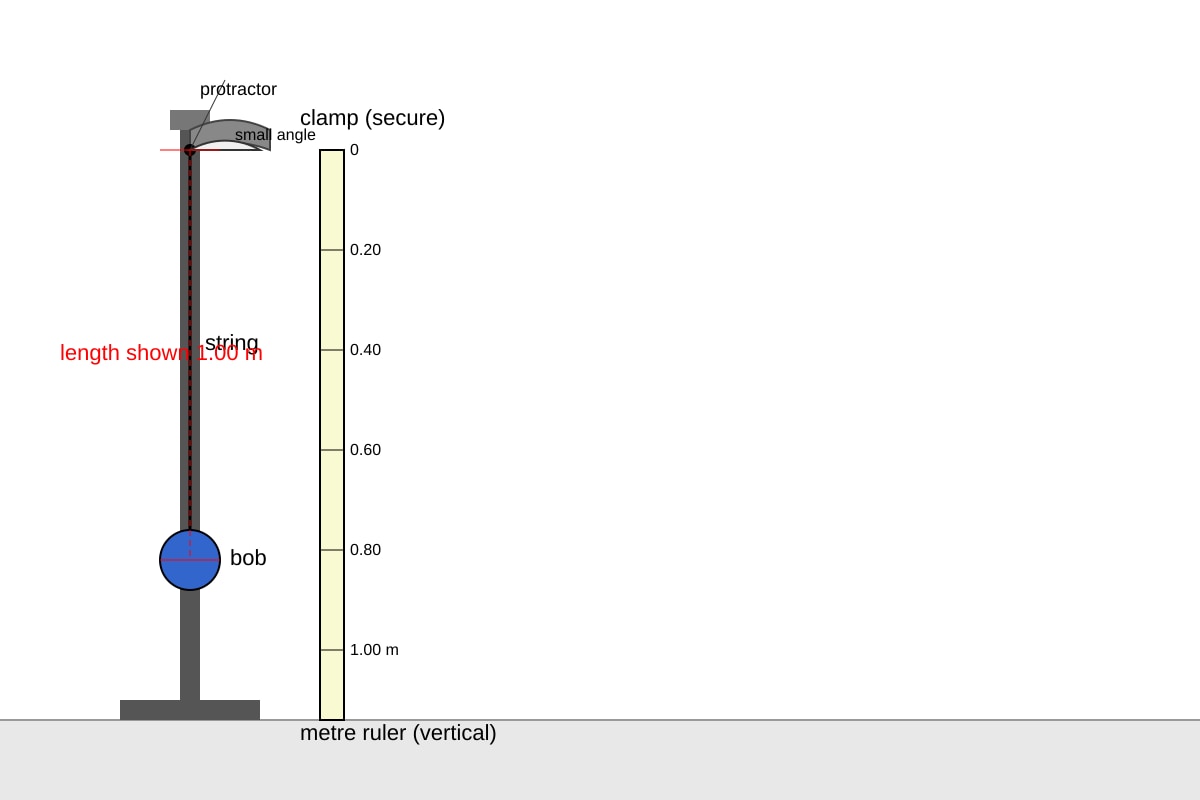

Experimental Setup for Q19 (ALEVEL Physics H2)

Generated experimental_setup for Q19.

State two precautions to improve accuracy of the pendulum experiment shown in Q19-fig1. [4]

20. A student claims: "In a perfectly elastic collision, both momentum and kinetic energy are conserved; in an inelastic collision, only momentum is conserved." Evaluate this statement with reference to the principle of conservation of momentum and energy changes. [6]

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

TuitionGoWhere Exam Practice (AI) - Physics H2 A-Level

Mechanics Practice Paper (Version 1 of 5) — Answer Key

Total Marks: 60

Section A: Foundations of Mechanics (Q1–5) [12 marks]

Q1 [2 marks]

Principle: In a closed (isolated) system, total momentum before an event equals total momentum after, provided no net external force acts.
Marking: 1 mark for system/condition, 1 mark for before=after statement.

Q2 [2 marks]

$F = ma \Rightarrow a = F/m = 6.0 / 2.0 = 3.0\ \text{m s}^{-2}$
2 marks for correct substitution and answer with unit.

Q3 [1 mark]

Moment = $F \times d = 10 \times 0.40 = 4.0\ \text{N m}$
1 mark for correct value and unit.

Q4 [2 marks]

$v_x = 20 \cos 30^\circ = 17.3\ \text{m s}^{-1}$
$v_y = 20 \sin 30^\circ = 10.0\ \text{m s}^{-1}$
1 mark each component.

Q5 [2 marks]

$s = \frac{1}{2}(u+v)t \Rightarrow 100 = \frac{1}{2}(0+v)(8) \Rightarrow v = 25\ \text{m s}^{-1}$
2 marks for use of equation and correct answer.

Section B: Motion, Collisions and Circular Motion (Q6–13) [24 marks]

Q6 [2 marks]

$v^2 = u^2 + 2as \Rightarrow 0 = 15^2 - 2(9.8)h \Rightarrow h = 225 / 19.6 = 11.5\ \text{m}$
2 marks: 1 for equation, 1 for answer.

Q7 [3 marks]

(a) $s = \frac{1}{2}gt^2 \Rightarrow 45 = 4.9 t^2 \Rightarrow t = 3.03\ \text{s}$ [2]
(b) $x = vt = 20 \times 3.03 = 60.6\ \text{m}$ [1]

Q8 [3 marks]

Conservation of momentum: $m_A u_A + m_B u_B = (m_A+m_B)v$
$1.5(4.0) + 0 = 2.5 v \Rightarrow v = 6.0/2.5 = 2.4\ \text{m s}^{-1}$
3 marks: 1 setup, 1 substitution, 1 answer.

Q9 [3 marks]

$\Delta p = m(v_f - v_i) = 0.20(-8.0 - 10) = -3.6\ \text{kg m s}^{-1}$
Magnitude $F_{avg} = |\Delta p|/\Delta t = 3.6 / 0.050 = 72\ \text{N}$
3 marks: 1 momentum change, 1 division, 1 answer.

Q10 [3 marks]

(a) $\omega = 2\pi f = 2\pi(4.0) = 25.1\ \text{rad s}^{-1}$ [1]
(b) $F = m r \omega^2 = 0.50(0.80)(25.1)^2 = 252\ \text{N}$ [2]

Q11 [2 marks]

$F = mv^2/r = 1200(20)^2/50 = 9600\ \text{N}$
2 marks for method and answer.

Q12 [3 marks]

Area = triangle (0–4s): $\frac{1}{2}(4)(12)=24\ \text{m}$
Rectangle (4–10s): $6 \times 12 = 72\ \text{m}$
Triangle (10–12s): $\frac{1}{2}(2)(12)=12\ \text{m}$
Total = $108\ \text{m}$
3 marks: 1 each segment or 1 setup +2 answer.

Q13 [2 marks]

$\omega = 2\pi/T = 2\pi/2.0 = 3.14\ \text{rad s}^{-1}$
2 marks for formula and answer.

Section C: Gravitation, Oscillations and Extended Reasoning (Q14–20) [24 marks]

Q14 [2 marks]

Newton's law: Force between two point masses is proportional to product of masses and inversely proportional to square of distance between them, directed along line joining them.
2 marks: 1 proportion, 1 inverse-square/direction.

Q15 [2 marks]

$F = G m_1 m_2 / r^2 = (6.67\times10^{-11})(5)(10)/(2^2) = 8.34\times10^{-10}\ \text{N}$
2 marks: 1 substitution, 1 answer.

Q16 [2 marks]

$g = GM/r^2 = (6.67\times10^{-11})(6.0\times10^{24})/(4.2\times10^7)^2 = 0.227\ \text{N kg}^{-1}$
2 marks: 1 method, 1 answer.

Q17 [2 marks]

$a_{max} = \omega^2 X_0 = (1.57)^2(0.050) = 0.123\ \text{m s}^{-2}$
2 marks: 1 formula, 1 answer.

Q18 [4 marks]

(a) $\omega = \sqrt{k/m} = \sqrt{80/0.20} = 20\ \text{rad s}^{-1}$ [2]
(b) $E_{k,max} = \frac{1}{2} m \omega^2 X_0^2 = \frac{1}{2}(0.20)(20)^2(0.10)^2 = 0.40\ \text{J}$ [2]

Q19 [4 marks]

Precaution 1: Measure length from support to centre of bob using metre ruler at eye level to avoid parallax. [2]
Precaution 2: Use small angle (<10°) so motion approximates SHM; displace gently. [2]
Other valid: repeat and average, secure clamp.

Q20 [6 marks]

Evaluation: Statement partially correct. Momentum conserved in ALL collisions (isolated system). KE conserved only in elastic; inelastic loses KE to heat/sound. [3]
Use principle: total p before = total p after always. [1]
Energy: elastic → KE conserved; inelastic → total energy conserved but KE decreases. [2]
Marking descriptors: 6 = clear, correct, examples; 4 = mostly correct; 2 = partial.
