A Level H1 Mathematics Graphs Coordinate Geometry Quiz

A-Level Maths H1 Quiz - Graphs Coordinate Geometry: Answer Key

Total Marks: 50

---

Section A: Short Questions (Questions 1–5, 2 marks each)

1. [2 marks] Answer: $y = -5$

Explanation: The equation is $y = 3e^{2x} - 5$. The term $e^{2x}$ approaches 0 as $x \to -\infty$ (exponential decay). Therefore, $3e^{2x} \to 0$, and $y \to -5$. The horizontal asymptote is the line that the curve approaches but never reaches, which is $y = -5$.

Marking Notes:

• 1 mark for identifying that $e^{2x} \to 0$ as $x \to -\infty$
• 1 mark for correct answer $y = -5$

---

2. [2 marks] Answer: The graph of $y = \ln(x - 2)$ has:

• Vertical asymptote at $x = 2$
• $x$-intercept at $(3, 0)$

Explanation: The function $y = \ln(x - 2)$ is defined only when $x - 2 > 0$, i.e., $x > 2$. The vertical asymptote occurs where the argument of the logarithm is zero, so $x - 2 = 0 \Rightarrow x = 2$. The $x$-intercept occurs when $y = 0$: $\ln(x - 2) = 0 \Rightarrow x - 2 = 1 \Rightarrow x = 3$. So the intercept is at $(3, 0)$.

Marking Notes:

• 1 mark for correct vertical asymptote at $x = 2$
• 1 mark for correct $x$-intercept at $(3, 0)$

---

3. [2 marks] Answer: $a = -3$, $b = 2$

Explanation: For $y = \frac{1}{x+3} + 2$:

• Vertical asymptote occurs when the denominator is zero: $x + 3 = 0 \Rightarrow x = -3$. So $a = -3$.
• Horizontal asymptote: as $x \to \pm\infty$, $\frac{1}{x+3} \to 0$, so $y \to 2$. So $b = 2$.

Marking Notes:

• 1 mark for $a = -3$
• 1 mark for $b = 2$

---

4. [2 marks] Answer: $-\frac{1}{2} < x < 3$

Explanation: Solve $2x^2 - 5x - 3 < 0$. Factorise: $(2x + 1)(x - 3) < 0$. The roots are $x = -\frac{1}{2}$ and $x = 3$. For a quadratic with positive leading coefficient, the expression is negative between the roots. Therefore, $-\frac{1}{2} < x < 3$.

Marking Notes:

• 1 mark for correct factorisation or use of quadratic formula
• 1 mark for correct inequality range

---

5. [2 marks] Answer: Translation of 2 units in the positive $x$-direction and 1 unit in the positive $y$-direction.

Explanation: The transformation $y = f(x - 2) + 1$ involves:

• $f(x - 2)$: replacing $x$ with $(x - 2)$ shifts the graph 2 units to the right (positive $x$-direction).
• $+1$: adding 1 to the function shifts the graph 1 unit upward (positive $y$-direction).

Marking Notes:

• 1 mark for horizontal translation of 2 units right
• 1 mark for vertical translation of 1 unit up

---

Section B: Structured Questions (Questions 6–15, 3 marks each)

6. [3 marks] Answer: $y = -e^x + 3$

Explanation: Starting with $y = e^x$:

• Reflection in the $x$-axis: multiply the function by $-1$, giving $y = -e^x$.
• Translation 3 units in the positive $y$-direction: add 3 to the function, giving $y = -e^x + 3$.

Marking Notes:

• 1 mark for reflection: $y = -e^x$
• 1 mark for translation: $+3$
• 1 mark for final answer $y = -e^x + 3$

---

7. [3 marks] Answer: (a) Vertical asymptote: $x = -1$, Horizontal asymptote: $y = 2$ (b) $x$-intercept: $\left(\frac{1}{2}, 0\right)$, $y$-intercept: $(0, -1)$

Explanation: (a) For $y = \frac{2x - 1}{x + 1}$:

• Vertical asymptote: denominator $= 0 \Rightarrow x + 1 = 0 \Rightarrow x = -1$.
• Horizontal asymptote: as $x \to \pm\infty$, $y \to \frac{2x}{x} = 2$. So $y = 2$.

(b) $x$-intercept: set $y = 0 \Rightarrow \frac{2x - 1}{x + 1} = 0 \Rightarrow 2x - 1 = 0 \Rightarrow x = \frac{1}{2}$. Point: $\left(\frac{1}{2}, 0\right)$. $y$-intercept: set $x = 0 \Rightarrow y = \frac{2(0) - 1}{0 + 1} = -1$. Point: $(0, -1)$.

Marking Notes:

• 1 mark for both asymptotes correct
• 1 mark for $x$-intercept
• 1 mark for $y$-intercept

---

8. [3 marks] Answer: The graph is stretched parallel to the $x$-axis with scale factor $\frac{1}{3}$. The new $x$-intercept is $\left(\frac{1}{3}, 0\right)$.

Explanation: $y = \ln(3x)$ can be written as $y = \ln(3) + \ln(x)$, but it's more useful to think of it as $y = \ln(x)$ with $x$ replaced by $3x$. This is a horizontal stretch with scale factor $\frac{1}{3}$ (because $x$ is multiplied by 3, the graph is compressed horizontally).

For the $x$-intercept: $\ln(3x) = 0 \Rightarrow 3x = 1 \Rightarrow x = \frac{1}{3}$.

Marking Notes:

• 1 mark for identifying horizontal stretch with scale factor $\frac{1}{3}$
• 1 mark for correct description
• 1 mark for correct $x$-intercept

---

9. [3 marks] Answer: $(1, 3)$ and $(2, 5)$

Explanation: $y = x^2 - 2x + 3$ and $y = 2x + 1$. Equate: $x^2 - 2x + 3 = 2x + 1$ $x^2 - 4x + 2 = 0$ Using quadratic formula: $x = \frac{4 \pm \sqrt{16 - 8}}{2} = \frac{4 \pm \sqrt{8}}{2} = \frac{4 \pm 2\sqrt{2}}{2} = 2 \pm \sqrt{2}$.

Wait, let me re-check: $x^2 - 4x + 2 = 0$ $x = \frac{4 \pm \sqrt{16 - 8}}{2} = \frac{4 \pm \sqrt{8}}{2} = \frac{4 \pm 2\sqrt{2}}{2} = 2 \pm \sqrt{2}$.

Let me re-solve: $x^2 - 2x + 3 = 2x + 1$ $x^2 - 4x + 2 = 0$ $x = \frac{4 \pm \sqrt{16 - 8}}{2} = \frac{4 \pm \sqrt{8}}{2} = \frac{4 \pm 2\sqrt{2}}{2} = 2 \pm \sqrt{2}$.

When $x = 2 + \sqrt{2}$, $y = 2(2 + \sqrt{2}) + 1 = 5 + 2\sqrt{2}$. When $x = 2 - \sqrt{2}$, $y = 2(2 - \sqrt{2}) + 1 = 5 - 2\sqrt{2}$.

So the intersection points are $(2 + \sqrt{2}, 5 + 2\sqrt{2})$ and $(2 - \sqrt{2}, 5 - 2\sqrt{2})$.

Marking Notes:

• 1 mark for setting up equation
• 1 mark for solving quadratic
• 1 mark for both pairs of coordinates

---

10. [3 marks] Answer: $k > 2$

Explanation: For $kx^2 - 4x + k$ to be always positive for all real $x$:

1. The coefficient of $x^2$ must be positive: $k > 0$.
2. The discriminant must be negative (no real roots): $b^2 - 4ac < 0$.

Discriminant: $(-4)^2 - 4(k)(k) = 16 - 4k^2 < 0$ $4k^2 > 16$ $k^2 > 4$ $k < -2$ or $k > 2$

Combining with $k > 0$: $k > 2$.

Marking Notes:

• 1 mark for condition $k > 0$
• 1 mark for discriminant $< 0$
• 1 mark for final answer $k > 2$

---

11. [3 marks] Answer: Horizontal asymptote at $y = 1$, $y$-intercept at $(0, 2)$.

Explanation: For $y = e^{-x} + 1$:

• As $x \to \infty$, $e^{-x} \to 0$, so $y \to 1$. Horizontal asymptote: $y = 1$.
• As $x \to -\infty$, $e^{-x} \to \infty$, so $y \to \infty$.
• $y$-intercept: set $x = 0 \Rightarrow y = e^0 + 1 = 1 + 1 = 2$. Point: $(0, 2)$.

The graph is an exponential decay curve shifted up by 1 unit.

Marking Notes:

• 1 mark for correct asymptote $y = 1$
• 1 mark for correct $y$-intercept $(0, 2)$
• 1 mark for correct shape (decay curve approaching asymptote from above)

---

12. [3 marks] Answer: $x \leq -1$ or $x > 2$

Explanation: Solve $\frac{x+1}{x-2} \geq 0$. Critical points: numerator $= 0$ at $x = -1$, denominator $= 0$ at $x = 2$ (vertical asymptote).

Consider intervals:

• $x < -1$: $x+1 < 0$, $x-2 < 0$, so fraction $> 0$ (negative ÷ negative = positive). ✓
• $-1 < x < 2$: $x+1 > 0$, $x-2 < 0$, so fraction $< 0$. ✗
• $x > 2$: $x+1 > 0$, $x-2 > 0$, so fraction $> 0$. ✓

At $x = -1$: fraction $= 0$, so included ($\geq$). At $x = 2$: undefined, so not included.

Therefore: $x \leq -1$ or $x > 2$.

Marking Notes:

• 1 mark for identifying critical points
• 1 mark for testing intervals
• 1 mark for correct answer with proper inequality signs

---

13. [3 marks] Answer: $a = -1$, $b = 10$

Explanation: Original point: $(2, 5)$.

• Translation 3 units in the negative $x$-direction: subtract 3 from $x$-coordinate. New point: $(2 - 3, 5) = (-1, 5)$.
• Stretch parallel to $y$-axis with scale factor 2: multiply $y$-coordinate by 2. New point: $(-1, 5 \times 2) = (-1, 10)$.

So $a = -1$ and $b = 10$.

Marking Notes:

• 1 mark for translation
• 1 mark for stretch
• 1 mark for final coordinates

---

14. [3 marks] Answer: $x = \ln 2$ or $x = \ln 3$

Explanation: $e^{2x} - 5e^x + 6 = 0$ Let $u = e^x$. Then $u^2 - 5u + 6 = 0$. $(u - 2)(u - 3) = 0$ $u = 2$ or $u = 3$ $e^x = 2$ or $e^x = 3$ $x = \ln 2$ or $x = \ln 3$

Marking Notes:

• 1 mark for substitution $u = e^x$
• 1 mark for solving quadratic
• 1 mark for final answers in exact form

---

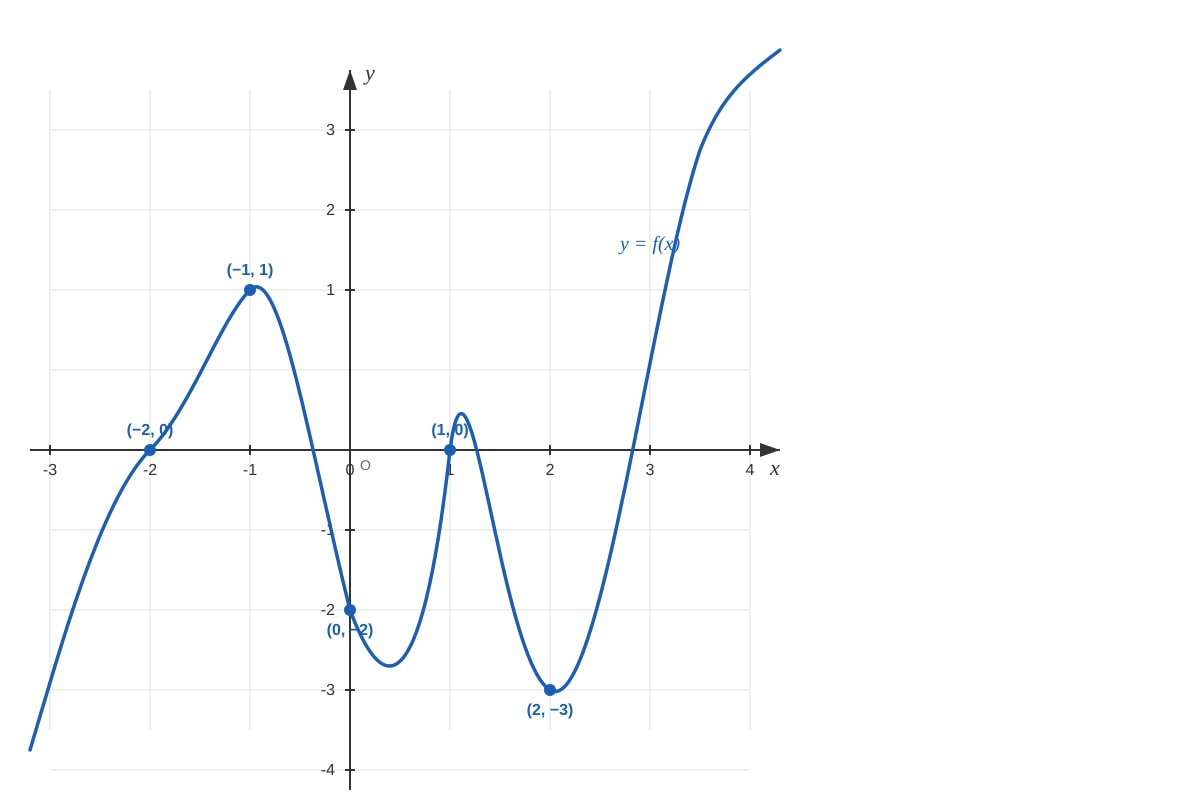

15. [3 marks] Answer: (a) $y = f(x) + 2$: The graph is translated 2 units upward. Key points shift: $(-2, 0) \to (-2, 2)$, $(1, 0) \to (1, 2)$, $(0, -2) \to (0, 0)$, $(-1, 1) \to (-1, 3)$, $(2, -3) \to (2, -1)$.

(b) $y = f(x + 1)$: The graph is translated 1 unit to the left. Key points shift: $(-2, 0) \to (-3, 0)$, $(1, 0) \to (0, 0)$, $(0, -2) \to (-1, -2)$, $(-1, 1) \to (-2, 1)$, $(2, -3) \to (1, -3)$.

Explanation: (a) Adding 2 to the function shifts every point vertically upward by 2 units. (b) Replacing $x$ with $(x + 1)$ shifts the graph 1 unit to the left (because to get the same output, $x$ must be 1 less than before).

Marking Notes:

• 1 mark for correct sketch of (a) with key points shifted up
• 2 marks for correct sketch of (b) with key points shifted left

---

Section C: Extended Response Questions (Questions 16–20, 4 marks each)

16. [4 marks] Answer: (a) Vertical asymptote: $x = 1$, Horizontal asymptote: $y = 3$ (b) $x$-intercept: $\left(-\frac{2}{3}, 0\right)$, $y$-intercept: $(0, -2)$ (c) Sketch showing asymptotes as dashed lines and curve approaching them.

Explanation: (a) For $y = \frac{3x + 2}{x - 1}$:

• Vertical asymptote: $x - 1 = 0 \Rightarrow x = 1$.
• Horizontal asymptote: as $x \to \pm\infty$, $y \to \frac{3x}{x} = 3$.

(b) $x$-intercept: $y = 0 \Rightarrow \frac{3x + 2}{x - 1} = 0 \Rightarrow 3x + 2 = 0 \Rightarrow x = -\frac{2}{3}$. $y$-intercept: $x = 0 \Rightarrow y = \frac{3(0) + 2}{0 - 1} = -2$.

(c) The curve has two branches. For $x > 1$, the curve approaches the asymptotes from above. For $x < 1$, the curve approaches the asymptotes from below.

Marking Notes:

• 1 mark for both asymptotes
• 1 mark for both intercepts
• 2 marks for correct sketch showing asymptotes and shape

---

17. [4 marks] Answer: (a) Graph of $y = \ln(x + 2)$: vertical asymptote at $x = -2$, $x$-intercept at $(-1, 0)$. (b) $f^{-1}(x) = e^x - 2$, domain of $f^{-1}$ is all real numbers.

Explanation: (a) $f(x) = \ln(x + 2)$ for $x > -2$.

• Vertical asymptote: $x + 2 = 0 \Rightarrow x = -2$.
• $x$-intercept: $\ln(x + 2) = 0 \Rightarrow x + 2 = 1 \Rightarrow x = -1$.

(b) To find $f^{-1}$: $y = \ln(x + 2)$. Swap $x$ and $y$: $x = \ln(y + 2)$. $e^x = y + 2$ $y = e^x - 2$ So $f^{-1}(x) = e^x - 2$. The domain of $f^{-1}$ is the range of $f$, which is all real numbers (since $\ln$ can output any real number). The graph of $f^{-1}$ is the reflection of $f$ in the line $y = x$.

Marking Notes:

• 2 marks for correct sketch of $f$ with asymptote and intercept
• 1 mark for correct expression of $f^{-1}$
• 1 mark for correct sketch of $f^{-1}$ and domain

---

18. [4 marks] Answer: (a) Stationary points: $(-1, 10)$ (local maximum), $(3, -22)$ (local minimum). (b) Sketch showing cubic shape with two turning points.

Explanation: (a) $y = x^3 - 3x^2 - 9x + 5$ $\frac{dy}{dx} = 3x^2 - 6x - 9 = 3(x^2 - 2x - 3) = 3(x - 3)(x + 1)$ Set $\frac{dy}{dx} = 0$: $x = 3$ or $x = -1$.

When $x = -1$: $y = (-1)^3 - 3(1) - 9(-1) + 5 = -1 - 3 + 9 + 5 = 10$. When $x = 3$: $y = 27 - 27 - 27 + 5 = -22$.

Nature: $\frac{d^2y}{dx^2} = 6x - 6$. At $x = -1$: $\frac{d^2y}{dx^2} = -12 < 0$, so local maximum. At $x = 3$: $\frac{d^2y}{dx^2} = 12 > 0$, so local minimum.

(b) The cubic has positive leading coefficient, so it goes from bottom-left to top-right. It crosses the $y$-axis at $(0, 5)$.

Marking Notes:

• 1 mark for finding $\frac{dy}{dx}$ and setting to zero
• 1 mark for coordinates of stationary points
• 1 mark for determining nature
• 1 mark for sketch

---

19. [4 marks] Answer: (a) First: translation of 1 unit in the positive $x$-direction ($2^{x-1}$). Second: translation of 3 units in the positive $y$-direction ($+3$). (b) $y = 3$ (c) $(0, 5)$

Explanation: (a) Starting from $y = 2^x$:

• $y = 2^{x-1}$: replacing $x$ with $(x-1)$ shifts the graph 1 unit to the right.
• $y = 2^{x-1} + 3$: adding 3 shifts the graph 3 units upward.

(b) For $y = 2^x$, the horizontal asymptote is $y = 0$. After translation 3 units up, the asymptote becomes $y = 3$.

(c) $y$-intercept: set $x = 0 \Rightarrow y = 2^{0-1} + 3 = 2^{-1} + 3 = \frac{1}{2} + 3 = 3.5$.

Wait, let me recalculate: $y = 2^{x-1} + 3$. At $x = 0$: $y = 2^{-1} + 3 = \frac{1}{2} + 3 = 3.5$.

So the $y$-intercept is $(0, 3.5)$.

Marking Notes:

• 2 marks for correct description of transformations in order
• 1 mark for correct asymptote
• 1 mark for correct $y$-intercept

---

20. [4 marks] Answer: $a = 3$, $b = -2$, $c = -2$

Explanation: $y = \frac{ax + b}{x + c}$

1. Vertical asymptote at $x = 2$: denominator $= 0$ at $x = 2$, so $x + c = 0 \Rightarrow 2 + c = 0 \Rightarrow c = -2$.

2. Horizontal asymptote at $y = 3$: as $x \to \pm\infty$, $y \to \frac{ax}{x} = a$. So $a = 3$.

3. Passes through $(0, 1)$: substitute $x = 0$, $y = 1$: $1 = \frac{3(0) + b}{0 + (-2)} = \frac{b}{-2}$ $b = -2$.

Therefore $a = 3$, $b = -2$, $c = -2$.

Check: $y = \frac{3x - 2}{x - 2}$.

• Vertical asymptote: $x = 2$ ✓
• Horizontal asymptote: $y = 3$ ✓
• At $x = 0$: $y = \frac{-2}{-2} = 1$ ✓

Marking Notes:

• 1 mark for finding $c$ from vertical asymptote
• 1 mark for finding $a$ from horizontal asymptote
• 1 mark for finding $b$ using point
• 1 mark for verification or correct final answer

---

Total Marks: 50
