Questions

A-Level Maths H1 Quiz - Graphs Coordinate Geometry

Name: ________________________
Class: ________________________
Date: ________________________
Score: ________ / 40

Duration: 60 minutes
Total Marks: 40
Topic: Graphs & Coordinate Geometry

Instructions:

Answer all 20 questions.
Show your working clearly where required.
Use a graphing calculator where appropriate.
Write your answers in the spaces provided.

Section A: Graph Sketching and Features (Questions 1–5)

1. [2 marks] Sketch the graph of $y = e^x - 2$ , stating the coordinates of the $y$ -intercept and the equation of the horizontal asymptote.

2. [2 marks] The curve $y = \ln(x + 3)$ has a vertical asymptote. State its equation and the coordinates of the $x$ -intercept.

3. [2 marks] On the same axes, sketch $y = 2^x$ and $y = 4 - x$ . Hence state the number of points of intersection.

4. [2 marks] Given $y = \frac{1}{x - 1} + 3$ , write down the equations of the vertical and horizontal asymptotes.

5. [2 marks] The function $f(x) = e^{-x}$ is transformed to $g(x) = e^{-x} + 5$ . Describe the transformation and state the new horizontal asymptote.

Section B: Equations and Inequalities (Questions 6–10)

6. [2 marks] Find the range of values of $k$ for which the equation $x^2 + kx + 4 = 0$ has no real roots.

7. [2 marks] Solve the inequality $x^2 - 5x + 6 < 0$ using an analytical method.

8. [3 marks] Solve the simultaneous equations $y = 2x + 1$ and $y = x^2 + 3x - 4$ by substitution, giving your answers as coordinates.

9. [2 marks] Using a graphing calculator, find the approximate solution of $e^x = x^2 + 1$ in the interval $x > 0$ . Give your answer to 2 decimal places.

10. [2 marks] State the condition for $3x^2 - 6x + k$ to be always positive for all real $x$ .

Section C: Coordinate Geometry (Questions 11–15)

11. [2 marks] Find the gradient of the line passing through $(1, 3)$ and $(4, 11)$ .

12. [2 marks] Find the equation of the line perpendicular to $y = 2x + 5$ that passes through $(0, -3)$ .

13. [3 marks] Find the coordinates of the midpoint and the length of the line segment joining $A(-2, 4)$ and $B(6, -2)$ .

14. [2 marks] A circle has centre $(3, -1)$ and radius $5$ . Write down its equation in the form $(x - a)^2 + (y - b)^2 = r^2$ .

15. [2 marks] Determine whether the point $(5, 2)$ lies inside, on, or outside the circle $(x - 1)^2 + (y - 2)^2 = 16$ .

Section D: Interpretation and Application (Questions 16–20)

16. [2 marks] The table below shows values of $x$ and $y$ . Give a sketch of the scatter diagram for the data as shown on your calculator.

$x$	1	2	3	4	5
$y$	2	4	5	7	8

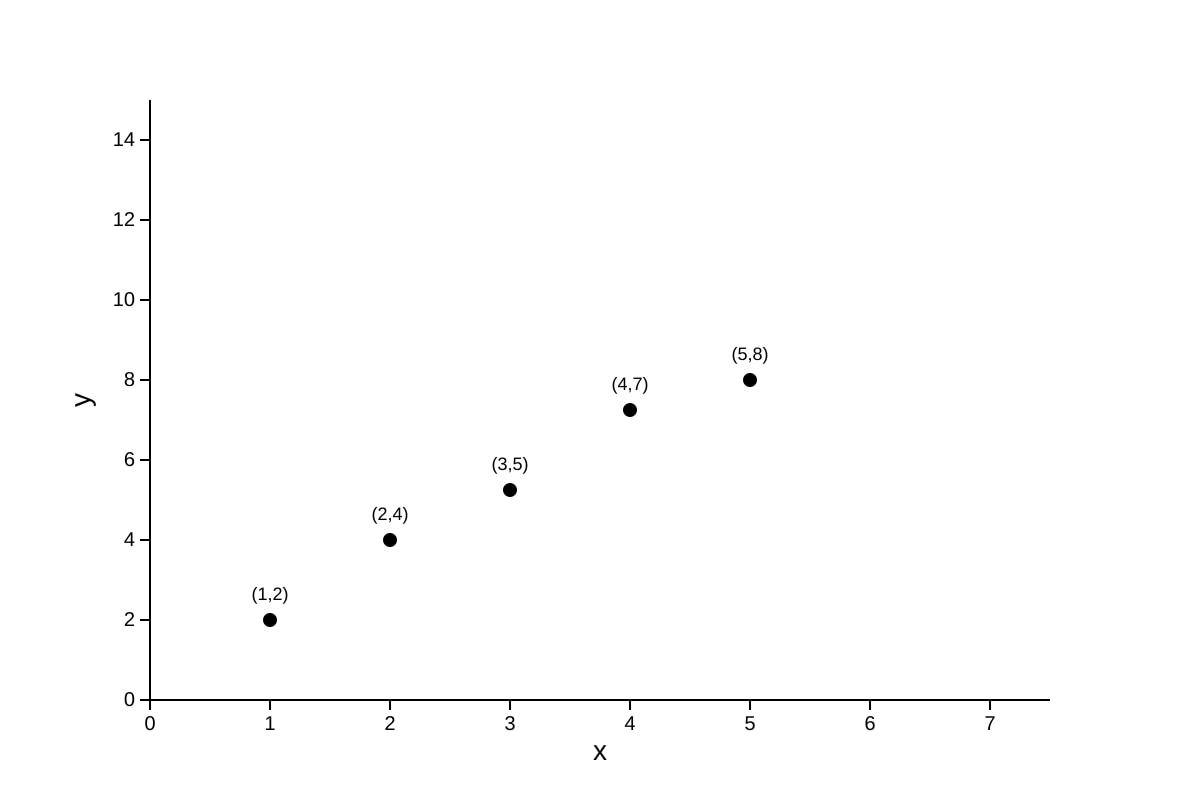

Scatter Diagram for Q16 (ALEVEL Maths H1)

Generated scatter_diagram for Q16.

17. [2 marks] From the scatter diagram in Q16, comment on the type of correlation between $x$ and $y$ .

18. [3 marks] The curve $C$ has equation $y = x^2 - 4x + 3$ . Find the coordinates of the $x$ -intercepts and the vertex of $C$ .

19. [2 marks] Sketch the graph of $y = |x - 2|$ and state the coordinates of the vertex.

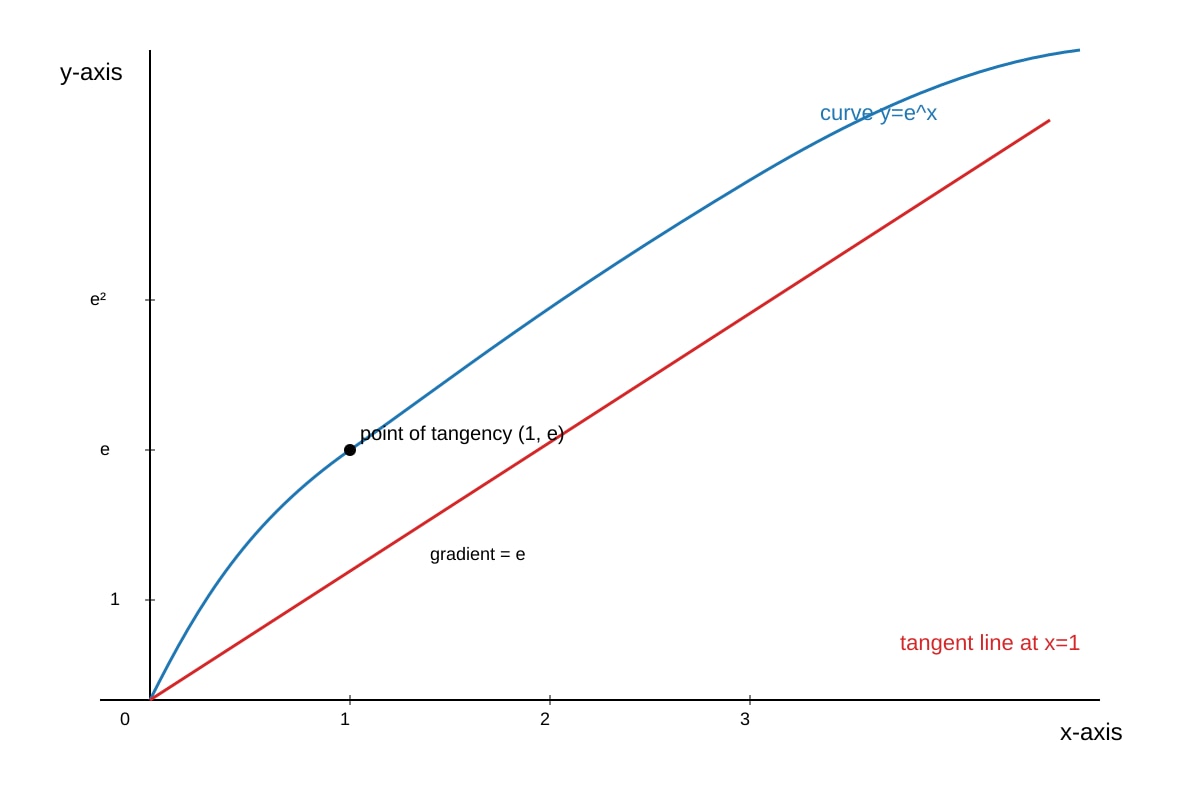

20. [3 marks] The diagram shows the line $y = mx + c$ intersecting the curve $y = e^x$ at one point. Using a graphing calculator, find the approximate value of $m$ if the line is tangent to the curve at $x = 1$ .

Graph for Q20 (ALEVEL Maths H1)

Generated graph for Q20.

Free quiz and exam paper access

Enter your details to view this paper

Your access is remembered on this device.

Answers

A-Level Maths H1 Quiz - Graphs Coordinate Geometry (Answer Key)

Total Marks: 40
Topic: Graphs & Coordinate Geometry

Section A: Graph Sketching and Features

1. [2 marks]

$y$ -intercept: set $x = 0$ , $y = e^0 - 2 = 1 - 2 = -1$ → $(0, -1)$ .
Horizontal asymptote: as $x \to -\infty$ , $e^x \to 0$ , so $y \to -2$ . Equation: $y = -2$ .
Teaching note: Exponential $e^x$ shifted down by 2; asymptote moves with the shift.
Marking: 1 mark for intercept, 1 mark for asymptote.

2. [2 marks]

Vertical asymptote: $x + 3 = 0 \Rightarrow x = -3$ .
$x$ -intercept: set $y = 0$ , $\ln(x+3)=0 \Rightarrow x+3=1 \Rightarrow x=-2$ → $(-2, 0)$ .
Teaching note: Log graph undefined left of vertical asymptote; intercept where log = 0.
Marking: 1 mark each.

3. [2 marks]

Sketch: $y=2^x$ rising curve through $(0,1)$ ; $y=4-x$ straight line through $(0,4),(4,0)$ .
Intersections: one (by graph/GC).
Teaching note: Use GC to trace; they meet once in first quadrant.
Marking: 1 for sketch, 1 for number.

4. [2 marks]

Vertical: $x - 1 = 0 \Rightarrow x = 1$ .
Horizontal: $y = 3$ .
Teaching note: Reciprocal shifted right 1, up 3.
Marking: 1 each.

5. [2 marks]

Transformation: translation of 5 units upwards.
New asymptote: $y = 5$ .
Teaching note: Adding constant outside shifts graph vertically.
Marking: 1 each.

Section B: Equations and Inequalities

6. [2 marks]
No real roots ⇒ discriminant $< 0$ : $k^2 - 4(1)(4) < 0 \Rightarrow k^2 < 16 \Rightarrow -4 < k < 4$ .
Teaching note: Discriminant $b^2-4ac$ determines root nature.
Marking: 1 for discriminant, 1 for range.

7. [2 marks]
$x^2 - 5x + 6 < 0 \Rightarrow (x-2)(x-3) < 0 \Rightarrow 2 < x < 3$ .
Teaching note: Quadratic opens upward; negative between roots.
Marking: 1 factor, 1 interval.

8. [3 marks]
Substitute: $2x+1 = x^2+3x-4 \Rightarrow x^2+x-5=0$ .
$x = \frac{-1 \pm \sqrt{1+20}}{2} = \frac{-1 \pm \sqrt{21}}{2}$ .
$y = 2x+1$ gives $y = -1 \pm \sqrt{21} + 1 = \pm \sqrt{21}$ .
Coordinates: $\left(\frac{-1+\sqrt{21}}{2}, \sqrt{21}\right)$ , $\left(\frac{-1-\sqrt{21}}{2}, -\sqrt{21}\right)$ .
Marking: 1 substitution, 1 x-values, 1 y-values.

9. [2 marks]
GC: solve $e^x - x^2 - 1 = 0$ for $x>0$ → $x \approx 1.15$ (to 2 d.p.).
Teaching note: Use numeric solver.
Marking: 1 for method, 1 for value.

10. [2 marks]
Always positive ⇒ discriminant $< 0$ : $(-6)^2 - 4(3)(k) < 0 \Rightarrow 36 - 12k < 0 \Rightarrow k > 3$ .
Marking: 1 disc, 1 inequality.

Section C: Coordinate Geometry

11. [2 marks]
$m = \frac{11-3}{4-1} = \frac{8}{3}$ .
Teaching note: Gradient = rise/run.
Marking: 2 for correct.

12. [2 marks]
Perpendicular gradient = $-\frac{1}{2}$ . Through $(0,-3)$ : $y+3 = -\frac{1}{2}(x-0) \Rightarrow y = -\frac{1}{2}x - 3$ .
Marking: 1 grad, 1 eq.

13. [3 marks]
Midpoint: $\left(\frac{-2+6}{2}, \frac{4+(-2)}{2}\right) = (2, 1)$ .
Length: $\sqrt{(6+2)^2 + (-2-4)^2} = \sqrt{64+36} = \sqrt{100} = 10$ .
Marking: 1 mid x, 1 mid y, 1 length.

14. [2 marks]
$(x - 3)^2 + (y + 1)^2 = 25$ .
Marking: 1 form, 1 radius squared.

15. [2 marks]
Substitute: $(5-1)^2 + (2-2)^2 = 16 = 16$ ⇒ on the circle.
Marking: 1 sub, 1 conclusion.

Section D: Interpretation and Application

16. [2 marks]
Sketch: 5 points as per placeholder; axes labelled, positive slope.
Marking: 1 axes/labels, 1 points.

17. [2 marks]
Positive correlation (as $x$ increases, $y$ increases).
Marking: 2 for correct description.

18. [3 marks]
$x$ -intercepts: $x^2-4x+3=0 \Rightarrow (x-1)(x-3)=0 \Rightarrow (1,0),(3,0)$ .
Vertex: $x = -\frac{-4}{2} = 2$ , $y = 4-8+3 = -1$ ⇒ $(2,-1)$ .
Marking: 1 factors, 1 intercepts, 1 vertex.

19. [2 marks]
V-shape, vertex at $(2,0)$ .
Marking: 1 sketch, 1 vertex.

20. [3 marks]
At $x=1$ , $y=e$ . Gradient of tangent = derivative $e^x$ at $x=1$ = $e$ . So $m = e \approx 2.718$ .
Marking: 1 point, 1 derivative, 1 value.
